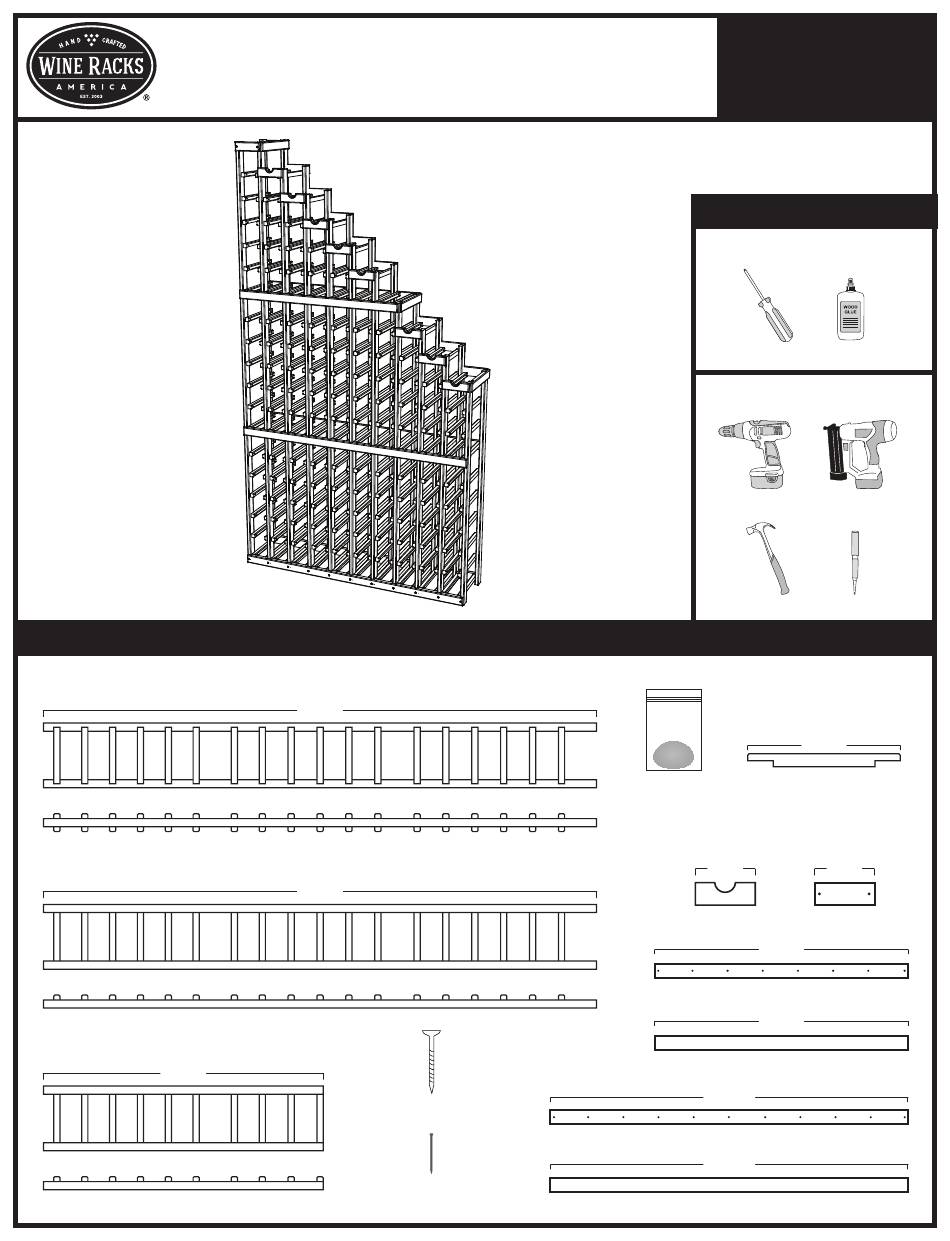

Waterfall Wine Cellar Kit
Assembly GUIDE
MIDDLE LADDER ASSEMBLIES (*VARIOUS LENGTHS) x 9
LONG LADDER ASSEMBLY (END PIECE) x 1
SHORT LADDER ASSEMBLY (END PIECE) x 1
39 3/4"
SIDE VIEW
SINGLE DEEP PACKAGE CONTENTS
77 1/8"
SIDE VIEW
77 1/8"
SIDE VIEW
WOOD SCREWS
FINISH NAILS
888.373.6057
wineracksamerica.com
Page 1
tools for assembly
Required
Screwdriver
Suggested
Cordless Drill
Hammer
HORIZONTAL TRIM PIECE x 3
SMALL BAG OF
WOOD PUTTY
1 COLUMN CONNECTOR
SCALLOPED x 8
4 5/8"
STANDARD 7 COLUMN CONNECTOR x 1
29 3/4"
SCREWLESS 7 COLUMN CONNECTOR x 1
29 3/4"
STANDARD 10 COLUMN CONNECTOR x 3
42 5/16"
SCREWLESS 10 COLUMN CONNECTOR x 1
42 5/16"
Questions?
or visit
Wood Glue
Finish Nailer
+
Nail Setter
9 9/16"
STANDARD x 10
4 5/8"
Advertisement
Related Manuals for Wine racks America Waterfall Wine Cellar Kit
Summary of Contents for Wine racks America Waterfall Wine Cellar Kit
- Page 1 Waterfall Wine Cellar Kit Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 1 tools for assembly Required Wood Glue Screwdriver Suggested Cordless Drill Finish Nailer Nail Setter Hammer SINGLE DEEP PACKAGE CONTENTS MIDDLE LADDER ASSEMBLIES (*VARIOUS LENGTHS) x 9 77 1/8"...
- Page 2 Waterfall Wine Cellar Kit Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 2 DOUBLE DEEP PACKAGE CONTENTS LONG LADDER ASSEMBLY MIDDLE LADDER ASSEMBLIES (END PIECE) x 1 (*VARIOUS LENGTHS) x 9 STANDARD 10 COLUMN CONNECTOR x 2 42 5/16" SCREWLESS 10 COLUMN CONNECTOR x 2 42 5/16"...
- Page 3 Waterfall Wine Cellar Kit Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 3 BEGIN WITH BACK 3. First attach the bottom 10 column connector OF RACK using the screws provided. Make sure that the bottom of the connector is flush with the bottom of the rack.
- Page 4 Waterfall Wine Cellar Kit Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 4 7. Begin securing the 1-column connectors. The rack should still be flat on the floor and not standing upright. * If you are assembling the Single Deep Waterfall Rack follow step 8 for the back of the rack and step 9 for the front.
- Page 5 Waterfall Wine Cellar Kit Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 5 10. Attach the (3) Horizontal Trim Pieces to the sides of the 1st, 7th and 10th column of the rack. (figure 7) The Trim Pieces should fit snugly between the two vertical risers pieces on each vertical ladder, simply attach the Trim Piece by putting a small finish nail or staple through each end of the Trim Piece securing it to both vertical risers.
