Phytec phyBOARD Wega AM335 Series Quick Start Manual

phyBOARD -Wega AM335x
®
Get your phyBOARD -Wega powered up and connected in just a few simple steps.
®

1) Preparing the Hardware

1. Have your connection cables at hand: You need an RS-232 cable (one-to-one) and a standard
Ethernet cable. Phytec offers an accessory kit which includes these cables.
2. Power up the phyBOARD-Wega. For the 24 V-kit version (A):
connector (included) to a 12 V-24 V ( ± 10 %) DC power supply.
Connect the 2-pin PHOENIX connector (included) to a 5 V ( ± 5 %)
For the 5 V-kit version (B):
DC power supply. In both cases please note the polarity of the connectors (see picture A/B)!
If you have bought the optional power supply with your kit, it comes already with the 2-pin connector wired.
3. Turn your power supply on and plug the 2-pin PHOENIX connector into the green jack of your kit.
The Power LED D58 will light up.
Please note: only the 24 V-kit version
comes with the power adapter board.
Germany France
PHYTEC Messtechnik GmbH PHYTEC France SARL
D-55129 Mainz F-72140 Sillé le Guillaume
t +49 6131 9221-32 t +33 2 43 29 22 33
f +49 6131 9221-33 f +33 2 43 29 22 34
www.phytec.de www.phytec.fr
www.phytec.eu
USA India
PHYTEC America LLC PHYTEC Embedded Pvt. Ltd.
Bainbridge Island, WA 98110 Koramangala
t +1 206 780 9047 Bangalore 560095
f +1 206 780 9135 t +91 80 408670-46/49
www.phytec.com www.phytec.in
Connect the 2-pin PHOENIX
12 V-24 V-kit version
5 V-kit version
+
A B
GND
+
GND
China
PHYTEC Information Technology Co. Ltd.
Nanshan District, Shenzhen
518026 PRC
t +86 755 6180 2110
www.phytec.cn

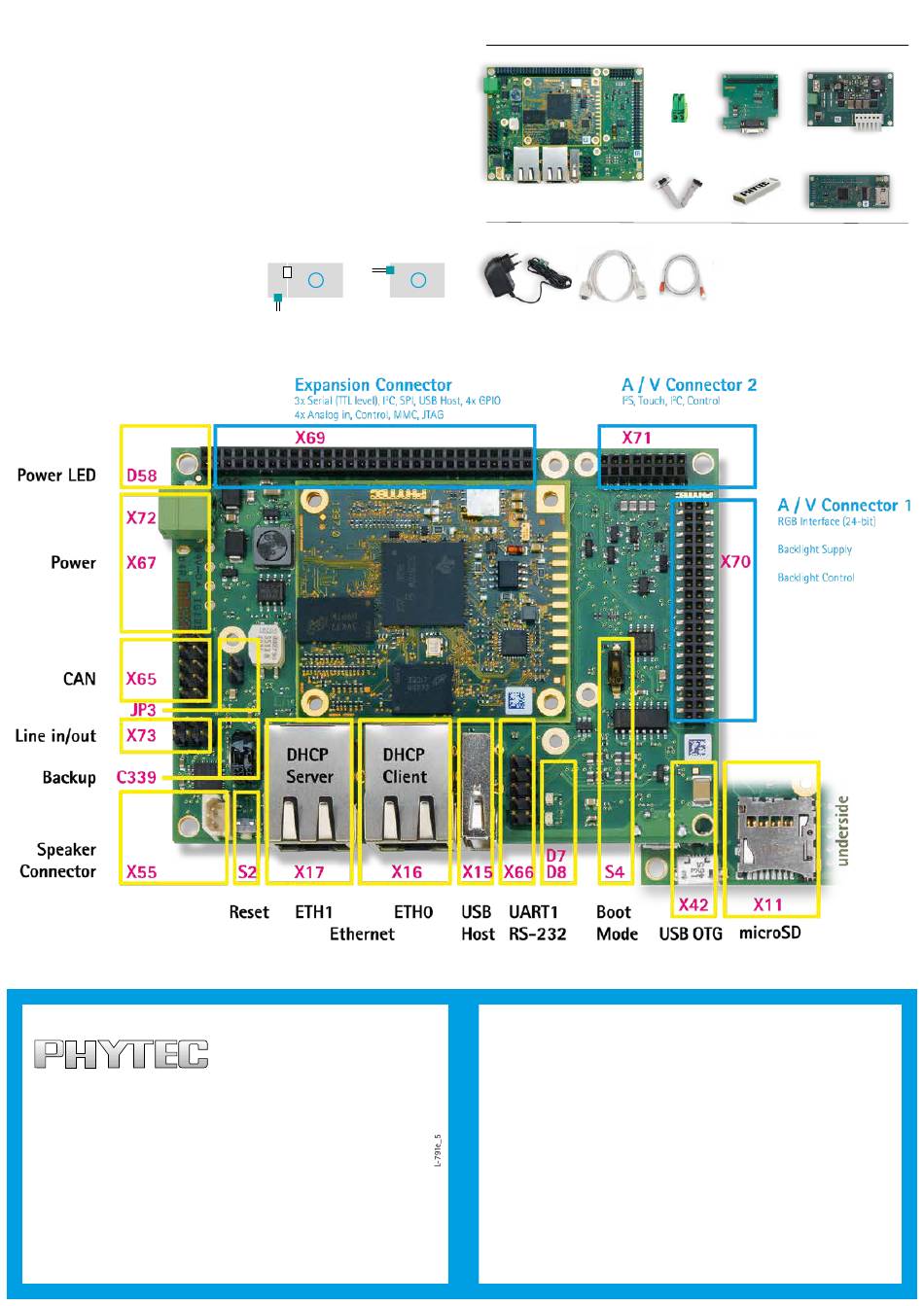

Kit Contents
phyBOARD-Wega AM335x 2-pin
PHOENIX
RS-232 and
CAN Adapter
Required Additional Equipment
Power Adapter 5 V or 24 V RS-232 Cable
Quick
Start
Guide
Optional Accessories
Evaluation Module Power Module 12 V-24 V
(PEB-EVAL-01) (PEB-POW-01)
USB Flash drive with HDMI Adapter
Virtual Machine (PEB-AV-01)
Ethernet Cable
