Paradox Esprit 738 Express+ Programming Manual

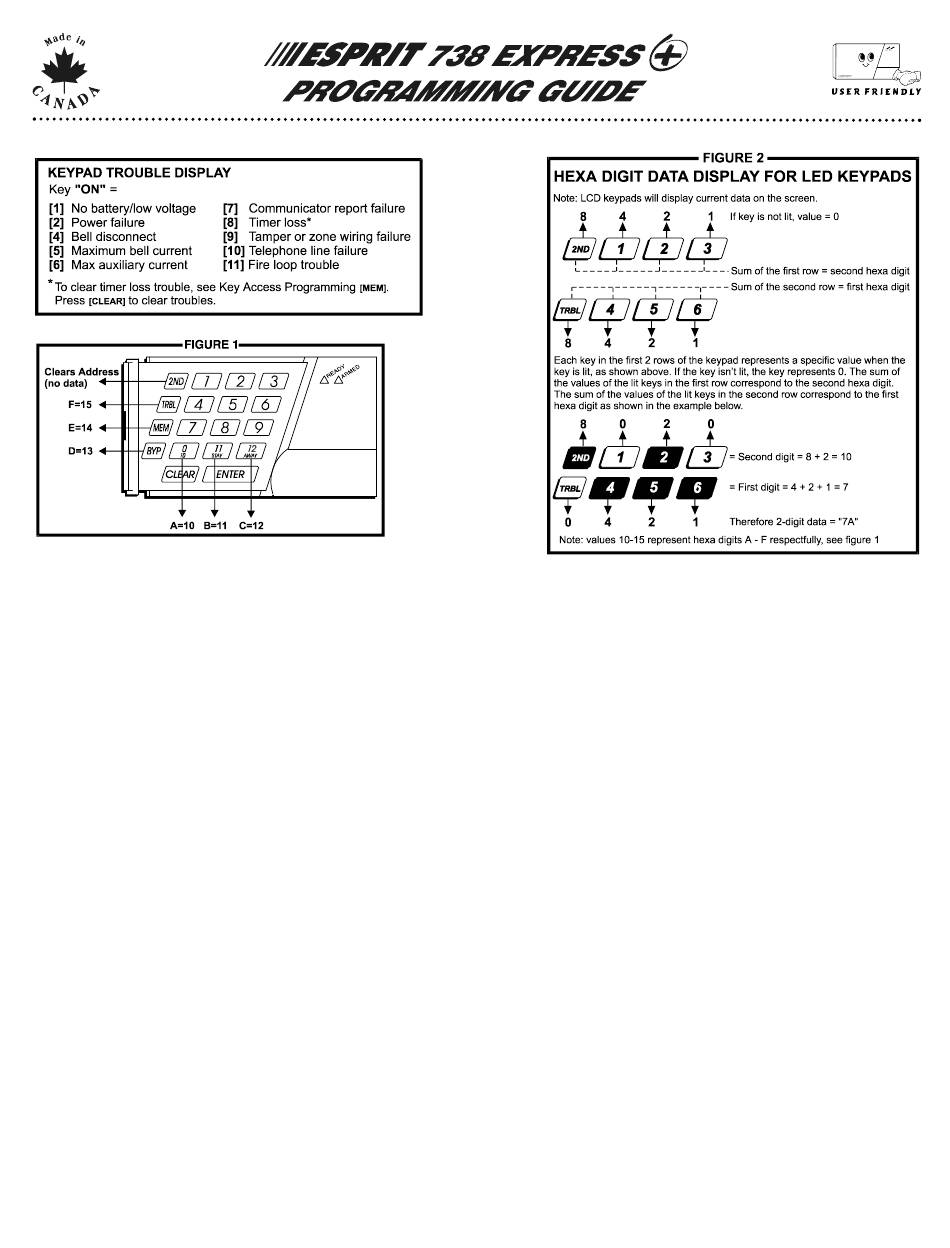

HEXA PROGRAMMING:
Addresses 000 to 043 and 300 to 527 are programmed using the Hexa Programming method. In this mode, you can enter
any hexa-digit from 0-F where keys [1] to [9] represent digits 1 to 9 respectively; the other keys represent hexa digits A to
F as shown in figure 1. To program using the Hexa Programming method:
1) Press [ ] + Installer Code (default: 737373)
ENTER
2) The [ ] key will flash indicating you are in programming mode
ENTER
3) Enter the desired 3-digit address
4) The keypad will display the 2-digit data currently saved at this address as described in figure 2
5) Enter 2-digit data; after entering data you do not need to press [
into the selected address
6) Return to step 2 or press [
STREAMLINED SECTION PROGRAMMING
This is an alternate method to Hexa Programming. The addresses (000-043 and 300-527) programmed in the Hexa
Programming method are grouped into 67 sections where each section contains four addresses (i.e. section 00 =
addresses 000-003). Using this method allows you to program 8 digits (4 addresses) without having to exit and re-enter
addresses. Note, the keypad will not display the current data in the Hexa Streamlined Programming method. To program
using the Hexa Streamlined Section method:
1) Press [ ] + Installer code (default: 737373) + [7]
ENTER
2) The [ ] and [2
ENTER ND
3) Enter 2-digit section (00-67)
4) The [ ] key will remain on while the [2
ENTER
5) Enter 8-digit data to program the section
6) The keypad will "beep" to indicate that the section has been programmed, data is saved and the software has
advanced to the next section
7) Return to step 4 or press [
INSTALLER CODE (Default
Full access to programming, except user access codes. No access to arming/disarming. Use only numeric keys from [1]
to [10]. (key [10] = 0)
SOFTWARE VERSION 3.10
] to exit programming mode
CLEAR
] keys will flash to indicate you are in programming mode
] key will be off
ND
] to exit programming mode
CLEAR
737373
)
], the software will automatically save the data
ENTER
1
38EPEP-05
