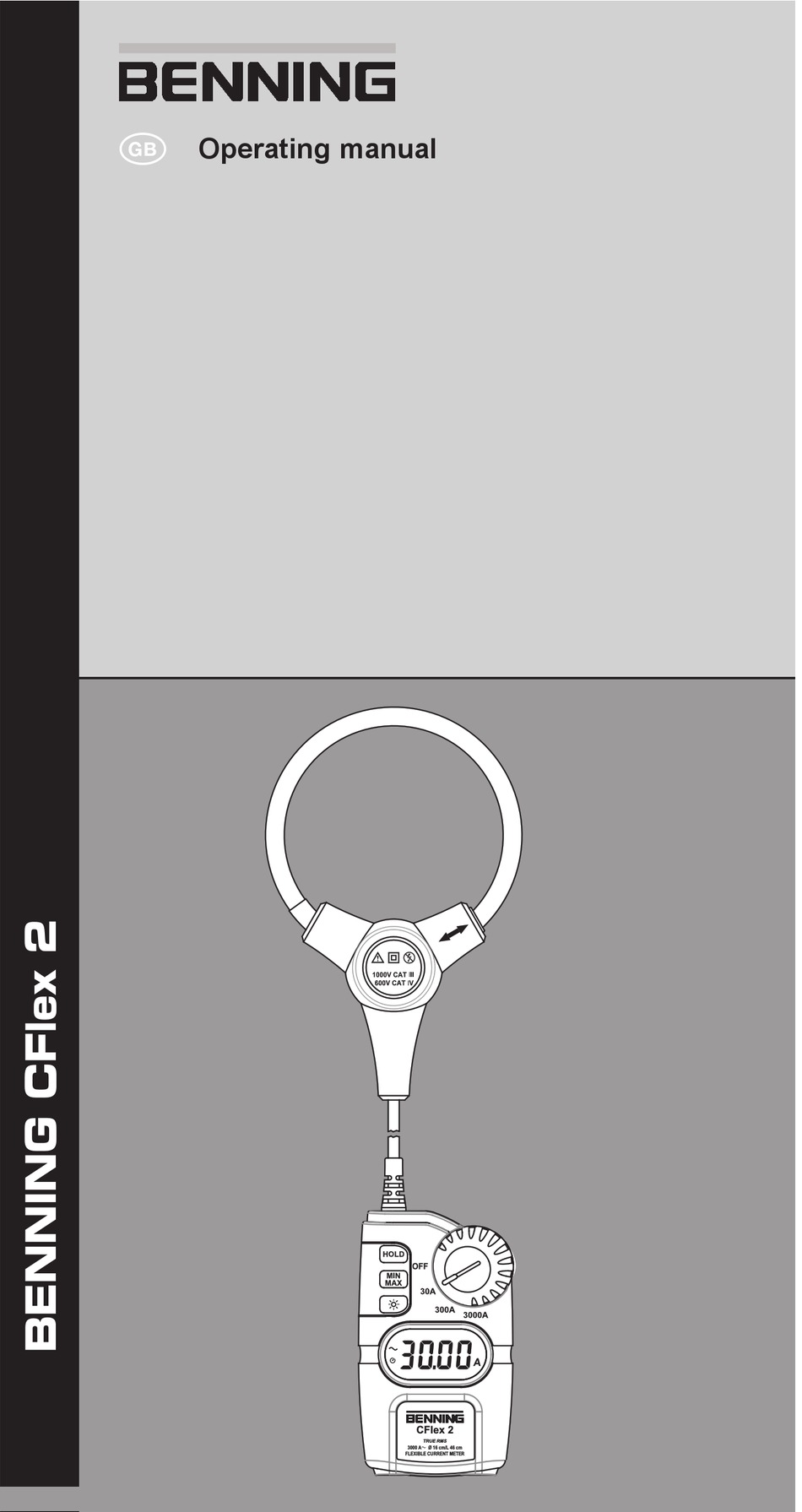

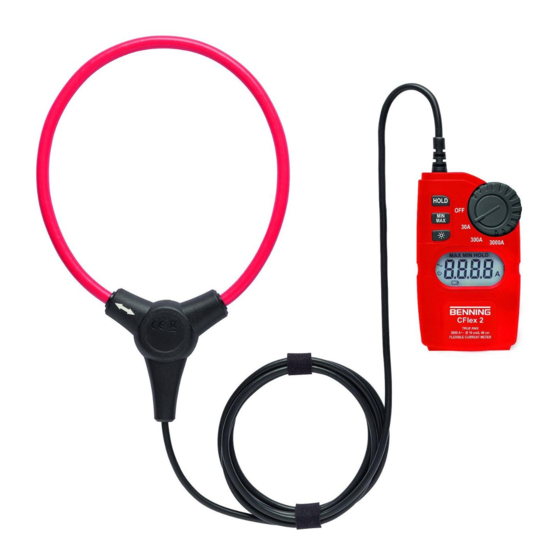

- Page 1 Operating manual CFlex 2 TRUE RMS 3000 A Ø 16 cm/L 46 cm FLEXIBLE CURRENT METER...
- Page 2 Voorzijde van het apparaat Fig. 1: Partie avant de l‘appareil Rys. 1: Panel przedni przyrządu Fig. 1: Parte frontal del equipo Рис. 1: Вид спереди Obr. 1: Přední strana přístroje Resim 1: Cihaz önyüzü Σικόνα 1: Μπροστινή όψη BENNING CFlex 2 07/ 2014...
- Page 3 Pomiar prądu przemiennego Fig. 2 b: Medición de corriente alterna Рис. 2 b: Измерение величины переменного тока obr. 2 b: Měření střídavého proudu Resim 2 b: Alternatif akım ölçümü Σικόνα 2 b: Μέτρηση εναλλασσόμενης έντασης ρεύματος BENNING CFlex 2 07/ 2014...
- Page 4 Vervanging van de batterij Fig. 4: Remplacement de la pile Rys. 4: Wymiana baterii Fig. 4: Cambio de pila Рис. 4: Замена батареи Obr. 4: Výměna baterie Resim 4: Batarya değişimi Σικόνα 4: Αντικατάσταση μπαταριών BENNING CFlex 2 07/ 2014...
-
Page 5: Table Of Contents
The BENNING CFlex 2 is intended for making measurements in dry environment. It must not be used in power circuits with a nominal voltage higher than 600 V AC CAT IV/ 1000 V AC CAT III (More details in Section 6. -
Page 6: Safety Note
Contact with live conductors will cause an electric shock! The BENNING CFlex 2 may be used only in electrical circuits of over voltage category IV with a maximum voltage of 600 V or of over voltage category III ... -
Page 7: Ambient Conditions
The measuring rate of the BENNING CFlex 2 amounts nominally to 2 measurements per second for the digital display. 5.1.8 The BENNING CFlex 2 is switched on and off with the rotary switch . Shutdown posi- tion “OFF”. 5.1.9 The BENNING CFlex 2 switches off automatically after approx. -
Page 8: Measuring With The Benning Cflex
Do not exceed the maximum permitted voltage with respect to earth potential! Electrical danger! The highest voltage that may be applied to the BENNING CFlex 2 with respect to earth potential is 600 V CAT IV / 1000 V CAT III. -
Page 9: 10. Environmental Note
The BENNING CFlex 2 is supplied by means of two 1.5 V batteries of type AAA (IEC LR03). Battery replacement (see figure 4) is required, if the battery symbol appears on the display 7 . Proceed as follows to replace the batteries: Remove the BENNING CFlex 2 from the object to be measured. - Page 10 Benning Elektrotechnik & Elektronik GmbH & Co. KG Münsterstraße 135 - 137 D - 46397 Bocholt Telefon ++49 (0) 2871 - 93 - 0 • Fax ++49 (0) 2871 - 93 - 429 www.benning.de • eMail: duspol@benning.de...
