5. Measure, cut, and install the chain using the chain cutting instructions listed below.
6. Follow the instructions in the next section to wire the robot. Once finished with wiring the wheels and lid
can be installed.
Chain Measuring, Cutting, and installation
7. See the video tutorial below or follow the steps below.
Roller Chain Cutting Instructional Video
8. With the motor in the center of the slot, measure out the required length of chain and mark the two links you
need to cut.
SuperDroid Robots, Inc
224 Technology Park Lane
Fuquay Varina, NC 27526
www.SuperDroidRobots.com
Revised: April 23, 2018
Mecanum Wheel Vectoring Robot - IG52 DB

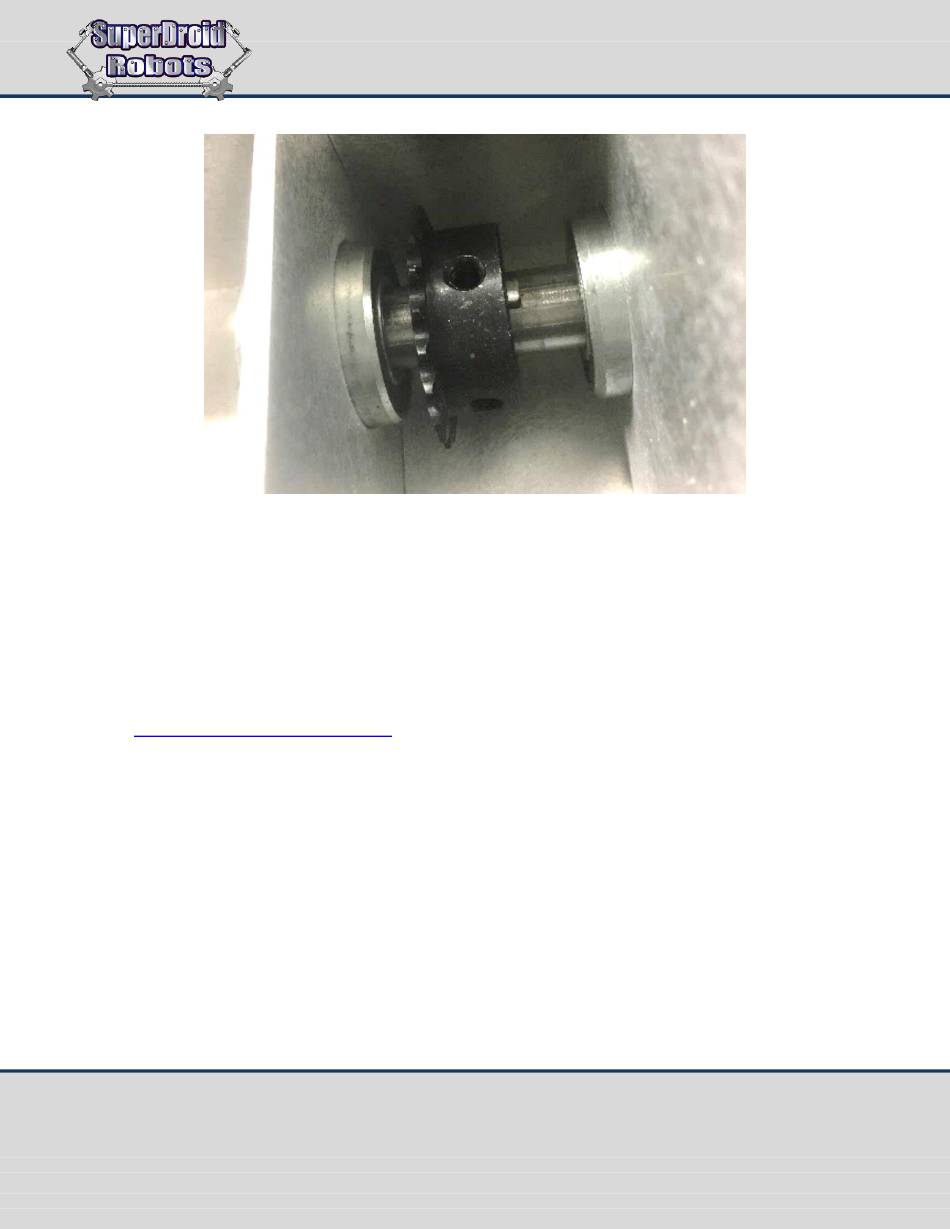

Figure 5: Sprocket with key installed
