3. Before mounting the wheels, note that they need to be oriented correctly in order for the robot to work
SuperDroid Robots, Inc
224 Technology Park Lane
Fuquay Varina, NC 27526
www.SuperDroidRobots.com
Revised: April 23, 2018
Mecanum Wheel Vectoring Robot - IG52 DB

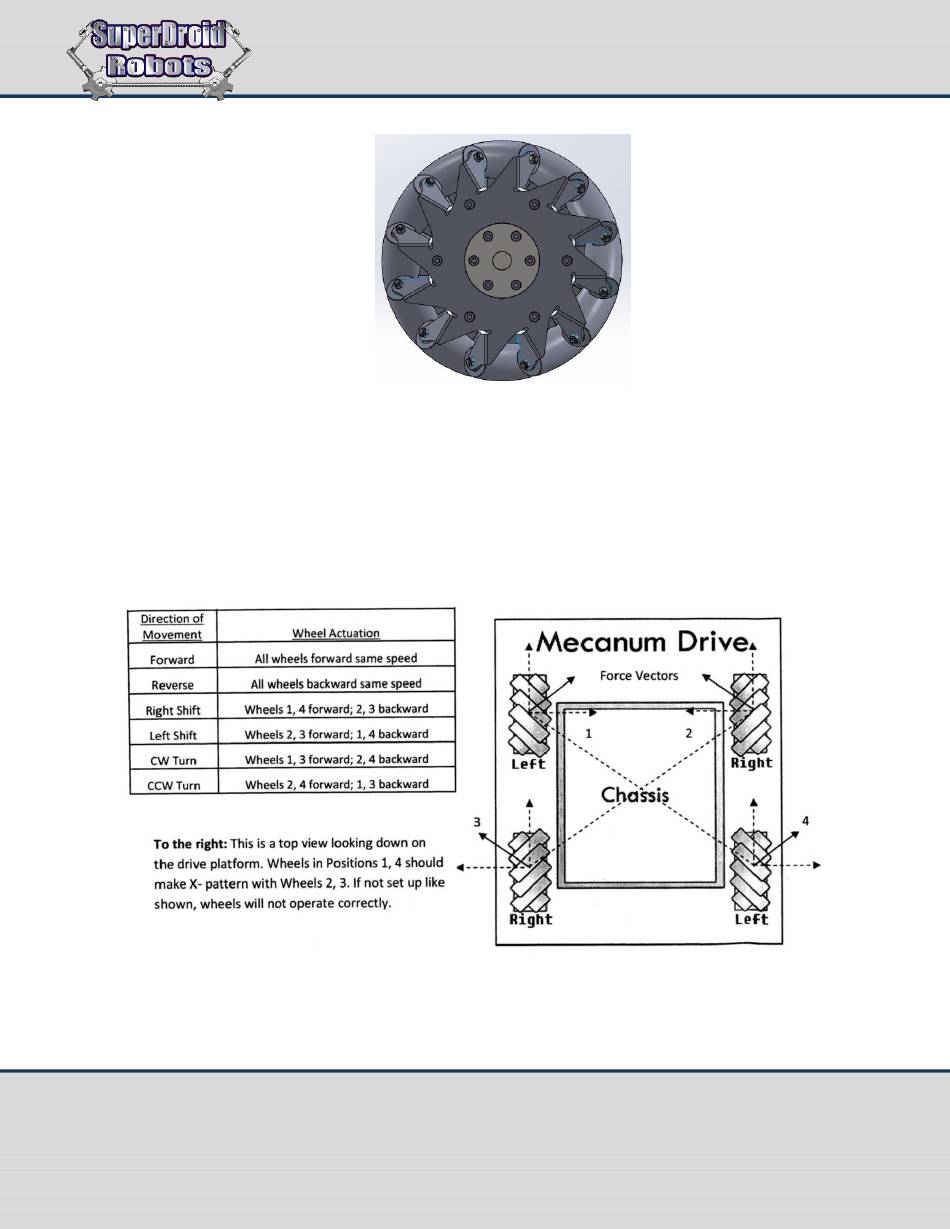

Figure 2: Wheel/axle assembly
properly. See the figure below for the correct orientation.
Figure 3: Wheel Orientation
