Mounting Electrical Components
13. Mount batteries using battery brackets and hardware provided. Use foam tape on the bracket and
underneath the battery to ensure a snug fit.
14. Measure a place on the chassis to mount the switch. Drill a ½" hole or use a switch bracket.
15. Mount the motor controller to the front or rear plate of the chassis. If using 12Ah batteries, the motor
controller will fit between the two batteries. A custom plate will need to be installed to mount it there.
Electrical Assembly
SuperDroid Robots, Inc
224 Technology Park Lane
Fuquay Varina, NC 27526
www.SuperDroidRobots.com
Revised: April 23, 2018
Mecanum Wheel Vectoring Robot - IG52 DB

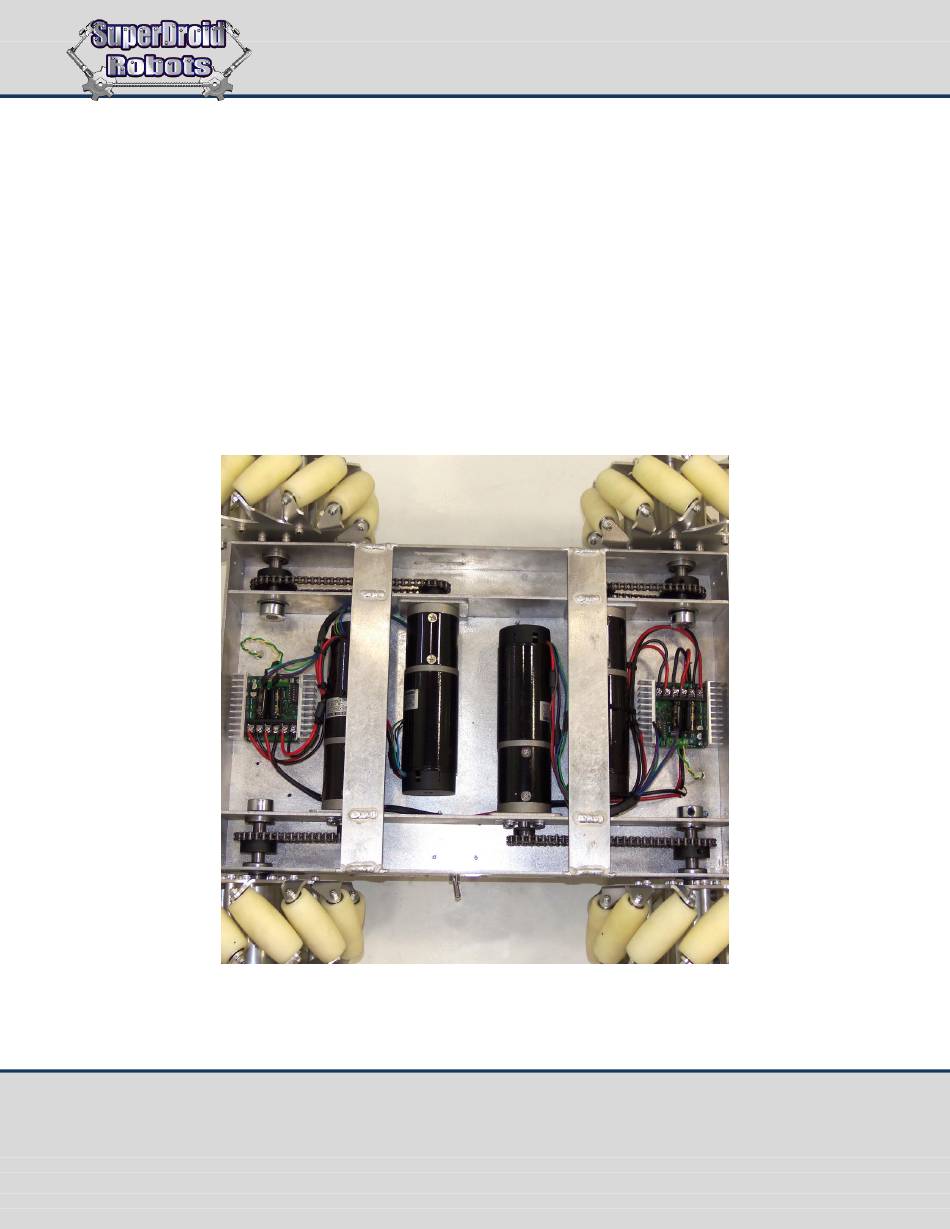

Figure 12: Assembled Robot
