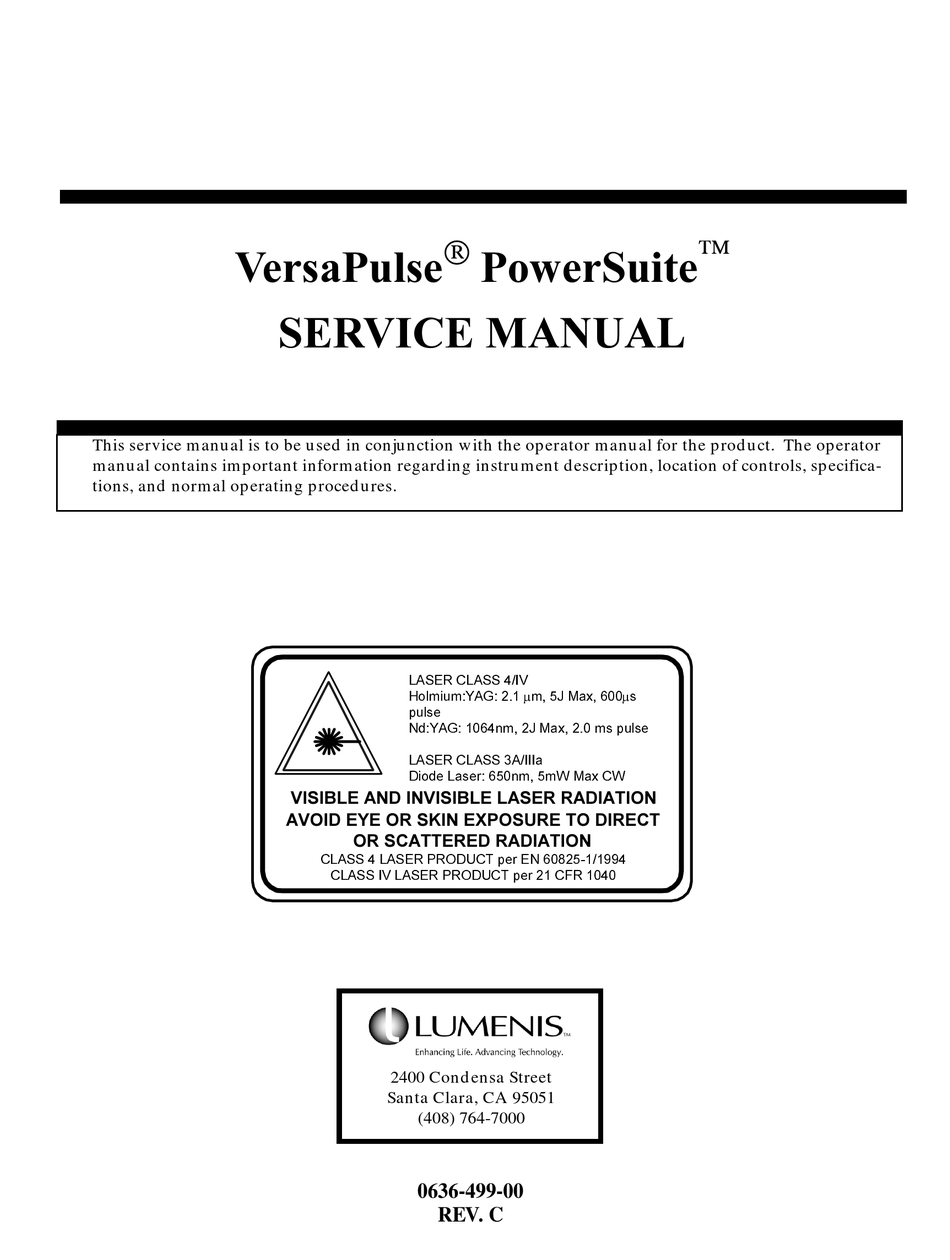

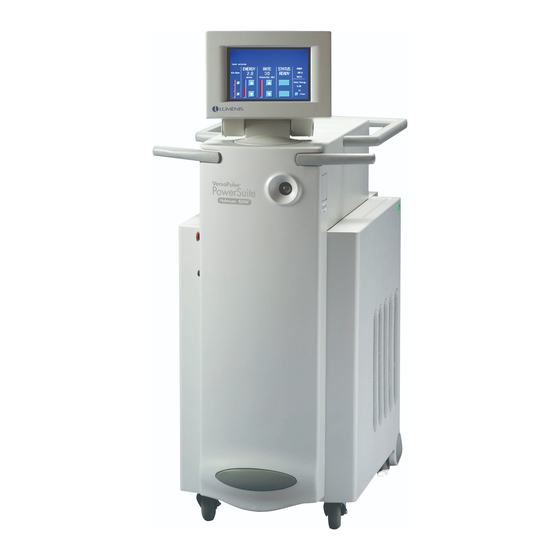

LUMENIS VersaPulse PowerSuite Service Manual

Table of Contents

Quick Links

Download this manual

9HUVD3XOVH

This service manual is to be used in conjunction with the operator manual for the product. The operator

manual contains important information regarding instrument description, location of controls, specifica-

tions, and normal operating procedures.

“

6(59,&( 0$18$/

G6T@SÃ8G6TTÃ#DW

C‚y€vˆ€)`6B)Ã!

ƒˆy†r

Iq)`6B)Ã %#€Ã!EÃHh‘Ã!Ã€†Ãƒˆy†r

G6T@SÃ8G6TTÃ"6DDDh

9v‚qrÃGh†r…)Ã%$€Ã$€XÃHh‘Ã8X

9,6,%/( $1' ,19,6,%/( /$6(5 5$',$7,21

$92,' (<( 25 6.,1 (;32685( 72 ',5(&7

25 6&$77(5(' 5$',$7,21

8G6TTÃ#ÃG6T@SÃQSP9V8UÃƒr…Ã@IÃ%'!$ ((#

8G6TTÃDWÃG6T@SÃQSP9V8UÃƒr…Ã! Ã8ASÃ #

2400 Condensa Street

Santa Clara, CA 95051

(408) 764-7000

0636-499-00

REV. C

3RZHU6XLWH

€Ã$EÃHh‘Ã%

†

Ã€

€

•

Table of Contents

Troubleshooting

Need help?

Do you have a question about the VersaPulse PowerSuite and is the answer not in the manual?

Questions and answers

Summary of Contents for LUMENIS VersaPulse PowerSuite

Page 1 “ • 9HUVD3XOVH 3RZHU6XLWH 6(59,&( 0$18$/ This service manual is to be used in conjunction with the operator manual for the product. The operator manual contains important information regarding instrument description, location of controls, specifica- tions, and normal operating procedures. G6T@SÃ8G6TTÃ#DW C‚y€vˆ€)`6B)Ã! €Ã$EÃHh‘Ã%...
Page 2 This manual is copyrighted with all rights reserved. Under the copyright laws, this manual cannot be copied in whole or part without express written permission of Lumenis, Inc. Permitted copies must carry the same proprietary and copyright and copyright notices as were affixed to the original.
Page 3 Lumenis does not accept responsiblity for personal injury or property damage resulting from the servicing of Lumenis equipment by its customers or by third parties, except where such injury or property damage is a direct result of Lumenis’s negligence. Customers, by accepting the service manual, agree to indemnify...
Page 4 5(9,6,21 ,1)250$7,21 This is the REV. C release of the VersaPulse® PowerSuite™ Service Manual . Contact Lumenis Technical Support to determine if this is the most current release of this service manual. Each page of this manual has a revision level at the bottom. This indicates the release level for the individual sections.
Page 5 7$%/( 2) &217(176 GENERAL INFORMATION Use of This Manual Conventions Used in This Manual Serial Numbers Certification Compliance Service Information & FDA Compliance INSTALLATION Introduction Product Specifications CALIBRATION, ALIGNMENT & ADJUSTMENT Introduction Optical Alignment Electrical Adjustments Mechanical Adjustments Energy Calibration System Optimization Check Operational and Safety Check Periodic Maintenance...
Page 6 Remove/Replace Procedure Troubleshooting SELECTED PART NUMBERS FIELD SERVICE BULLETINS SCHEMATICS & DRAWINGS “ PowerSuite • Service Manual Table of Contents 0636-499-00 REV. C VersaPulse...
Page 7 7$%/( 2) &217(176 *(1(5$/ ,1)250$7,21 ,167$//$7,21 &$/,%5$7,21 $/,*10(17 $'-8670(17 7+(25< 2) 23(5$7,21 7528%/(6+227,1* 6(/(&7(' 3$57 180%(56 ),(/' 6(59,&( %8//(7,16 6&+(0$7,&6 '5$:,1*6 *(1(5$/ ,1)250$7,21 86( 2) 7+,6 0$18$/ &219(17,216 86(' ,1 7+,6 0$18$/ 6(5,$/ 180%(56 &(57,),&$7,21 2) &203/,$1&( 6(59,&( ,1)250$7,21 )'$ &203/,$1&(...
Page 8 <52 (7(&725 /,*10(17 ,0,1* /,*10(17 (/(&75,&$/ $'-8670(176 & 2/7$*( 21),*85$7,21 3((' '-8670(17 3($.(5 2/80( '-8670(17 0(&+$1,&$/ $'-8670(176 ;7(51$/ ,%(5 (16( :,7&+ '-8670(17 /$676+,(/' (16( :,7&+ '-8670(17 (1(5*< 021,725 $1' $872 &$/,%5$7,21 6<67(0 237,0,=$7,21 &+(&. ,%(5 /,*10(17...
Page 9 & (59,&( 77(18$725 ,5&8,7 & 1(5*< 77(18$725 ,5&8,7 )/$6+/$03 32:(5 &,5&8,76 237,&6 62)7:$5( 7528%/(6+227,1* 29(59,(: (59,&( +,/2623+< $)(7< 5(&$87,216 ,17(5,25 $&&(66 3$576 /2&$7,21 6(59,&( 02'( )$8/7 ,62/$7,21 1 $1' $8/7 62/$7,21 ³1 &...
Page 10 -8/< 9(56$ 5(9 +,*+ 92/7$*( 32:(5 6833/< &21752//(5 38/6( 32:(568,7( )6% 0$< 3&% ,1752'8&7,21 5(9,6,21 + &21752//(5 3&% ,1752'8&7,21 3$576 5(48,5(' 5(752),7 ,16758&7,216 9(56$ 62)7:$5( &+$1*(6 1(;7 &$// 5(752),7 38/6( 32:(568,7( )6% -8/<...
Page 11 This manual is to be used in conjunction with the Lumenis Operator Manual for the VersaPulse PowerSuite laser. The operator manual contains important information regarding instrument description, location of controls, specifications and normal operating procedures.
Page 12 The top op amp would be referred to as U1-1 (its output is pin 1) and the other would be referred to as U1-7. SERIAL NUMBERS Serial numbers for the VersaPulse PowerSuite laser are in the following format: MYPHWVXXX where M is the month produced (“A”...
Page 13 The VersaPulse PowerSuite laser is designed and tested in accordance with Lumenis’s procedures for self certification for a CE mark. The CE mark is a certification label which allows Lumenis to sell the VersaPulse PowerSuite Lasers throughout the European community. This label certifies that the VersaPulse PowerSuite laser meets all regulations set forth by various countries in Europe.
Page 14: Rear View
•• The power UP/DN buttons on the remote control display. • Identification of removable portions of protective housings. (Refer to Section 5) • Procedures to avoid exposure. (Refer to Section 3) • Reproductions of required labels and warnings. •• Below are illustrations of required labels and warnings applicable to this Service Manual: G6T@SÃ8G6TTÃ#DW C‚y€vˆ€)`6B)Ã!...
Page 15: Front View
/DVHU DSHUWXUH DW GLVWDO HQG RI ILEHU (FRONT VIEW) 9HUVD3XOVHŠ 3RZHU6XLWHŒ 6HULHV 6HUYLFH 0DQXDO *(1(5$/ ,1)250$7,21 5(9 %...
Page 16 *(1(5$/ ,1)250$7,21 9HUVD3XOVHŠ 3RZHU6XLWHŒ 6HULHV 6HUYLFH 0DQXDO 5(9 %...
Page 17 The system requires approximately 2.5 gallons of distilled water for its closed loop cooling system. The coolant must be added as described in this procedure. Complete specifications for the VersaPulse PowerSuite laser are included later in this section and in the VersaPulse PowerSuite laser Operator Manual. Contact Technical Support in Santa Clara, CA. if there are any questions concerning site preparation.
Page 18 Verify the AC mains voltage at the site. Frequency: 50/60Hz Voltage: 220 VAC ±10% Current: 30A (32A for 100W Holmium) Single ( I ) Phase: 2.1.2 Unpack & Inspect Laser Check the crate/carton for any shipping damage. The shipper is responsible for any damage to the system in shipment. If the crate/carton appears to be damaged, report the damage to the customer and shipper.
Page 19 COVER RAMP Move the system to its installation location. The VersaPulse PowerSuite laser rolls best when pushed from the front handles. The front wheels swivel, the rear wheels do not. Open/remove covers and do a visual inspection of the interior.
Page 20 Verify the VersaPulse PowerSuite is not connected to the AC mains. Locate the AC Control PCB (behind the right side panel) and identify TB5 & TB2 (top of the PCB). Refer to Fig. 2.2. U7% U7" Ã Ã...
Page 21 Turn On CAUTION: • Once the circuit breaker is turned on and power is applied to the VersaPulse PowerSuite laser, wait a few minutes and observe for any indication of failure of the mains or turn-on components. Check for any coolant leaks.
Page 22 • The system will fire during the turn-on sequence regardless if SW3 (Autocal) on the CPU PCB is left or right and the BRH plug is installed. Only those persons required should be present during this portion of the installation - those present must wear appropriate laser safety eyewear and follow all laser safety precautions.
Page 23 0.08 - 1.67J 0.1 - 180 sec.* 60 pulses/ 2ms Max (1.06µm) sec. continuous * adjustable in variable increments ** adjustable in 5 Watt increments VersaPulse PowerSuite Holmium laser Treatment beam wavelength 9HUVD3XOVHŠ 3RZHU6XLWHŒ 6HULHV 6HUYLFH 0DQXDO ,167$//$7,21 5(9 %...
Page 24 100W 0.2 - 3.5J 5 - 50 pulses/ 600µs Max Ho:YAG sec. VersaPulse PowerSuite Dual Wavelength and Holmium lasers Laser Classifications: US FDA CDRH laser classification: Class IV European EN 60825 laser classification: Class 4 Aiming Beam: Type: Diode Power: 1 mW maximum, Continuous Wave...
Page 25 Cooling air requirements Minimum 46 cm (18 in.) from walls Physical characteristics Width: 46 cm (18 in.) Length: 91 cm (36 in.) Height: 99 cm (39 in.) Weight: 163kg (360 lbs.) Power cord length 8.0 m (26 ft.) Footswitch cable length 3.7 m (12 ft.) Environmental requirements (operating) Maximum altitude: 3,050 m (10,000 ft.)
Page 26 ,167$//$7,21 9HUVD3XOVHŠ 3RZHU6XLWHŒ 6HULHV 6HUYLFH 0DQXDO 5(9 %...
Page 27 VersaPulse® PowerSuite™ Laser. The procedures assume the reader has successfully completed a Lumenis service training course on the VersaPulse PowerSuite laser. Service performed by untrained or unqualified persons can be a hazard to the person or persons doing the service and to others present during the servicing.
Page 28 • Only Lumenis certified VersaPulse PowerSuite YAG service engineers should attempt any service on this system. • Even with the keyswitch and the breaker in the “OFF” position there are lethal voltages present inside the console.
Page 29 3.2.1 Folding Mirror Alignment This is not normally performed in the field. contact Lumenis Technical Support Department for additional tooling and instructions if required to perform this alignment. 9HUVD3XOVHŠ 3RZHU6XLWHŒ 6HULHV 6HUYLFH 0DQXDO &$/ $'-867 $/,*1...
Page 30 3.2.2 YAG Channel Alignment When properly adjusted the YAG channel will meet each of the following three criteria. • The cavity HR will be positioned to direct the YAG output to the center of the first relay mir- ror, and the cavity OC will be positioned to provide maximum power for that HR position. •...
Page 31 The cross hair aperture is used to align an individual cavity (OC and HR) into the center of the first relay mirror. To install it, the first relay mirror mount is removed, then the aperture slides into a hole in the wall directly behind the spot the channel first relay mirror was mounted (insert from the outside of the wall, so that it is further from the channel OC).
Page 32 D†r…‡Ã‡urÃ‡r†‡Ãhƒr…‡ˆ…r ur…rÃvÃ‡urÃ€ ‚ˆ‡vtÃu‚yrÃs‚…Ã‡ur †rp‚qÃ rqtrÃ‚ƒ‡vpÃv†r…‡vtÃ‡ur ‡ ‚Ãxr’Ãƒ‚†‡†Ã‚Ã‡urÃhƒr…‡ˆ…rÃv‡‚ ‡urÃ‡ ‚Ãu‚yr†Ã‚Ã‡urÃ€ ‚ˆ‡ U‚ h…q†Ãsvir… U‚ h…q†Ãyh†r… 7ˆ…Ãƒhƒr… 8yrh…Ãƒyh†‡vpÃ‚‰r… iˆ…Ãƒhƒr…Ã†yvqr† v‡‚Ã†y‚‡Ã‚Ã‡ur ‡r†‡Ãhƒr…‡ˆ…r FIGURE 3.2 USING THE TEST APERTURE Remove the channel first relay mirror mount, then insert the cross hair aperture in the hole from the back (further away from the OC).
Page 33 3.2.2.2 Adjusting the YAG Channel Optics WARNING! When the optics bench cover is removed, exposure to hazardous high voltages is present. 10kV is present on the pod assembly when the lamps are starting, and may be present any time the system is turned on.
Page 34 TD9@ÃWD@X GP8FDIBÃIVU 69EVTUDIBÃT8S@X ‡’ƒvphyÃ!Ãƒr…Ã€‚ˆ‡ HPVIUDIBÃT8S@X ‚rÃƒr…Ã€‚ˆ‡ HPVIUDIB 7hyyÃirh…vtÃv†Ã‡ur X6GG ƒv‰‚‡Ãƒ‚v‡Ãhi‚ˆ‡Ãuvpu ‡urÃ‚ƒ‡vpÃ€‚ˆ‡Ãv†Ã€‚‰rq i’Ã‡urÃ‡‚Ãhqwˆ†‡vtÃ†p…r† H‚ˆ‡vtÃTp…r ‡u…rhq†Ãv‡‚Ã‡uv† u‚yr HDSSPS HPVIU PQUD8ÃS@U6DI@S HDSSPS PVUTD9@ÃTVSA68@ hh’Ãs…‚€Ãhyy DITD9@ÃTVSA68@ ‡‚h…q†Ãhyy S‚ˆqrqÃrqÃ‚sÃ‡urÃhqwˆ†‡vtÃ†p…r†Ãp‚‡hp‡ ‡urÃ‚ƒ‡vpÃ€‚ˆ‡Ãur…r FIG. 3.4: ADJUSTMENT AND REPLACEMENT OF THE CHANNEL OPTICS 6(592 0 ,5525 S@G6`ÃHDSSPST QG6IPÃS@G6` QG6IPÃS@G6` HDSSPST HDSSPST WD@XÃASPH...
Page 35 First Relay Mirror - far (fiber) alignment Plano Mirror - near (wedge) alignment 3.2.2.3 Resonator Alignment Remove the optics bench cover. Examine the optics for any visual sign of damage. Replace damaged HR, OC, or Relay mirrors. (Refer to Fig 3.4 on the previous page) To replace a channel relay mirror, HR or OC, first remove the mirror mount by carefully removing the mounting screw (it has a spring around its shaft to place ten- sion on the mount) while supporting the mount.
Page 36 Good cavity power is shown. A large Typically, the burn diameter is An oblong burn spot indicates diameter burn (approx. 4m m) indicates approximately 4mm in diameter. that the H R and OC optics are not good power. N o adjustment of the HR or If the burn is small, perform the cavity properly aligned for maximum alignment and increase the lamp...
Page 37 turned out the same amount (do not be fooled as to the direction to turn the adjustment screw by the fact that the two screws are mounted in opposite directions - one screw is being turned in and the other is being turned out, but because the screws are mounted in opposite directions the screws rotate in the same direction).
Page 38 The motor shaft must always slowly rotate to find the index position on the encoder. LED30 (INDEX) will illuminate green and TP75 “INDEX” will go high. NOTE: If the service software has lamp #1 turned off, the motor will find the index position and rotate to the next active brick.
Page 39 5. Perform the Fiber alignment for all channels in Section 3.2.4. If no laser energy is detected between the two folding mirrors, the mirror is probably not oriented toward the correct brick. Go back and repeat step 3, then rotate the mirror 180• on the shaft in step 4. 3.2.4 Fiber Alignment For each channel, two optics are adjusted to position the YAG beam down the intended optical path into the...
Page 40 Beam is clipping the An oblong or small The burn is round All four burns are 10mm burn aperature burn spot or distorted and centered in the centered. The overall tool. Adjust plano burn spots usually aperature. The goal diameter of the burn is relay mirror down and indicates that the cavity is to get all four channels...
Page 41 d. Check the burn at the second wedge optic using the test aperture. The beam must be unclipped. If not, repeat steps "a" and "b" above until both pass with the adjustments mechanisms locked down. e. Make a burn into the test aperture with all four channels turned on. The resulting burn footprint should be circular in shape and contained in the aperture (no clipping).
Page 42 Set up a. Measure the AC mains voltage and record on the Certification Report. b. Verify the VersaPulse PowerSuite is not connected to the AC mains. c. Open the front door and remove the right side cover. (Refer to Section 5).
Page 43 Locate the AC Control PCB (behind the right side panel) and identify TB5 & TB2 (top of the AC Control PCB). Refer to Fig. 3.9. Locate the large brown wire in TB5-1 and position the other end in TB2 as follows in Fig. 3.9: U7"...
Page 44 If the system can be hard wired, the customer must provide an electrician to wire the cord end into the electrical service outlet. A lockable electrical service disconnect switch must be installed if the system is hard wired. If the system is to be plugged into an electrical receptacle, the appropriate receptacle should already be installed by the customer’s electrican.
Page 45 Speaker Volume Adjustment The VersaPulse PowerSuite emits various tones by way of a speaker as the system receives inputs from the user, fires the laser or detects a fault condition. The volume of the tone can be raised or lowered by adjusting a potentiometer on the Controller PCB.
Page 46 TQSDIB QGVIB@S AD7@S UCS@69T /(16 &(// %2'< AD7@SÃIVU QG6U@ @YU@SI6G T@UÃT8S@XÃ6U HPH@IU6S` 7PUUPH TXDU8C FIG. 3.10: SMA FIBER PORT ASSEMBLY Open the front door and locate LED12 on the Controller PCB or connect a DVM across TP51 (FBRIN) and TP46 (GND). Connect a Coherent test fiber loosely onto the SMA port, but do not thread the nut fully on the SMA threads.
Page 47 3.4.2 Blastshield Sense Switch Adjustment Perform this procedure if the blast shield has been inserted Blastshield and the INSERT DEBRIS SHIELD message remains ON. Assembly Refer to Fig. 3.11. Blastshield Alignment Pin Open the front door and remove the blastshield access door from the front door;...
Page 48 Set up. a. Open the front door and remove the top (external) cover including the inside laser head cover. b. Disable the AUTOCALIBRATION by moving the calibration switch (SW3) on the Controller PCB to the left. Turn the laser on. Access SERVICE MODE by moving sliding the service switch (SW2) on the Controller PCB to the left.
Page 49 b. Move the oscilloscope to probes to TP24 (MNDIF) and GND on the Controller PCB, and adjust potentiometer MGAIN (R3) on the Optics Bench PCB until the amplitude is 4.0 ±0.1 VDC. 10. Depress the footswitch and adjust the LAMP ENERGY until 10 Watts is delivered. Verify pulse rate is at 10 Hz.
Page 50 17. Disconnect the test equipment probes from the laser, install the covers and close the front door. Turn the laser on. SYSTEM OPTIMIZATION CHECK This section verifies the VersaPulse PowerSuite is operating in an optimal condition after the optical alignment procedures and all the calibration procedures have been completed. 3.6.1 Fiber Alignment Test This system check out confirms that the laser is functioning correctly.
Page 51 from the cladding that surrounds the fiber). For dual wavelength systems, two fiber burns must be done. a. Install a test fiber in the 100X fiber examination microscope and examine its surface to confirm that it is unused. b. Install the test fiber at the fiber port, then turn on the system and go to service mode. c.
Page 52 8yhqqvt 8‚…r A‚‚‡ƒ…v‡ IPUÃ688@QU67G@ IPUÃ688@QU67G@ 688@QU67G@ @‘h€vvtÃ‡urÃ‡r†‡Ãsvir…ÃrqÃv‡uÃ‡urÃ ‘Ã€vp…‚†p‚ƒrÃÃUurÃs‚‚‡ƒ…v‡ÃÃvyyÃ‚‡Ãhyh’†ÃirÃpv…pˆyh… Ãiˆ‡Ãv‡Ã†u‚ˆyqÃirÃhƒƒ…‚‘v€h‡ry’Ãpr‡r…rqÃvÃ‡urÃsvir…ÃhqÃhh’Ãs…‚€Ãp‚‡hp‡Ãv‡uÃ‡urÃpyhqqvt FIG. 3.12: EXAMINING THE TEST FIBER BURN f. Clean the residual ink from the fiber port & debris shield with a Q-tip. Confirm the calibration. See Section 3.4. Use the test fiber (0623-973-01) and direct towards the FSH head. 3.6.2 Verify Calibration - Delivered Power Out of the Fiber Turn the laser on and allow the system to perform the auto calibration, then verify the power calibration for...
Page 53 Fire the laser. (For Holmium wavelength) Test the output at all combinations of low, medium, and high pulse energies and repetition rates. The delivered power must be within ±10% of indicated (requested) power. (For Neodymium Wavelength) Test the output in continuous exposure mode and at low, medium and high average powers. The delivered power must be within ±10% of indicated (requested) power.
Page 54 Each individual laser must reach the 20% line by its second shot. If any of the laser cavities do not, the alignment of that particular cavity may need peaking. Also, check the mode burns at this point. Note that even if the burn may look good, the cavity may need peaking. NOTE: It is permitted for the first shot of each cavity to fall below 20% line on the graph.
Page 55 Check the E-Stop button. a. Depress the E-Stop button and verify the system is deactivated. b. Turn the laser back on and verify the system goes through the self-test routine. Check the BRH plug. a. Unplug the BRH plug and verify the “REMOTE INTERLOCK” message appears on the display and the system goes to STANDBY.
Page 56 Check the flowswitch. a. Turn the system off and disconnect the connector (J49) on the AC Control PCB. Connect and ohm- meter across the connector. The ohmmeter should read infinite ohms. b. Turn the laser on and hold the key in the II position. The ohmmeter should read zero ohms. Check the Footswitch.
Page 57 a. Connect the Remote Control Panel to the connector at the rear of the system. b. Verify the system is able to receive operator inputs by depressing the LCD display. TREATMENT ENERGY RATE STATUS READY ENERGY RATE STANDBY DOWN DOWN FIG.
Page 58 PERIODIC MAINTENANCE REQUIREMENT The systems require the following periodic maintenance: ANNUALLY (AS REQUIRED): Perform a general visual inspection of the electrical, mechanical, and optical components. Check/clean the air filter. The air filter is mounted on the bottom of the system, held in place by a removable bracket.
Page 59 5 to 50 Hz. The combination of pulse energy and pulse rate define an operating point. Not all combinations of pulse energy and pulse rate are valid, and the operating points available vary with the different VersaPulse PowerSuite models available. Consult the Operator Manual for detailed information on the operating points for a particular model.
Page 60 Each rod delivers every fourth pulse. This sequential firing allows the VersaPulse Powersuite to provide four times the pulse rate as could be provided by a single rod, increasing the maximum average power available by the same factor (four).
Page 61 The use of multiple heads results in a number of advantages over previous surgical solid state lasers: VersaPulse PowerSuite is smaller and lighter; it has a much simpler and more reliable cooling system; and it can operate at much higher pulse rates, resulting in higher average powers. Also, different rods and optics can be installed enabling a multiwavelength laser is one package.
Page 62 Low Energy (LE) Attenuator - The LE attenuator is inserted into the beam path to allow the VersaPulse PowerSuite to deliver a lower range of pulse energies. This function is currently used on the VersaPulse PowerSuite dual wavelength lasers (if Holmium energy is less than 0.5J or Neodymium power less than 25 W is selected).
Page 63 Service Attenuator - The service attenuator is inserted into the beam path to attenuate the beam before it enters the fiber focus assembly. This prevents damage to the attached fiber alignment detector as the system is fired to do the fiber focus alignment. It is operated by SW4 on the Controller PCB inside the unit accessible to the service engineer.
Page 64 Input Power The VersaPulse PowerSuite operates off of 200, 208 or 230 VAC ±10% @ 30A (32A for 100W Holmium) 50/60 Hz line voltage. The main circuit breaker is rated at 32 amps for 200, 208 or 230 VAC operation. The mains are wired into the circuit breaker.
Page 65 4.2.4 Turn On The following sections describe the sequence of events starting from the time the system circuit breaker is turned on to the completion of the self-test routine after the keyswitch is set to the run position. 4.2.4.1 Circuit Breaker On, Keyswitch Off The 24 VAC Interlock Transformer T2 is energized and supplies 24 VAC through F10, R13 and LED2, turning on LED2.
Page 66 4.2.5 Shutdown Under normal circumstances, the system remains on until one of the following events occur: • Keyswitch moved to OFF position • Emergency Off button pressed • Turn off or trip of main circuit breaker • Blown F6, F8, F9 or F10 fuses •...
Page 67 COOLING Refer to the Coolant System Simplified Diagram (Fig 4.1). As the lamps in the laser head are flashed, heat energy is produced in the flash lamps, rods, and housings. The cooling system transfers the heat energy from the flash lamp, rod and housings to the outside air. It utilizes a closed loop, forced air heat exchanger which contains approximately 2.5 gallons of distilled water.
Page 68 Refer to 8-12 in Section 8. Coolant resistivity and temperature are monitored by sensors that report an analog voltage to the microprocessor ADC circuit. The software checks the coolant resistivity and temperature at regular intervals in the following manner: • The coolant is nonconductive (deionized) to minimize galvanic corrosion and high voltage arcing in the cooling loop.
Page 69 Coolant flow is monitored by a flowswitch as a part of the CPU hold circuit to the main contactor. If flow is not sufficient, the system will not latch on and if already started it will shut off. The coolant pump operates continuously and at a constant speed from turn on to turn off. It circulates the coolant through the closed loop.
Page 70 4.3.1 Components Motor and Pump Head: A 1/4 hp induction motor is used to drive the pump head. The motor is thermally protected as well as fused on the mains transformer, T1 secondary. Refer to the Interlock schematic for details. The pump head is a positive displacement, graphite vane pump.
Page 71 Cavity/Manifold: After passing through the water particle filter, the coolant make its way to the laser manifold where it enters the cavity. The cavity which mounts to the manifold contains a YAG rod and a flashlamp, both contained in a glass-like material surrounded by barium sulfate powder (highly reflective). The cooling water flows in direct contact with the YAG rod and flashlamp outer surfaces to remove the heat.
Page 72 Fiber and Blast Shield Position Sense Circuits - Monitors the position of the fiber and blast shield. Described in subtopic 4.4.9. Service Attenuator Circuits - Operates and monitors the position of the service attenuator. Monitors the condition of the service and diagnostic push-buttons located on the CPU PCB. Described in sub- topic 4.4.10.
Page 73 At power up, U56 outputs /RESET/ and /HALT/ signals to the microprocessor - the microprocessor does not execute the software instructions when both lines are low. Pressing the Reset Switch SW5 provides the same reset when the system is already on. After approximately 200ms, these lines goes high, the microprocessor begins to execute the software instructions stored in the EPROM U63.
Page 74 The EPLD inputs and outputs are programmable and in the VersaPulse PowerSuite is used to serve in multiple functions in the system due to the flexibility of this chip. The Digital Input/Output EPLD U49 serves as an 8- channel digital I/O for the microprocessor.
Page 75 4.4.2.2 D/A & A/D Conversion Circuits Refer to page 8-12 in Section 8. U30 and U31 are six channel multiplexer/A-to-D converters. Each multiplexer reads their prospective analog DC voltages and convert it to digital signals. This allows the microprocessor to read the digital values which represents an analog voltage after it has received the READ/ WRITE signal.
Page 76 The Multifunction Programmable Timer (U47) outputs a variable frequency SPKR signal when the various states have been satisfied to the System Audio Amp U2. The output of the circuit is connected to an external speaker which emits a tone. The speaker volume can be adjusted by adjusting R8. 4.4.3 Shutter/Footswitch/Remote Interlock Circuits Refer to pages 8-9 thru 8-10 and 8-14 thru 8-16 in Section 8.
Page 77 The interlock loop is part of the digital I/O loop and is sensed by the microprocessor. If the CDRH Interlock was to become disconnected the ground path for the /CDRHRAW/ signal opens and the signal goes high. This signal is asserted to the input of U41 pin 13 causing the CDRHBUF signal to go low. The low CDRHBUF signal is asserted to the input (pin 17) of the Digital Input/Output EPLD U49 which the microprocessor reads, then displays a fault on the LCD display.
Page 78 motor controller tracks position by monitoring the channel A and B lines from the position sensor to determine the sum of the movement away from this known index position. SERVO_INDEX_BIT = high when pointed at plano #1. 4.4.5 HVPS & Control Circuits The HVPS and Control Circuits oversee the control and turn-on of the flashlamps, monitor the voltage on the capacitor bank, and monitor several status signals from the high voltage power supply.
Page 79 Refer to the Energy Monitor Circuits Simplified Diagram (Figure 4.5) and to the associated schematics in Section 8. The VersaPulse PowerSuite measures the energy of each YAG pulse. Two separate channels measure the energy. These two channels are required to provide safety redundancy.
Page 80 The remainder of this subtopic describes the MAIN_ENERGY circuitry and optics. The SAFETY_ENERGY circuit operates in the same manner. A sample ( 0.2%) of each YAG pulse is deflected from the first surface of the first (synthetic) sapphire wedge optic to an imaging mirror.
Page 81 The contacts 3 to 2 and 14 to 15 of U17 closes. Closing these contacts resets the main zero correction and the integrator. Closing the contacts 14 to 15 discharges C25 and C149 to reset the integrator circuit. • U9 in the safety energy detection channel. The contacts 3 to 2 and 14 to 15 of U9 closes.
Page 82 Aiming beam intensity is controlled by variable (digi-pot) resistance U3 on the Controller PCB connected to the aiming beam module through J13-3 and J13-4. The microprocessor sets the aiming beam intensity to high, low, or medium by changing the variable resistance (U3) using the /LASER_DIODE_STEP/ and / LASER_DIODE_DIR/ digital I/O EPLD output lines.
Page 83 I/O EPLD on the Controller PCB. 4.4.11 Low Energy Attenuator Circuit The Low Energy Attenuator Circuit inserts attenuation into the beam path to allow the VersaPulse PowerSuite to provide treatment pulse energies lower than the minimum pulse energy available out of the cavity.
Page 84 FLASHLAMP POWER CIRCUITS Refer to the IGBT Driver PCB schematic page 8-19 in Section 8, and the HVPS & Control Circuits Simplified Block Diagram in topic 4.4.5. Flashlamps are used as the exciter (pump) mechanism for the lasers. The flashlamps are a gas discharge device designed to produce intense pulsed radiation (visible, IR and UV) flashes.
Page 85 The Simmer/start board operates off of B+ supplied by the HVPS. Charging the Capacitor bank - For the VersaPulse PowerSuite laser, the capacitor bank charges to 800 VDC. The circuit is monitored by the Frequency to Voltage converter (U13) and is read by the main Analog to digital converter U31 as V-F_FEEDBACK signal.
Page 86 Ho:YAG or Nd:YAG rod. The rod is positioned between an HR and OC mirror. Up to four such cavities can be housed in a single VersaPulse PowerSuite system. MULTIPLEXING OPTICS - The multiplexing optics consist of an imaging and flat mirror for each cavity, and the servo positioned imaging mirror.
Page 87 SYSTEM INITIALIZATION AND POWER UP: The following describes the system initialilzation tasks performed by the VersaPulse PowerSuite system software on the system power up. Upon power up, the VersaPulse PowerSuite software shall initialize and test the following: 9HUVD3XOVHŠ 3RZHU6XLWHŒ 6HULHV 6HUYLFH 0DQXDO 7+(25<...
Page 88 • Power up • Self-Test • Calibration Once these tasks have been completed, the software will do the following: • Display results of the diagnostics and calibration routines. • Sound beeper, marking the completion of the power up initialization. • Paint the user mode screen or if the service switch is set for service mode, the service screen will be painted.
Page 89 b. Display status and error messages as appropriate. c. Output data to digital and analog I/O lines to control hardware. 3. Monitor system operational and safety functions. a. Have sufficient redundancy to still identify hazards and shut down safely if single component fails. b.
Page 90 2. Standby Standby state will be entered • From Startup state after power up initialization is completed. • From ready statewhen the STANDBY button is pushed. • From READY state when the system has been idle for five minutes without a control activa- tion.
Page 91 In Ready state the system will a. Monitor the power supplies, the safety shutter, the control panel, the footswitch connection, the delivery fiber connection and the BRH interlock. b. prevent the system from firing. c. Keep the safety shutter closed. d.
Page 92 i. Monitor the power supplies, the safety shutter, the control panel, the footswitch connection, the delivery fiber connection and the BRH interlock. j. Monitor the footswitch. k. If the footswitch is released, end treatment and return to Ready state. l. When the footswitch is released or a fault is detected during treatment, the sytem will do the follow- ing: •...
Page 93 OPERATIONAL MONITORING: 1. System Monitoring During Standby State a. In Standby state, the system will monitor the following: • Footswitch connection If no footswitch is connected, the system shall display a message and remain in Fault state. When a working footswitch is connected to a dual-wavelength system, the system will display whether it is a single or double-footswitch.
Page 94 If the safety shutter is open, the system will display a message and remain in a Fault State. If the safety shutter appears to be defective (if both position sensors are in the same state for more than a few seconds) the system will display a message and go to a Fault state.
Page 95 • Crowbar If the system detects that the crowbar is active, it will display a message and go to a Fault state. b. System Monitoring During Ready State In Ready state the system will monitor all items listed for the Standby state. •...
Page 96 Error Error Type Condition +15V power sup- Clearable Power supply output voltage differs from the nomical greater than ply error 20%. -15V power supply Clearable Power supply output voltage differs from nominal by greater than error 20%. 2. Testing Safety Systems During startup the system tests the safety systems as described in this section.
Page 97 3. Delivering Treatment a. Check copies of settings data. Before firing in User mode, the copies of the duplicated settings data will be compared, and if the copies are not identical, the system will display an error message and not fire. b.
Page 98 The system will display a special screen advising the user to call Lumenis Field Service and informing the user of the maximum available pulse rate and average power.
Page 99 Dual 201/60 System is non-functional 4. Error Handling. a. Errors vary in level of severity and the nature of the response required. The VersaPulse PowerSuite error handler will recognize three classes of errors. • Permanent The error can be cleared only by power cycling the system.
Page 100 The system will enter Error state. If the user pressesthe STANDBY button or the READY button, the system will enter STANDBY state if the triggering condition is no longer present. • Monitored Errors The system will enter Error state. If the triggering condition disappears, the system will enter Standby state.
Page 101 At the beginning of a treatment, the moving average will be set equal to the measured pulse energy. For each pulse thereafter, the moving average will be set equal to 0.8* previous moving average + 0.2* measured energy of the current pulse 5.
Page 102 SERVICE MODE Service mode is a privileged mode of operation for use by manufacturing and service personnel. Service mode shall be entered by toggling the service mode switch on the Controller PCB. Access to the switch will require the use of a tool to open the laser console. Service mode will provide the following functions: 1.
Page 103 4. Language Selection This function will select the language to be used on the user-mode display. The setting will be stored in NVRAM. 5. Control of Low-Energy Attenuator Position This function will allow the user to move the low-energy attenuator into or out of the beam path. 6.
Page 104 11. Display System Information. The following system information will be displayed, in addition to the other displays specified for ser- vice mode: • The measured output of the +5, ±15V power supplies. • The coolant temperature and conductivity. • The identification of the model in use. •...
Page 105 2. Service 2. This screen contains the following controls and displays: Language Attenuator Position Shutter Mode Reports Energy Plot Calibration Plot Centration Next Screen Low-Voltage Power Supply Outputs Coolant temperature and Conductivity Measured Flashlamp Voltage Model Identification ROM CRC Software Version Time On Accumulated Lasing Time Calibration Slope and Intercept...
Page 106 5. Fiber Centration. This screen contains the following controls and displays: Centration Shot Limit Laser Rod Enable/Disable Ready/Standby Fire Centration Pulse Rate Display Pump Energy Display Return to Service 2 screen SERVICE MODE CONTROLS AND DISPLAYS In service firing, the following controls and displays are to be implemented. 1.
Page 107 2. Flashlamp Voltage. This consists of an auto-repeating UP/DOWN button set and a text display of the flashlamp voltage. setting in integer volts. a. Jump Up This control increases flashlamp voltage by 25V. b. Volts Up This control increases the flashlamp voltage by 5V. c.
Page 108 4. Nd:YAG Lamp Current. This consists of an auto-repeating UP/DOWN button set and a text display of the lamp current setting in integer amperes. a. Jump up This control increases the lamp current by 5 amps. b. Lamp Current Up. This control increases the lamp current by 1 amp.
Page 109 8. Calibration Button This button starts the calibration procedure if the system is in Ready mode. 9. Burn-in Button This button activates the burn-in process. 10. Initialize NVRAM Button The consists of a delayed-action button. As the button is held down, the system gives a distinctive audible beep at one-second intervals.
Page 110 16. Plot Calibration Depressing this button displays the Calibration Plots screen. 17. Fiber Centration. Depressing this button displays the Fiber Centration screen. 18. Draw Main energy plot Depressing this button displays the Pulse Energy Plot based on the main energy channel. 19.
Page 111 24. Centration Shot Limit This consist of an auto-repeating UP/SOWN button set and text display of the number of shots to be fired. a. Max Shots This control sets the number of shots to 10. b. Shots Up This control increases the number of shots by 1. c.
Page 112 7+(25< 2) 23(5$7,21 9HUVD3XOVHŠ 3RZHU6XLWHŒ 6HULHV 6HUYLFH 0DQXDO 5(9 %...
Page 113 After power up, and before the VersaPulse PowerSuite laser moves to its standby condition, the software performs a series of self tests. Self test failures result in fault codes or error messages displayed on the LCD color touchscreen display.
Page 114 The VersaPulse PowerSuite laser has a series of service software routines available to the service engineer. The routines are contained in the software EPROM, and are activated by moving a switch on the Controller PCB (not accessible to the user). These routines facilitate calibration and troubleshooting. The routines are described in detail later in this section.
Page 115 The YAG laser light and its reflections are potential hazards to the eye. Use extreme caution when operating the system with the covers opened or removed. The covers contain the beam and reflections safely within the console. Only those persons required should be present during servicing and eye protection that safely attenuates the YAG wavelength should be worn by all those present.
Page 116 Low Voltage Power Supply Insert a special tool (hex wrench) through the hole on bottom left of front door panel. Push up on the tab inside the hole to release the door. the door will swing open towards the right. FIG.
Page 117 NEW DIODE FIBER OPTIC SENSE CONNECTIONS SPEAKER SWITCHES OLD DIODE XMIT1 XMIT2 XMT3 XMIT4 XMIT5 XMIT6 XMIT7 RECV8 RECV9 REAR PANEL OPTICS BENCH PCB WATER SENSORS LV DC SUPPLY SW2 (SERVICE) DEECNO DISPLAY SERVO MOTOR SW3 (AUTO CAL) SW4 (SERV. ATTENUATOR) SW5 (RESET OPTICS SWITCH)
Page 118 8PI9PS 98ÃQPX@SÃTVQQG` "$6 !$W HP9@GÆÃBQ8'@ S& DÃGDH 69E PVUÃ! WÃ69E S"! S#" QA PVUÃ 69E WÃ69E E Ã8PII@8UPS) E!Ã8PII@8UPS) ÃÃ@h…‡uÃB…‚ˆq BSI`@G ÃÃPˆ‡ 'ÃÃPˆ‡! !ÃÃ‚ÃƒvÃxr’ !ÃÃPˆ‡ (ÃÃPˆ‡! "ÃÃ68ÃDI "ÃÃPˆ‡ ÃÃQ‚r…ÃAhvy #ÃÃ‚ÃƒvÃxr’ #ÃÃp‚€€‚ ÃÃPˆ‡" $ÃÃ68ÃDI $ÃÃp‚€€‚ !ÃÃ‚ÃƒvÃxr’ %ÃÃp‚€€‚ "ÃÃPˆ‡#Ã‚…Ã &ÃÃp‚€€‚...
Page 119 Cover slides back and lifts off Remove these two screws. Low Voltage Power Supply FIG. 5.4: REMOVING THE TOP COVER Remove optics bench cover to access the Attenuator PCB, Optics Bench PCB, Servo Motor PCB and all of the optical/mechanical components. Removing the cover exposes the optics bench to airborne contamination. The optics that operate on the YAG beam are particularly susceptible to damage associated with optics surface contamination.
Page 120 Q`SPÃDH6BDIB T@SWD8@ HDSSPS 6UU@IV6UPS !qÃ#$ƒ 9D8CSPD8 Q`SP UVSIDIB UVSIDIB G@IT & GPXÃ@I@SB` 9@U@8UPST HDSSPS HDSSPS 6UU@IV6UPS G@ITÃ8@GG 6TT@H7G` 9DP9@ G6T@S Ã 7 Ã Q Ã Q T@SWPÃHPUPS ÉÃQPTDUDPI @I8P9@S 7G6TUTCD@G9 T6A@U` 7@6HÃ9VHQT X@9B@ TCVUU@S T@SWPÃHPUPSÃQ87 AP8VTDIB G@IT T@SWPÃHDSSPS †‡Ã#$ƒ 86WDU`Ã‚… UVSIDIB 7SD8F HDSSPS...
Page 121 P8Ã@I9Ãsyh†uÃyh€ƒÃph‡u‚qrÃ7G68FÃG@69 CSÃ@I9ÃÃsyh†uyh€ƒÃh‚qrÃS@9ÃG@69 `6BÃSP9 AG6TCÃG6HQ PÃ…vt @qÃTrhy† `6BÃDW `6BÃD W D@ X ÃAS P H P 8 Ã@I 9 `6BÃDDD `6BÃDD I‚p‚qˆp‡v‰r €‚ˆ‡vtÃƒyh‡r 8 6 V U DP I )ÃU u rÃ8 h‰v‡’ÃH ‚qˆ yr ph ÃirÃh‡ÃhÃu vtu Ã‰‚y‡htrÃƒ‚‡r ‡vhy 9 ‚Ã ‚‡Ã‡‚ˆ pu Ã FIG.
Page 122 G6T@SÃ8C6II@GÃÆ# G6T@SÃ8C6II@GÃÆ 8C6II@GÃÆ# 8C6II@GÃÆ QG6IPHPVIU QG6IPHPVIU 8C6II@GÃÆ" 8C6II@GÃÆ! QG6IPHPVIU QG6IPHPVIU G6T@SÃ8C6II@GÃÆ! G6T@SÃ8C6II@GÃÆ" WD@XÃASPH P8Ã@I9 H o & H o /N d :Y A G FIG. 5.7 9BI9 UPÃHPUPSÃTC6AU @I8P9@S UPÃT@SWP HPUPSÃG@69T UPÃ8QV FIG. 5.10 OPTICS BENCH PCB QBI9 FIG. 5.8 SERVO MOTOR PCB 7528%/(6+227,1* 9HUVD3XOVHŠ...
Page 123 DGND To CPU To Attenuator Coil FIG. 5.9 ATTENUATOR PCB MGAIN SGAIN TP1 TP2 TP3 MPREA AGND AGND TP4 TP5 Service Attenuator SPRER DGND MAIN To CPU J3 PYRO1 To CPU J5 PYRO2 SAFETY Safety Shutter 9HUVD3XOVHŠ PowerSuite Œ 6HULHV 6HUYLFH 0DQXDO 7528%/(6+227,1* 5(9 % ...
Page 124 Remove the right side cover to access the fuses, AC Control PCB, main contactor, the circuit breaker, HVPS, Tachometer PCB, and to access the interior of the enclosure To remove the right side cover, open the front cover, remove the top cover, remove the single screw that secures the cover at the bottom just in front of the rear wheel, then remove the six screws along the top and front of the cover (three along the top, three along the front).
Page 125 U7% U7" Ã Ã A" S ÃÃTPAUTU6SU S@TDTUPS S!ÃÃTPAUTU6SU S@TDTUPS A& Ã A DIU@SGP8F TSB Ã Ã T 8PIUSPG TVSB@ @G@8USPID8T DTPG6U@9 QSPU@8UPS US6ITAPSH@S Ã 8 A6IÃTQ@@9 8PIUSPG 8DS8VDU U!ÃÃ!#ÃWÃDIU@SGP8F 7P6S9 GPPQÃDTPG6UDPI US6ITAPSH@S Ã Q ADY@9ÃÃ Ã Ã Ã...
Page 126 FIG. 5.11: INTERIOR VIEW, LEFT SIDE SERVICE MODE The VersaPulse PowerSuite includes "service mode" software routines. Service mode provides the Servicing Engineer with a number of troubleshooting and maintenance aids, commonly referred to as service screens. Some system faults are ignored in service mode (see 5.4.3).
Page 127 To enter into service mode, the microprocessor must see an OFF to ON transition of the Controller PCB SW2. SW2 is located on the left side of the Controller PCB. Note that if the switch is left on when the system is powered up, it will not enter into service mode (no OFF to ON transition).
Page 128 CONFIGURATION SOFTWARE SOFTWARE PRESS & HOLD (POWER AND REVISION "CHECK" TO CLEAR COMPUTER WAVELENGTH) LEVEL VALUE TIMERS READBACK OF ANALOG hq‰v†‚…’Ãhq‚…Ãshˆy‡Ã€r††htr†Ã‚Ã‡‚ƒÃyvr SIGNALS "ON TIME" AND "LASING" Wr…†hQˆy†rÃQ‚r…Tˆv‡rÃp‚svt TIMERS 8y…ÃUv€r…† $W #(( WQTDDDÃSr‰Ã‘ MATHEMATICA $W SPHÃ8S8Ã L EQUATION Ur€ƒ8 !"&...
Page 129 PRESS & HOLD TO ALL, 0, 1, 2, or 3 CLEAR ERROR LOG FILE DGYLVRU\ DQGRU IDXOW PHVVDJHV RQ WRS OLQH 6(5,$/ 3257 5HSRUW 7\SH SELECT "EXPOSURE" REPORT ([SRVXUH SELECT "ERROR (UU /RJ &OU LOG" REPORT 6\VWHP 'DWD SELECT "SYSTEM DATA" REPORT 6WDWLVWLFV SELECT...
Page 130 GRAPH TITLE SHOWS EITHER "MAIN" or "SAFETY" ENERGY SIGNALS hq‰v†‚…’Ãhq‚…Ãshˆy‡Ã€r††htr†Ã‚Ã‡‚ƒÃyvr ACTUAL LASER PULSE !È ENERGIES H6DIÃT6A@U`Ã@I@SB` (SHOWN FROM FIRING IN SERVCE MODE) !ÃE " !È LASER PULSE ENERGY ‡v€rÃÃÃÃÃÃÃ AFTER FIRING IN "USER LASER yh†r…Ã yh†r…Ã! yh†r…Ã" yh†r…Ã# MODE" THE CHANNEL GRAPH WILL LEGEND (EACH...
Page 131 LAMP CALIBRATION hq‰v†‚…’Ãhq‚…Ãshˆy‡Ã€r††htr†Ã‚Ã‡‚ƒÃyvr DATA FROM LAMP AUTOCALIBRATION CALIBRATION (1(5*< &$/,%5$7,21 3/27 ROUTINE DATA IN GRAPHICAL FORM Æ Æ! Æ" Æ# VALUES IN TABLE: (' hÃ†ˆƒr…Ãrssvpvr‡Ã…rtv‚ "$ÃE NUMBERS IN " X ‚…€hyy’Ã‚‡Ãr‡r…rq PARENTHESIS () ARE &# &% &" !ÃE SOLID LINE: FOR Nd:YAG LASER ACTUAL LASER ONLY...
Page 132 FLASH LAMP DRIVE CURRENT PARAMETERS FROM SVC. OPERATIONAL SCREEN #1 STATUS hq‰v†‚…’Ãhq‚…Ãshˆy‡Ã€r††htr†Ã‚Ã‡‚ƒÃyvr CURRENT NUMBER GO TO "READY" OF SHOTS PER MODE ACTIVE ROD T‡hqi’ )LEHU $OLJQPHQW Srhq’ GO TO ‘ÃE C‚ÃQˆ€ƒÃ@r…t’) JUMP TO MAX. "STANDBY" SHOTS (10) IqÃGh€ƒÃ8ˆ……r‡) ’Ã6 MODE Hh‘ÃTu‚‡†...
Page 133 CONFIGURATION (POWER CRC TEST: AND WAVELENGTH) VERIFIES CORRECT SOFTWARE INSTALLED hq‰v†‚…’Ãhq‚…Ãshˆy‡Ã€r††htr†Ã‚Ã‡‚ƒÃyvr /XPHQLV 9HUVD3XOVH 3RZHU6XLWH FRQILJ START POWER SUPPLY: SHUTTER TEST: HVPS PRESENT VERIFY CALIBRATE V/F POSITION LOOPS SENSORS & CHECK HVPS ROTATION OF T’†‡r€Ã‡r†‡Ãƒyrh†rÃhv‡ CONFIG LOW ENERGY & SWITCHES SERVICE Ur†‡vtÃ8S8 Q6TT ATTENUATORS...
Page 134 5.4.1 Turn On and Shut Down Fault Isolation System "turn-on" problems occur when the system fails to turn on and stay on with activation of the key switch. System "Shutdown" refers to the system main contactor de-energizing after the system has successfully turned on.
Page 135 5.4.3 “Fault Code Reported” Fault Isolation The microprocessor monitors the system to detect and respond to various fault conditions. When a fault is detected, the microprocessor displays the fault directly on the CPU PCB (as a four digit message). The microprocessor updates the touch screen to display the fault code and any accompanying message at the touch screen.
Page 136 A: How Cleared: P = Permanent; R = Press Ready to Clear B: Error Recognized in Service Mode: Y = Yes; N = No Code Fault Displayed Description Fault 11 A/D converter test failed. Fault 12 A/D converter #1 failed to finish conversion within 50µS. Fault 13 A/D converter #2 failed to finish conversion within 50µS.
Page 137 Fault 205 Neither optocouplers for the shutter sees light. Fault 211 Attenuator test failed. Fault 212 Attenuator is in the beam path when it should not be. Fault 213 Attenuator is out of the beam path when it should be. Fault 221 Service Attenuator test failed.
Page 138 Fault 422 Footswitch interface for footswitch #2 failed test. Fault 423 Footswitch #2 contacts are bouncing. Fault 424 Footswitch #2 is disconnected. Fault 425 Footswitch #2 contacts are both closed. Fault 426 Footswitch #2 internal logic failed. Check Interlock External interlock plug is removed. Insert Debris Shield Debris shield is removed from the system.
Page 140 Fault 601 +5 VDC is out of specification. Fault 602 +15 VDC is out of specification Fault 603 -15 VDC is out of specification Fault 701 Coolant temperature too high. Fault 702 Coolant temperature too low. Fault 703 Coolant conductivity too high. Fault 801 Inadvertent exposure test failed.
Page 141 LampVolts Frequency to Command HVPS B+ Voltage on Cap Bank CROWB Crowbar Drive Signal to HVPS (Normally LO) CBOK Readback of Crowbar Signal from HVPS (Normally HI) HVPS Analog Readback Frequency of Selected Signal(s) Returned from HVPS (See TP16) TP11 RemoteRX Receive Serial Data from Remote Control Panel TP12...
Page 142 TP24 MNDIF Main Energy Detector signal after Differential Amplifier stage TP26 /4MS/ LO for 4msec during each laser pulse then HI to reset the peak detector TP27 SENERG Safety energy signal after Peak/Hold Detector (Scope) TP28 SFINT Safety Energy Detector signal after Integrator stage TP29 /Q1/ LO for x msec during each laser pulse then HI to reset the...
Page 143 TP42 Ground reference point TP43 FSCLK Clock for footswitch EPLD (? Hz) TP44 INADEXP Inadvertent Exposure TP45 Ground reference point TP46 Ground reference point TP47 LVPS +5 VDC entrance to PCB (+5.0±0.1VDC) TP48 FSNC1 HI when Ho or single pedal is UP (LO when DOWN) TP49 FSNO1 LO when Ho or single pedal is up (HI when down)
Page 144 TP60 FSDN2 LO when Nd pedal is down (HI when UP) TP61 LMSIN Sine wave output of Lamp Modulate Digital-to- Frequency Converter TP62 CDRH HI when Remote Interlock (BRH) circuit is closed. TP63 Ground reference point TP64 Ground reference point TP65 Ground point reference TP66...
Page 145 TP79 PULSE Speed command to Servo Motor Amplifier TP80 /AS/ Address select signal form microprocessor TP82 /DTACK/ Data Transfer Acknowledge Signal to microprocessor TP83 16 MHZ 16 MHz clock for microprocessor TP84 Ground reference point TP85 Ground reference point TP86 Ground reference point TP87 SCOP1...
Page 146 FGND Ground reference point FGND Ground reference point AC CONTROL PCB: 24RET 24V return ATTENUATOR PCB: DGND Digital ground reference point OPTICS BENCH PCB: MPREA AGND Analog ground reference point AGND Analog ground reference point SPRER DGND Digital ground reference point 5.5.1 Controller PCB LEDs LED#...
Page 147 LED2 LAMP2 When the system is driving lamp #2 fiber optic cable to the HVPS. The LED blinks whenever the laser fires and during power self-test of the HVPS. LED3 LAMP3 When the system is driving lamp #3 fiber optic cable to the HVPS.
Page 148 LED11 BLST Indicates when the blast shield is inserted in its slot. The ground return is by way of the chassis ground straps on the laser deck. LED12 FBRIN Indicates when the fiber is fully inserted in the connector. LED13 FBRCON Indicates when the fiber is inserted in the connector.
Page 149 LED23 INAD Indicates that the inadvertent exposure monitor was tripped. This situation occurs when neither footswitch is depressed, the safety shutter was fully open and the minimum light energy detector was active. LED24 ATNIN Indicates that the main 40% attenuator is in place.
Page 150 REMOVE/REPLACE PROCEDURE This section provide procedures in the removing and replacement of major components in the VersaPulse PowerSuite laser. Prior to removing/replacing any components in the system, the covers must be opened or removed (i.e., side covers). Refer to Section 5.2 for the removal of any of the covers. Be sure all ESD protocols are observed when removing/replacing any electronic component.
Page 151 This step MUST BE PERFORMED to prevent contamination from being dragged and depos- ited inside the cavity flow tube. d. Carefully slide the flashlamp out of the cavity assembly in the direction of the black wire. Take caution to locate the O-rings. Note the position of the O-ring on the black end of the old flashlamp.
Page 152 Remove the five nuts securing the Controller PCB to the standoffs and remove the Controller PCB. Install the new Controller PCB and secure it in place using the five nuts that was just removed. CAUTION: Be sure ESD protocols are observed when handling the new Controller PCB, otherwise severe damage to the Controller PCB may occur.
Page 153 TROUBLESHOOTING The following is a general check list and troubleshooting guide for the VersaPulse PowerSuite trained service engineer. Procedures referenced in this section for adjustments, alignments, calibrations and checks are provided in Section 3.
Page 154 OPTICS & OPTICS RELATED COMPONENTS 1. Lamp, Rod, HR, OC, or Cavity: • Cavity Alignment • Fiber Alignment • Check Autocalibration Values • Perform Operational and Safety Checks 2. First Relay, Plano Relay: • Fiber Alignment • Check Autocalibration Values •...
Page 155 7. Aiming Diode Laser, Aim Beam Mirror, Beam Combiner Optic: • Aiming Laser Alignment • Check Autocalibration Values • Perform Operational and Safety Checks PCBs Optics Bench PCB: • Pyro Imaging Mirror Alignment • Main and Safety Energy Pre-Amp Calibration •...
Page 156 OTHER COMPONENTS Fan Motor/Impeller, Pump Motor, Pump Head, Waterflow Switch, Water Temp Sensors, Fil- ters (DI, particle, air) and General Plumbing: • Fan Idle Speed Adjustment • Perform Operational and Safety Checks Display: • Load Logo • Check Autocalibration Values •...
Page 157 f. Check lamp calibration values. (Higher lamp energies or cal points means more energy must be dumped into the lamps creating more heat.) If all of the above items are checked and found to be normal yet, the laser still overheats, it may be pos- sible that the water pump head is worn and not moving the water quickly enough or there may be some flow restriction.
Page 158 If the blastshield glass was known to be new or clean at the time, the optical alignment checks out to be normal, the fiber was new and was being properly used, yet the system continues to consume blastshields at a high rate, check for contamination on the fiber focus lens. To check the fiber focus lens, remove the fiber focus assembly from the laser, then remove the lens cell by first removing the beam combiner.
Page 159 The Bill of Materials for the VersaPulse® PowerSuite™ laser is maintained under document control at Lumenis in Santa Clara, California, and is subject to change. The following list is provided for convenience - always confirm the P/N for a given part through Technical Support before ordering.
Page 160 CONTROL SYSTEM PRINTED CIRCUIT BOARDS CPU PCB w/EEPROM, 100W 0638-741-01 CPU PCB w/EEPROM, 80W 0638-741-02 CPU PCB w/EEPROM, 60W 0638-741-03 CPU PCB w/EEPROM, 45W 0638-741-04 CPU PCB w/EEPROM, 30W 0638-741-05 CPU PCB w/EEPROM, 80W (JAP) 0638-741-06 CPU PCB w/EEPROM, 30W (JAP) 0638-741-07 CPU PCB w/EEPROM, 80/100W 0638-741-08...
Page 161 Cover, side (key) 0637-148-01 Cover, side (blastshield) 0621-506-01 Handle, top Cover 0619-410-01 Handle, front cover 0619-411-01 Front Door ass’y (method) 0637-366-01 Cover, blastshield 0621-132-01 Latch, front door (kit) 1406-0146 Castor, front 1407-0163 Wheel, rear 1407-0164 Bumper, front door 0619-668-01 Bumper, side panel 0621-057-01 Hinge, door 1406-0147...
Page 162 CABLE SETS/HARNESSES Optical Fiber Set (CPU-HVPS) 0632-527-01 Line Filter to Circuit Breaker 0638-062-01 CPU cable set 0637-264-01 LVPS to CPU 0633-727-01 AC (interlock) harness 0637-263-01 Pump motor cable 0637-475-01 HVPS mains cable 0637-265-01 Blastshield Switch Ass’y 0638-740-01 Temp Sense, Air, Fan 0637-462-01 Temp Sense, Water, Fan 0637-463-01...
Page 163 OPTICS, COMMON Flashlamp 0626-879-01 Cavity ass’y., rodless 0637-989-01 Wedge 0636-799-01 Spacer (for wedge optic) 0636-800-01 Mirror, 45• folding 0623-497-01 Mirror, servo 0625-352-01 Mirror, pyro imaging 0626-994-01 Attenuator, low energy 0623-500-02 Attenuator, service 0623-500-01 Shutter 0623-500-01 Blastshield, FRU 0624-015-01 Blastshield, Optic 0623-502-01 Beam Combiner ass’y.
Page 164 6(/(&7(' 3$576 9HUVD3XOVHŠ PowerSuite Œ 6HULHV 6HUYLFH 0DQXDO 5(9 %...
Page 165 ),(/' 6(59,&( %8//(7,16 FIELD SERVICE BULLETINS The information in this Service Manual is subject to change without notice. As required, Lumenis Service Department Technical Support releases Field Service Bulletins (FSB’s) to update its Field Service Engineers on technical issues concerning this product. At its release, the FSB’s become part of this Service Manual.
Page 166 )6%¶6 9HUVD3XOVHŠ PowerSuite Œ 6HULHV 6HUYLFH 0DQXDO 5(9 &...
Page 167 /80(1,6 ),(/' 6(59,&( %8//(7,1 VERSAPULSE POWERSUITE FIELD SERVICE BULLETIN INDEX - 2 JULY 2001 NUMBER DATE TITLE 2 JULY 2001 CODING INSTRUCTIONS 22 MAY 2000 REV. H HIGH VOLTAGE POWER SUPPLY CONTROLLER PCB P/N 0626-695-01 2 JULY 2001 SOFTWARE CHANGES & NEXT CALL RETROFIT (9800) REV.
Page 168 /80(1,6 ),(/' 6(59,&( %8//(7,1 CODING INSTRUCTIONS: VERSAPULSE PRODUCT LINE 2 JULY 2001 The following are instructions for coding service actions on the SYSTEM CERTIFICATION REPORT, including the VersaPulse Product Lines Detail Identifier List (begins on next page). Refer to the Service Department Policies &...
Page 169 VP listing beginning on the next page. The System Performance Data Box of the form is used to provide critical performance data after the service has been completed. The following performance data for the VersaPulse PowerSuite system must be written in the System Performance Data Box: •...
Page 170 /80(1,6 ),(/' 6(59,&( %8//(7,1 VP CODING INSTRUCTIONS: CONT. 2 JULY 2001 VERSAPULSE CODES 3960 Coolant 3970 DI Cartridge 0000 - GENERAL 3980 Particle Filter/Holder 0001 Install Laser 3990 Conductivity Sensor 0002 De-Install Laser 0003 Preventive Maintenance 4000 - CONTROL ELECTRONICS 0004 Optical Alignment 4010 Control PCB 0005 Calibration...
Page 171 /80(1,6 ),(/' 6(59,&( %8//(7,1 VP CODING INSTRUCTIONS: CONT. 2 JULY 2001 6030 Cavity or Brick 9050 AA - Fiber Focus Ass’y. (3Z55) 2.1 before 3/92 6040 O-Ring FSB#9 6050 Flow Tube/Shotgun 9060 AN - ESD Protect (3Z57) 2.1 before 5/92 FSB#12 6060 HR/OC, Ho 9070 AU - 2000 to 2000SDE (3Z58) 2.1 2000’s FSB#13 6080 Rod, Ho...
Page 172 /80(1,6 ),(/' 6(59,&( %8//(7,1 VP CODING INSTRUCTIONS: CONT. 2 JULY 2001 XXXX-SC-TITLE CLASS M - Mandatory Detail Identifier N - Next Call A - As Needed U - Upgrade STATUS A - Active I - Inactive S - Superseded Retrofit information includes the Detail Identifier, followed by single letter codes indicating the class and status of the retrofit, as defined in the diagram above.
Page 173 Revision "H" HVPS Controller PCBs (P/N 0626-695-01) are now being shipped in production systems and is also available as a replacement part. The next revision of the VersaPulse PowerSuite service manual will include an updated schematic of the revision "H" High Voltage Power Supply Controller PCB.
Page 174 /80(1,6 ),(/' 6(59,&( %8//(7,1 VERSAPULSE POWERSUITE FSB # 1: CONT. 73 73 &/26(' 23(1 32:(568,7( 23(1 Note that there may be systems in the field that may not have a revision “H” HVPS Controller PCB in the High Voltage Power Supply. So it is important to always verify the revision level of the HVPS Controller PCB and insure SW6:1-4 is in the proper position, otherwise the following conditions will occur (refer to the chart below).
Page 175 /80(1,6 ),(/' 6(59,&( %8//(7,1 VERSAPULSE POWERSUITE FSB #2: SOFTWARE CHANGES & NEXT CALL RETROFIT (9800) 2 JULY 2001 INTRODUCTION This Field Service Bulletin provides information on the following per ECO# 69435: • Introduces revision “D” release of the VersaPulse® PowerSuite™ software, which corrects...
Page 176 /80(1,6 ),(/' 6(59,&( %8//(7,1 VERSAPULSE POWERSUITE FSB # 2: CONT. 3. Inspect/repair the cable harness. Inspect the cable harness from the CPU board to Rear Panel I/O board near and around the backside of the water pump motor. Repair the cable harness if the heat-shrink tubing and/or insulation are worn through.
Page 177 PAGE # Block Diagram Functional Block Diagram Interconnect Diagram 8-5 thru 8-6 AC Control 0636-047-01 Fan Speed Controller PCB 0636-049-01 VersaPulse PowerSuite CPU PCB 0636-045-01 8-9 thru 8-18 Optics Bench PCB 0636-039-01 8-19 Servo Motor PCB 0636-041-01 8-20 Attenuator PCB...
Page 178 HVPS Controller PCB 0626-695-01 8-27 thru 8-32 Start/Simmer Control PCB 0626-697-01 8-33 thru 8-35 DC Injection 0626-705-01 8-36 HVPS Motherboard 0626-699-01 8-37 thru 8-39 Crowbar Driver 0626-703-01 8-40 IGBT Driver PCB 0636-171-xx 8-41 Display Controller 0633-476-01 8-42 thru 8-49 Deecno 12V Regulator 0638-426-01 8-50 6&+(0$7,&6...
