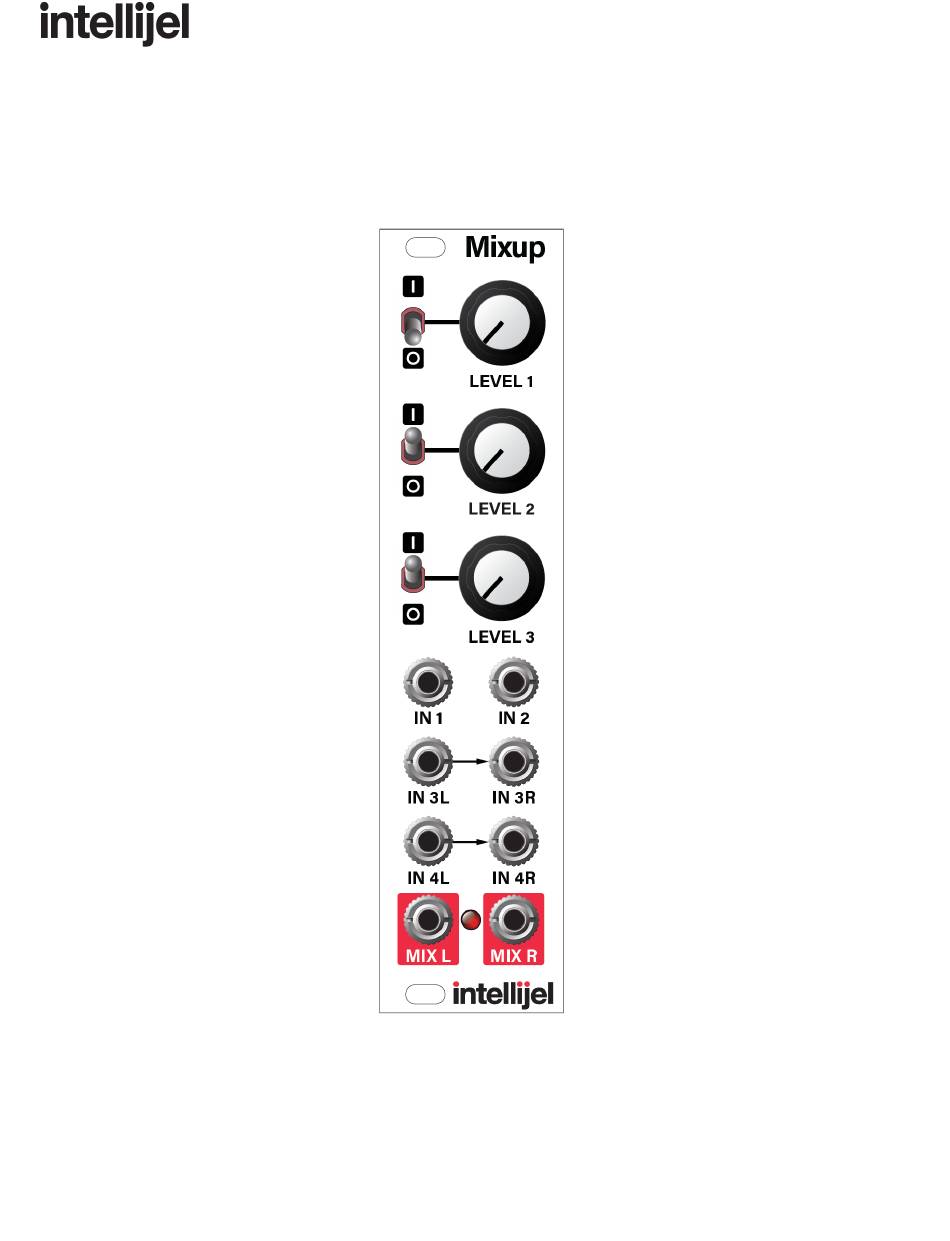

- Page 1 5/6/2019 Mixup Manual - Google Docs Mixup Manual Mixup Chainable Stereo Audio Utility Mixer Manual Revision: 2019.05.06 https://docs.google.com/document/d/1C2OV6VU_620OhJ8l7h2D_4ciZMzONd6PU1skKceqhf0/edit#heading=h.qllbccap9mlk 1/14...
- Page 2 Installing Your Module Overview Front Panel Controls Inputs & Outputs Back Panel Connecting Mixup Directly to the Audio Jacks on your 7U Case Connecting Mixup Directly to the Audio Jacks on your Palette Case Architecture Technical Specifications ...
- Page 3 (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ...
-
Page 4: Installation
Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... - Page 5 Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ...
- Page 6 Overview Mixup is a versatile, expandable audio mixer for eurorack format. It has six front panel inputs and two outputs. Inputs 1 and 2 are single-channel mono inputs, each with its own mute switch and level control; Input 3 is a dual-channel stereo input with a shared mute ...
-
Page 7: Front Panel
B. IN 2 - Mono audio input 2. Mixup routes the audio from IN 2 to both the MIX L and MIX R outputs. It can be muted with the MUTE 2 switch, and its audio level is determined by the ... - Page 8 C. IN 3L - This is the left side of stereo audio input 3. Mixup routes the audio from IN 3L to the MIX L output. It can be muted (along with IN 3R ) using the MUTE 3 switch, and its audio level (along with IN 3R ) is determined by the LEVEL 3 knob. If nothing is plugged ...
-
Page 9: Back Panel
NOTE : Never use the 3-wire link cable to connect a Mixup module to an Intellijel Pedal I/O module. Although both modules use this same cable/connector — they serve different purposes and carry different signals. Page 8 ... - Page 10 Connecting Mixup Directly to the Audio Jacks on your 7U Case If you have a 2nd generation Audio Jacks board installed in your Intellijel 7U Performance Case, you can connect one or two Mixups directly to these jacks. This connection method does not ...
- Page 11 Mixup Manual You can connect up to two Mixups to the Audio Jacks Board, or you can even combine a Mixup with another 2-channel module, such as a Pedal I/O 1U . ...
- Page 12 Connecting Mixup Directly to the Audio Jacks on your Palette Case If you have an Intellijel Palette case, you can connect Mixup directly to the two ¼” audio jacks on the top of the Palette. You can choose whether you want the ¼” jacks to send audio out of ...
- Page 13 5/6/2019 Mixup Manual - Google Docs Mixup Manual Architecture Page 12 https://docs.google.com/document/d/1C2OV6VU_620OhJ8l7h2D_4ciZMzONd6PU1skKceqhf0/edit#heading=h.qllbccap9mlk 13/14...
-
Page 14: Technical Specifications
5/6/2019 Mixup Manual - Google Docs Mixup Manual Technical Specifications Width 6 hp Maximum Depth 29 mm Current Draw 15 mA @ +12V 16 mA @ -12V Page 13 https://docs.google.com/document/d/1C2OV6VU_620OhJ8l7h2D_4ciZMzONd6PU1skKceqhf0/edit#heading=h.qllbccap9mlk...
