- Page 1 Mutamix Manual Mutamix 6-Channel CV / Audio Mixer Manual Revision: 2018.08.15 ...
-
Page 2: Table Of Contents
Mutamix Manual Table of Contents Table of Contents Overview Features Installation Before Your Start Installing Your Module Front Panel Controls Inputs and Outputs Instructions Main Mode X-Mode Rear Jumpers Alternate Initialization Settings Technical Specifications ... -
Page 3: Overview
Jumpers on the back allow the Mutamix faders to send a five volt range while an input is not connected, creating step sequencing functionality while in X-Mode. A Linix module can also be connected using a ribbon cable to normal the two together. ... -
Page 4: Installation
Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. Before Your Start Before installing a new module in your case you must ensure your case’s power supply has ... - Page 5 The other end of the cable, with a 16-pin connector, connects to the power bus board of your Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ...
- Page 6 Mutamix Manual Once connected, the cabling between the module and power supply should resemble the picture below: Before reconnecting power and turning on your modular system, double check that the ribbon ...
-
Page 7: Front Panel

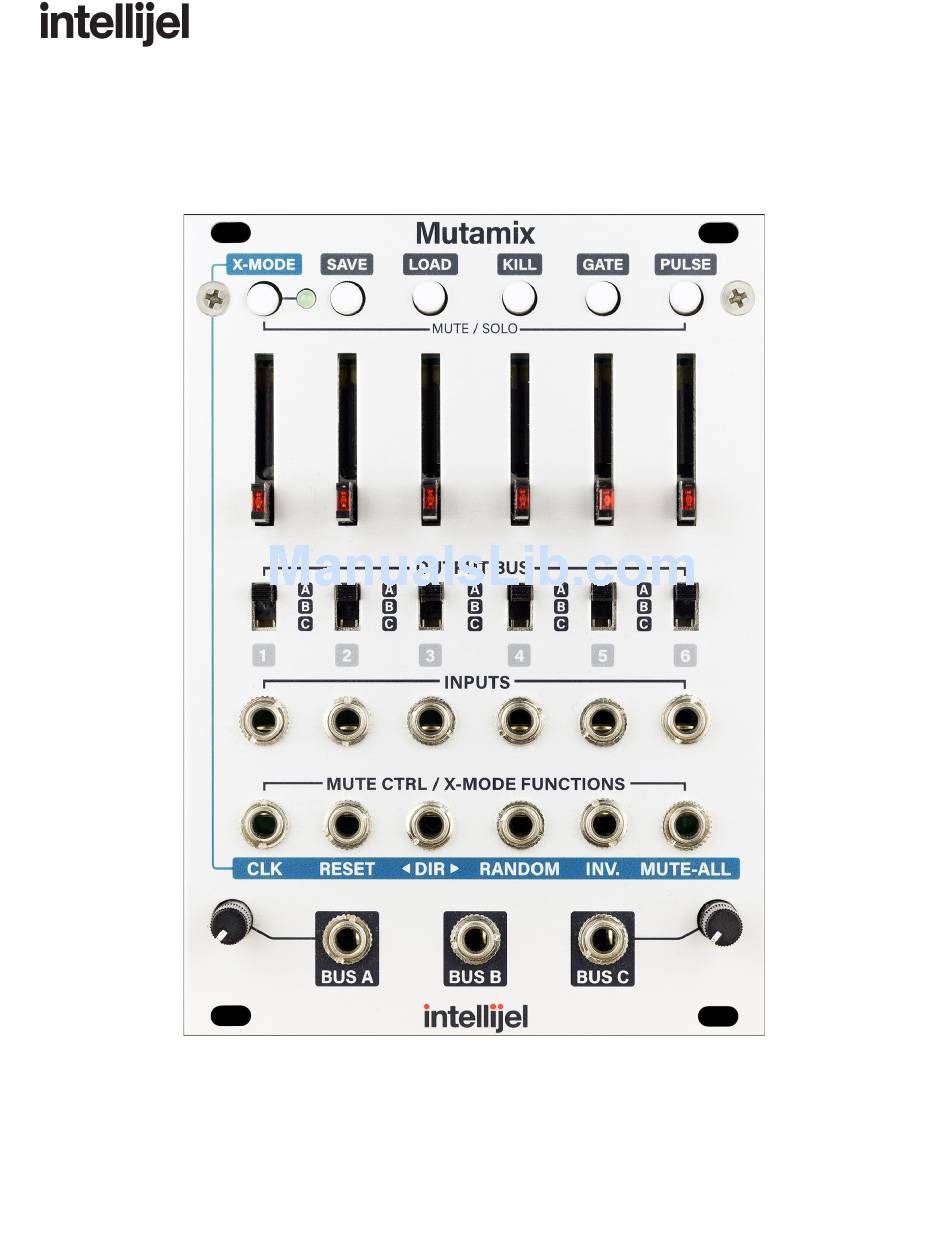

Front Panel Controls 1. Buttons - Accesses different parameters of the Mutamix depending on whether the module is in its default Main Mode, or in X-Mode. The default behaviour causes channels to mute when a button is pressed and solo when a button is double pressed. ... -
Page 8: Inputs And Outputs
B. MUTE CTRL / X-MODE FUNCTIONS - Sending gate or trigger signals to these inputs causes muting while in Main Mode, and triggers specific functions while in X-Mode. C. BUS OUTPUTS - Provides three selectable outputs from the Mutamix with attenuation on BUS A and BUS C Instructions While in Mutamix’s default Main Mode, it functions as an audio and CV mixer. -
Page 9: Main Mode
Connecting a clock signal to the CLK input causes Mutamix to step through saved presets on each clock pulse. RESET will jump to the first preset, DIR will change the direction Mutamix ... - Page 10 Mutamix Manual KILL - Mutes all channels. The LEDs will all blink rapidly to indicate kill is active. Press any button to exit this mode. GATE - Causes the channel fader LEDs of any channels set to GATE mode to light up. ...
-
Page 11: X-Mode
five and six will not be selected during randomization. Holding the SAVE button until the X-Mode LED flashes rapidly will still cause the Mutamix to save its current settings to EEPROM. This can be used to have the module initialize in X-Mode ... -
Page 12: Rear Jumpers
Mutamix inputs will break this normalling. This can be useful for splitting a signal, for example to create a wet/dry mix. Note that because the Linix sums its inputs to channel six, Mutamix will in turn receive the sum of all Linix signals on channel six. ... -
Page 13: Alternate Initialization Settings
Mutamix Manual Alternate Initialization Settings Holding PULSE while powering on the module inverts the mute display of the channel fader LEDs. By default, LEDs light when a channel is muted, in this alternate mode, LEDs light when ...
