- Page 1 Linix Manual v1.00 Linix Six Channel Voltage Controlled Amplifier / Five Channel Mixer Manual Revision: 2018.09.13 ...
- Page 2 Linix Manual v1.00 Table of Contents Table of Contents Compliance Installation Installing Your Module Overview Features Front Panel Controls Inputs and Outputs Instructions Six Independent VCAs Level Bias Summed Mixing Rear Jumpers Technical Specifications ...
- Page 3 (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ...
-
Page 4: Installation
Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... - Page 5 Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ...
- Page 6 The SUM output has an additional set of LEDs to monitor the bipolar state of the final sum and a clip led to monitor the absolute max signal level. There is a 12pin header on the back to connect the Linix channel direct outputs to the inputs of an Intellijel Mutamix or Mutagen module. Features ...
-
Page 7: Front Panel

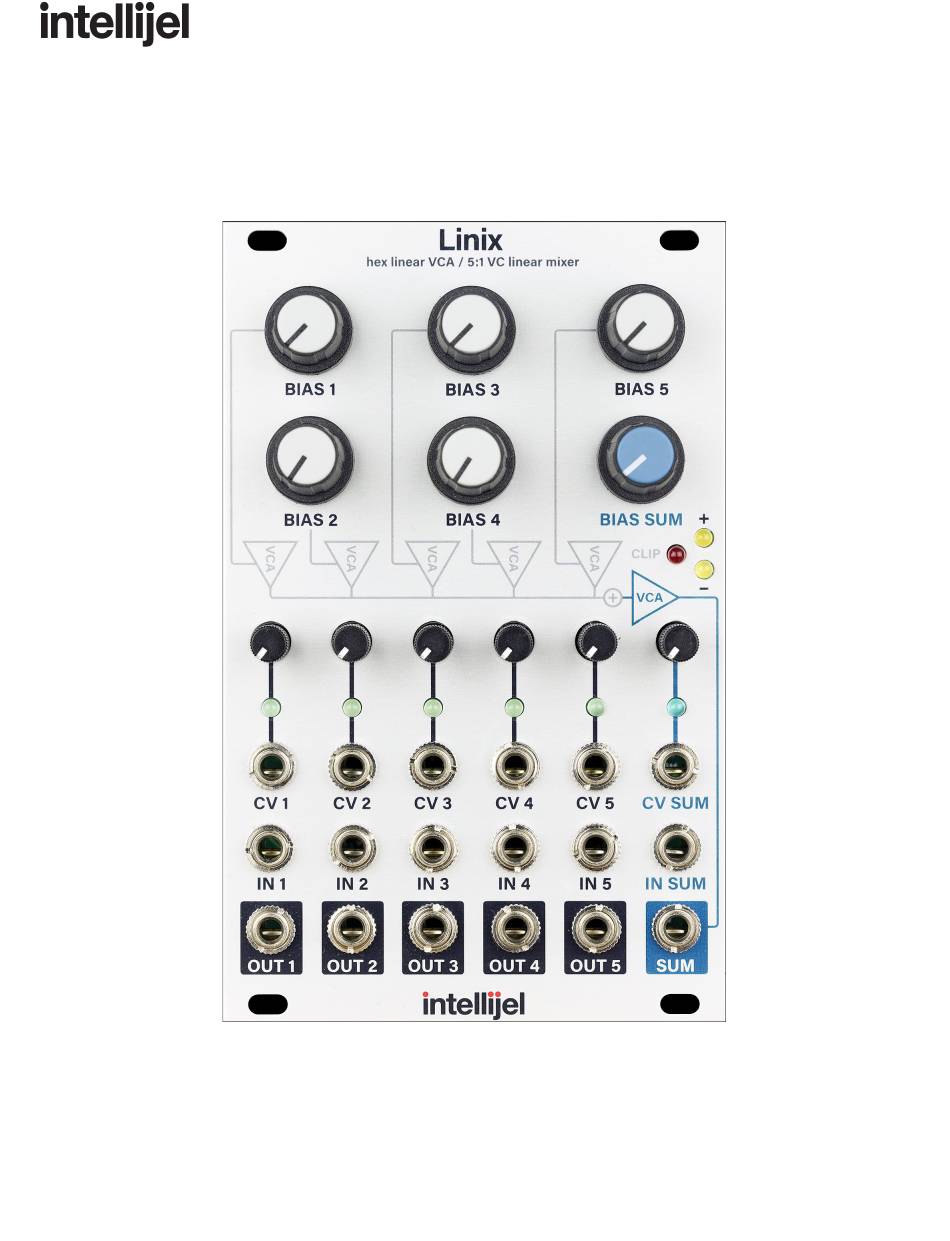

Linix Manual v1.00 Front Panel Page 6 ... -
Page 8: Inputs And Outputs
Linix Manual v1.00 Controls 1. BIAS 1-5 - Sets the base level, or bias, of a channel’s VCA. When fully clockwise this approximately equivalent to applying a +5 V voltage at the CV input resulting in unity ... - Page 9 Instructions Six Independent VCAs The simplest way to use the Linix is to ignore any of the summing CV and mixing functionality and just use it as up to six independent VCAs: ● Connect the output signal from the source to IN 1. The source can be anything, any ...
-
Page 10: Rear Jumpers
Mutamix inputs will break this normalling. This can be useful for splitting a signal, for example to create a wet/dry mix. Note that because the Linix sums its inputs to channel six, Mutamix will in turn receive the sum of all Linix signals on channel six. ... -
Page 11: Technical Specifications
Linix Manual v1.00 Technical Specifications Width 16 hp Maximum Depth 28 mm Current Draw 88 mA @ +12V 84 mA @ -12V Page 10 ...
