Intellijel Mixup Manual

Chainable stereo audio utility mixer
Hide thumbs Also See for Mixup:
Table of Contents

Advertisement

Quick Links

Download this manual
Mixup
Chainable Stereo Audio Utility Mixer
Manual (English)
Revision: 2021.08.02

Advertisement

Table of Contents
loading

Related Manuals for Intellijel Mixup

Summary of Contents for Intellijel Mixup

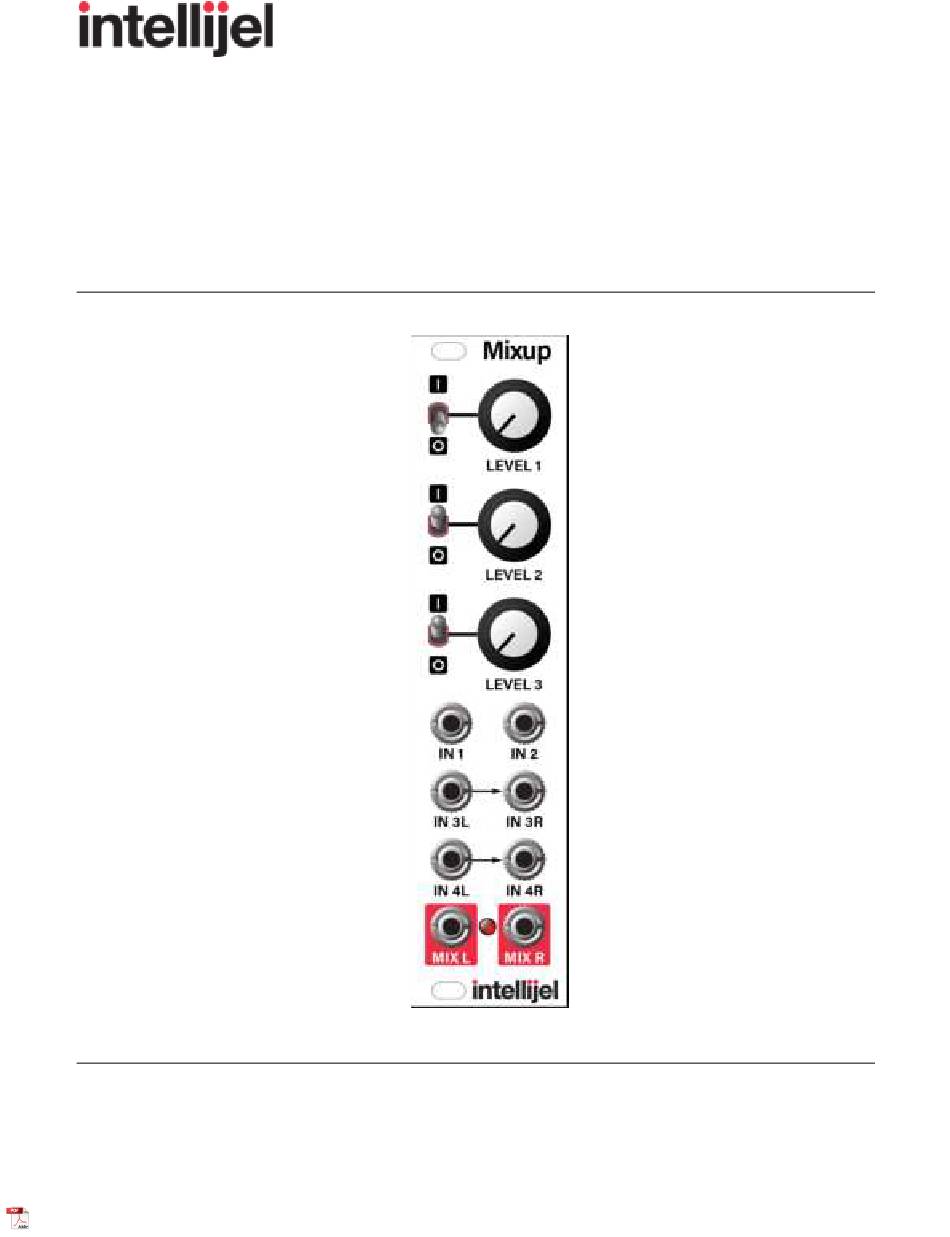

  • Page 1 Mixup Chainable Stereo Audio Utility Mixer Manual (English) Revision: 2021.08.02...

  • Page 2: Table Of Contents

    Controls Inputs & Outputs BACK PANEL Connecting Mixup Directly to the Audio Jacks on your 7U Case Connecting Mixup Directly to the Audio Jacks on your Palette Case Connecting Mixup to an Intellijel Outs Module Connecting Mixup to a v2 Headphones 1U Module...

  • Page 3: Compliance

    (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Installation

    INSTALLATION Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free power header and sufficient available capacity to power the module: ●...

  • Page 5: Installing Your Module

    Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe. Sometimes the connectors are shrouded, ensuring the cable can only be oriented in one direction.
  • Page 6 You should immediately check that all your modules have powered on and are functioning correctly. If you notice any anomalies, turn your system off right away and check your cabling again for mistakes.     Mixup Manual...

  • Page 7: Overview

    OVERVIEW   Mixup is a versatile, expandable audio mixer for eurorack format. It has six front panel inputs and two outputs. Inputs 1 and 2 are single-channel mono inputs, each with its own mute switch and level control; Input 3 is a dual-channel stereo input with a shared mute and level control; and input 4 is an auxiliary unity-gain, non-mutable stereo input.

  • Page 8: Front Panel

    LEVEL 1 knob. IN 2 - Mono audio input 2. Mixup routes the audio from IN 2 to both the MIX L and MIX R outputs. It can be muted with the MUTE 2 switch, and its audio level is determined by the LEVEL 2 knob.
  • Page 9 MIX R - This is the mixed audio output of all audio on Mixup’s right bus. This includes audio from IN 1 , IN 2 , IN 3R (or IN 3L if IN 3R is not connected), IN 4R (or IN 4L if IN 4R is not connected), plus all right-channel audio from other Mixups you might connect to its back panel CHAIN-IN connector.

  • Page 10: Back Panel

    Each Mixup module features a pair of rear panel connectors, which enable you to serially connect multiple Mixups to create a larger mixer with more inputs, or to connect Mixup directly to the ¼” jacks on a compatible Intellijel case, an Outs module, or a v2 Headphones 1U.

  • Page 11: Connecting Mixup Directly To The Audio Jacks On Your 7U Case

    Connecting Mixup Directly to the Audio Jacks on your 7U Case   If you have a 2nd generation Audio Jacks board installed in your Intellijel 7U Performance Case, you can connect one or two Mixups directly to these jacks. This connection method does not work with a 1st generation Audio Jacks board, though you can purchase and easily install a 2nd generation board in your case.
  • Page 12 3-pin Link product (such as a Pedal I/O 1U). Similarly, you can connect a Mixup’s CHAIN-IN connector to either of the two 3-pin connectors on the Audio Jacks board and feed external audio from the corresponding jacks into the Mixup bus.

  • Page 13: Connecting Mixup Directly To The Audio Jacks On Your Palette Case

    Connecting Mixup Directly to the Audio Jacks on your Palette Case   If you have an Intellijel Palette case, you can connect Mixup directly to its ¼” audio jacks. You can choose whether you want the ¼” jacks to send audio out of Mixup, or into it.

  • Page 14: Connecting Mixup To An Intellijel Outs Module

    Left-to-Right normaling, 3-pin Link connections require removal of this jumper to achieve expected operation and optimum sonic fidelity. Mixup’s MIX L and MIX R outputs are now sent directly to the left and right inputs on your Outs module without patching the front panels.

  • Page 15: Connecting Mixup To A V2 Headphones 1U Module

    Connecting Mixup to a v2 Headphones 1U Module   If you own an Intellijel Headphones 1U module (version 2 only), you can connect it directly to the Mixup using the included link cable. To do so: Confirm you have a “version 2” Headphones 1U module.

  • Page 16: Architecture

    ARCHITECTURE         Mixup Manual...

  • Page 17: Technical Specifications

    TECHNICAL SPECIFICATIONS   Width 6 hp Maximum Depth 29 mm Current Draw 15 mA @ +12V 16 mA @ -12V Mixup Manual...
