Summary of Contents for Intellijel Aux Mix 1U

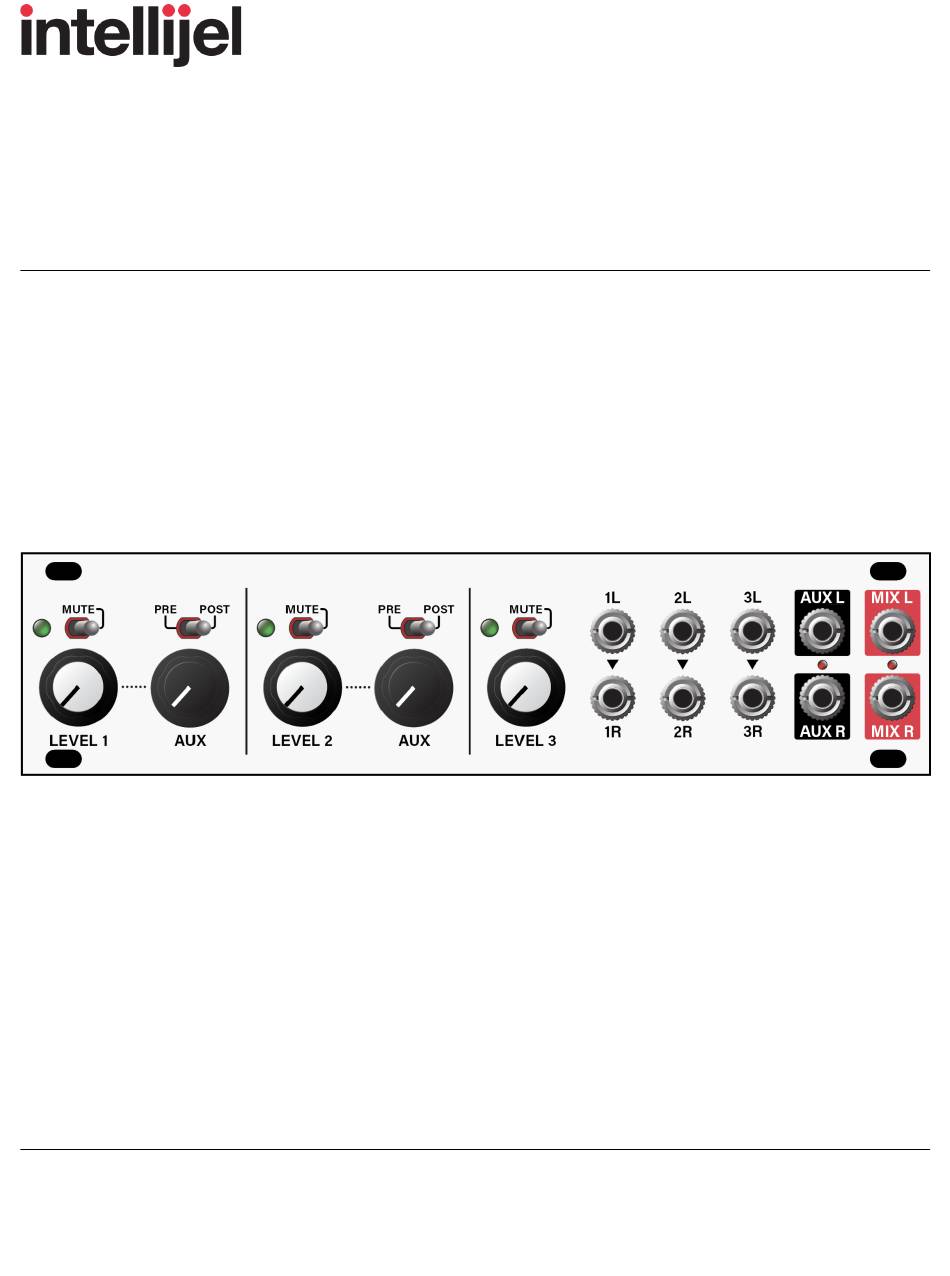

- Page 1 Aux Mix 1U Stereo Mixer with Auxiliary Output Bus Manual (English) Revision: 2024.12.12...
-
Page 2: Table Of Contents
Example A.2: Aux Input and Mix Output..................10 Example A.3: Combining Modules in the Performance Case............. 10 Connecting Aux Mix 1U to the Audio Jacks on your Palette Case........... 11 Example B.1: Palette Case 104HP Mix and Aux Outs..............11 Example B.2: Palette Case 62HP Mix Out.................. -
Page 3: Compliance
Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
Before You Start Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free power header and sufficient available capacity to power the module:... -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labeled with the label “-12V” and a thick white stripe. - Page 6 After you have confirmed all the connections, you can reconnect the power cable and turn on your modular system. You should immediately check that all your modules have powered on and are functioning correctly. If you notice any anomalies, turn your system off right away and check your cabling again for mistakes. Aux Mix 1U Manual...
-
Page 7: Overview
OVERVIEW Aux Mix 1U is a 3-channel stereo mixer module with a stereo auxiliary (Aux) send bus. The routing options on this mixer module make using Aux Mix 1U for Send FX, Parallel Processing, Feedback Mixing, and more possible. It is designed for audio signals only (not for mixing CV). It is AC-coupled and uses audio-grade, logarithmic attenuators for a smooth, even response across the entire volume range. -
Page 8: Front Panel
MIX OUT L/R: Left and Right Main mix output, set by LEVEL and MUTE controls on channels 1-3. The red LED between the two output jacks is an overload indicator. Soft-clipping diodes on the Mix outputs prevent hard clipping at higher output levels. Aux Mix 1U Manual... -
Page 9: Back Panel Connectivity
BACK PANEL CONNECTIVITY It is possible to expand the connectivity of Aux Mix 1U using the 4x 3-pin connectors on the rear side of the module. These connectors can be used with compatible Intellijel Modules and Cases. Aux Mix 1U comes with 2x 3-pin connector cables included. -
Page 10: Connecting Aux Mix 1U To The 7U Performance Case Audio Jacks
Connecting Aux Mix 1U to the 7U Performance Case Audio Jacks If you have a 2nd-Gen Audio Jacks board installed in your Intellijel 7U Performance Case, it is possible to connect Aux Mix 1U to the ¼” Jacks using the included 3-Pin connector cables. -
Page 11: Example A.2: Aux Input And Mix Output
You could connect 2x Aux Mix 1U modules, or combine with other modules such as Mixup or Pedal I/O 1U. In the example below, the left pair of Jacks is linked to Pedal I/O 1U’s SEND-RETURN, and the right pair is connected to Aux Mix 1U’s CHAIN-OUT. Aux Mix 1U Manual... -
Page 12: Connecting Aux Mix 1U To The Audio Jacks On Your Palette Case
Connecting Aux Mix 1U to the Audio Jacks on your Palette Case If you have an Intellijel Palette Case, you can connect the Aux Mix 1U directly to a pair of ¼” audio jacks on the top of the Palette (1x pair on the Palette 62, and 2x pairs on the Palette 104). -
Page 13: Connecting Two Aux Mix 1Us As A Chained Mixer
Connecting Two Aux Mix 1Us as a Chained Mixer You can chain together two Aux Mix 1U modules to create a larger mixer with six stereo channels and four aux sends. In the diagram below, we have two units - A and B Connect AUX_CHAIN-OUT of A to AUX_CHAIN-IN of B using the 3-pin connector cable Connect CHAIN-OUT of A to CHAIN-IN of B using another 3-pin connector. -
Page 14: Connecting Aux Mix 1U To Intellijel Mixup Module
Intellijel Mixup has CHAIN-IN and CHAIN-OUT connections on the back, allowing you to chain into or out from Aux Mix 1U. In the example below, Mixup adds four channels (2x Mono, 2x Stereo) to Aux Mix 1U’s main mix. Level and mute controls still work as they would from the main out of Mixup. -
Page 15: Connecting Aux Mix 1U To An Intellijel Outs Module
Connecting Aux Mix 1U to an Intellijel Outs Module If you own an Intellijel Outs module, you can connect it directly to the Aux Mix 1U using the included 3-pin link cable. In this scenario, Aux Mix 1U’s main mix output is connected to the audio jack and headphone sockets on your Outs module without patching the front panels. -
Page 16: Connecting Stereo Mix 1U To A V2 Headphones 1U Module
Connecting Stereo Mix 1U to a v2 Headphones 1U Module If you own a 2nd-Gen Intellijel Headphones 1U module, you can connect it directly to the Aux Mix 1U using the included link cable. To do so: Confirm you have a “2nd-Gen” Headphones 1U module. -
Page 17: Technical Specifications
48mA @ +12V 42mA @ -12V 3-pin Link Compatible Modules and Cases No. of Intellijel Case / Module In > Aux Mix 1U Aux Mix 1U > Out Connections 104HP / 84HP x 7U Performance Case 104HP x 4U Palette Case...
