- Page 1 Stereo Mixer 1U Chainable Mono/Stereo Audio Utility Mixer Manual (English) Revision: 2021.01.09...
-
Page 2: Table Of Contents
Connecting Stereo Mix 1U to the Audio Jacks on your 7U Case Output Connection Combining Modules Connecting Stereo Mix 1U to the Audio Jacks on your Palette Case Connecting Stereo Mix 1U to an Intellijel Outs Module Connecting Stereo Mix 1U to a v2 Headphones 1U Module TECHNICAL SPECIFICATIONS ... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
Before Your Start Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free power header and sufficient available capacity to power the module: ●... -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe. - Page 6 You should immediately check that all your modules have powered on and are functioning correctly. If you notice any anomalies, turn your system off right away and check your cabling again for mistakes. Stereo Mixer 1U Manual...
-
Page 7: Overview
OVERVIEW Stereo Mixer 1U is a versatile, expandable audio mixer for the Intellijel 1U format. It has two pairs of front panel inputs, each with its own level control, and a mixed output pair. For each input pair, the left channel is normalled to the right channel, for mono operation. -

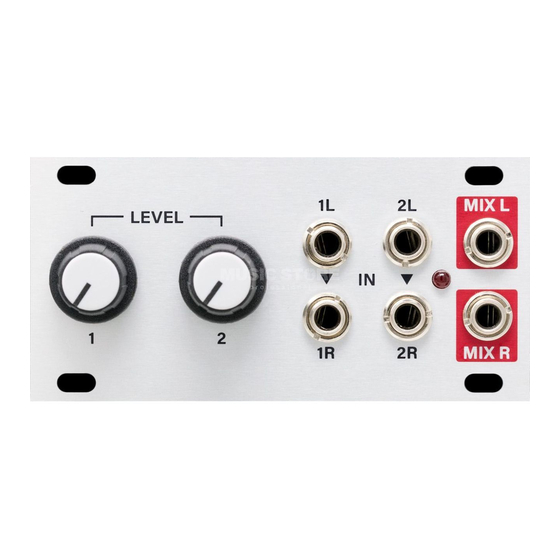

Page 8: Front Panel
3-pin Link connector) causes either side of the mixed stereo output to clip. Obviously, the more inputs you feed into the Stereo Mixer 1U (or the more Stereo Mixer 1U’s and/or Mixups you feed into each other), the greater the potential to overdrive the Mix bus. So if the CLIP LED lights, consider reducing the various LEVEL knobs to maintain a clean, unclipped output. -
Page 9: Back Panel
Stereo Mixer 1U (and/or the Intellijel Mixup or XY IO 1U) modules to create a larger mixer with more inputs, or to connect the Stereo Mixer 1U directly to the ¼” jacks on a compatible Intellijel case, and other compatible Intellijel modules. -
Page 10: Connecting Stereo Mix 1U To The Audio Jacks On Your 7U Case
If you have a 2nd generation Audio Jacks board installed in your Intellijel 7U Performance Case, you can connect one or two Stereo Mixer 1U’s directly to these jacks. This connection method does not work with a 1st generation Audio Jacks board, though you can purchase and easily install a 2nd generation board in your case. -
Page 11: Combining Modules
Combining Modules You can connect up to two Stereo Mixer 1U modules to the Audio Jacks Board, or you can even combine a Stereo Mixer with another 2-channel module (such as a Mixup or a Pedal I/O 1U ). -
Page 12: Connecting Stereo Mix 1U To The Audio Jacks On Your Palette Case
Connecting Stereo Mix 1U to the Audio Jacks on your Palette Case If you have an Intellijel Palette case, you can connect the Stereo Mixer 1U directly to a pair of ¼” audio jacks on the top of the Palette (there is one pair of ¼” audio jacks on the Palette 62, and two pairs on the Palette 104). -
Page 13: Connecting Stereo Mix 1U To An Intellijel Outs Module
Stereo Mixer 1U’s MIX L and MIX R signals are now sent directly to the left and right inputs on your Outs module without patching the front panels. -
Page 14: Connecting Stereo Mix 1U To A V2 Headphones 1U Module
Version 1 modules do not. Using the included 3-wire link cable, connect one end of it to the CHAIN-OUT 3-pin connector on the Stereo Mixer 1U, and the other end to the 3-pin input connector on the Headphones 1U module. -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS Width 16 hp Maximum Depth 25 mm Current Draw 17mA @ +12V 6mA @ -12V Stereo Mixer 1U Manual...
