Summary of Contents for Intellijel Dubmix

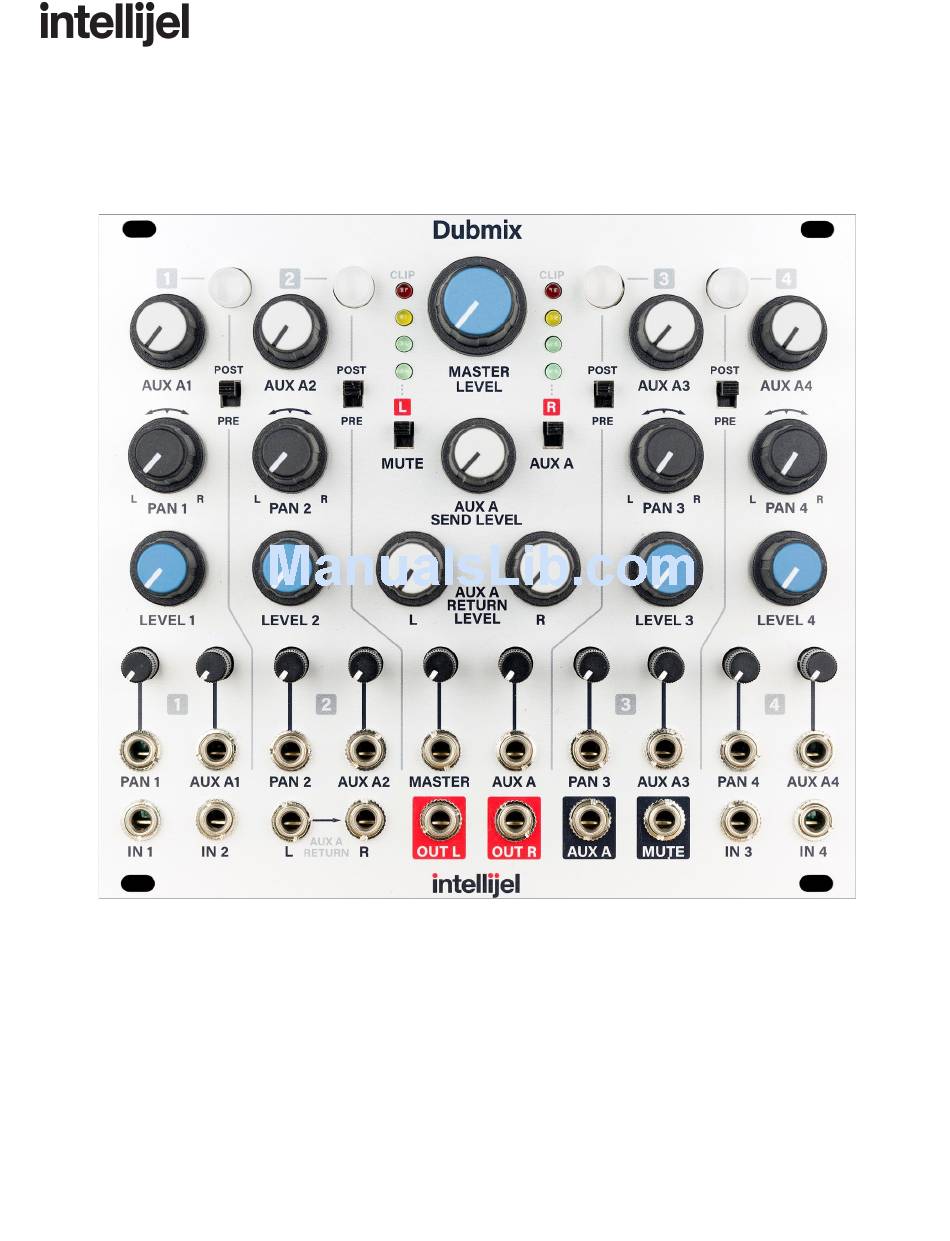

- Page 1 Dubmix Manual Dubmix Quad Input Stereo VC Mixer Manual Revision: 1.0...
-
Page 2: Table Of Contents
Dubmix Mini Expander Dubmix Mini Expander Inputs & Outputs Dubmix Aux Expander Dubmix Aux Expander Channel Strip Controls Dubmix Aux Expander Channel Strip Inputs & Outputs Dubmix Aux Expander Master Controls Dubmix Aux Expander Master Inputs & Outputs Technical Specifications... -
Page 3: Overview
Each core Dubmix module can be expanded ribbon cables with one Aux Expander and one Mini Expander. A Dubmix can also be connected via a ribbon cable to an audio out module such as the µJack for convenient interfacing with other equipment. Multiple Dubmix units can be chained via ribbon cables to mix their L and R busses. -
Page 4: Installation
Dubmix Manual Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. Before Your Start Before installing a new module in your case you must ensure your case’s power supply has sufficient available capacity to power the module: ●... - Page 5 The other end of the cable, with a 16-pin connector, connects to the power bus board of your Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: Page 4...
- Page 6 Dubmix Manual If you are using another manufacturer’s power supply, check their documentation for instructions. Once connected, the cabling between a module and power supply should resemble the picture below: Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on both ends and that all the pins are correctly aligned.
-
Page 7: Dubmix Front Panel

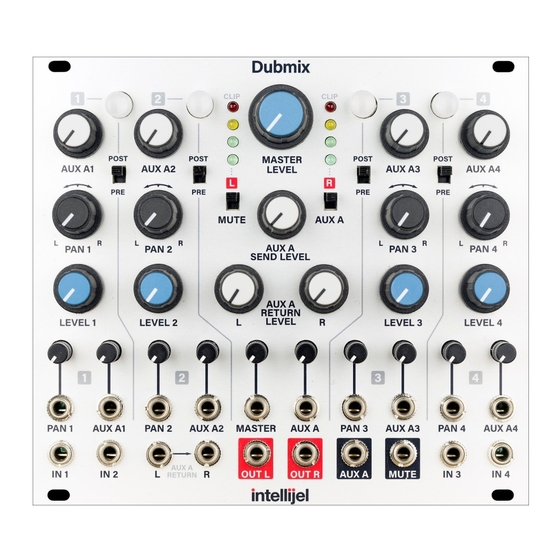

Dubmix Front Panel The Dubmix is the main module in the series, to which all the others attach. The description of the functionality below is divided in to separate descriptions for the centre master section, and then common functionality for each channel strip. -
Page 8: Dubmix Master Inputs & Outputs
6. AUX A RETURN R - T his knob controls the level of the A UX A RETURN R input mixed back in to the R bus. Dubmix Master Inputs & Outputs A. MASTER CV - T his CV input controls the overall output level of O UT L and O UT R . The input voltage is summed with the ... -
Page 9: Dubmix Channel Strip
Dubmix Manual Dubmix Channel Strip Dubmix Channel Strip Controls The per-channel controls are labelled above. The descriptions below describe one channel but the functionality is the same for channels 1 through 4. 1. Mute Button - T his button controls the muting of each channel. It illuminates red when a channel is muted. -
Page 10: Dubmix Channel Strip Inputs & Outputs
5. IN# - T his is the channel fader which controls the overall signal level of the channel. At full clockwise the signal has a gain of 6 dB with a soft saturation. Dubmix Channel Strip Inputs & Outputs The descriptions below describes one channel but the functionality is the same for channels 1 through 4. -
Page 11: Dubmix Mini Expander
Dubmix. C. LEVEL 1 – 4 - These CV inputs provide control over the level fader of the Dubmix. The voltage here is summed with the position of the I N knob on the main unit. -
Page 12: Dubmix Aux Expander
Dubmix Manual Dubmix Aux Expander The Dubmix Aux expander extends the auxiliary send capabilities of the Dubmix with two additional busses. Dubmix Aux Expander Channel Strip Controls The description here is for a single channel but the functionality of the controls is the same for each channel 1 through 4. -
Page 13: Dubmix Aux Expander Channel Strip Inputs & Outputs
Dubmix Manual Dubmix Aux Expander Channel Strip Inputs & Outputs This describes the per-channel inputs and outputs. The functionality of the controls is the same for each channel 1 through 4. A. AUX B# - This CV input provides voltage control over the channel’s send to Aux B. The voltage is summed with the position of the ... -
Page 14: Dubmix Aux Expander Master Inputs & Outputs
5. AUX C RETURN L + R - This knob controls the levels of the A UX C RETURN L + R inputs mixed back in to the L and R busses. Dubmix Aux Expander Master Inputs & Outputs A. AUX B RETURN L + R - This audio input mixes the return signal from an Aux B send in to the L and R mixer busses. -
Page 15: Technical Specifications
Dubmix Manual Technical Specifications Width 28 hp Maximum Depth 47 mm Current Draw 280 mA @ +12V 275 mA @ -12V Page 14...
