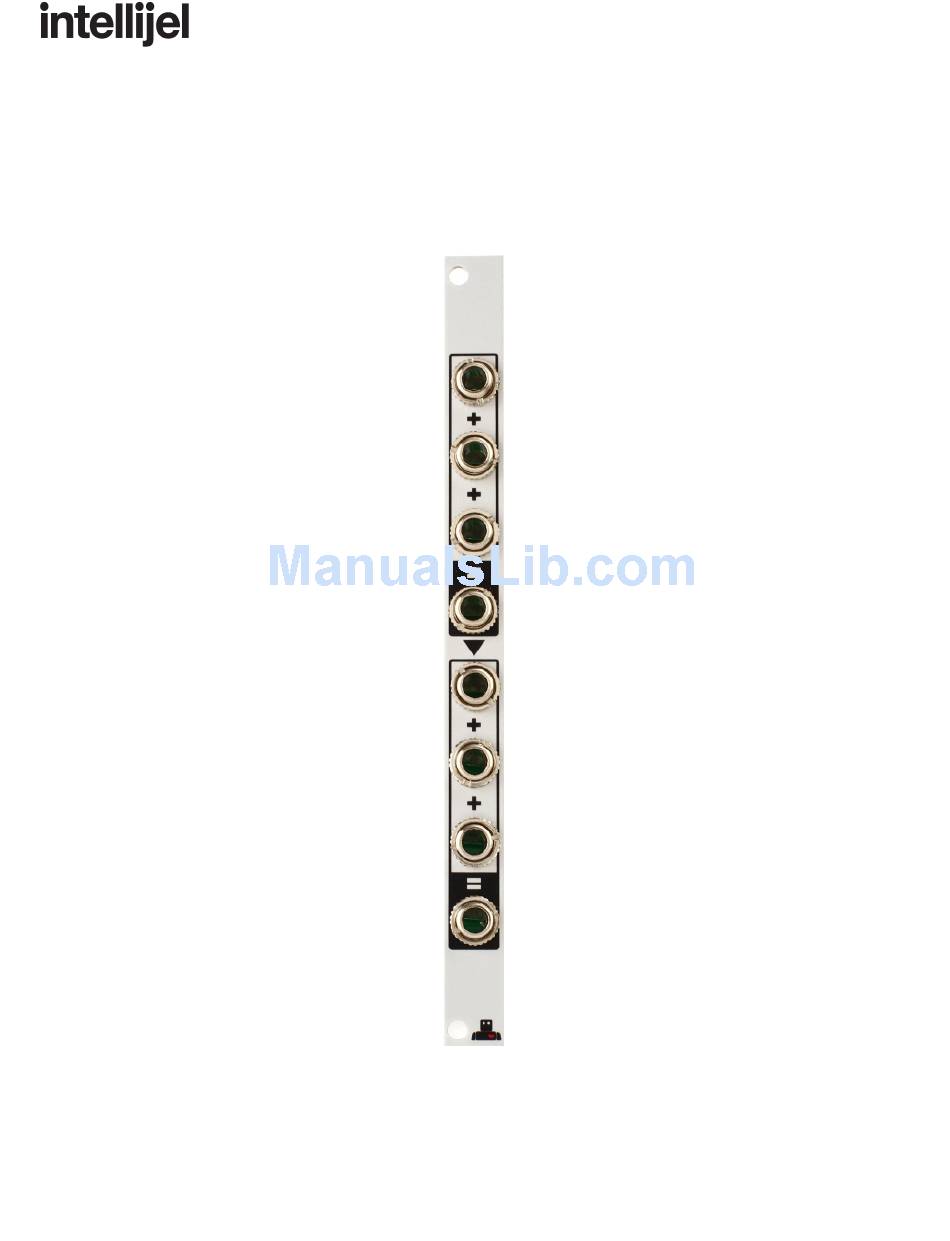

- Page 1 Unity Mixer Manual Unity Mixer Dual 3:1 / 6:1 Unity Gain Mixer (For CV or Audio) Manual Revision: 2018.05.16 ...
- Page 2 Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. Before Your Start Before installing a new module in your case you must ensure your case’s power supply has sufficient available capacity to power the module: ...
- Page 3 Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the words “-12V” and a thick white stripe. ...
- Page 4 Unity Mixer Manual Once connected, the cabling between a module and power supply should resemble the photo shown below. Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on ...
- Page 5 If IN 1 = 2v, IN 2 = 4v and IN 3 = 3v then OUT 4 = 4.5v (half of 2v + 4v + 3v). If both jumpers are set for -6dB attenuation, and you use Unity Mixer in 6:1 mode, then ...
- Page 6 Unity Mixer Manual Setting the Attenuation Jumpers Page 5 ...
- Page 7 In Use The Unity Mixer is ideal for combining two or more signals for which you don’t need independent level control. It’s also useful for mixing signals that have already had attenuation applied elsewhere in the signal path. ...
