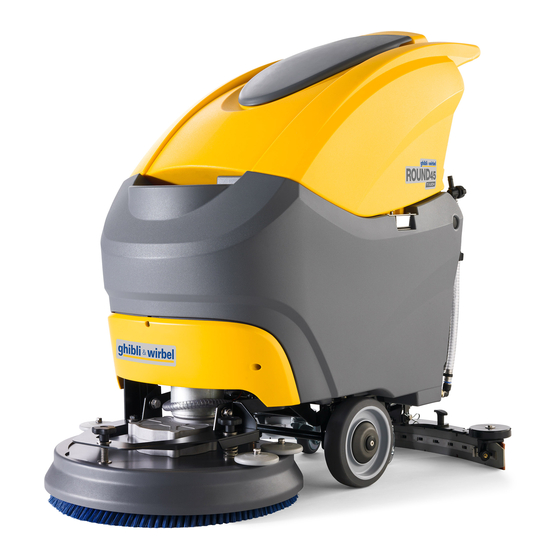

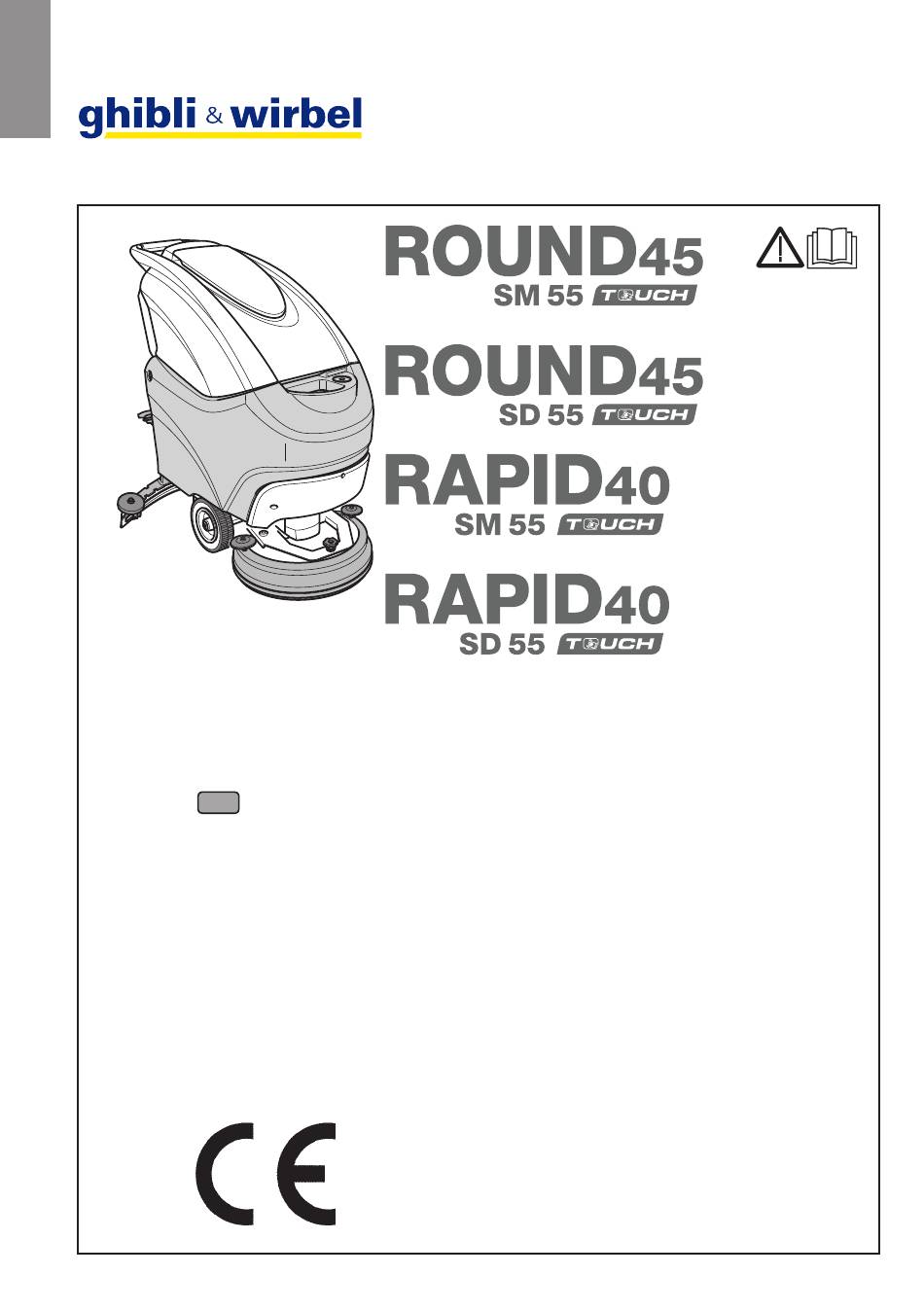

  • Page 1 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Use and Maintenance 49.0267.00 ed. 01-2019...
  • Page 2 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Scrubber Dryer Mod: ......- ..V Art.: ....W ../..Hz Nr....... IPX4 GVW ..Kg MADE IN ITALY Year: ..........
  • Page 3 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Produttore Caratteristiche elettriche N° Matricola Grado di protezione Manufacturer Electrical characteristics Serial N° Degree of protection Producteur Caractéristiques électriques N° Matricule Degré de protection Hersteller Elektrische Eigenschaften Matrikelnr. Schutzgrad Fabricante Características eléctricas N° Matrícola Grado de protección Produtor Características elétricas...
  • Page 5 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 English ......................EN - 1 (Translation of original instructions)
  • Page 7 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Dear Customer, Thank you for choosing one of our cleaning products. The floor scrubber dryer that you have purchased has been designed to satisfy the user in terms of ease of use and reliability over time. We are aware that in order for a good product to stay that way, over time, it requires continuous updates aimed at meeting the expectations of those who use it on a daily basis.
  • Page 8: Table Of Contents

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Contents Technical data....................EN-3 1.1 Introduction ....................EN-5 2.1 Getting to know the machine ..............EN-5 3.1 Unpacking ....................EN-5 3.1.a - Standard machine equipment ............EN-5 4.1 Assembling the components ..............EN-5 4.1.a - Wiper assembly ................EN-5 4.1.b - Brush assembly ................EN-5 4.1.c - Installing and connecting the batteries ..........EN-6 5.1 Charging the battery ..................EN-6 5.1.a - Charging the battery using the on board battery...
  • Page 9: Technical Data

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Technical data 40 / 45 SM 55 40 / 45 SD 55 Type of use Operator on ground Characteristics Power supply Battery Battery Power supply voltage See technical data plate Installed load 750 W 900 W 1090 W 1240 W...
  • Page 10 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 40 / 45 SM 55 40 / 45 SD 55 Accessories 0.7 ø PPL brush 40.0003.00 POLY 0,7 40.0003.00 POLY 0,7 Brush spray guard 24.0405.00 24.0405.00 Front rubber wiper element 39.0181.00 39.0181.00 Rear rubber wiper element 39.0111.00 39.0111.00 Water loading tube...
  • Page 11: Introduction

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 1.1 INTRODUCTION Lift the wiper support (25) by lifting the handle (3 Fig. 1) (see relative paragraph). Position a chute and unload the machine DANGER: from the bench. Before using the machine, carefully read the attached “SAFETY WARNINGS FOR THE 3.1.a - Standard machine equipment FLOOR SCRUBBER DRYER”...
  • Page 12: C - Installing And Connecting The Batteries

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 4.1.c - Installing and connecting the If other types of batteries are installed, see the paragraph “Parameter setting”. batteries (Fig. 6) The use of gel batteries with calibration for acid or other batteries is prohibited. WARNING: CHECK THAT THE RECOVERY TANK AND THE CLEAN WATER TANK ARE EMPTY.
  • Page 13: Control Panel

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Move the machine close to the battery 44) Reverse button “ ” charging station. (for model with traction only) Remove the battery plug (35) from the Use the potentiometer (45) to make sure system socket (39). the minimum traction speed has been se- Connect the battery plug (35) to the ex- lected.
  • Page 14: Working Cycle Example

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 6.2 WORKING CYCLE EXAMPLE DANGER: (Fig. 9) If the detergent comes in contact with the eyes and/or skin or if swallowed, refer to Setting a washing cycle with brushes and the use and safety information booklet drying.
  • Page 15: C - Using The Machine

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Brushing only cycle: To perform only the brushing cycle, press NOTE: the button (46 Fig. 9) to enable brush ro- The proper cleaning and drying of the floor tation. is done by pushing the machine forwards; Close the water tap.
  • Page 16: F - End Of Use And Switching Off

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 9.1 DRAINING THE 8.1.f - End of use and switching off (Fig. 9-13) RECOVERY WATER At the end of the cleaning operations, (Fig. 14) before turning the machine off, interrupt water dispensing and brush rotation by At the end of the washing cycle or when the acting on button (46 Fig.
  • Page 17: Maintenance And Cleaning

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 10.1 MAINTENANCE AND 10.1.b - Cleaning the recovery water tank (Fig. 16) CLEANING WARNING: WARNING: At the end of the washing operations, it All maintenance operations must be per- is compulsory to clean the recovery wa- formed with the machine off and tanks ter tank to prevent deposits or scaling empty.
  • Page 18: D - Cleaning The Clean Water Filter

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 OPERATIONS TO 10.1.f - Replacing the squeegee rub- ber blades (Fig. 19) PERFORM WHEN When it becomes clear that drying the floor NECESSARY is difficult or traces of water remain on the floor, it is necessary to check the wear on the 10.1.d - Cleaning the clean water filter squeegee rubber blades (56): (Fig.
  • Page 19: H - Cleaning The Suction Filter

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 10.1.h - Cleaning the suction filter 10.1.l - Wiper adjustment (Fig. 23) It is possible to adjust the height of the (Fig. 20) wiper and adjust the incidence of the Lift the filter with its cover (67). blades on the floor.
  • Page 20: Troubleshooting

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Standard configuration with Sonnen- Configuration for gel batteries which are schein gel batteries not Sonnenschein version Remove the cap (49) located under the Remove the cap (49) located under the batter charger (16). battery charger (16). Position the switches (DP1 and DP2) as Position the switches (DP1 and DP2) as shown in figure “A”.
  • Page 21: Warranty

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 PROBLEM CAUSE SOLUTION The machine does not dry Suction motor defective. Replace the motor. well, leaving traces of water on the floor. Aspiration tube blocked. Check necessary clean the aspiration tube that connects the squeegee to the recovery tank.
  • Page 22: Wiring Diagram

    www.ghibliwirbel.com Professional Cleaning Machines Since 1968 WIRING DIAGRAM EN - 16...
  • Page 23 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 BATT ..........Battery CB ........Battery charger CN 1 ......10-pole connector for electronic board CN 2 ......4-pole switch connector CN 3 ....2-way ON OFF connector CN4 ........Diagnostics plug CN5 ......2-pole flying connector, manual touch sensor CN6 ........
