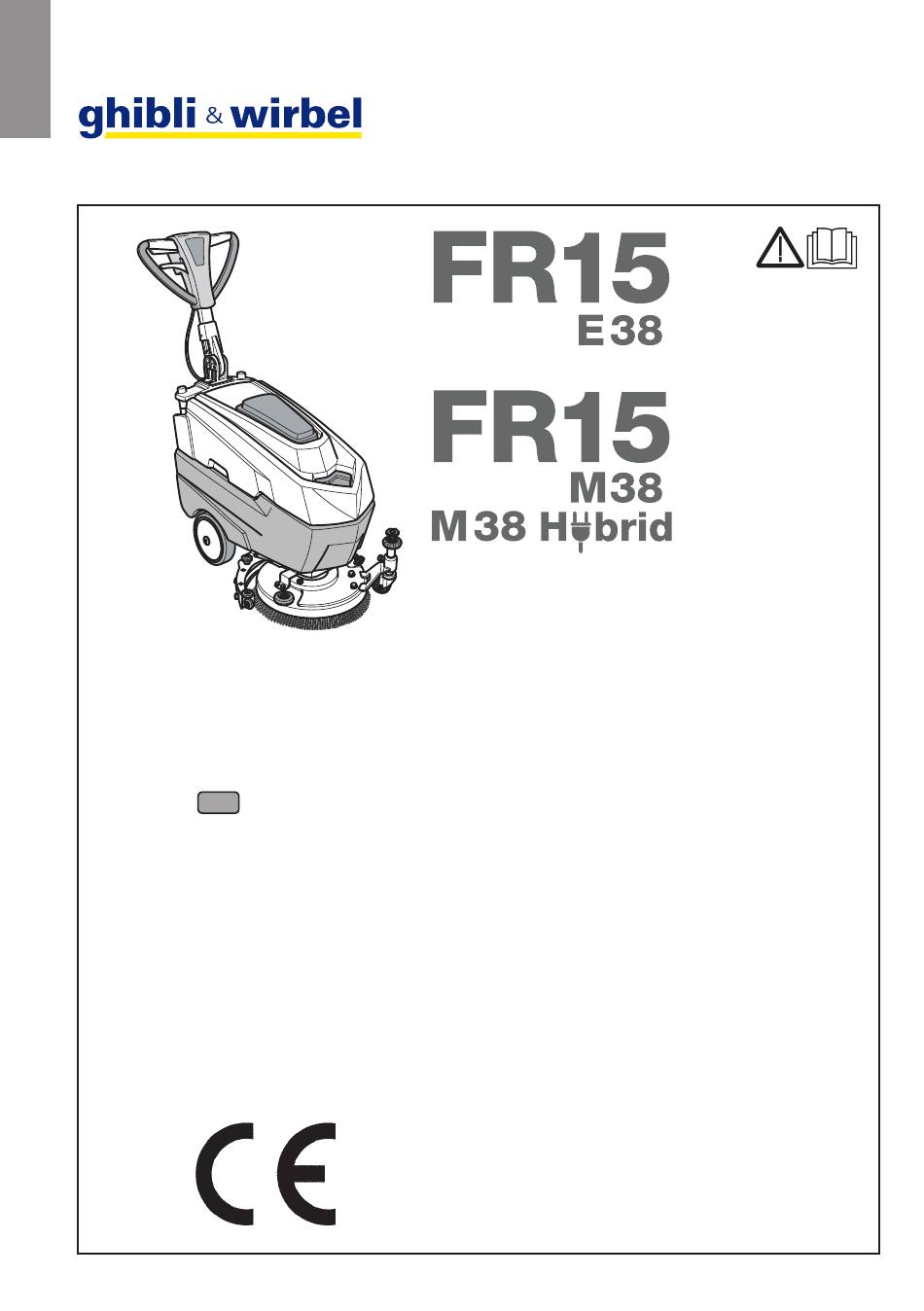

- Page 1 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Use and Maintenance 49 0251 00 ed. 10-2018...
- Page 2 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Scrubber Dryer Mod: ....... V Tot:..W Art.: ....Year: ........V ..Hz ..W Nr ......IPX3 GVW: ..Kg MADE IN ITALY...
- Page 3 www.ghibliwirbel.com Professional Cleaning Machines Since 1968...
- Page 5 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 English ....................ENGLISH - 1 (Translation of original instructions)
- Page 7 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Dear Customer, Thank you for choosing one of our cleaning products. The floor scrubber dryer that you have purchased has been designed to satisfy the user in terms of ease of use and reliability over time. We are aware that in order for a good product to stay that way, over time, it requires continuous updates aimed at meeting the expectations of those who use it on a daily basis.
-
Page 8: Table Of Contents
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Contents 1.1 Introduction ....................EN-4 2.1 Getting to know the machine ..............EN-4 3.1 Unpacking ....................EN-4 3.1.a Standard machine equipment ............EN-4 4.1 Assembling the components ..............EN-4 4.1.a Positioning of the handle ..............EN-4 4.1.b Connecting the batteries (for BC version only).........EN-4 4.1.c Electrical connection (for E version only) .........EN-5 4.1.d Assembling the brush ...............EN-5... - Page 9 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Technical data BC version E version Type of use..........Operator on ground ....Operator on ground Characteristics Operation ............Batteries ........Cable Type of batteries ........N° 2 - 12V - 25Ah - (C5)......- Type of batteries (BC Hybrid version) ......N° 1 - 24V - 700Wh Supply power ..........See type label .......
-
Page 10: Introduction
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 1.1 INTRODUCTION 3.1 UNPACKING (Fig. 2) Once the packaging has been removed as HAZARD: shown in the instructions on the packaging it- Before using the machine, carefully read the self, check that the machine and all the com- attached “SAFETY WARNINGS FOR THE ponents supplied are intact. -
Page 11: Charging The Battery (For Bc Version Only
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 5.1 CHARGING THE 4.1.c - Electrical connection (for E version only) (Fig. 6) BATTERY (Fig. 8) Mount the snap hook with cable (37) on (for BC version only) the handle (1). Insert the extension cable (42) (if pre- DANGER: sent) in the anti-tear hook (38), blocking it Charge the batteries in well-ventilated ar-... -
Page 12: Control Panel
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 section is appropriate for the appliance power rating. NOTE: - Never let the power cable run over For more information on operating the the sharp edges and do not tread on it. charger see the operating manual attached - The socket must be easily accessible. -
Page 13: Lever For Handle Angle Regulation
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 7.2 MACHINE HANDLING 25) Aspirator button On pressing the button (25) it illuminates (Fig. 1) and the functioning of the aspirator starts. To move the machine, lift the wiper (14) The functioning of the aspirator is ena- and place the wheel (22) in the parking bled by pressing the button (26). -
Page 14: Operation
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 9.1 OPERATION 9.1.c - Adjusting the brush ground contact (Fig. 13) 9.1.a - Checks before use (Fig. 12) The machine has an adjustment system that Check that the exhaust tube (15) of the makes it possible to have constant contact recovery tank is properly coupled and on the ground independently of the type and properly sealed. -
Page 15: Using The Machine
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 9.1.e - Using the machine (Fig. 14) Press the button (26) turning it off. Disconnect the electric power cable from After having started the machine and se- the socket (for E version only). lected the type of cycle, start the cleaning operation by pressing the levers (4) and 9.1.g - Parking the machine (Fig. -
Page 16: Timer
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 10.1 DRAINING THE 9.1.i - Timer (Fig. 1) It is possible to visualize the working time of RECOVERY WATER the machine proceeding as follows: (Fig. 15) To turn on the timer it is necessary to start At the end of the washing cycle or when the the machine by pushing the “Brush rota- recovery water tank (6) is full, it is necessary... -
Page 17: Cleaning The Recovery Water Tank
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Unscrew the cap (60) of the connector (59) and allow the water to drain fully. N.B.: Wash the inside of the tank, leaving the If, during washing, it is clear that the rubber drain cap open and adding clean water blades (66) are damaged or worn, it is neces- through the front opening. -
Page 18: Replacing The Squeegee Rubber Blades
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 11.1.f - Replacing the squeegee rub- 11.1.h - Replacing the fuses (for BC ber blades (Fig. 20) version only) (Fig. 21) When it becomes clear that drying the floor is difficult or traces of water remain on the WARNING: floor, it is necessary to check the wear on the Replace the blown fuse with one with the... -
Page 19: Troubleshooting
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 TROUBLESHOOTING PROBLEM CAUSE SOLUTION The machine does not start Low battery (for BC version Check that the battery is when pressing the central only). charged. button. Plug disconnected (for E ver- Connect the plug. sion only). - Page 20 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 PROBLEM CAUSE SOLUTION No water comes out. Tank empty. Fill the tank. Solenoid valve enabling but- Press the button. ton not pressed. Tap turned off. Turn on the tap located at the bottom of the machine. Filter blocked.
-
Page 21: Wiring Diagrams
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 WIRING DIAGRAMS BC version ENGLISH - 15... -
Page 22: Bc Hybrid Version
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 SCHEMI ELETTRICI BC Hybrid version Versione BC Hybrid 24V / 28A BAT Li-ion ITALIANO - 15 ENGLISH - 16... - Page 23 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 BC Hybrid version A1 ........Printed circuit board BAT ........1x 24V battery U1 ........5A battery charger Y1 ..........Electrovalve F1 ......... Main fuse 30A M1 .........Vacuum motor M2 ..........Brush motor P1......………. ON/OFF switch P2 ........……… Brush button P3 ........Vacuum interruptor P4 ......
-
Page 24: E Version
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 E version EV ..........Solenoid valve M1........Aspiration motor M2 ..........Brush motor MB ........Terminal board P1 ........Aspiration switch P2 ..........Brush switch P3 ..........Brush button P4 .......Solenoid valve switch RFI ...........Net filter ENGLISH - 18... - Page 25 www.ghibliwirbel.com Professional Cleaning Machines Since 1968...
- Page 26 www.ghibliwirbel.com Professional Cleaning Machines Since 1968...
- Page 28 Professional Cleaning Machines Since 1968 DEALER Ghibli & Wirbel S.p.A. Via Circonvallazione, 5 - 27020 Dorno PV - Italia P. +39 0382 848811 - F. +39 0382 84668 - M. info@ghibliwirbel.com www.ghibliwirbel.com 100% MADE IN ITALY A COMPANY GROUP OF RIELLO INDUSTRIES...
