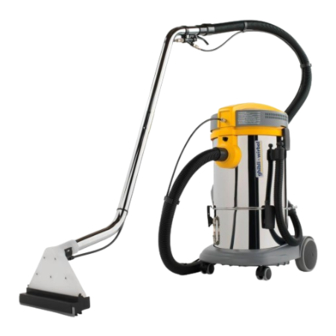

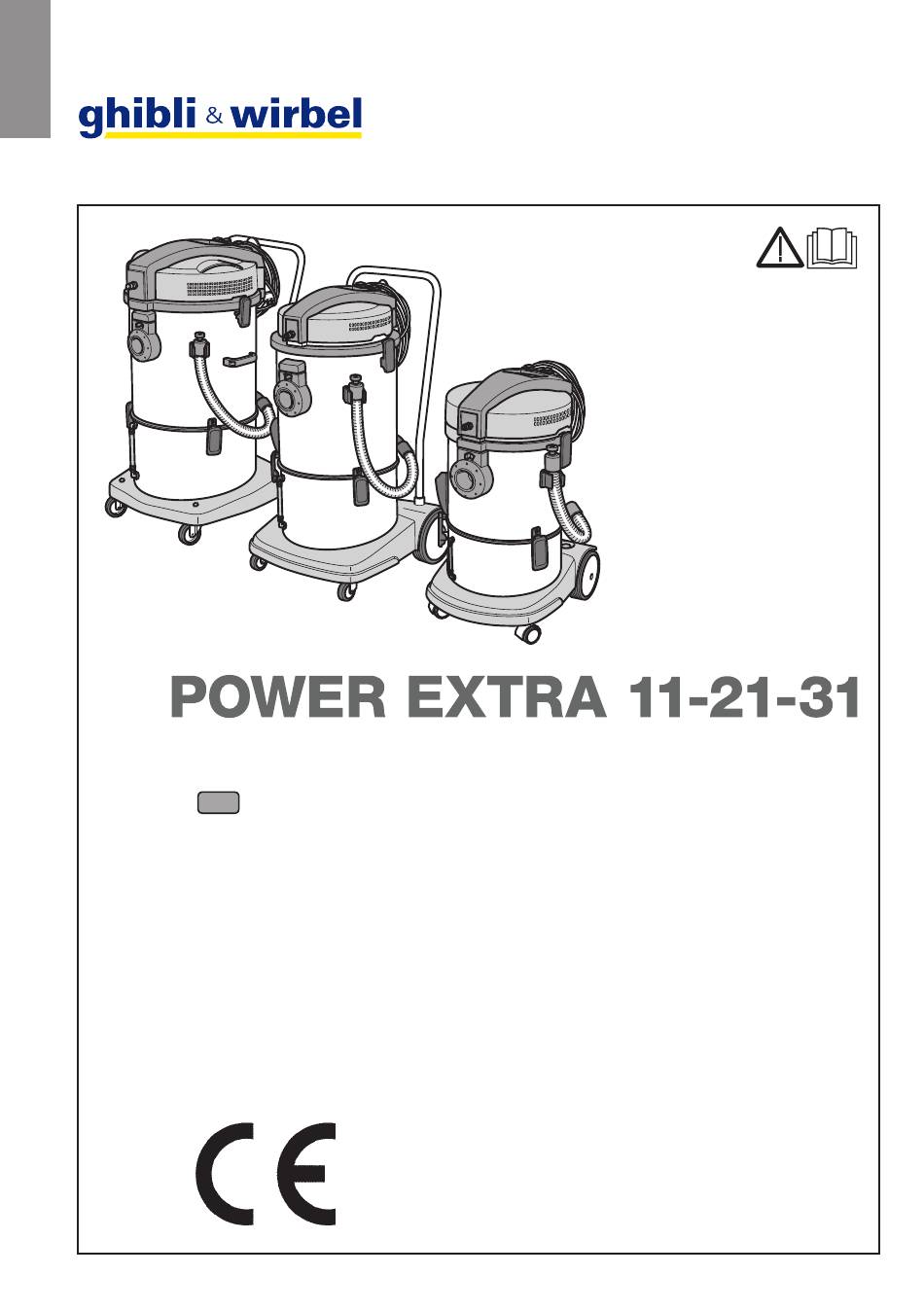

- Page 1 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Use and Maintenance 8050819 ed. 10-2018...
- Page 2 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Mod. Art. Cap.ty Air flow...
- Page 3 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Produttore Modello Articolo Capacità fusto Manufacturer Model Article Container capacity Producteur Modèle Article Capacité de la cuve Hersteller Modell Artikel Fassungsvermögen des Körpers Fabricante Modelo Artículo Capacidad del bidón Produtor Modelo Artigo Capacidade do reservatório Producent Model Artikel...
- Page 4 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11...
- Page 5 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Fig. 13 Fig. 12 Fig. 13b Fig. 13a Fig. 15 Fig. 16 M O T O R 2 Fig. 14 Fig. 17 Fig. 18...
- Page 6 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Fig. 19 Fig. 20 Fig. 21 Fig. 22 Fig. 23 Fig. 24 Fig. 25...
- Page 7 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 CLICK Fig. 26 Fig. 27 Fig. 28 Fig. 29...
- Page 8 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 CODICE - CODE MODELLO -MODEL CODE - KENNNR. MODÈLE - MODELL MODELO - MODELO CÓDIGO - CÓDIGO CODE - KÓD MODEL - MODEL الرمز الطراز МОДЕЛЬ - КОД - EXTRA 11 I AUTO 14764010001 EXTRA 11 I AUTO 14768711950 EXTRA 11 I...
- Page 9 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 English ......................EN - 1 (Translation of original instructions)
-
Page 11: Technical Characteristics
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 TECHNICAL CHARACTERISTICS M31 (Ulka) Voltage Motor power 1100 1350 2200 2200 Pump power Sound level 60 dB(A) 62 dB(A) 62 dB(A) 62 dB(A) Vacuum (mbar) Recovery tank 12 l 22 l 32 l 32 l useful capacity Detergent... -
Page 12: Preparing The Appliance
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 PREPARING THE Professional hose assembly for fab- ric washing (if present) APPLIANCE After connecting the suction hose to the out- let the drum, do as follows: Assembling the hoses Insert the fabric nozzle (18 Fig.12) into Insert, as far as possible, the sleeve (1 the flexible hose (15 Fig.12). -
Page 13: Starting Up The Appliance
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 USING THE APPLICANCE Washing floors or carpets For washing floors or carpeting is neces- The device is equipped with wheels and sary to fit the rigid tube (8-9 Fig. 17) and then during use can be pushed by the the mouth floor (10 Fig. -
Page 14: Cleaning And Maintenance
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Cleaning the detergent dosing circuit At the end of each workday, clean the de- NOTE: tergent dosing circuit as follows to prevent To prevent the detergent pump from break- clogging: ing, it is recommended that you stop its op- Release pressure from the circuit by eration, pushing the relative switch, when pressing, with dosing pump off, the lever... -
Page 15: Spare Parts
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Periodic checks Replacing the floor nozzle squeegee (if present) Checking and cleaning the motor If when washing the floors the washing liquid protection filter is not suctioned properly and the floor or car- pet remains wet, check the condition of the Remove the cylinder head as previously squeegee (38 Fig. - Page 16 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 PROBLEM CAUSE SOLUTION The vacuum cleaner does Switch not pressed. Press the switch. not work. Plug not inserted. Insert the plug into the socket. Power cut. Check the power line. Suction is not satisfactory. Accessories tubes Check and clean the flexible...
