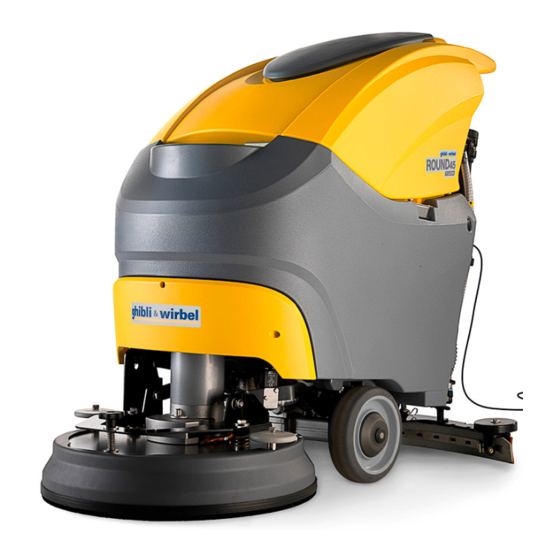

- Page 1 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Use and Maintenance 49.0256.00 ed. 11-2018...
- Page 2 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Scrubber Dryer Mod: ......- ..V Art.: ....W ../..Hz Nr....... IPX4 GVW ..Kg MADE IN ITALY Year: ..........
- Page 3 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Produttore Caratteristiche elettriche N° Matricola Grado di protezione Manufacturer Electrical characteristics Serial N° Degree of protection Producteur Caractéristiques électriques N° Matricule Degré de protection Hersteller Elektrische Eigenschaften Matrikelnr. Schutzgrad Fabricante Características eléctricas N° Matrícola Grado de protección Produtor Características elétricas...
- Page 5 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 English ....................ENGLISH - 1 (Translation of original instructions)
- Page 7 www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Dear Customer, Thank you for choosing one of our cleaning products. The floor scrubber dryer that you have purchased has been designed to satisfy the user in terms of ease of use and reliability over time. We are aware that in order for a good product to stay that way, over time, it requires continuous updates aimed at meeting the expectations of those who use it on a daily basis.
-
Page 8: Table Of Contents
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 Index Technical data..................ENGLISH-3 1.1 Introduction ..................ENGLISH-5 2.1 Getting to know the machine ............ENGLISH-5 3.1 Unpacking ..................ENGLISH-5 3.1.a - Standard machine equipment ..........ENGLISH-5 4.1 Assembling the components ............ENGLISH-5 4.1.a - Wiper assembly ..............ENGLISH-5 4.1.b - Brush assembly .............. -
Page 9: Technical Data
Professional Cleaning Machines Since 1968 Technical data ROUND 45 E 55 TOUCH RAPID 40 E 55 TOUCH Type of use Operator on ground Characteristics Power supply voltage See technical data plate Installed load 1360 W Forward movement Manual Washing width *... - Page 10 Professional Cleaning Machines Since 1968 ROUND 45 E 55 TOUCH RAPID 40 E 55 TOUCH Accessories 0.7 ø PPL brush 40.0003.00 POLY 0,7 40.0003.00 POLY 0,7 Brush spray guard 24.0265.00 + 40.4003.00 24.0238.00 + 40.4004.00 Front rubber wiper element 39.0110.00...
-
Page 11: Introduction
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 1.1 INTRODUCTION Lift the wiper support (25) by lifting the handle (3 Fig. 1) (see relative paragraph). Position a chute and unload the machine DANGER: from the bench. Before using the machine, carefully read the attached “SAFETY WARNINGS FOR THE 3.1.a - Standard machine equipment FLOOR SCRUBBER DRYER”... -
Page 12: Control Panel
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 5.1 CONTROL PANEL 6.1 FILLING THE TANK (Fig. 9) (Fig. 7) 20) Sensor for the start of the rotation of WARNING: the brush Only add clean mains water to the tank at Acting on the touch sensor (20) with a temperature no greater than 50°C. -
Page 13: Operation
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 7.1 OPERATION (Fig. 8) NOTE: 7.1.a - Checks before use The brush has two working positions: Check that the exhaust tube (12) of the recovery tank is properly coupled and Normal position “A” properly sealed. It is automatically placed when you release Check that the connector (41) on the the pedal (19 Fig. -
Page 14: D - Using The Machine
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 7.1.d - Using the machine (Fig. 1) 7.1.f - Adjusting traction help After turning the machine on and se- (Fig. 10) lecting the cycle, the cleaning operation The function of the hand wheel (45) is to in- starts, pushing the machine with the help crease / decrease the ground pressure of the of the handle (1). -
Page 15: H - Maximum Recovery Tank Water Level Alarm
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 7.1.h - Maximum recovery tank water 9.1 MAINTENANCE AND level alarm CLEANING If during use of the machine, the vacuum cleaner turns off, it means that the level of WARNING: liquid in the recovery tank has reached the All maintenance operations must be per- maximum level. -
Page 16: B - Cleaning The Recovery Water Tank
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 9.1.b - Cleaning the recovery water OPERATIONS TO tank (Fig. 14) PERFORM WHEN NECESSARY WARNING: At the end of the washing operations, it 9.1.d - Cleaning the clean water filter is compulsory to clean the recovery wa- (Fig. -
Page 17: F - Replacing The Squeegee Rubber Blades
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 9.1.f - Replacing the squeegee 9.1.h - Cleaning the suction filter (Fig. rubber blades (Fig. 17) When it becomes clear that drying the floor Lift the filter with its cover (62). is difficult or traces of water remain on the Loosen the screw (63) and remove the floor, it is necessary to check the wear on the filter (64). -
Page 18: Troubleshooting
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 TROUBLESHOOTING PROBLEM CAUSE SOLUTION Pressing the switch (34), the Circuit switch to position “0”. Press the power switch. machine will not turn on. Switch failure. Replace the switch. Power cable disconnected. Connect the cable. The brush does not rotate. -
Page 19: Warranty
www.ghibliwirbel.com Professional Cleaning Machines Since 1968 PROBLEM CAUSE SOLUTION No water comes out. Tank empty. Fill the tank. Switch failure. Replace the switch. Solenoid valve enabling Press the switch. switch not pressed. Tap turned off. Open the tap Filter blocked. Clean the filter. -
Page 20: Wiring Diagram
Professional Cleaning Machines Since 1968 WIRING DIAGRAM ROUND 45 E 55 TOUCH - RAPID 40 E 55 TOUCH CO ...........Hour counter S1 ....Recovery level touch sensor CN 1 .....sensor board 6-pole connector S2 ........Magnetic sensor CN 2 ....circuit board 4-pole connector Sensore Touch... - Page 24 Professional Cleaning Machines Since 1968 DEALER Ghibli & Wirbel S.p.A. Via Circonvallazione, 5 - 27020 Dorno PV - Italia P. +39 0382 848811 - F. +39 0382 84668 - M. info@ghibliwirbel.com www.ghibliwirbel.com 100% MADE IN ITALY A COMPANY GROUP OF RIELLO INDUSTRIES...
