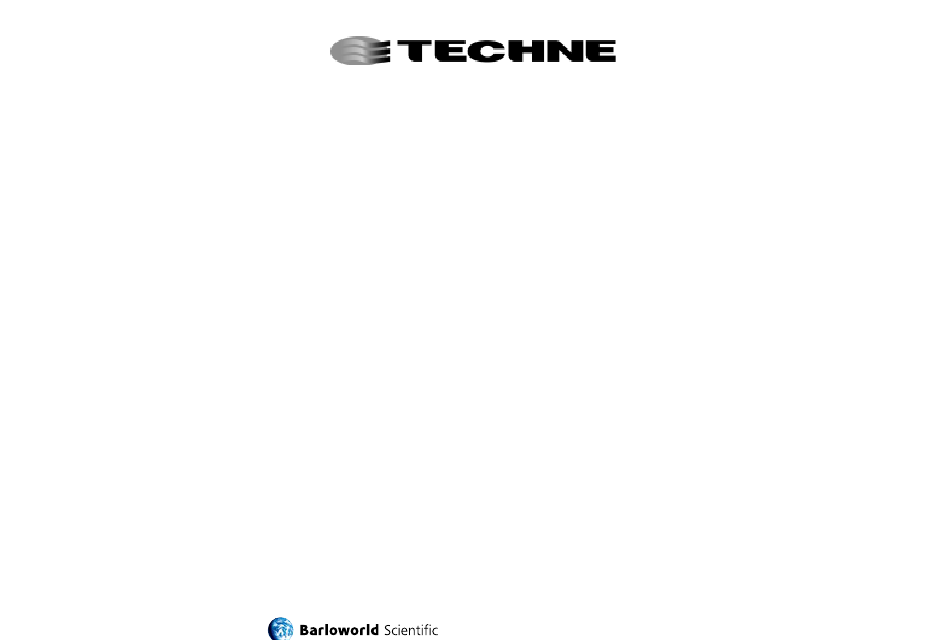

- Page 1 SBL-1, SBL-2, SBL-2D Operator’s Manual Issue 21 Date of issue: 3rd May 2005 Techne is a trade mark © Techne 2003...
-
Page 3: Table Of Contents
S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L CONTENTS page SAFETY and INSTALATION English Français Deutsch Español THE FLUIDISED BATH Operator Safety... - Page 4 S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L...
- Page 5 S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L NOTES...
-
Page 6: English
HIGH TEMPERATURES ARE DANGEROUS: they can cause serious burns to operators and ignite combustible material. Techne have taken great care in the design of these units to protect operators from hazards, but Operators should pay attention to the following points: •... - Page 7 Notwithstanding the description and specification(s) of the units contained in the Operator’s Manual, Techne hereby reserves the right to make such changes as it sees fit to the units or to any component of the units. This Manual has been prepared solely for the convenience of Techne customers and nothing in this Instruction Book shall be taken as a warranty, condition or representation concerning the description, merchantability, fitness for purpose or otherwise of the units or components.
-
Page 8: Français
DANGER DE TEMPERATURES ELEVEES : les opérateurs peuvent subir de graves brûlures et les matériaux combustibles risquent de prendre feu. Techne a apporté un soin tout particulier à la conception de ces appareils de façon à assurer une protection maximale des opérateurs, mais il est recommandé aux utilisateurs de porter une attention spéciale aux points suivants :... - Page 9 Techne se réserve le droit d’effectuer les changements nécessaires à l’appareil ou à tout élément qui entre dans sa composition. Ce manuel a été exclusivement rédigé à l’attention des clients de Techne, et aucun élément de ce guide d’instructions ne peut être utilisé comme garantie, condition ou représentation concernant la description, commercialisation, adaptation aux conditions d’utilisation ou autre...
-
Page 10: Deutsch
HOHE TEMPERATUREN SIND GEFÄHRLICH: sie können dem Bediener ernsthafte Verletzungen zufügen und brennbare Materialien können sich leicht entzünden. Techne hat bei der Konstruktion dieses Gerätes sehr darauf geachtet, daß der Bediener vor Gefahren geschützt ist. Dennoch sollten Sie auf die folgenden Punkte achten: ·... - Page 11 Unfall zugrundeliegt. Der unter diese Garantie fallende Service wird vom Lieferanten geleistet. Ungeachtet der in dieser Gebrauchsanweisung enthaltenen Beschreibungen und Spezifikationen, behält sich Techne hiermit das Recht vor, Änderungen an den Geräten bzw. an einzelnen Geräteteilen durchzuführen. Diese Gebrauchsanleitung wurde ausschließlich dazu erstellt, um Kunden die Handhabung der Techne-Geräte zu erleichtern.
-
Page 12: Español
LAS TEMPERATURAS ELEVADAS SON PELIGROSAS: pueden causarle graves quemaduras y provocar fuego en materiales combustibles. Techne ha puesto gran cuidado en el diseño de estos aparatos para proteger al usuario de cualquier peligro; aún así se deberá prestar atención a los siguientes puntos: •... - Page 13 A pesar de la descripción y las especificaciones de los aparatos contenidas en el Manual del Usuario, Techne se reserva por medio de este documento el derecho a efectuar los cambios que estime oportunos tanto en los aparatos como en cualquier componente de los mismos.
-
Page 14: The Fluidised Bath
230 mm (9"). This vessel is suspended in, but thermally insulated from, an outer mild steel cylindrical container. The porous plate in the SBL-1 is mounted in a resilient gas tight seal at the bottom of the bath. The porous plate in the SBL-2/SBL-2D is made of either sintered or woven mesh stainless steel and is mounted across the vessel between compression flanges. -
Page 15: Operator Safety
S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L Operator Safety It is important that only suitably instructed personnel operate this equipment. -
Page 16: Characteristics Of A Fluidised Bath
Care should be exercised to prevent water from running inside the unit. Do not use abrasive cleaners. Before using any cleaning or decontamination method, except those recommended here, the customer should check with Techne that the proposed method will not damage the fluidised bath. -
Page 17: Specification
S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L SPECIFICATION SBL-1 Temperature range Minimum 50°C Maximum 350°C Short Term Stability at 50°C... - Page 18 S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L SBL-2D Temperature Range Minimum 50°C Maximum 600°C Short Term Stability at 50°C ±1°C at 600°C...
-
Page 19: Installation
Earth Green/yellow Green The SBL-1 needs at least a 9 amp supply and the SBL-2 needs at least a 13 amp supply at a nominal 230V. The SBL-2D will use 17 amps and needs its own separate supply capable of taking this current. -
Page 20: Operation
S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L OPERATION Fill the SBL-1 to within about 40 mm (1.5" to 2") or the SBL-2 and SBL-2D to within 76 mm (3") from the top with the alundum. - Page 21 S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L For the SBL-1 it has been found that under most conditions, only one heater (1kW) is required to maintain temperatures in the bath up to the maximum of 350°C, the second heater only being used...
- Page 22 S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L For the SBL-2 the following table indicates the heat input required to maintain a range of temperatures, with the energy regulator control: Bath Temperature Heater Switches...
- Page 23 S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L For the SBL-2D the following table indicates the heat input required to maintain a range of temperatures, with the energy regulator control: Bath Temperature Heater Switches...
-
Page 24: Mainteance
S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L MAINTENANCE This unit is designed for continuous operation and requires very little routine maintenance. -
Page 25: Fault Finding
S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L FAULT FINDING The following guide has been prepared to help you get your fluidised bath back into service as soon as possible, should a fault develop. - Page 26 10. Fluidise the bed (continuous boiling action) and observe that the ammeter registers approx. 4.3 amps. Position the heater switches on the SBL-1 to the HIGH position or on the SBL-2 and the SBL-2D to the MEDIUM position and observe that a current of approx. 13 amps flows.
- Page 27 S B L - 1, S B L - 2, S B L - 2 D O P E R A T O R ’ S M A N U A L Heater switch not Connect an ammeter (range up to 15 amps functioning a.c.) into the mains lead:-...
-
Page 28: Accessories
AIR PUMP 200V 50HZ F119A AIR PUMP 200V 60HZ F937C TC-8D TEMP CONT 120/240V USA °C F937F TC-8D TEMP CONT 120/240V USA °F F937H TC-8D TEMP CONT 120/240V F7807 SBL-1 BASKET F7804 SBL-2 BASKET F7805 SBL-2D BASKET F0885 ALUMDUM 16kg... - Page 29 Thank you for reading this data sheet. Please contact us for a quotation: Head Office (UK) Switzerland Office P.O. Box 2124 Zugerstrasse 46 Chelmsford 6314 Unterägeri Essex CM1 3UP England Switzerland Tel: +44 (0)1245 600 560 Tel: +41 41 541 5877 Fax: +44 (0)1245 600 030 Fax: +41 41 541 5878 Email:...
