1.How it works
Step 1: The powerful outside antenna captures a voice and
data signal, and transfer it to the booster;
Step 2: The booster receives the signal, amplifies it and
rebroadcasts it by inside antenna.
Step 3: Your mobile devices get a better signal, never
experience dropped calls or slow data speed.

Supported Carriers

• AT&T 2G/3G (HSPA+), 4G on 850, 1900 and 700
MHz(Band 12)
• Verizon 3G
• T-Mobile 2G/3G, 4G on 850, 1900 and 700 MHz(Band 12)
• Sprint 3G/4G
• US Cellular 3G
• Metro PCS 3G/4G
• Major Canadian Carriers 2G/3G
• All other carriers using 850 MHz,1900 MHz and 700 MHz

Coverage Area

Note: the ability of coverage depends on the output power
of booster. Any boost has a limit of the amplification factor,
so final output power is related to received signal power
level at the location of the outdoor antenna..
Power level
at the outdoor antenna location
Strong (5 bars on the cellphone)
Medium (3~4 bars on the cellphone)
Weak (1~2 bars on the cellphone)
Technical Support: support@solidrf.ca
Installation
Coverage Area
(sq. ft.)
3000
1200
300
www.SolidRFCanada.com

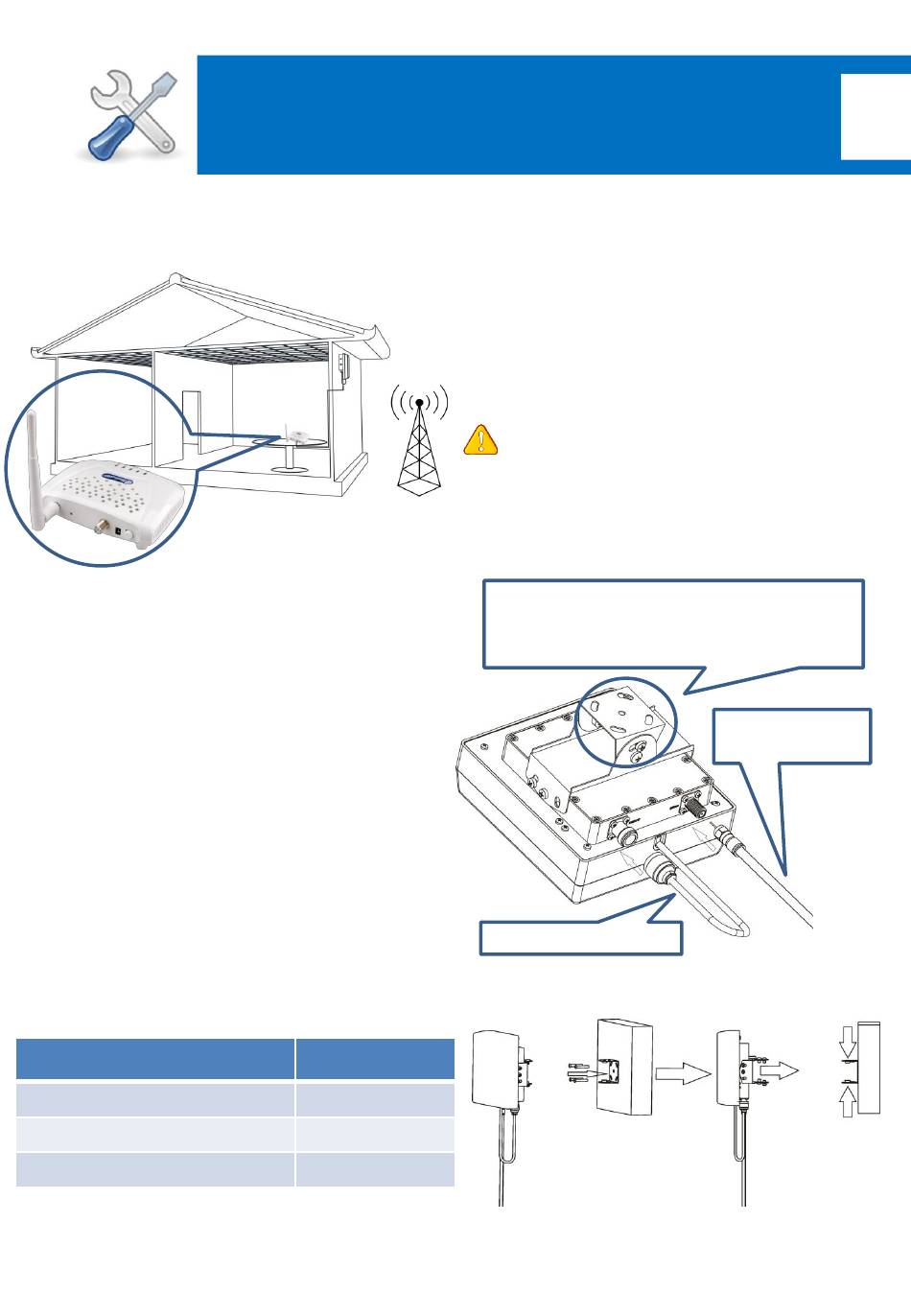

2. Step by step installation

Step 1: mount the outside antenna& outside booster unit
Choose right position
• Find the strongest signal position in the possible install l
ocations by reading your cell phone signal bar;
• 30cm away from any other metallic objects;
• 100cm away from any windows;
Caution
: Don't face the outside antenna to the
direction of where the booster you plan arrange;
1.1 Connect the cables as required.
• Outside booster unit is designed integrated with outside
antenna to improve system performance;
• Make sure connectors are screwed well;
Indicate the direction of best signal and
adjust the angle of the antenna
accordingly
Antenna to booster
1.2 Mount the antenna;
1
Outside cable
to booster
2
