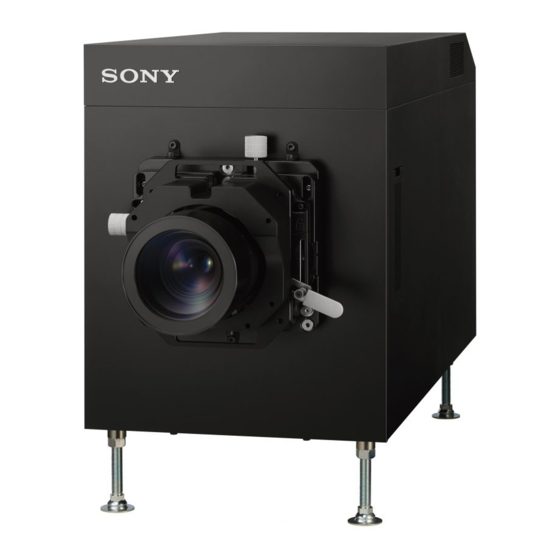

Sony SRX-R815P Operating Instructions Manual
Digital cinema projector package
Hide thumbs
Also See for SRX-R815P:
- Safety regulations (20 pages) ,
- Operating instructions manual (50 pages)
Table of Contents
Related Manuals for Sony SRX-R815P
Summary of Contents for Sony SRX-R815P
- Page 1 4-725-921-01(1) Digital Cinema Projector Package Operating Instructions Before operating the unit, please read this manual and supplied Safety Regulations thoroughly, and retain them for future reference. SRX-R815P/SRX-R810P © 2017 Sony Corporation...
-
Page 2: Table Of Contents
Creating a Schedule ..........27 Table of Contents Creating a Schedule ..........27 Importing/Exporting Schedules ......28 Projecting Images Using an External Playback Please Read This First ..........3 Device ............... 29 Notations Used in This Guide ........ 3 Manual Structure ........... 3 Manually Controlling Theater Facilities .... -
Page 3: Please Read This First
(Operation is not guaranteed for all types of USB HDD and USB memory devices.) Manual Structure The following manuals are provided for the SRX-R815P/ Recognized Folder Names SRX-R810P depending on the application. Regarding the external directories (USB HDD, USB Safety Regulations memory devices, network folders, etc.) that are connected... -
Page 4: Coolant Water
• Sony assumes no responsibility for damages, loss of income, or any claims from a third party arising out of use of the system. • Note that the specifications of the system are subject to... -
Page 5: Overview
Rear Overview Touch Panel Monitor (page 9) Part Names and Functions Digital Cinema Projector SRX-R815/ SRX-R810 Front a Status lights Shows the status of the projector. For further details, see “How to Read the Indicators” (page 37). b EMERGENCY switch Forcibly turns off the projector (equipped with a cooling function). - Page 6 Right side Left side Connector block a Ventilation holes (intake) a Ventilation holes (intake) b Ventilation holes (exhaust) b Ventilation holes (intake)/air filter For details on air filter cleaning, refer to the “Maintenance Manual.” Connector block Integrated Media Block (IMB) a NETWORK connector (RJ-45 modular jack) d AUDIO OUTPUT BAL/UNBAL (audio output Used to connect to the server’s PRJ connector with the...
-
Page 7: Digital Cinema Server Xct-S10
A CRU DATAPORT carrier is necessary to use the For further details, see “How to Read the Indicators” CRU DATAPORT. For further details, contact (page 37). qualified Sony service personnel. b SYSTEM SW switch Starts up the server. (HDD) 1/2 indicator Shows the status of the HDD. - Page 8 For use with separately-sold expansion power units. With both power units A and B attached, each can be used as a redundant power source. To connect a power unit, contact qualified Sony service personnel. h SPARE connector (RJ-45 modular jack) For future expansions.
-
Page 9: Touch Panel Monitor Lkra-007
a MENU switch Touch Panel Monitor LKRA-007 Displays the menu. b v / V switches Right side Used for moving the menu and setting new values. c SELECT switch Used for selecting the menu and items. d 1 (Power) switch Press this to turn the power on. -
Page 10: Main Screen
Main Screen a Auditorium number f Progress bar If a computer is being used to control multiple Displays the progress of the title currently being auditoriums via a network, the auditorium numbers screened by CPL or SPL frames. will be displayed. Touch the number to display the g Elapsed showing time auditorium selection dialog box, and then select the auditorium to operate. - Page 11 r Shortcut button For details on the “Error History” screen, refer to the “Maintenance Manual.” Often-used functions are registered to this button. Tap the button to activate a function. Error: An error has occurred. (screening stops) Warning: A non-fatal problem or error has occurred. (screening continues) The following operations can be carried out in Normal: The status is normal.
-
Page 12: Items To Check
Logging Into the System Items to Check Caution It is necessary to pre-register as a user to log in to the projection system. Startup For further details, refer to the “Installation Manual.” When starting up the projection system, turn on the projector’s main power first, and then start up the server Tap your own user name in the user list, and then tap and log in to the system. - Page 13 Tap [Login]. Tap [OK] when the confirmation screen appears. Once you log in to the system, the “Status” screen will be displayed. Your password will be changed. Changing the login user on the upper right of the screen. Select [Logout], and then tap [OK]. Proceed to “Starting the Projector”...
-
Page 14: Starting The Projector
The projector is not lit if a chiller is not working in a prescribed condition. Start a chiller in advance. Select [Reboot], and then tap [OK]. When using a Sony-recommended chiller that is communicating with the projector, set the chiller to standby. -
Page 15: Shutting Down The System
Shutting Down the System on the upper right of the screen. Select [Shutdown], and then tap [OK]. Tap [OK] when the confirmation screen appears. The projection system will shut down. The MAIN indicator and LIGHT indicator on the rear of the projector will turn to blinking green while cooling. -
Page 16: Operations
Operations Ingesting DCP This procedure ingests DCP, such as the main feature to be screened, or previews, to the server. Sequence of Operations Tips The sequence of operations from receiving distributed • When DCP is encrypted, the KDM encryption key file is DCP to screening operations are shown below. - Page 17 After DCP has been ingested, select the following terminals connected to the HDD, and then tap [Unmount]. • When connected to INGEST PORT 1 terminal, select [Ingest_USB_1]. • When connected to INGEST PORT 2 terminal, select [Ingest_USB_2]. You can now safely remove HDDs. How to export ingested DCP In the [External Folder] pane, select the export destination.
-
Page 18: Ingesting From Hdd Via Cru Dataport
DATAPORT For further details, refer to the “Installation Manual.” A CRU DATAPORT carrier is necessary to use the CRU DATAPORT. For further details, contact qualified Sony To ingest DCP, follow steps 2 to 5 in “Ingesting from HDD service personnel. -
Page 19: Ingesting Kdm
Ingesting KDM When DCP is encrypted, it is necessary to also ingest the KDM encryption key file to the server. When DCP is encrypted, a key icon will be displayed on any CPL containing DCP. DCP can be opened in the “Library” screen. Key icon The content on the USB memory device connected to INGEST PORT 1/2 will be displayed. -
Page 20: Ingesting From A Network Folder
on how to remove an HDD, see “To remove the HDD” When KDM has not been ingested, “No Key” will be (page 18). displayed. Ingesting from a Network Folder If a KDM is copied to a preset network folder, it will be automatically ingested. -
Page 21: Playing Back Cpl
The lens mounted on the projector can be checked in the Playing Back CPL “Status” tab’s “Auditorium” screen. Calling up Screen Adjustment Data Depending on the content’s signal classification (2D/3D, viewing angle (HD/scope/flat)) for playback, screen adjustment data can be called up when registered in the function memory. -
Page 22: Playing Back Cpl
In the [Status] tab’s “Auditorium” screen, and then tap Playing Back CPL [Load]. Using buttons in the “Auditorium” screen, CPLs can be played back, paused, or cued to a certain position, and they can be checked for missing files or damaged tracks. Control buttons The “Load Content List”... -
Page 23: Creating An Spl
During CPL playback, the playback progress is displayed Creating an SPL on the progress bar. Progress bar Create an SPL to show DCP in an auditorium. In an SPL, the screening order of a CPL for a single screening, and automatic controls for theater facilities during a screening are defined. - Page 24 Select the [CPL] radio button, select the CPL from the • If you want to replace a registered CPL or SPL, list that you want to add to the SPL, and then tap insert a CPL or SPL to replace and then delete the [Insert].
-
Page 25: Setting An Intermission In The Spl
Adjust the settings, and tap [Apply]. The SPL will be created. To delete an SPL In the SPL list, select the SPL you want to delete, and then tap [Delete]. Once the confirmation message is displayed, tap [OK] to delete the SPL. Procedures for importing/exporting SPL You can import and use an SPL that was created on another projection system, and export schedules created on the... -
Page 26: Triggering Spl Playback Using Gpi Signals
Tap [Intermission Setup]. Only one intermission can be set per SPL. Triggering SPL Playback Using GPI Signals You can use a GPI signal as a trigger to start playing back an SPL. Tap [GPI Triggered] in the [SPL] tab. The “GPI Triggered” screen will be displayed. Select the GPI signal, and then tap [Edit]. -
Page 27: Playing Back A Spl
Playing Back a SPL Creating a Schedule Play back a created SPL. The schedule is a function that allows you to automatically This section describes steps for manual playback of SPLs. play back an SPL at a set time. For instructions on how to create a screening schedule, see “Creating a Schedule”... -
Page 28: Importing/Exporting Schedules
2 Select whether the schedule is a one-time event, this unit. For details on settings, refer to your or repeating. computer manual. To set a one-time event, select the [One Time] radio button, and to create a repeating schedule, To copy schedules select the [Repeat] radio button. -
Page 29: Projecting Images Using An External Playback Device
Select a schedule period to export, and then click Projecting Images Using [Apply]. an External Playback Device Images can be projected on a screen from a playback The schedule file is exported. device connected to the projector. Schedule files are normally stored in the downloads folder. -
Page 30: Manually Controlling Theater Facilities
Manually Controlling Theater Facilities Using touch panel monitor controls, you can control various theater facilities, such as opening and closing the curtain, and controlling the lights. It is necessary to make some initial connections and adjust settings to control theater facilities. For further details, refer to the “Installation Manual.”... -
Page 31: Others
Others Attaching and Removing the Lens This section describes how to attach and remove the lens using illustrations of 2D lenses, however, the steps are the same for 3D lenses. You can change the lens in the following conditions. Tap [OK] when the “The system will prepare for the •... -
Page 32: Removing The Lens
Remove the lens from the projector while firmly Removing the Lens holding the lens not to drop it. Press the lock button all the way, and after the lock is released, press and hold the lock button and lift the lens fixing lever toward Lens fixing lever Press. - Page 33 Attach the lens to the projector while firmly holding Lens flange the lens not to drop it and aligning the position. Check that there are no gaps in each of the four locations (including reverse side). Shift base level Caution When attaching the lens to the projector, insert it straight.
-
Page 34: Replacing The Lens Using The Lens Change Table
Slide the lock lever in the direction of the arrow, and Replacing the Lens Using lock the lens. the Lens Change Table As an example, this section describes how to switch from the 2D lens to the 3D lens. To switch from the 3D lens to the 2D lens, perform the procedure in reverse. - Page 35 Raise the stopper on the 2D lens table, and slide the Lift the lens base stopper, slide it inward, and then table all the way to the left. insert the lens. Stopper Stopper Raise the stopper on the 3D lens base, and pull out the lens base.
- Page 36 While pressing the lock lever, pull the lens base When the 3D lens is not attached toward you, and slide the 3D lens table to the right Push the lens all the way until it locks. edge. Lock lever Lens base Lens base Caution Lock lever...
-
Page 37: How To Read The Indicators
Projector (IMB section) (Status indicator) STATUS 1 Device status Solid red Start-up Solid orange Connecting to the server Solid green Connection to server complete STATUS 2 Device status Solid red IMB section error HDD2 Contact qualified Sony service HDD1 personnel. POWER Solid green Normal... -
Page 38: Troubleshooting
If STATUS 1 indicator does not turn solid green even after a few minutes when connected to the server, contact Check this section before consulting qualified Sony qualified Sony service personnel. service personnel. If the unit still does not function properly, consult qualified Sony service personnel. - Page 39 panel monitor to shut down after screening is complete, and then restart the system. If the lamp is lit up in yellow or red, check the “Status If you cannot shut the unit down using the touch panel - Auditorium” screen’s [Solution] message for a monitor, unplug the power cord connected to the rear of the solution.
-
Page 40: Specifications
Caution Specifications When using the unit in temperatures between 30°C and 35°C (86°F and 95°F), consult qualified Sony service personnel. Digital Cinema Projector SRX-R815 Operating humidity Optical system 35% to 75% (Without condensation) Projection method Storage temperatures 1.48 inch, 4K, SXRD (3) –20°C to +60°C (–4°F to +140°F) -
Page 41: Digital Cinema Server Xct-S10
Touch Panel Monitor LKRA-007 Caution Optical system When using the unit in temperatures between 30°C and Screen size 15 inch 35°C (86°F and 95°F), consult qualified Sony service Resolution (H × V) personnel. 1024 × 768 pixels (XGA) Operating humidity General... - Page 42 EXPIRATION OF THE WARRANTY, OR FOR ANY VGA (640 × 480) OTHER REASON WHATSOEVER. XGA (1024 × 768) • SONY WILL NOT BE LIABLE FOR CLAIMS OF ANY KIND MADE BY USERS OF THIS UNIT OR UXGA (1600 × 1200) MADE BY THIRD PARTIES.
- Page 43 3D Format Resolution Frame rate 2 inputs 1280 × 720 59.94p/60p 2 inputs 1280 × 720...
- Page 44 Sony Corporation...
