SONY SR Projector
SRX-R110/SRX-R105

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRX-R110 and is the answer not in the manual?

Questions and answers

Related Manuals for Sony SRX-R110

Summary of Contents for Sony SRX-R110

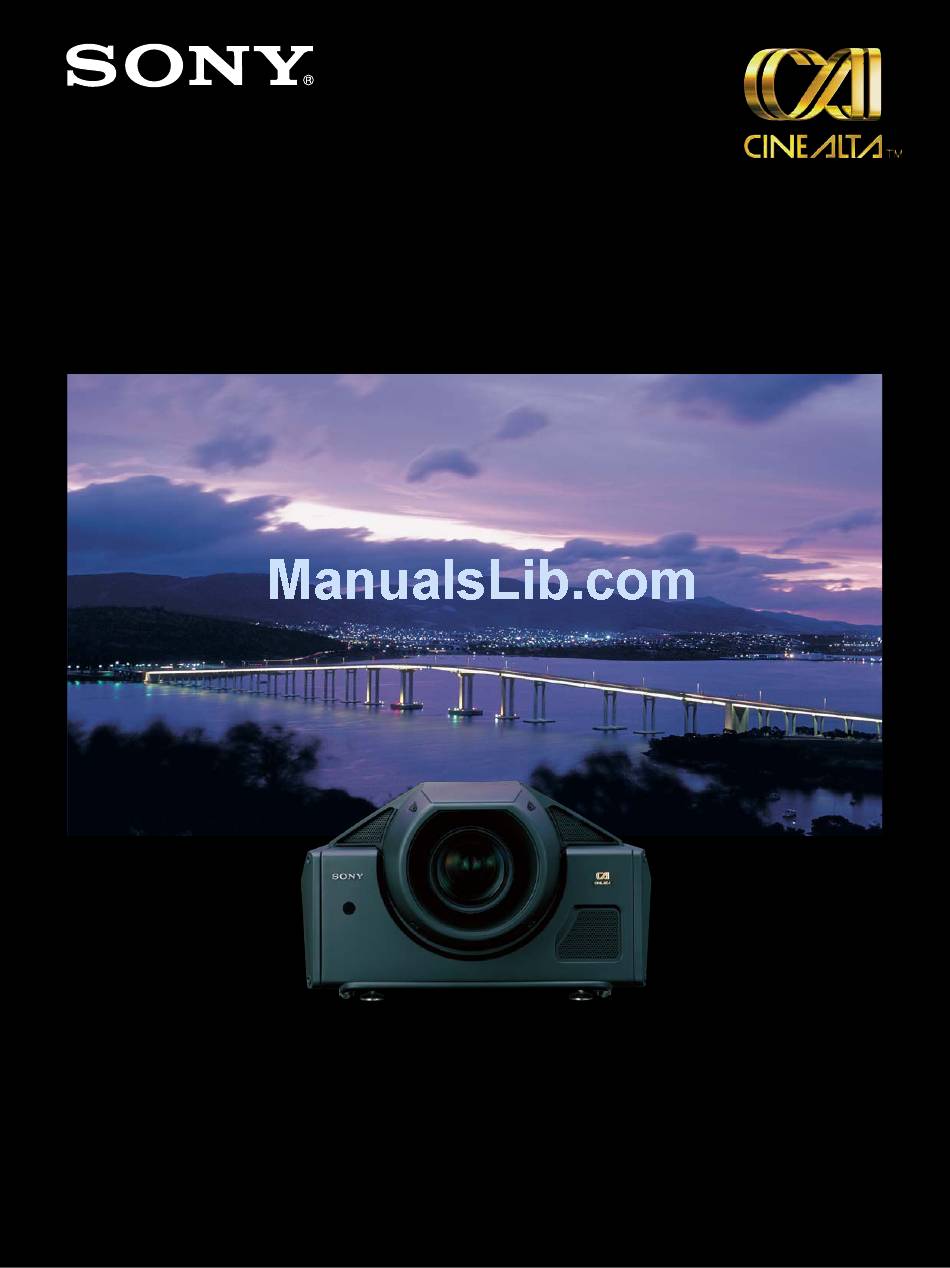

  • Page 1 SONY SR Projector SRX-R110/SRX-R105...
  • Page 2 Breathtaking “4K” quality, high-resolution visuals wi Cinema and large-venue applications.
  • Page 3 “4K” quality resolution level stipulated by Digital Cinema Initiative (DCI). The SRX-R110 and the SRX-R105 offers a high contrast ratio of more than 1800:1. In addition, the SRX-R110 provides a high brightness of 10,000 ANSI lumens*, and the SRX-R105 a brightness of 5,000 ANSI lumens*.
  • Page 4 The state-of the-art techno Silicon X-tal Reflective Display (SXRD) imaging device The SXRD device used by the SRX-R110 and SRX-R105 is a 1.55-inch* Liquid Crystal on Silicon based imager developed using leading-edge manufacturing technology. High-quality, accurate visuals are created using this brilliant imaging device.
  • Page 5 SXRD device is its ultra thin cell gap of less than 2 micrometers. With conventional Vertically Aligned Liquid Crystal systems, a thin cell gap could not be achieved. Sony has overcome this difficulty through the use of innovative planarization technology in the silicon backplane structure and an advanced Silicon wafer-based assembly process.
  • Page 6 The SRX-R110 utilizes two 2kW Xenon lamps, and the SRX-R105 uses two 1kW Xenon lamps. The Xenon lamp utilized in the SRX-R110 and the SRX-R105 satisfies the wide color range needed for Digital Cinema Distribution Master (DCDM) formats stipulated by DCI.
  • Page 7 Operational versatility Dual-lamp system with selectable lamp modes The SRX-R110 and SRX-R105 adopt a dual-lamp system that uses two lamps for reliable, flexible and efficient use of light sources. With the dual-lamp system, users can select either single- or dual-lamp modes according to their desired brightness and applications.
  • Page 8 Four option slots Input signal flexibility Four option slots are available to increase the flexibility of the SRX-R110 and the SRX-R105 by using three types of option boards that connect to different types of signal formats. Four input boards can be accommodated simultaneously in the side panel of the projector.

  • Page 9: Easy Maintenance

    Easy setup on a PC using supplied software The SRX-R110 and SRX-R105 come equipped with setup software that allows easy setup and adjustments via its intuitive GUIs on a PC*. These projectors can be controlled through Ethernet or RS-232C interface, and multiple numbers of projectors can be controlled from a single PC**.

  • Page 10: Optional Accessories

    LKRI-002 HD-SDI (4:2:2) Input Board LKRX-B105 LKRX-110 1kW Xenon lamp house unit for 2kW Xenon lamp bulb for replacement (for SRX-R105) replacement (for SRX-R110) 360 (14 1/4) 754.5 (29 3/4) 439 (17 3/8) 167 (6 5/8) LKRL-Z140 Zoom Lens 4.0 to 7.0x zoom lens...

  • Page 11: Specifications

    LKRX-105: 1kW Xenon lamp bulb for replacement (for SRX-R105) LKRX-B105: 1kW Xenon lamp house unit for replacement (for SRX-R105) LKRX-110: 2kW Xenon lamp bulb for replacement (for SRX-R110) LKRX-B110: 2kW Xenon lamp house unit for replacement (for SRX-R110) LKRA-001: 8-inch Exhaust Duct adaptor Aspect...
  • Page 12 All non-metric weights and measures are approximate. Sony is a registered trademark of Sony Corporation. CineAlta, SXRD, and SXRD logo are trademarks of Sony Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation.

  • Page 13: Installation Data

    SR projector SRX-R110/SRX-R105 Installation Data LKRL-Z115 Zoom Lens In case of [4096]-horizontal pixels (A) Full Screen Projection – 4096(H) pixels x 2160(V) pixels Screen width [W] 4500 5000 6000 Required screen height [H] 2380 2640 3170 H = W x 0.527344 Diagonal Screen Size [SS] 5090 (200.4)
  • Page 14 LKRL-Z125 Zoom Lens In case of [4096]-horizontal pixels (A) Full Screen Projection – 4096(H) x 2160(V) pixels Screen width [W] 4500 5000 6000 Required screen height [H] 2380 2640 3170 H = W x 0.527344 Diagonal Screen Size [SS] 5090 (200.4) 5660 (222.8) 6790 (267.3) SS = W x 1.130527...
