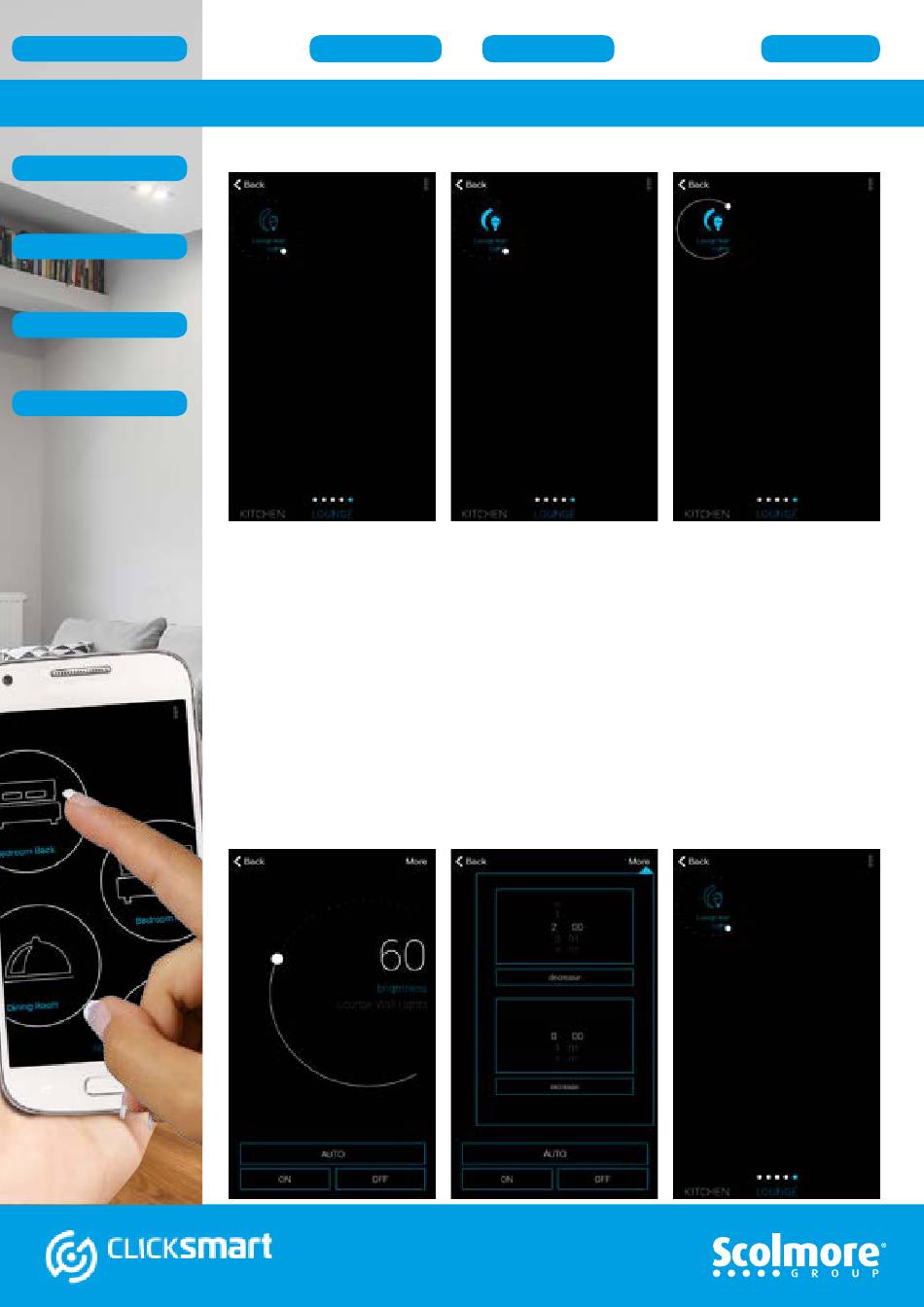

Application Control - Dimming
The current status icon of the dimming receiver is displayed.
Icon blue outline.
Receiver element is
either not powered, out of
range or address input is
incorrect.
With all the Click Smart dimming receivers having multifunctional settings, one of the
following settings can be selected:
• Control to and from ON (100%) to OFF (0%) in 10% increments
• 'Auto' can only be enabled once time schedules have been setup which includes
this element/receiver.
• Decrease - Dims down to off over the set time
• Increase - Dims up to 100% over the set time
When instigating either timed function, the element's icon will display the icon with a
blue outline during the time elapse.
Previous
Next Page
Icon with blue infill.
Receiver element is
within range with the
output 'Off'.
37
Next
Contents
Icon with blue infill and
white arc displayed.
Receiver element is within
range with the output 'On'
or at dimmed level.
