Recoil Install for Cube Inverters
This covers the following models (Read completely before performing service):
• 73540i
• 73536i
• 100148

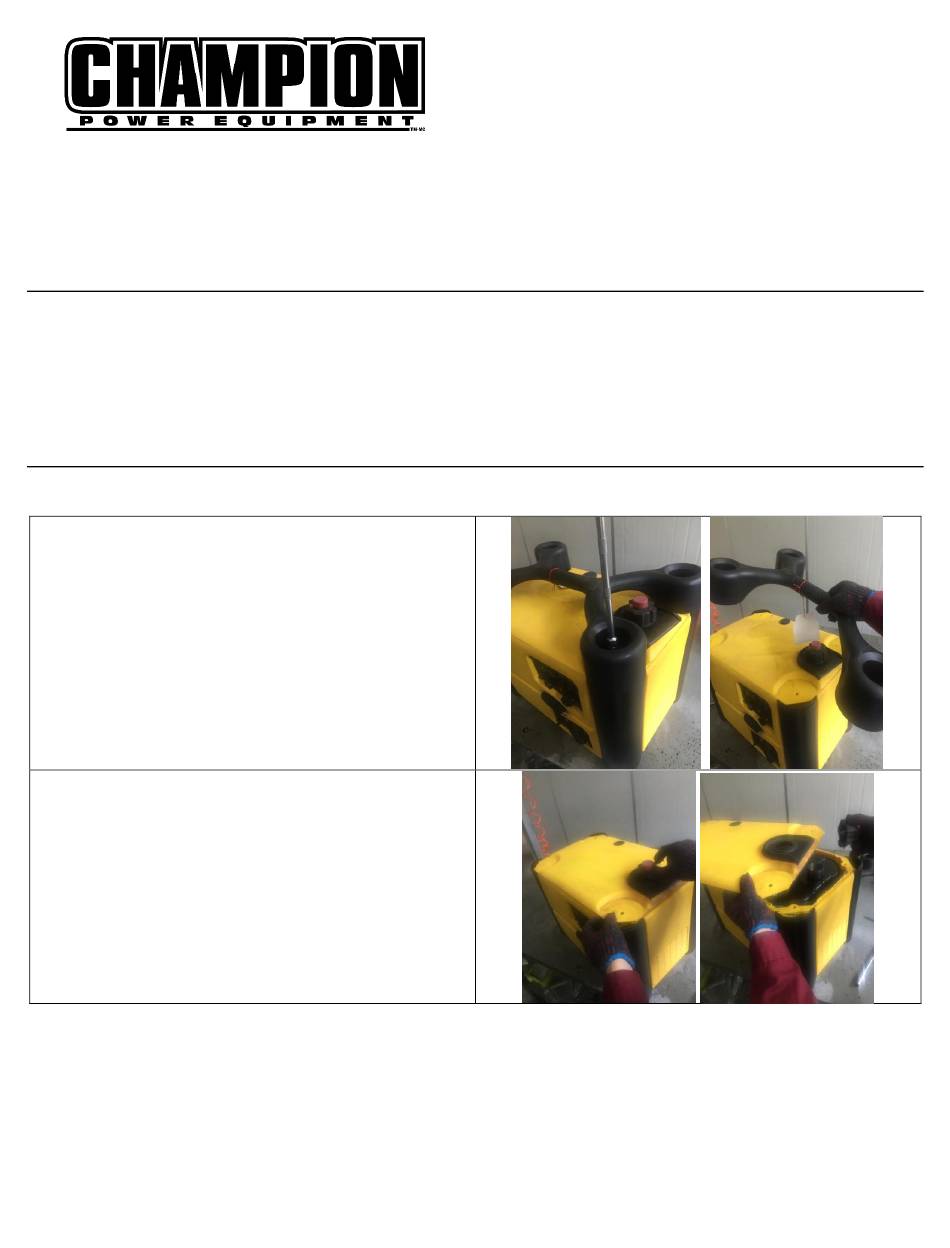

Unscrew the 4 bolts holding the handle and
1.
remove the handle assembly.
2. Unscrew the fuel tank cap and remove the
upper cover.
Note: After removing the upper cover, re-screw
the fuel tank cap to prevent gasoline from
escaping.
11/12/18
Technical Bulletin
Number: 181107-60-50-1
Date: 11/7/18
• 73535i
• 100489
• 100455
1
Champion Power Equipment, Inc.
Advertisement
Related Manuals for Champion Power Equipment 73540i
Summary of Contents for Champion Power Equipment 73540i
- Page 1 Unscrew the 4 bolts holding the handle and remove the handle assembly. 2. Unscrew the fuel tank cap and remove the upper cover. Note: After removing the upper cover, re-screw the fuel tank cap to prevent gasoline from escaping. 11/12/18 Champion Power Equipment, Inc.
- Page 2 Remove (4) corner panels. 4. Unscrew the screws to remove the right cover. Repeat for the left cover. 5. Unscrew the (3) bolts that hold the fuel tank. 11/12/18 Champion Power Equipment, Inc.
- Page 3 Unscrew all screws & bolts of front cover and rear cover, and then remove the rear cover assembly. 11/12/18 Champion Power Equipment, Inc.
- Page 4 Pull out some length of rope from the recoil pulley and secure with a stop-knot at the recoil cover end. Remove the recoil handle. 11/12/18 Champion Power Equipment, Inc.
- Page 5 10. Unscrew the recoil assembly and replace. 11. Put the new spring into the pulley if need to replace a new spring. 11/12/18 Champion Power Equipment, Inc.
- Page 6 Feed the rope out to the hole of recoil cover and pull it through the guide hole on the outside of the recoil cover. Place the guide plate / pull handle on the rope and secure with a stop-knot. 11/12/18 Champion Power Equipment, Inc.
- Page 7 15. Place the (2) detent springs as shown 16. Place 2 plastic detents into the spring positions with some lubricant. Note the detents must press the springs when installing. 11/12/18 Champion Power Equipment, Inc.
- Page 8 17. Install the hoop onto the plastic press plate, and then put the plastic press plate onto the plastic detents. Note: the salient of detents must snap- into the guide slot of press plate. 11/12/18 Champion Power Equipment, Inc.
- Page 9 18. The bolt can have some locking glue, put the bolt into the through-hole of press plate and tighten the bolt. 19. Secure a stop-knot at the end of the new recoil cover end. 11/12/18 Champion Power Equipment, Inc.
- Page 10 Tighten the bolts and re-install the recoil handle at the front panel, then loosen the stop-knot. Attention: Do not allow the recoil rope to interfere with inner wire harness after installation. 11/12/18 Champion Power Equipment, Inc.
- Page 11 21. Re-install the controller module and rectifier and plug all connectors. Re-install the fuel tank and plug the fuel hose onto the carburetor inlet nozzle with the clamp. Re-install the fuel ON/OFF switch. 11/12/18 Champion Power Equipment, Inc.
- Page 12 Reinstall rear cover assembly, front cover assembly and fuel tank. Re-install the left cover assembly and right cover assembly. 11/12/18 Champion Power Equipment, Inc.
- Page 13 26. Re-install the handle If you have any questions regarding the previous procedure, please contact our technical department Monday-Friday from 8:30 AM-5:00 PM PST at 877-338-0999. If you have any questions, please contact Champion Power Equipment: Champion Power Equipment, Inc. 12039 Smith Ave.
