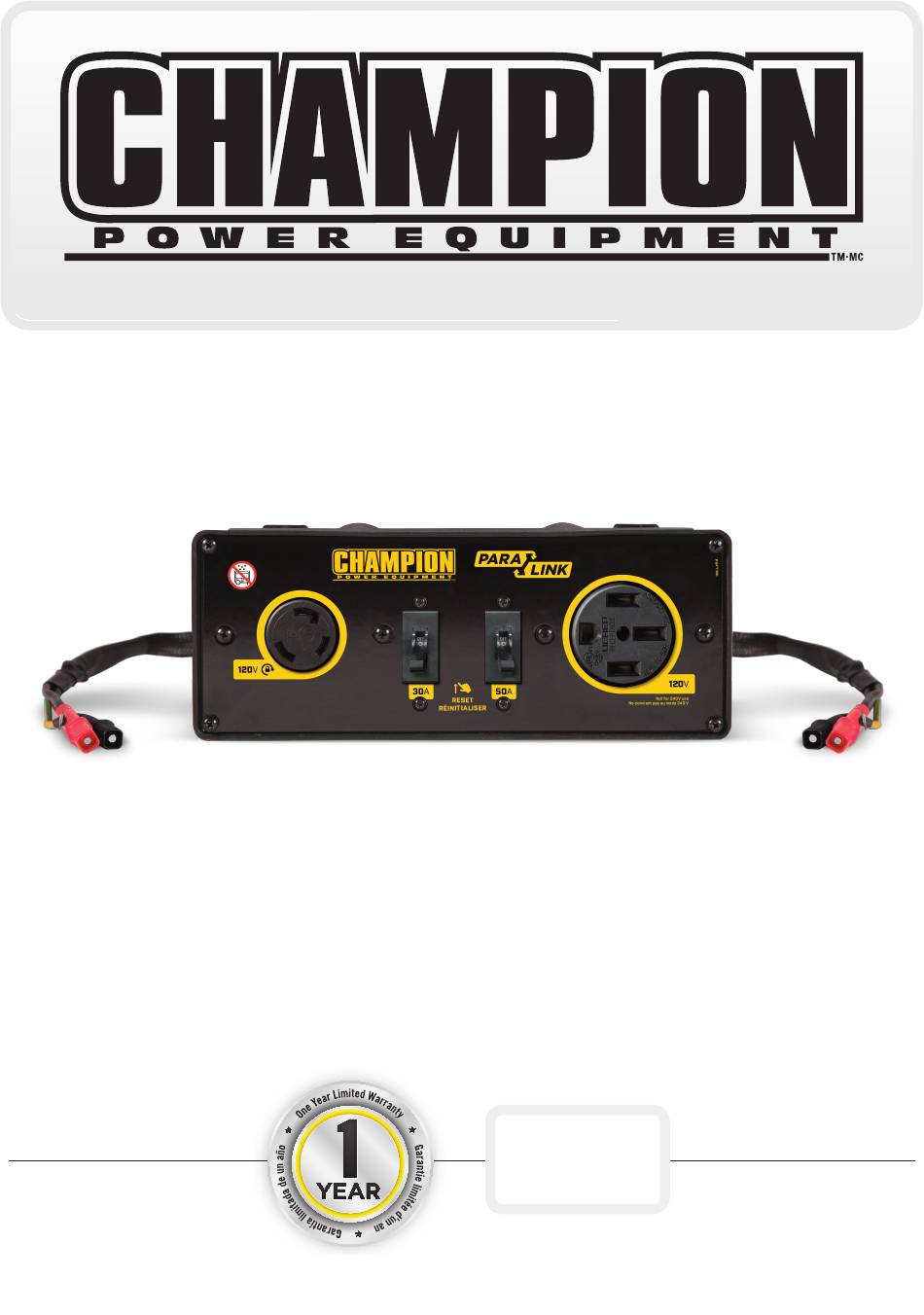

- Page 1 OWNER’S MANUAL PARALLEL KIT MODEL NUMBER 100319 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 USA Important safety instructions 1-877-338-0999 MADE IN CHINA are included in this manual. REV 100319-20181106 www.championpowerequipment.com...
- Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration –...
-
Page 3: Table Of Contents
100319 Inverter generator parallel kit TABLE OF CONTENTS Introduction ......Controls and Features . -
Page 4: Introduction
ENGLISH INTRODUCTION Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines. With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service. -
Page 5: Controls And Features
100319 ENGLISH CONTROLS AND FEATURES Power Panel 120 Volt, 30 Amp Twist-Lock Receptacle – DANGER (Nema L5-30R) This receptacle powers 120 Volt AC, 60 Hz, single phase loads. Generators produces powerful voltage. Circuit Breaker 30 Amp – Protects against DO NOT touch bare wires or receptacles. -
Page 6: Operation
100319 ENGLISH OPERATION Paralleling one 2800W+ inverter and one This kit is intended for the use with Champion Power Equipment inverters with a least one inverter being 2000W inverter 2800W or larger (2800+), and with the ability to parallel. Please refer to your inverter Owner’s Manual... -
Page 7: Specifications
100319 ENGLISH SPECIFICATIONS Wiring Diagram... -
Page 8: Parts Diagram
100319 ENGLISH SPECIFICATIONS Parts Diagram Parts List Part Number Description Part Number Description 81.210003.00 Plug, Wire 50Amp Circuit Breaker, Flip 5.1230.500 Lever 83.213001.00 Control Box 5.1120.039 Receptacle 14-50R, CSA Plug, Parallel, Wire 280 mm, 83.210006.00.3 83.213100.03 Control Panel Plug, Parallel, Wire 250 mm, 83.213004.00... - Page 9 Proof of purchase is required for warranty service. Please register within ten (10) days Champion Power Equipment disclaims any obligation to cover from date of purchase. any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product.
