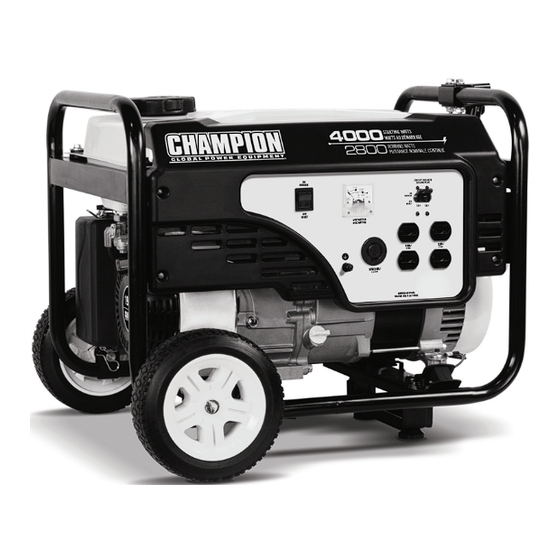

4000 Starting Watts
2800 Running Watts
PORTABLE GENERATOR
SAVE THESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
OWNER'S MANUAL & OPERATING INSTRUCTIONS
MODEL NUMBER
100246
MADE IN CHINA
REV 100246-20160217
12039 Smith Ave.
Santa Fe Springs CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Champion Power Equipment 100246
Summary of Contents for Champion Power Equipment 100246

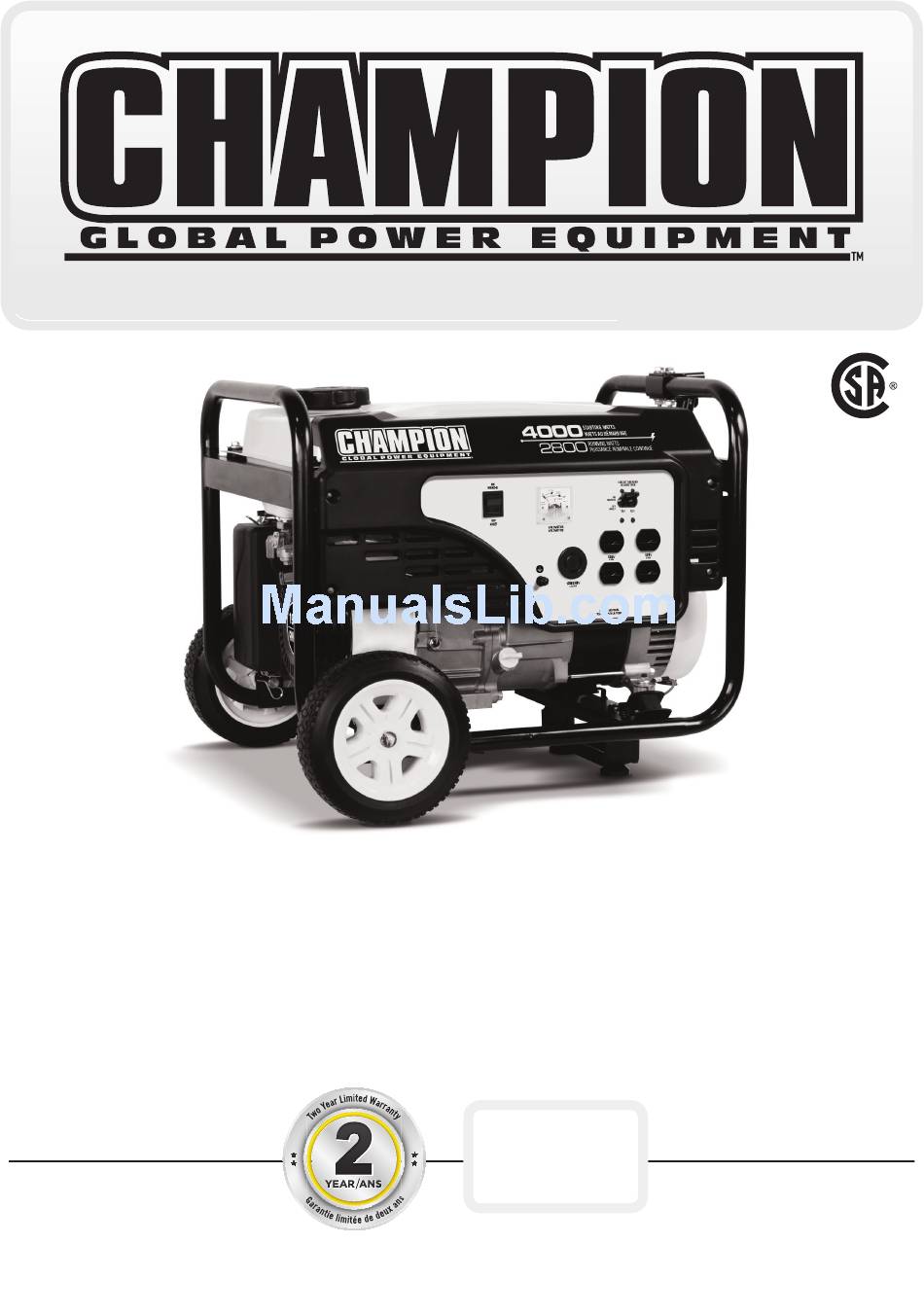

- Page 1 OWNER’S MANUAL & OPERATING INSTRUCTIONS 4000 Starting Watts 2800 Running Watts PORTABLE GENERATOR MODEL NUMBER 100246 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 100246-20160217 www.championpowerequipment.com...
- Page 2 AN IMPORTANT MESSAGE ABOUT TEMPERATURE: Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to 40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods.
-
Page 3: Table Of Contents
100246 4000 Starting Watts 2800 Running Watts PORTABLE GENERATOR TABLE Of CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 4: Introduction
ENGLISH Introduction Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines. With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service. -
Page 5: Manual Conventions
100246 ENGLISH MANUAL CONVENTIONS This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death. -
Page 6: Safety Rules
100246 ENGLISH SAfETy RULES WARNING DANGER Generator produces powerful voltage. Read this manual thoroughly before operating your generator. Failure to follow instructions could result DO NOT touch bare wires or receptacles. in serious injury or death. DO NOT use electrical cords that are worn, damaged or frayed. - Page 7 100246 ENGLISH SAfETy RULES DANGER WARNING Fuel and fuel vapours are highly flammable and Rapid retraction of the starter cord will pull hand and extremely explosive. arm towards the engine faster than you can let go. Fire or explosion can cause severe burns or death.
-
Page 8: Label Map
Safety Label Locations These labels warn you of potential hazards that can cause serious injury. Read them carefully. If a label comes off or becomes hard to read, contact Champion Power Equipment’s customer service department for possible replacement. DANGER: Carbon Monoxide Label... -
Page 9: Controls And Features
100246 ENGLISH CONTROLS AND fEATURES Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Generator Fuel Tank – 3.4 gallon (13 L) capacity fuel tank. -
Page 10: Power Panel
100246 ENGLISH CONTROLS AND fEATURES Power Panel Engine Switch – Flip the switch to the “On” Ground Terminal – Consult an electrician for local position and pull the recoil starter to start the grounding regulations. generator. Turn to the “Off” position to turn off the 120/240V, 20 Amp Twist-Lock –... -
Page 11: Parts Included
100246 ENGLISH CONTROLS AND fEATURES Parts Included Your 100246 gasoline powered generator ships with the following parts: Wheel Kit – 8 in. Wheel (20.3 cm) .... -
Page 12: Assembly
100246 ENGLISH ASSEMBLy Your generator requires some assembly. This unit ships Install the Support Leg from our factory without oil. It must be properly serviced 1. Attach the support leg to the generator frame with with fuel and oil before operation. -
Page 13: Add Engine Oil
100246 ENGLISH ASSEMBLy Add Engine Oil Add Engine Oil Cont’d. CAUTION NOTE Check oil often during the break-in period. Refer to the DO NOT attempt to crank or start the engine before Maintenance section for recommended service intervals. it has been properly filled with the recommended type and amount of oil. -
Page 14: Add Fuel
100246 ENGLISH ASSEMBLy Add fuel Add fuel Cont’d. 1. Use clean, fresh, regular unleaded fuel with a NOTE minimum octane rating of 85 and an ethanol content of less than 10% by volume. Our engines work well with 10% or less ethanol 2. -
Page 15: Operation
100246 ENGLISH OPERATION Generator Location Surge Protection NEVER operate the generator inside any building, CAUTION including garages, basements, crawlspaces and sheds, enclosure or compartment, including the generator Voltage fluctuation may impair the proper compartment of a recreational vehicle. Please consult functioning of sensitive electronic equipment. -
Page 16: Connecting Electrical Loads
100246 ENGLISH OPERATION Connecting Electrical Loads Grounding 1. Let the engine stabilize and warm up for a few The generator system ground connects the frame to the minutes after starting ground terminals on the power panel. The system ground is 2. -
Page 17: Operation At High Altitude
To alleviate high altitude issues other than the natural power loss, Champion Power Equipment can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting Customer Support. -
Page 18: Maintenance And Storage
100246 ENGLISH MAINTENANCE AND STORAGE The owner/operator is responsible for all periodic Oil Cont’d. maintenance. NOTE WARNING Once oil has been added, a visual check should show oil about 1-2 threads from running out of the fill hole. Never operate a damaged or defective generator. -
Page 19: Spark Arrester
Service your generator more frequently when operating in adverse conditions. Contact our help line at 1-877-338-0999 to locate the nearest Champion Power Equipment certified service dealer for your generator or engine maintenance needs. Every 8 hours or daily Check oil level... -
Page 20: Generator Maintenance
100246 ENGLISH MAINTENANCE AND STORAGE Generator Maintenance Generator Storage Cont’d. Make certain that the generator is kept clean and stored NOTE properly. Only operate the unit on a flat, level surface in Our engines work well with 10% or less ethanol a clean, dry operating environment. -
Page 21: Specifications
....3.4 gallon (13 L) Your Champion Power Equipment product is designed – Gross Weight .... -
Page 22: Parts Diagram
100246 ENGLISH SPECIfICATIONS Parts Diagram... -
Page 23: Parts List
100246 ENGLISH Part Number Description Part Number Description 26.404 Engine 122.070100.07 Cap, Fuel Tank 122.190005.00 Rubber, Fore-Cover, B 122.070300.03 Fuel Filter, Fuel Tank 122.190005.01 Rubber, Fore-Cover, A 2.06.007 Clamp Ø8 x b6 Fuel Pipe Ø4.5 x Ø8.5 x 155 123.191100.20 Rotor Assembly, Al, 120 mm 23.070011.04... -
Page 24: Engine Parts Diagram
100246 ENGLISH SPECIfICATIONS Engine Parts Diagram... -
Page 25: Engine Parts List
100246 ENGLISH Engine Parts List Part Number Description Part Number Description 1.5789.0608 Flange Bolt M6 × 8 1.6177.06 Flange Nut M6 22.061100.00.2 Cover, Recoil Starter, Black 21.110001.00 Shaft, Governor Arm 21.061005.00 Spring, Recoil Starter 22.123000.02 Ignition Coil 2.10.003 Rope Ø5 × 1550 1.5789.0625... -
Page 26: Wiring Diagram
100246 ENGLISH SPECIfICATIONS Wiring Diagram... -
Page 27: Troubleshooting
100246 ENGLISH TROUBLESHOOTING Problem Cause Solution Generator will not start No fuel Add fuel Faulty spark plug Replace spark plug Unit loaded during start up Remove load from unit Generator will not start; Low oil level Fill crankcase to the proper level... -
Page 28: Contact Information
Warranty Qualifications – Failures due to acts of God and other force majeure events Champion Power Equipment (CPE) will register this warranty upon beyond the manufacturer’s control. receipt of your Warranty Registration Card and a copy of your sales –... - Page 29 Champion Power Equipment, Inc (CPE) and Environment and Climate Change Canada (ECCC) Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with Environment and Climate Change Canada (ECCC) emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: CPE is pleased to explain the Emission Control Systems Warranty on your 2016 small off-road engine.
- Page 30 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System Warranty Coverage. Emission Control System Warranty (ECS Warranty): 1. APPLICABILITY: The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 31 Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours. Claims for repair or adjustment found to be caused solely by defects in material or workmanship will not be denied because the engine was not properly maintained and used.
