OWNER'S MANUAL
PARALLEL KIT
1
MODEL NUMBER
500319-N
SAVE THESE INSTRUCTIONS
Important safety instructions
are included in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500319-N and is the answer not in the manual?

Questions and answers

Related Manuals for Champion Power Equipment 500319-N

Summary of Contents for Champion Power Equipment 500319-N

  • Page 1 OWNER’S MANUAL PARALLEL KIT MODEL NUMBER 500319-N SAVE THESE INSTRUCTIONS Important safety instructions are included in this manual.
  • Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration – or – Call our Customer Care Team Toll-Free at: Parts Ordering: Mon –...

  • Page 3: Table Of Contents

    500319-N Inverter Generator Parallel Kit TAbLE Of CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .

  • Page 4: Introduction

    ENGLISH INTRODUCTION Congratulations on your purchase of a Champion Power Equipment product . Champion Power Equipment and Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines . With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service .

  • Page 5: Controls And Features

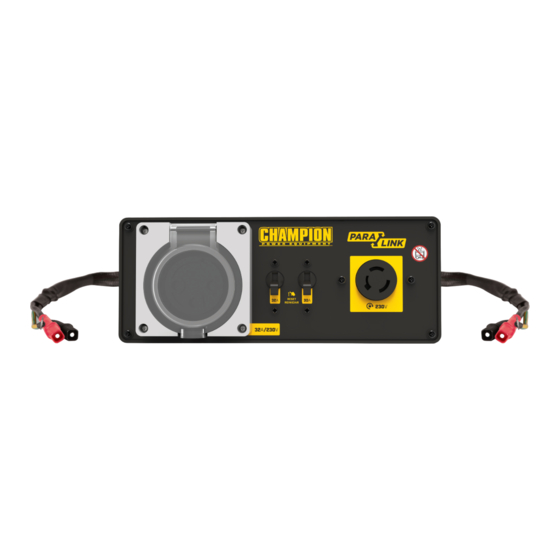

    500319-N ENGLISH CONTROLS AND fEATURES Power Panel 230 Volt, 32 Amp Receptacle – DANGER This receptacle powers 230 Volt AC, 50 Hz, single phase loads . Generators produces powerful voltage . Circuit Breaker 32 Amp – Protects against electrical DO NOT touch bare wires or receptacles .

  • Page 6: Operation

    500319-N ENGLISH OPERATION Paralleling One 2800W+ Inverter and One This kit is intended for the use with Champion Power Equipment inverters with a least one inverter being 2000W Inverter 2800W or larger (2800+), and with the ability to parallel . Please refer to your inverter Owner’s Manual...

  • Page 7: Specifications

    500319-N ENGLISH SPECIfICATIONS Wiring Diagram...

  • Page 8: Parts Diagram

    500319-N ENGLISH SPECIfICATIONS Parts Diagram Parts List Part Number Description Part Number Description 83 .210003 .01 Plug, Wire 1 .6170 .03 Nut M3 83 .213001 .00 Control Box 32 Amp Circuit Breaker, 5 . 1 220 .320 Single Pole Plug, Parallel, Wire 1800 5 .
