Mounting The Range Hood; Electrical Supply; Cable Lock - Zephyr Titan AK7636AS Use, Care And Installation Manual

!
CAUTION: At least two installers are required
due to the weight and size of the hood.

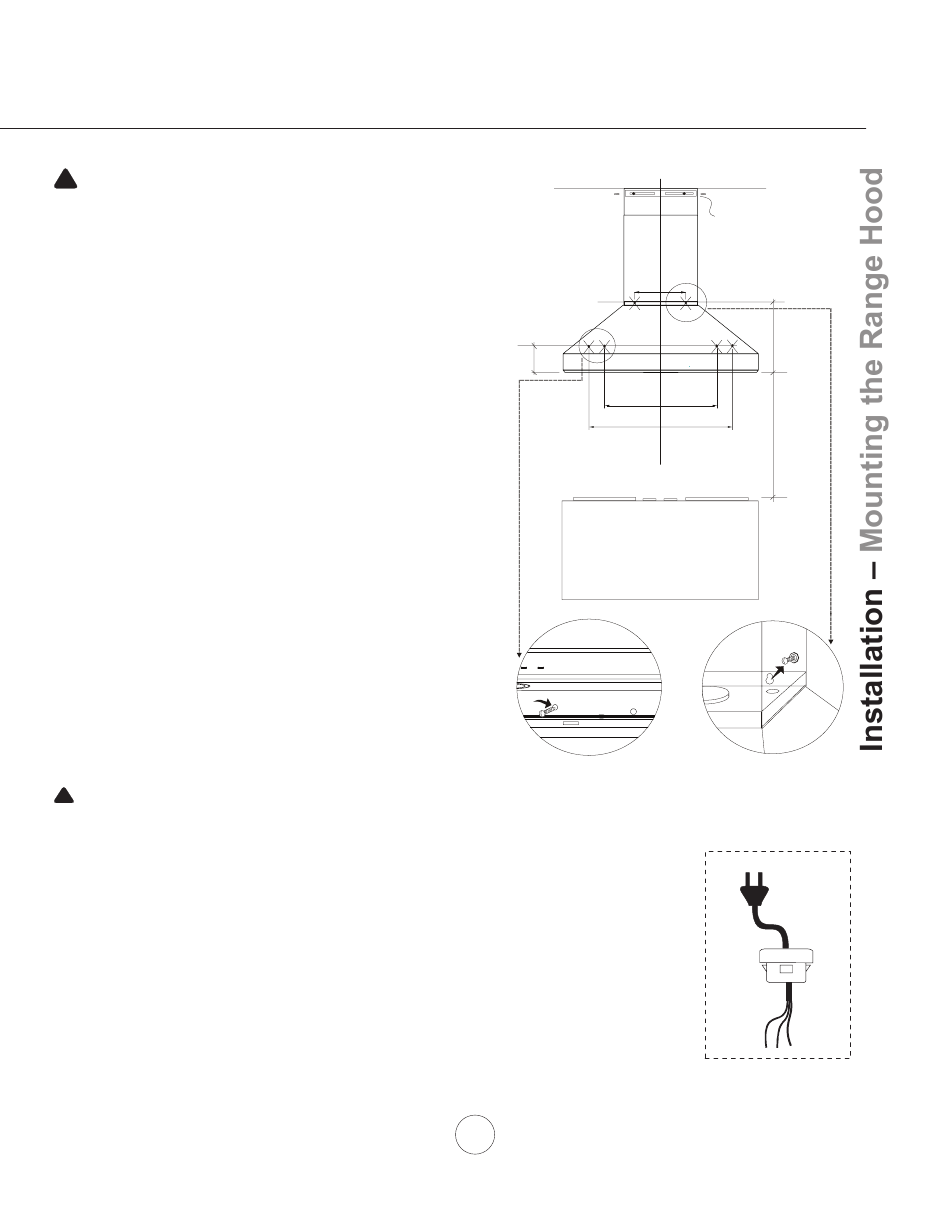

1. Measure from range top to hood bottom and mark line A. (24"
minimum from range top).
2. Plum and mark center line.
3. Mark mounting height line B. (15" from line A)
4. Mark mounting height line C. (4-3/4" from line A)
5. Mark mounting spread from C/L on line B and C according to
diagram.
6. Fasten (2) 6# x 2" screws into studs on line B. Fasten (2) or (4)
6# x 2" screws into studs on line C. Do not fasten screws all the
way, leave approxamately 3/8" exposed. Note: wood blocking
may need to be added behind the drywall if no studs are
present. Wall anchors may also be used but check local
codes for compliance. Failure to use suitable wall anchors
and screws to hold the weight of the hood could result in
personal injury or damage to cooking surface or counter.
7. Install round duct collar with backdraft damper to top or rear of
hood by (4) M4x8 screws.
8. If ducting hood through rear of hood body, cut duct access hole in
wall and prepair ducting.
9. Hang hood onto wall mounted screws and tighten. (FIG. A #1)
10. Center and attach duct cover bracket to wall below ceiling or soffit
using (2) 6# x 1 1/2" screws.
11. Prepair and connect electrical and install duct work and duct tape.
12. Power up hood and check for leaks around duct tape.
13. Place telescopic duct covers onto hood and extend inner
(top) duct cover upwards and secure to duct cover bracket
using (2) M4x8 screws.
!
WARNING: Electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards. This range hood must be
properly grounded. Turn off electrical power at service entrance before wiring.
Warning:
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not
use extension cord or adaptor plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.

Electrical Supply:

This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly
gounded brand circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must
be 2 wire w/ground. Please refer to Electrical Diagram labeled on product.

Cable Lock:

A cable locking connector (not supplied) might also be required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary.
(36", 42")
11-13/16"
(48",54",60")
17-11/16"
B
C
4-3/4"
(36") 25-1/4", (42") 31-3/16"
(48") 19-1/16", (54") 25-1/16"
(60") 30-7/8"
(48") 37-3/16", (54") 43-1/8", (60") 49"
C/L
2
9
Duct Cover
Bracket
15"
A
24" min.
1
Cable Lock
