VP-733 Quick Start Guide
This guide helps you install and use your VP-733 for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
VP-733 Presentation Switcher/Dual Scaler
IR remote control transmitter with batteries
2 15-pin HD (M) to 3 RCA (F) breakout cables (C-GM/3RVF-1)

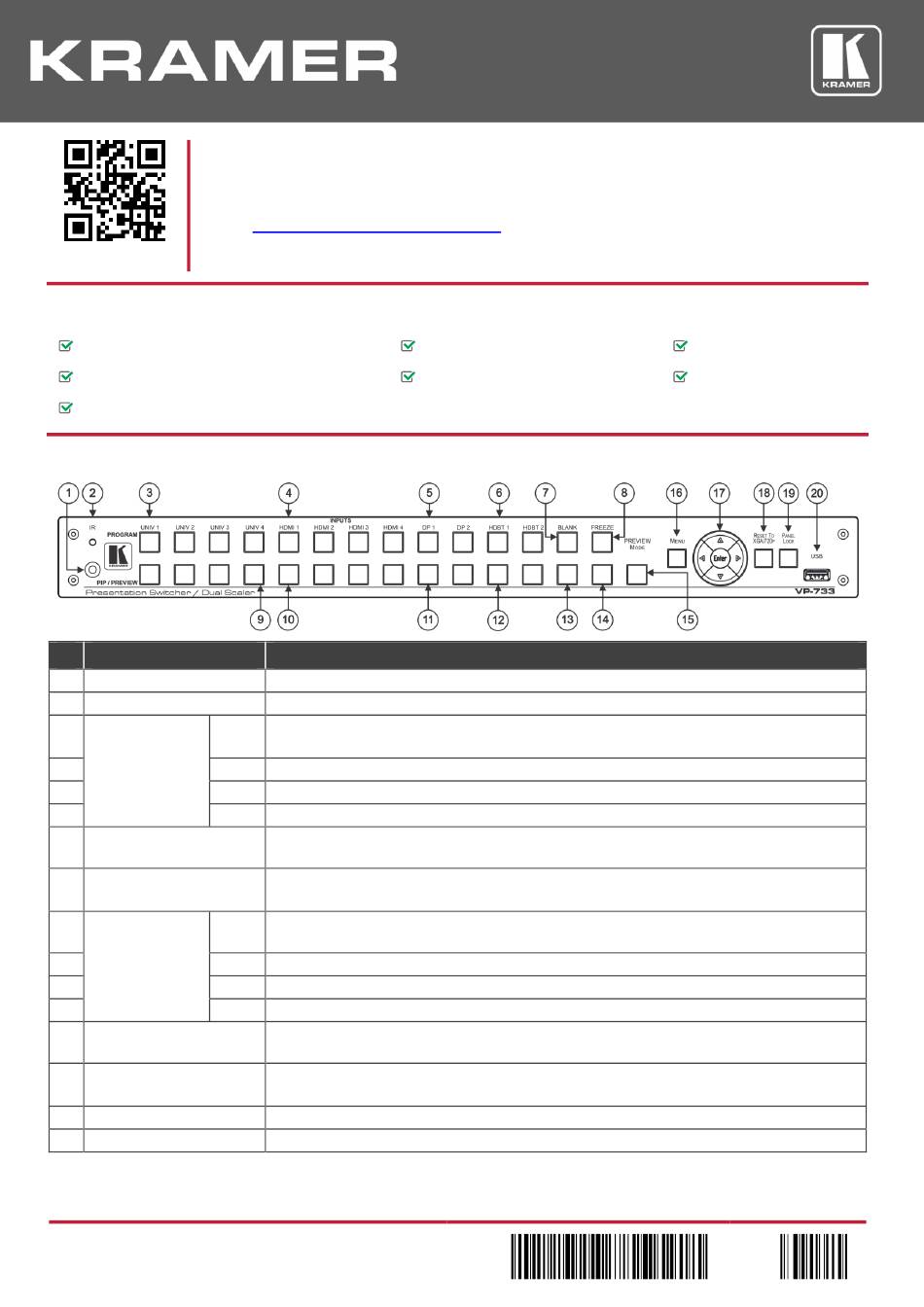

Step 2: Get to know your VP-733

# Feature
1 IR Receiver
2 LED
3 PROGRAM UNIV
INPUT Selector
Buttons
4 HDMI
(Illuminated green
5 DP
when selected)
6 HDBT
7 Program BLANK Button
8 Program FREEZE Button
9 PIP / PREVIEW UNIV
INPUT Selector
Buttons
10 HDMI
(Illuminated yellow
11 DP
when selected)
12 HDBT
13 Preview BLANK Button
14 Preview FREEZE Button
15 PREVIEW MODE Button
16 MENU Button
VP-733 Quick Start (P/N: 2900-300547QS REV 1)
www.kramerav.com/downloads/VP-733
Function
Receives signals from the remote control transmitter.
Lights red when the unit accepts IR remote commands.
Press to select the computer graphics/composite video / s-Video / component video source.
The video source type is configured via the OSD menu (from 1 to 4).
Press to select the HDMI source (from 1 to 4).
Press to select the DP source (from 1 to 2).
Press to select the HDBT source (from 1 to 2).
Press to toggle between a blank screen (blue or black) and the program display.
The BLANK button can be programmed to mute the audio signal when the blank screen is toggled.
Press to freeze/unfreeze the program output video image.
The FREEZE button can be programmed to mute the audio signal when the image is frozen.
Press to select the computer graphics/composite video / s-Video / component video source; the
video source type is configured via the OSD menu (from 1 to 4).
Press to select the HDMI source (from 1 to 4).
Press to select the DP source (from 1 to 2)...
Press to select the HDBT source (from 1 to 2)
Press to toggle between a blank screen (blue or black) and the preview display.
The BLANK button can be programmed to mute the audio signal when the blank screen is toggled.
Press to freeze/unfreeze the preview output video image.
The FREEZE button can be programmed to mute the audio signal when the image is frozen.
Press to toggle between PIP and Preview Mode operation.
Press to display the OSD menu on screen. Press again to return to normal operation.
to download the latest user manual and check if firmware
1 Set of rack ears
1 Power cord
P/N:
2 9 0 0 - 3 0 0 5 4 7 Q S
4 Rubber feet
1 Quick start guide
Rev:
1
