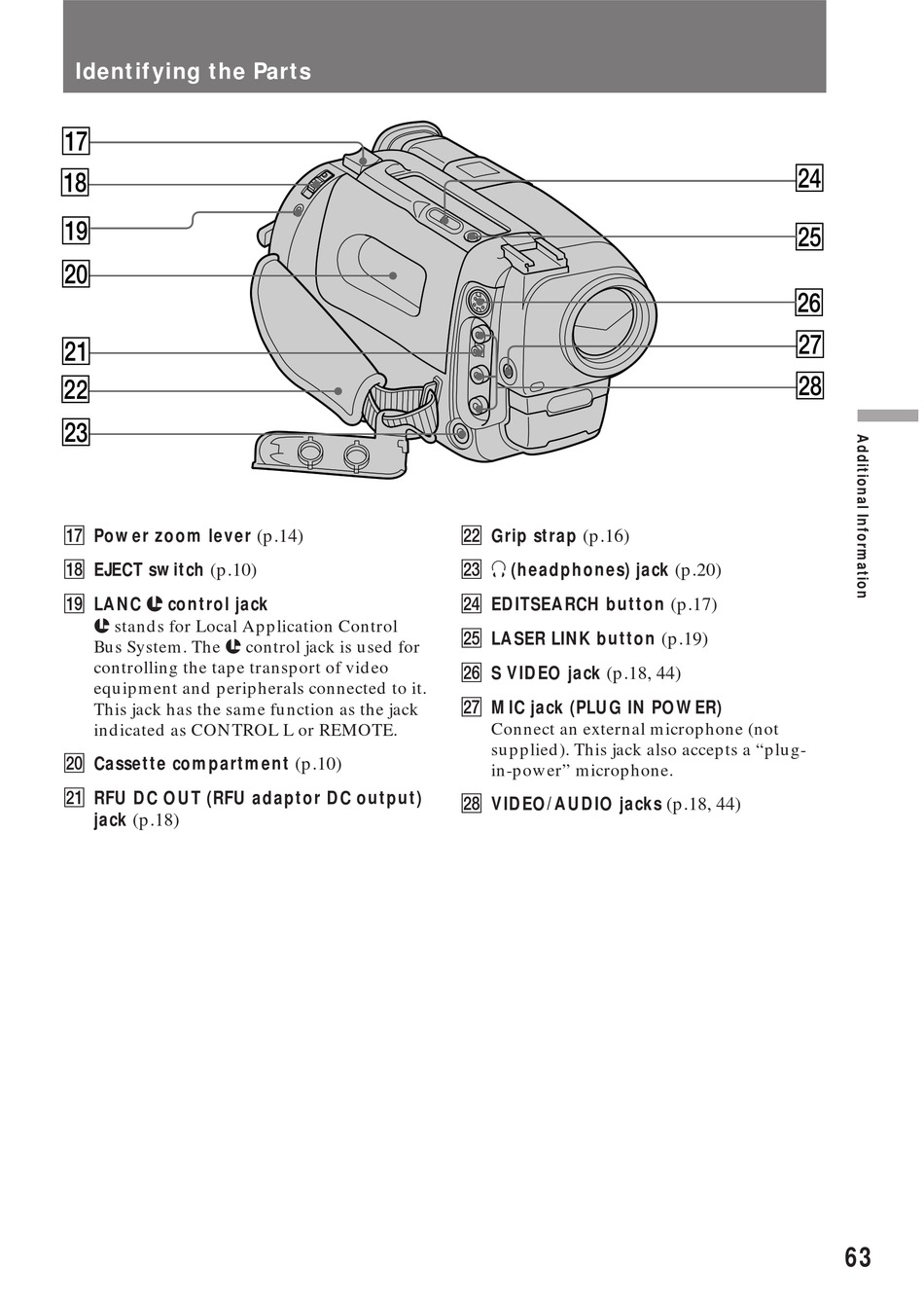

Identifying the Parts
!¶
!•
!ª
@º
@¡
@™
@£
!¶ Power zoom lever (p.14)
!• EJECT switch (p.10)
!ª LANC l control jack
l stands for Local Application Control
Bus System. The l control jack is used for
controlling the tape transport of video
equipment and peripherals connected to it.
This jack has the same function as the jack
indicated as CONTROL L or REMOTE.
@º Cassette compartment (p.10)
@¡ RFU DC OUT (RFU adaptor DC output)
jack (p.18)
@™ Grip strap (p.16)
@£ 2 (headphones) jack (p.20)
@¢ EDITSEARCH button (p.17)
@∞ LASER LINK button (p.19)
@§ S VIDEO jack (p.18, 44)
@¶ MIC jack (PLUG IN POWER)
Connect an external microphone (not
supplied). This jack also accepts a "plug-
in-power" microphone.
@• VIDEO/AUDIO jacks (p.18, 44)
@¢
@∞
@§
@¶
@•
