CCD-TR913E/TR950E
SERVICE MANUAL
Ver 1.0 1999.02
MICROFILM

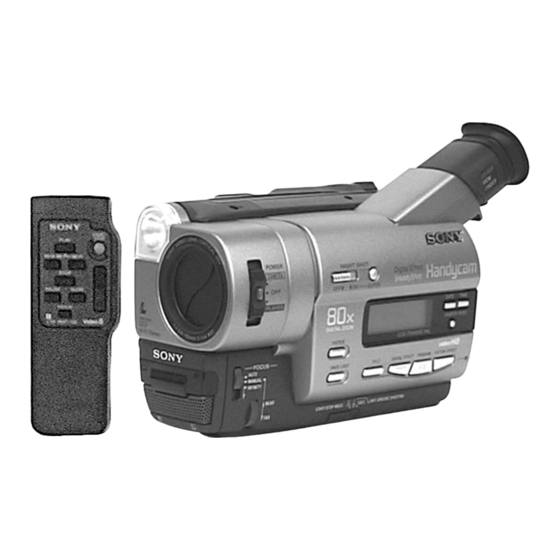

Photo: CCD-TR950E
For MECHANISM ADJUSTMENT, refer to
the "8mm Video MECHANICAL
ADJUSTMENT MANUAL

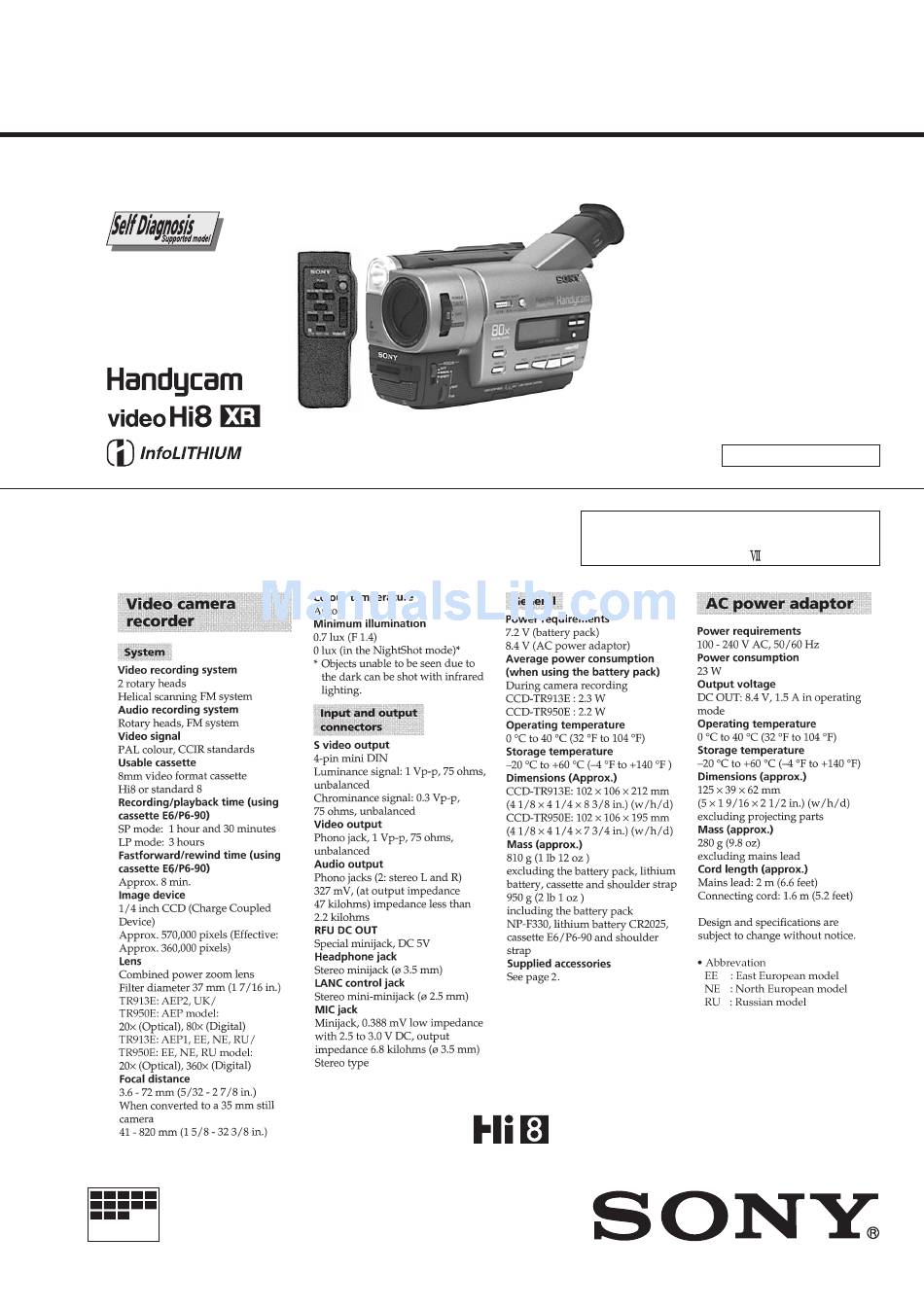

SPECIFICATIONS
VIDEO CAMERA RECORDER
RMT-708
AEP Model
North European Model
East European Model
Russian Model
CCD-TR913E/TR950E
UK Model
CCD-TR913E
B501 MECHANISM
" (9-973-801-11).
