Eurotech IOO-BLK Assembly Instructions Manual page 5

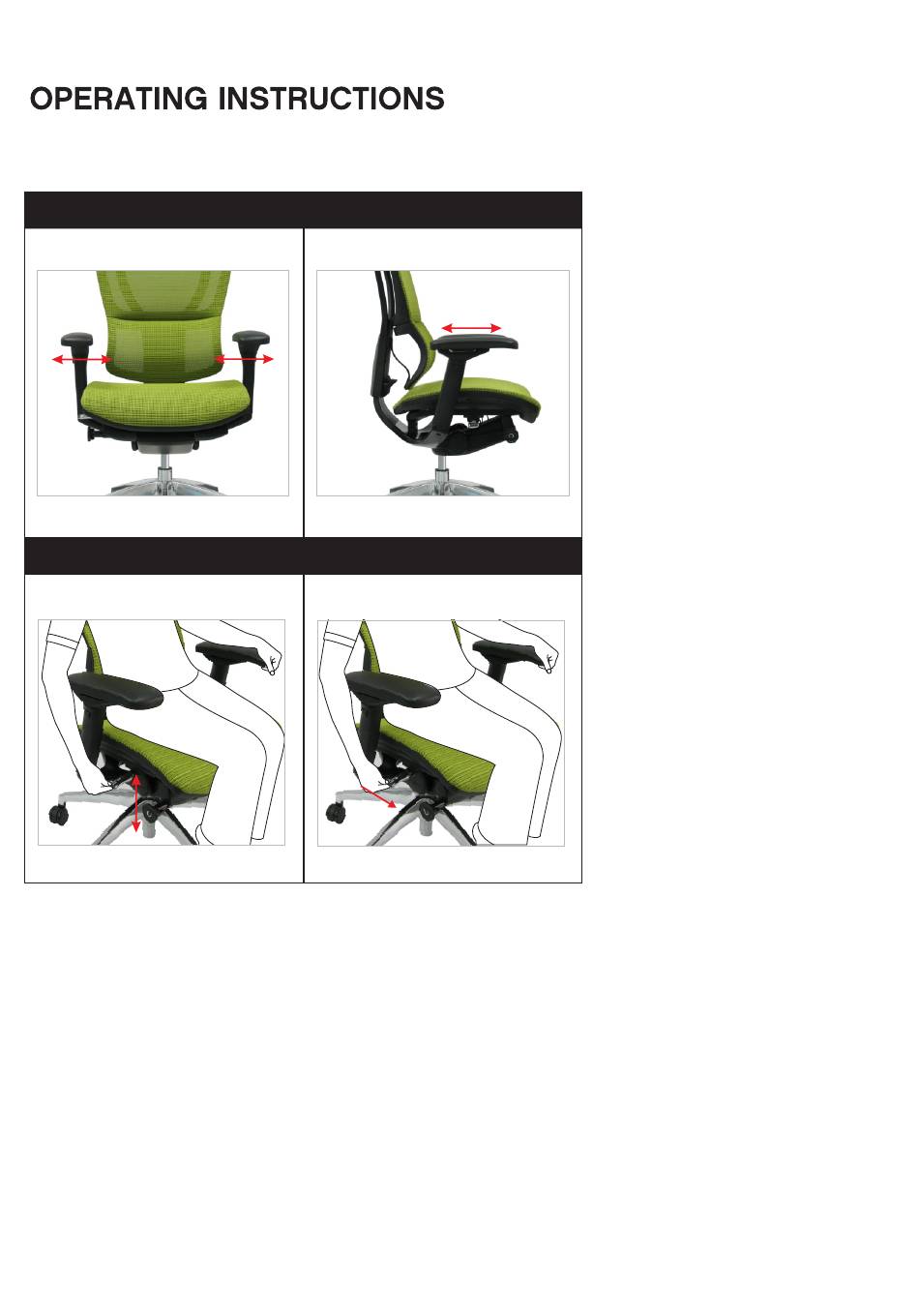

IOO-BLK/IOO-WHT
C3 ARM PAD WIDTH ADJUSTMENT
D1 SEAT HEIGHT ADJUSTMENT
C4 ARM PAD FORWARD AND BACKWARD ADJUSTMENT
D2 SEAT DEPTH ADJUSTMENT
C3 ARM PAD WIDTH ADJUSTMENT
While seated, push the arm pads
outward or inward to a desired width.
The range of movement is approximately 1.57".
C4 ARM PAD FORWARD AND BACKWARD
ADJUSTMENT
While seated, push the arm pads forward
or backward to a desired position.
The range of movement is approximately 1.57".
D1 SEAT HEIGHT ADJUSTMENT
While seated, pull the single rod control lever
upward and hold it while raising or lowering
the seat to reach your desired seat height.
When the lever is released to its original
position, the seat height is locked.
The seat height adjustment range is
approximately 3.5".
D2 SEAT DEPTH ADJUSTMENT
While seated, push the single rod control
lever forward to adjust the seat depth.
The range of movement for the seat is
approximately 1.97". When your desired
seat position is achieved, return the lever
to the original middle position to lock your
seat position into place.
