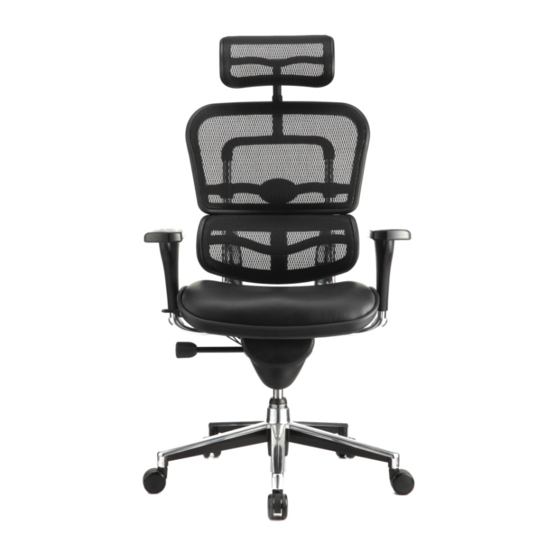

- Page 1 LEM4ERG(N)/LEM6ERGLO(N) ASSEMBLY INSTRUCTIONS OPERATING INSTRUCTIONS WARRANTY CUSTOMER SERVICE 1-800-637-0005 WWW.EUROTECHSEATING.COM...
- Page 2 CHAIR NAME AND SKU OR MODEL NUMBER LEM4ERG(N)/LEM6ERGLO(N) Remove all items from the carton. Verify all components before assembly. Part List Description Part Qty. Spare LEM4ERG Backrest LEM6ERGLO Backrest Seat Armrests (1 left & 1 right armrest) Seat Post(Cylinder) Star Base Caster Type A Arm Bolts (1/4"...
- Page 3 ASSEMBLY INSTRUCTIONS CHAIR NAME AND SKU OR MODEL NUMBER LEM4ERG(N)/LEM6ERGLO(N) Remove all items from the carton. Verify all components before assembly. STEP 2 STEP 1 STEP 2 TYPE B TYPE A TYPE A TYPE B STEP 2 The Type B Arm Bolt is shorter and will be inserted into the hole CLOSER to the mechanism.
- Page 4 While seated, hold headrest frame and move up or down to adjust height. There are 6 positions with a 1.6” range of adjustment. For LEM4ERG only. A2 HEADREST ANGLE ADJUSTMENT While seated, hold the headrest cushion and turn to adjust the angle.
- Page 5 OPERATING INSTRUCTIONS CHAIR NAME AND SKU OR MODEL NUMBER LEM4ERG(N)/LEM6ERGLO(N) C1 ARMREST HEIGHT ADJUSTMENT C2 ARM PAD ANGLE ADJUSTMENT C1 ARMREST HEIGHT ADJUSTMENT While seated, grasp each armrest and raise to your desired height. In order to lower the arm, lift the armrest to its highest position and it will go back down to the lowest height.
- Page 6 • Eurotech does not warrant any aftermarket hardware that is installed on the product. • Eurotech’s warranty is limited to the normal use of the product in a forty hour work week and a 250lb. weight limit unless otherwise noted.
