IOO-BLK/IOO-WHT

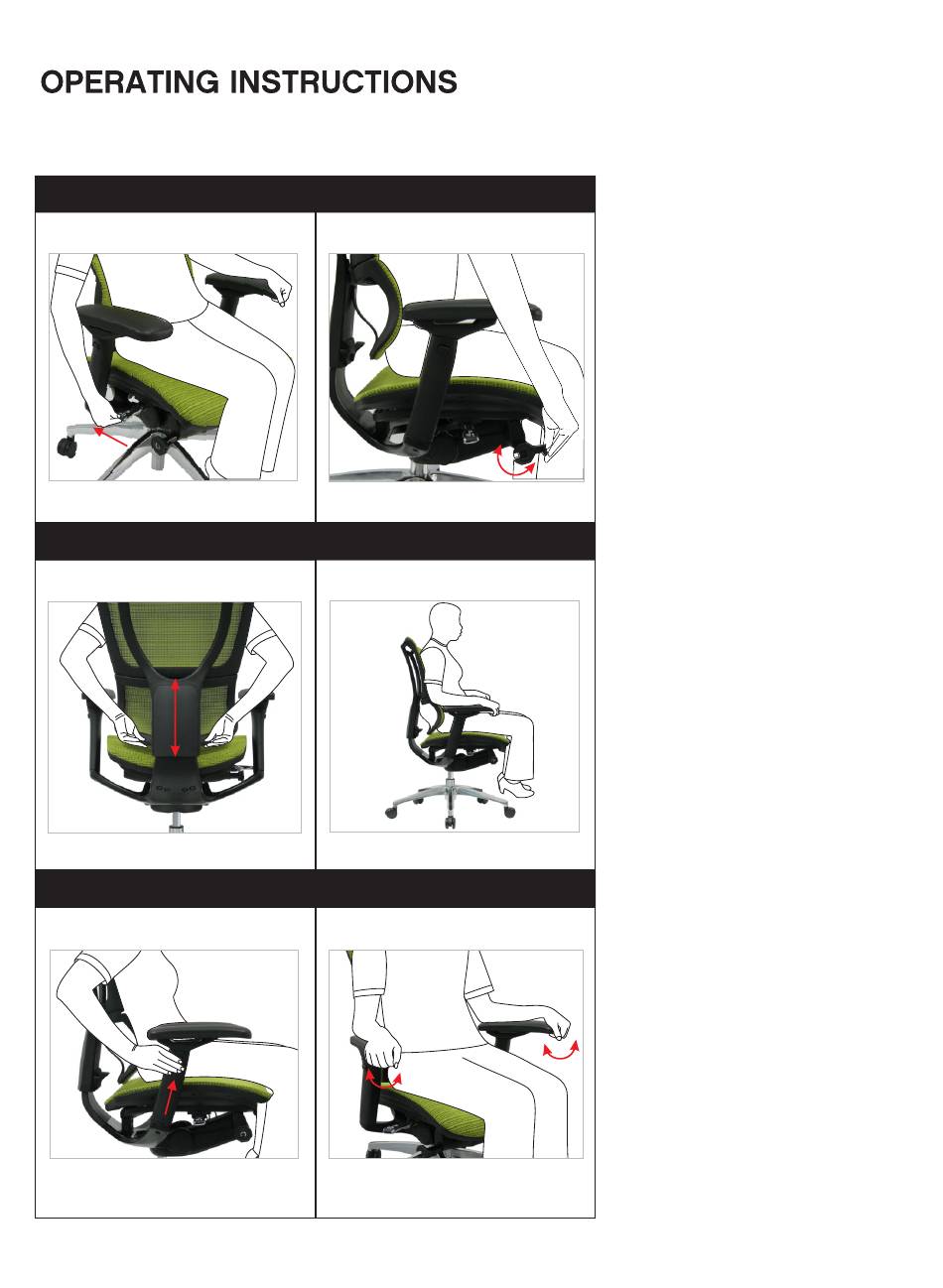

A1 BACKREST TILT ANGLE ADJUSTMENT
B1 BACKREST HEIGHT ADJUSTMENT
C1 ARMREST HEIGHT ADJUSTMENT
A2 BACKREST TENSION ADJUSTMENT
B2 LUMBER SUPPORT HEIGHT ADJUSTMENT
C2 ARMREST PAD ANGLE ADJUSTMENT
A1 BACKREST TILT ANGLE ADJUSTMENT
While seated, pull the single rod control
lever completely backward and lean
against the back. When your desired angle
is achieved, return the lever to the original
middle position to lock your tilt angle into
place. There are 4 positions that provide
25º of range.
A2 BACKREST TENSION ADJUSTMENT
While seated, turn the Backrest Tilt
Tension Adjustment handle clockwise or
counterclockwise to adjust the tilt tension
to your preferred level of resistance.
B1 BACKREST HEIGHT ADJUSTMENT
While seated, hold the sides of the
backrest handle and move up or down.
There is a 1.57" range of adjustment.
B2 LUMBER SUPPORT HEIGHT ADJUSTMENT
A.The height of the lumbar support can be
adjusted by lifting or lowering the backrest
height.
B.Suitable height of the lumbar support
provides optimum comfort.
C1 ARMREST HEIGHT ADJUSTMENT
While seated, push the button on the
outside of each arm and move the armrests
up or down. Release the button when you
have reached your desired height.
There are eight positions where the arm
height can be locked. The arm height
adjustment range is 3.15".
C2 ARM PAD ANGLE ADJUSTMENT
While seated, a 9º range of movement
can be achieved by swiveling the arm pads
inward or outward.
