Eurotech IOO-BLK Assembly Instructions Manual page 3

IOO-BLK/IOO-WHT
r
F

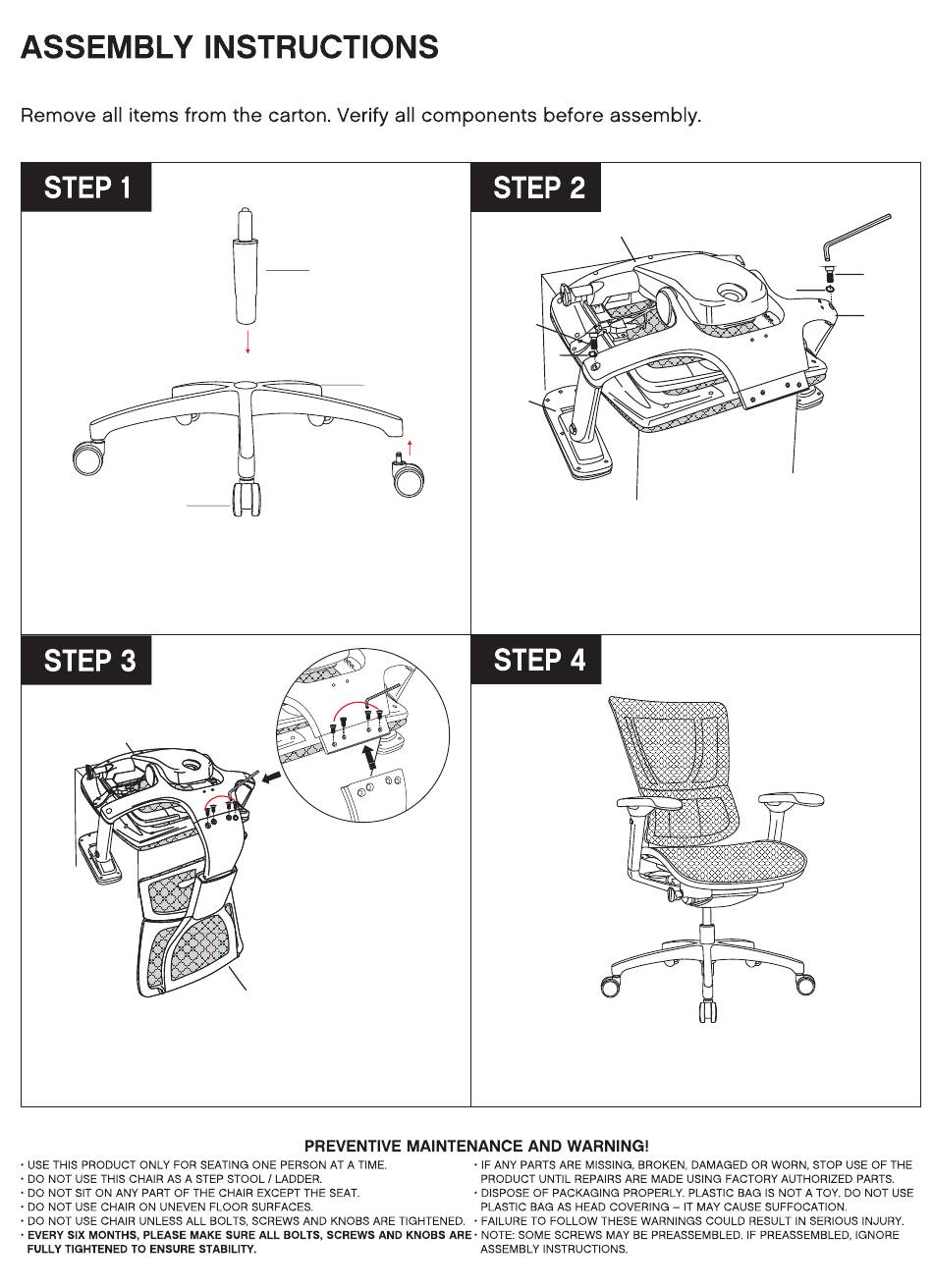

Press the Casters (F) into the holes at the end of each leg of
the Base (E).
Insert Seat Post (D) into the center hole of the Base (E).
B
Please be careful to use the correct Back Bolts (H).
Attach the Backrest (A) to the Seat Cushion (B) using 4
Back Bolts (H) .
Tighten the bolts securely with the enclosed Allen
Wrench (J).
D
E
H
J
H
Seat must slide into the slot on back.
A
G
I
C
r
Please be careful to use the correct Arm Bolts (G), Washers (I)
and Armrests (C) which are marked Left and Right.
For easy assembly, place the Seat Cushion (B) face down on a
flat surface. Attach Armrest (C) to the Seat Cushion (B) as
shown using 1 Arm Bolt (G) with 1 Washer (I) on each arm .
Tighten the bolts securely with the enclosed Allen Wrench (J).
J
Now turn the assembled seat upright and locate the
center hole of the Mechanism over the Seat Post.
Push down firmly until the connection is secure.
B
I
J
G
C
