Summary of Contents for Eurotech CK-BLK-BLK

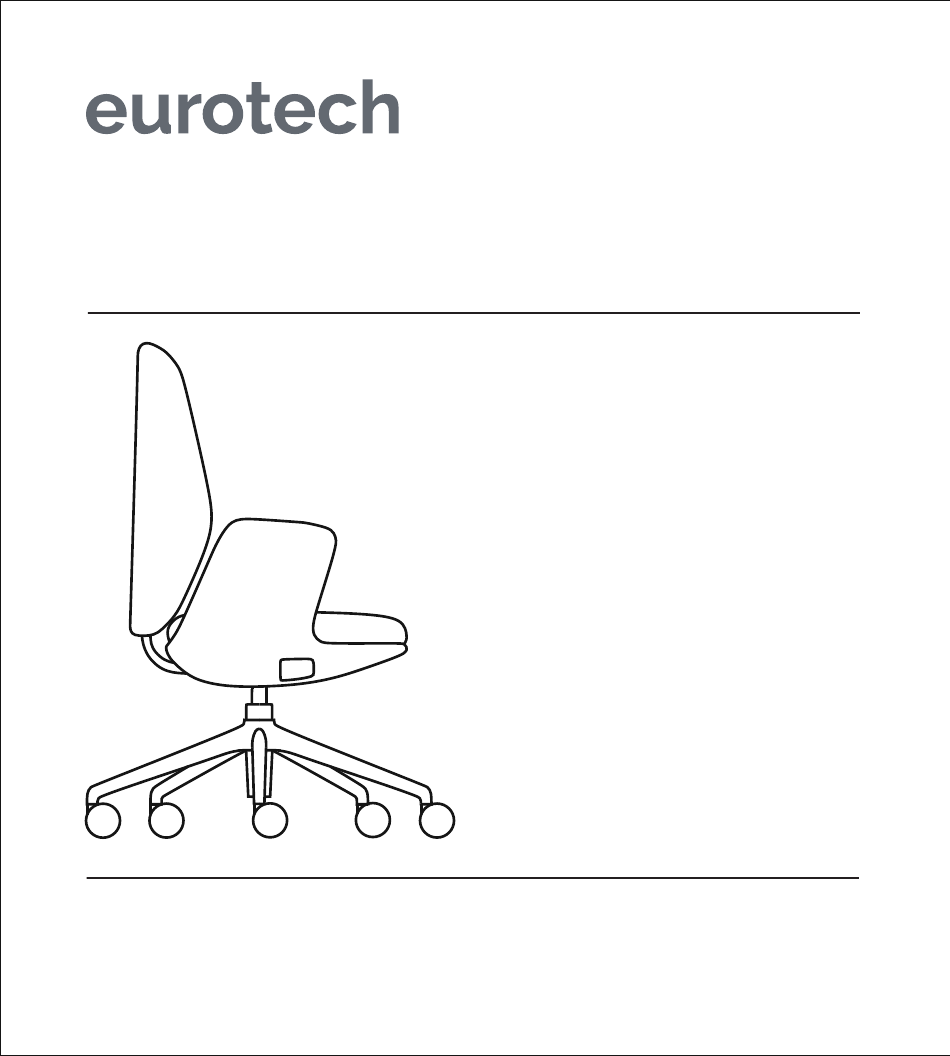

- Page 1 CK-BLK-BLK/GRY/BLU CK-WH-GRY/BLU/COR OPERATING INSTRUCTIONS CUSTOMER SERVICE: parts@raynorgroup.com CUSTOMER SERVICE: 1-800-637-0005 www.eurotechseating.com...
- Page 2 ASSEMBLY INSTRUCTIONS CK-BLK-BLK/GRY/BLU CK-WH-GRY/BLU/COR Remove all items from the carton. Verify all pieces before assembly. PARTS LIST Description Part Qty. Backrest Seat Cushion J-bar cover Gaslift Base Caster Backrest Screws Allen Wrench...
- Page 3 ASSEMBLY INSTRUCTIONS CK-BLK-BLK/GRY/BLU CK-WH-GRY/BLU/COR STEP 1 Press the casters (F) into the holes at the end of each leg of the Base (E). Insert the bottom end of the Gaslift (D) into the center hole of the Base (E). STEP 2 Place seat cushion (B) on flat surface.
- Page 4 ASSEMBLY INSTRUCTIONS CK-BLK-BLK/GRY/BLU CK-WH-GRY/BLU/COR STEP 3 Now turn the assembled seat upright and locate the center hole of the bottom of the Seat Cushion. Push down firmly until the connection is secure. Before using your chair, ensure that all the screws are tightened fully for safety.
- Page 5 OPERATING INSTRUCTIONS CK-BLK-BLK/GRY/BLU CK-WH-GRY/BLU/COR A. SEAT HEIGHT ADJUSTMENT While seated, pull the recessed lever on the right side of the bottom of the seat forward and hold it while raising or lowering the seat to change the seat height. The seat height adjustment range...
- Page 6 OPERATING INSTRUCTIONS CK-BLK-BLK/GRY/BLU CK-WH-GRY/BLU/COR B. BACK HEIGHT ADJUSTMENT To raise your backrest, slowly lift the backrest up until you hear a series of 4 to 5 clicks. Each click represents a position where the backrest will lock into place. To lower the backrest, raise the backrest all the way up until the tension is released.
- Page 7 OPERATING INSTRUCTIONS CK-BLK-BLK/GRY/BLU CK-WH-GRY/BLU/COR C. BACK ANGLE ADJUSTMENT The recessed lever on the left side of the bottom of the seat will allow you to control your back tilt position. When pulled up, you are in free float and can rock back and forth.
