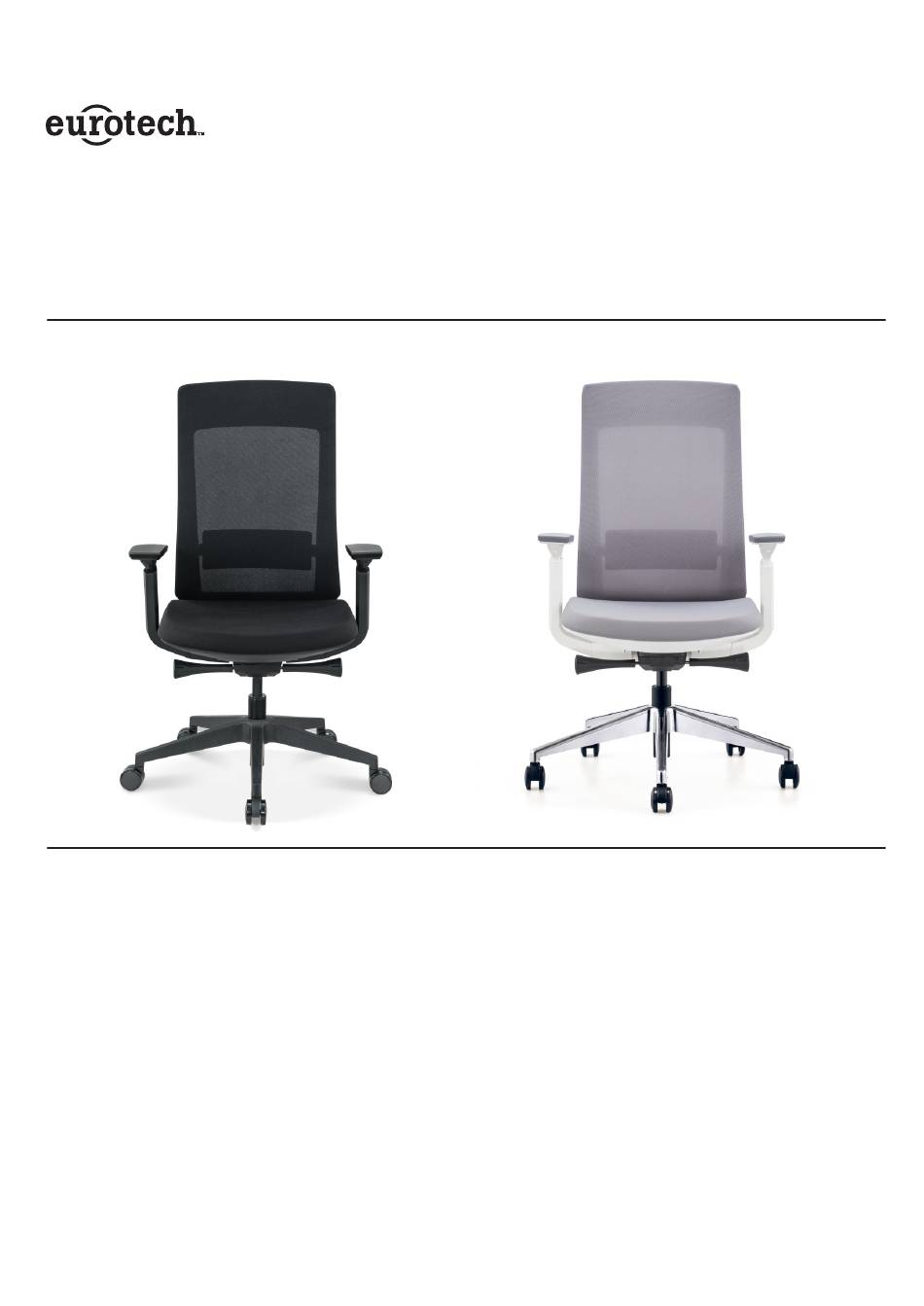

- Page 1 ELV2-BLK-FS/ELV2-WHT-FS INSTRUCTIONS ASSEMBLY OPERATING INSTRUCTIONS WARRANTY CUSTOMER SERVICE 1-800-637-0005 WWW.EUROTECHSEATING.COM...
- Page 3 ASSEMBLY INSTRUCTIONS ELV2-BLK-FS/ELV2-WHT-FS CHAIR NAME AND SKU OR MODEL Remove all items from the carton. Verify all components before assembly. Part List Description Qty. Spare Part Spring Washers for Back Bolts Ø8*13*2.0mm Washers for Back Bolts Ø6*16*2.0mm Washers for Arm Bolts Ø8*20*2.0mm...
- Page 4 ASSEMBLY INSTRUCTIONS ELV2-BLK-FS/ELV2-WHT-FS Remove all items from the carton. Verify all components before assembly. STEP 2 STEP 1 STEP 2 STEP 2 Seat must slide into the slot on back. Please be careful to use the correct Back Bolts (H).
- Page 5 OPERATING INSTRUCTIONS ELV2-BLK-FS/ELV2-WHT-FS B1 BACKREST HEIGHT ADJUSTMENT B2 ARMREST HEIGHT ADJUSTMENT BACKREST HEIGHT ADJUSTMENT The height of the lumbar support can be adjusted by lifting or lowering the backrest height. ARMREST HEIGHT ADJUSTMENT While seated, grasp each armrest and raise to your desired height. In order to...
- Page 6 OPERATING INSTRUCTIONS ELV2-BLK-FS/ELV2-WHT-FS SEAT HEIGHT ADJUSTMENT B5 SEAT HEIGHT ADJUSTMENT B5 SEAT HEIGHT ADJUSTMENT B6 BACKREST TILT ANGLE ADJUSTMENT While seated, pull the single control lever upward and hold it while raising or lowering the seat to reach your desired seat height.
- Page 7 • Eurotech does not warrant any aftermarket hardware that is installed on the product. • Eurotech’s warranty is limited to the normal use of the product in a forty hour work week and a 275lb. weight limit unless otherwise noted.
