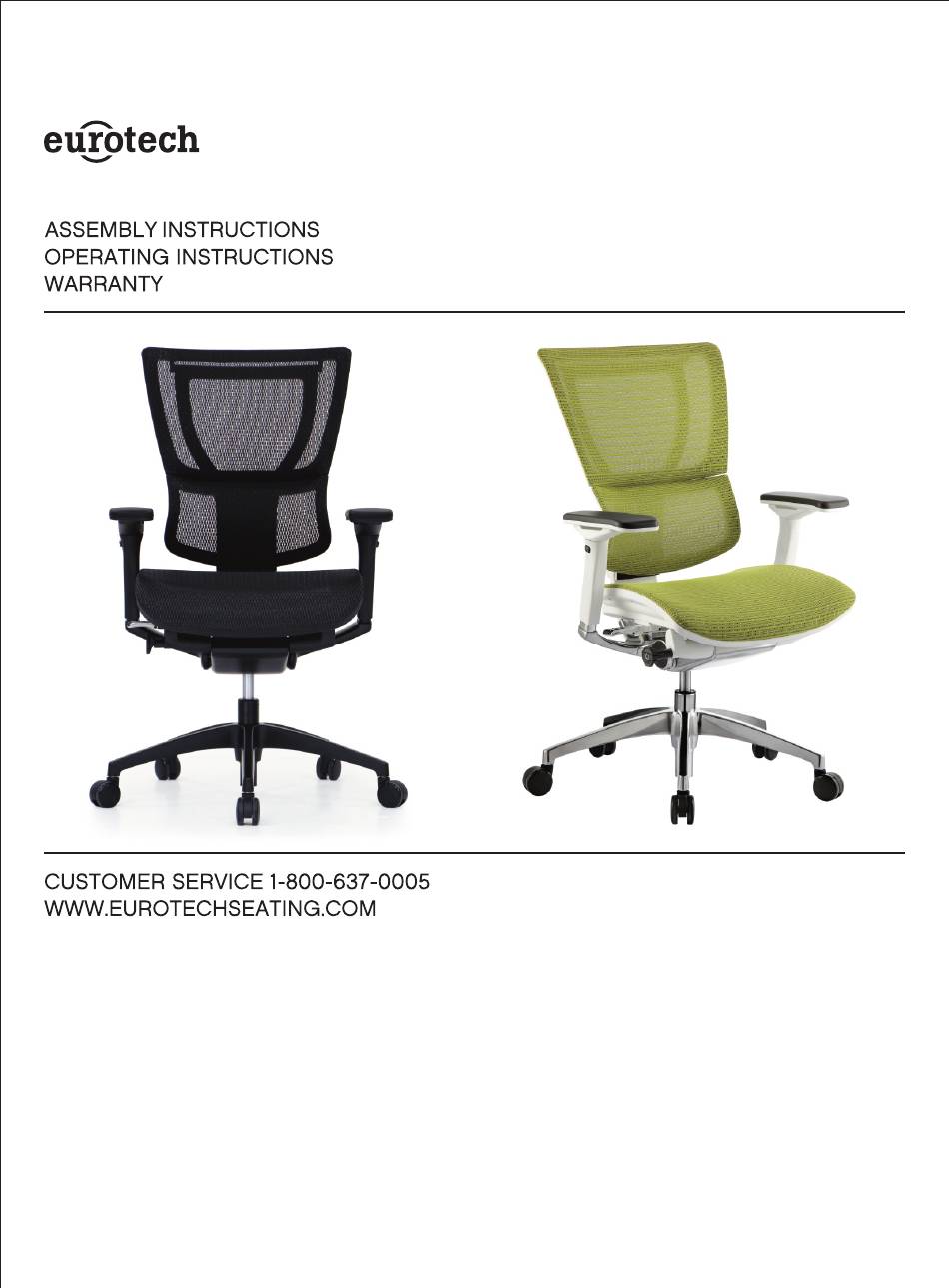

- Page 1 IOO-BLK/IOO-WHT...
- Page 2 ASSEMBLY INSTRUCTIONS IOO-BLK/IOO-WHT Part List Qty. Spare Description Part Backrest Seat Armrests (1 left & 1 right armrest) Seat Post(Cylinder) Star Base Caster Arm Bolts (M8 X 22mm) Back Bolts (M8 X 15mm) Washers for Arm Bolts 6.5*10.5*1.5mm) Ø Allen Wrench...
- Page 3 IOO-BLK/IOO-WHT Please be careful to use the correct Arm Bolts (G), Washers (I) and Armrests (C) which are marked Left and Right. For easy assembly, place the Seat Cushion (B) face down on a Press the Casters (F) into the holes at the end of each leg of flat surface.
- Page 4 IOO-BLK/IOO-WHT A1 BACKREST TILT ANGLE ADJUSTMENT A2 BACKREST TENSION ADJUSTMENT A1 BACKREST TILT ANGLE ADJUSTMENT While seated, pull the single rod control lever completely backward and lean against the back. When your desired angle is achieved, return the lever to the original middle position to lock your tilt angle into place.
- Page 5 IOO-BLK/IOO-WHT C3 ARM PAD WIDTH ADJUSTMENT C4 ARM PAD FORWARD AND BACKWARD ADJUSTMENT C3 ARM PAD WIDTH ADJUSTMENT While seated, push the arm pads outward or inward to a desired width. The range of movement is approximately 1.57". C4 ARM PAD FORWARD AND BACKWARD...
- Page 6 • Eurotech does not warrant any aftermarket hardware that is installed on the product. • Eurotech’s warranty is limited to the normal use of the product in a forty hour work week and a 250lb. weight limit unless otherwise noted.
