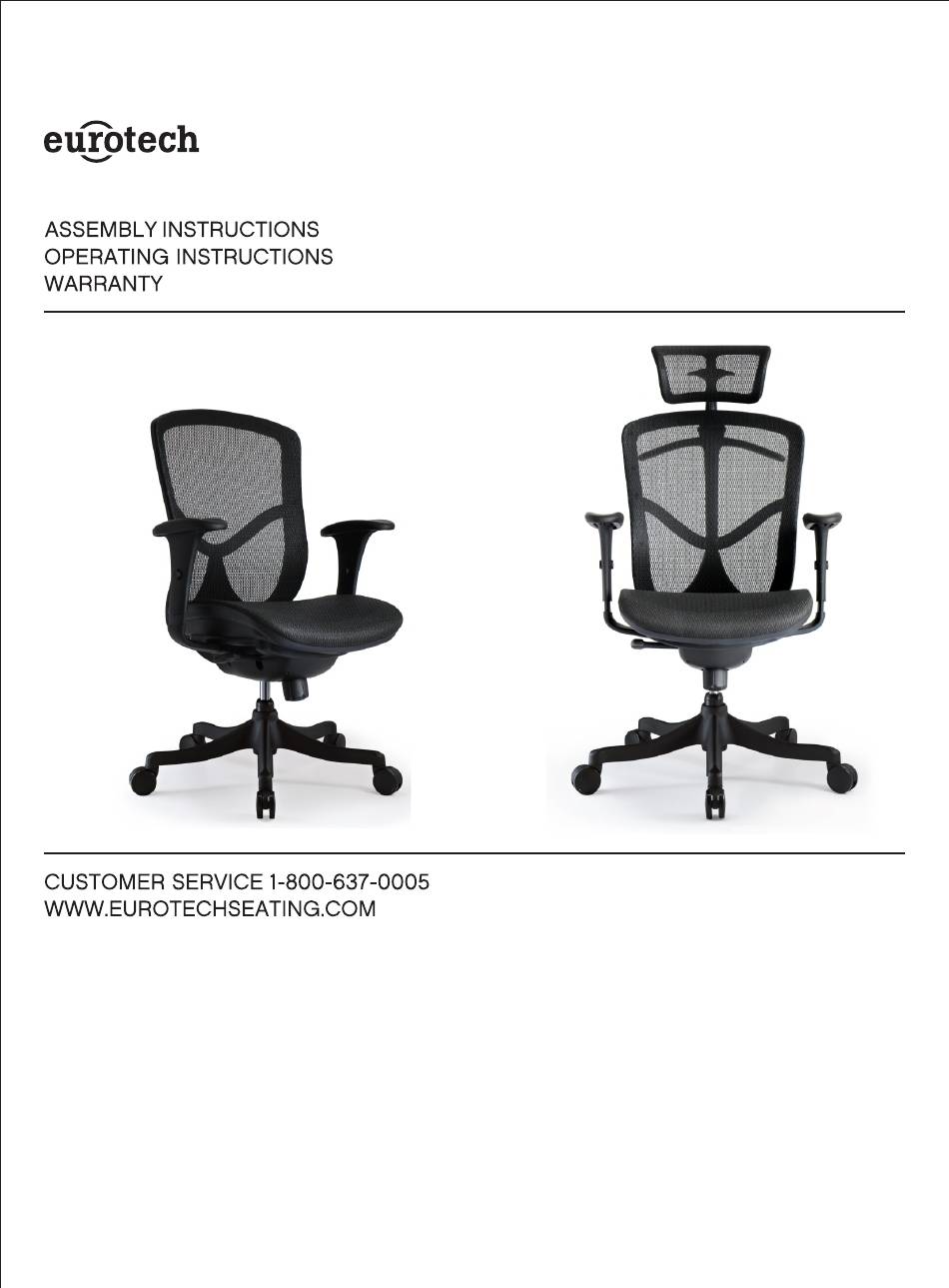

Page 1 FUZ5B-LO/FUZ6B-HI...
Page 2: Part List
ASSEMBLY INSTRUCTIONS FUZ5B-LO/FUZ6B-HI Part List Qty. Spare Description Part FUZ5B-LO Backrest FUZ6B-HI Backrest Seat Armrests (1 left & 1 right armrest) Seat Post(Cylinder) Star Base Caster Arm Bolts (M8 X 17mm) Back Bolts (M8 X 15mm) Washers for Arm Bolts 8.3*12.5*2mm)
Page 3 FUZ5B-LO/FUZ6B-HI Please be careful to use the correct Arm Bolts (H), Washers (J) and Armrests (D) which are marked Left and Right. For easy assembly, place the Seat Cushion (C) face down on a Press the Casters (G) into the holes at the end of each leg of flat surface.
Page 4 FUZ5B-LO/FUZ6B-HI A1 HEADREST HEIGHT ADJUSTMENT A2 HEADREST ANGLE ADJUSTMENT A1 HEADREST HEIGHT ADJUSTMENT While seated, hold headrest frame and move up or down to adjust height. There are 5 positions with a 2.36” range of adjustment. For FUZ6B-HI only. A2 HEADREST ANGLE ADJUSTMENT...
Page 5 FUZ5B-LO/FUZ6B-HI C1 ARMREST HEIGHT ADJUSTMENT C1 ARMREST HEIGHT ADJUSTMENT A. While seated, push the button on the outside of each arm and move the armrest up or down. Release the button when you have reached your desired height. There are five positions where the arm height can be locked.
Page 6 • Eurotech does not warrant any aftermarket hardware that is installed on the product. • Eurotech’s warranty is limited to the normal use of the product in a forty hour work week and a 250lb. weight limit unless otherwise noted.

Fuz6b-hi
