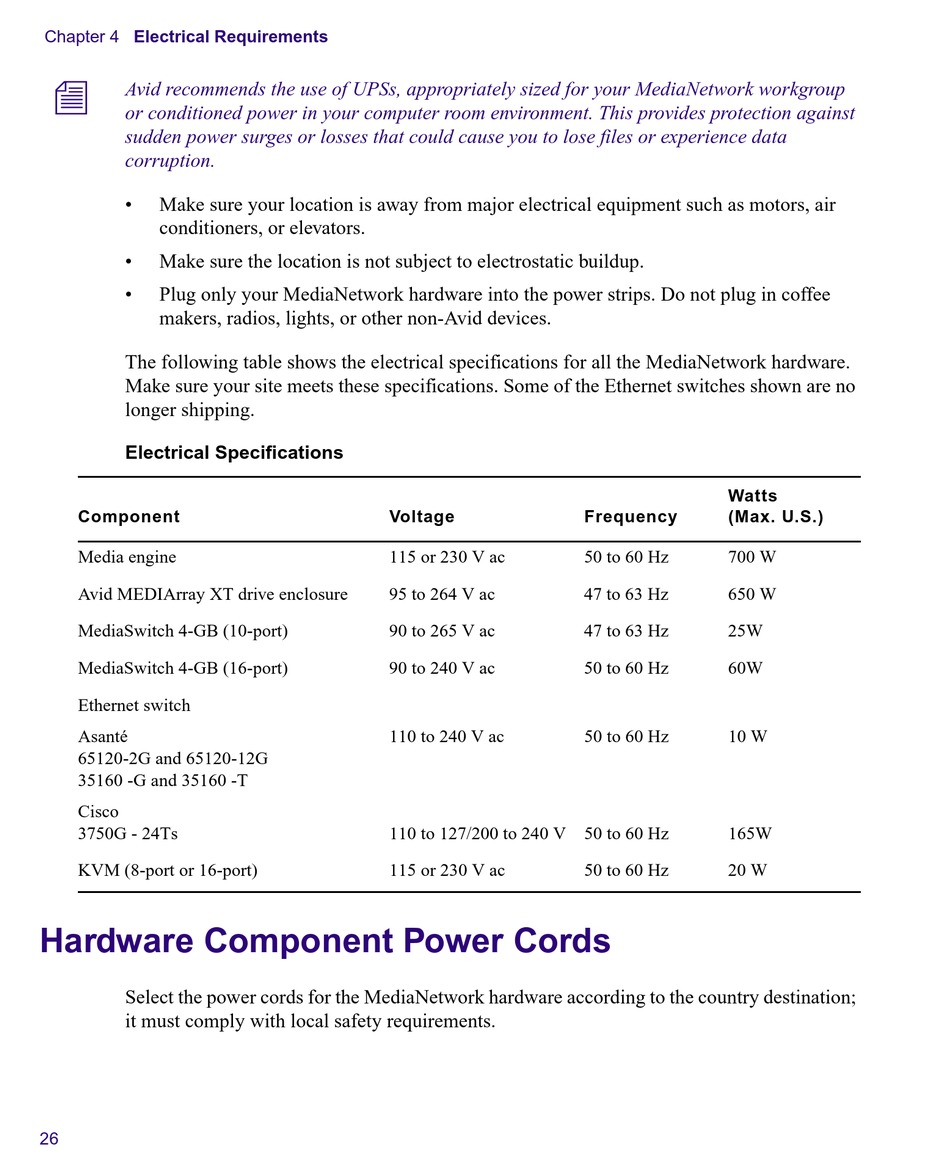

Chapter 4 Electrical Requirements
n
Avid recommends the use of UPSs, appropriately sized for your MediaNetwork workgroup
or conditioned power in your computer room environment. This provides protection against
sudden power surges or losses that could cause you to lose files or experience data
corruption.
• Make sure your location is away from major electrical equipment such as motors, air
conditioners, or elevators.
• Make sure the location is not subject to electrostatic buildup.
• Plug only your MediaNetwork hardware into the power strips. Do not plug in coffee
makers, radios, lights, or other non-Avid devices.
The following table shows the electrical specifications for all the MediaNetwork hardware.
Make sure your site meets these specifications. Some of the Ethernet switches shown are no
longer shipping.

Electrical Specifications

Component
Media engine
Avid MEDIArray XT drive enclosure
MediaSwitch 4-GB (10-port)
MediaSwitch 4-GB (16-port)
Ethernet switch
Asanté
65120-2G and 65120-12G
35160 -G and 35160 -T
Cisco
3750G - 24Ts
KVM (8-port or 16-port)

Hardware Component Power Cords

Select the power cords for the MediaNetwork hardware according to the country destination;
it must comply with local safety requirements.
26
Voltage
115 or 230 V ac
95 to 264 V ac
90 to 265 V ac
90 to 240 V ac
110 to 240 V ac
110 to 127/200 to 240 V
115 or 230 V ac
Watts
Frequency (Max. U.S.)
50 to 60 Hz 700 W
47 to 63 Hz 650 W
47 to 63 Hz 25W
50 to 60 Hz 60W
50 to 60 Hz 10 W
50 to 60 Hz 165W
50 to 60 Hz 20 W
