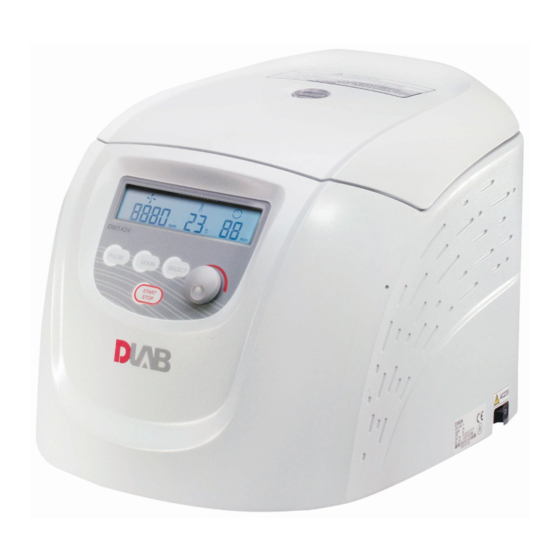

- Page 1 D3024 & D3024R High Speed (Refrigerated) Micro-Centrifuge Before using centrifuge, please carefully read this user manual for its efficient operation and safety.
-
Page 2: Table Of Contents
USER MANUAL Contents Safety Reminder ............................... 2 1. Specifications ............................... 4 2. Declaration of Conformity ........................... 4 3. Required Operational Condition ........................5 3.1 Basic operational Conditions......................5 3.2 Transport and storage condition ......................5 4. Installation ..............................5 4.1 Location.............................. 6 4.2 Connection of the power cord and grounding .................. - Page 3 USERMANUAL...
-
Page 4: Safety Reminder
USER MANUAL Safety Reminder Common safety precautions Carefully read the following safety precautions for a thorough understanding. ⚫ Follow the instructions and procedures described in this manual to operate this centrifuge safely. ⚫ Carefully read all safety messages in this manual and the safety instructions on the instrument. ⚫... - Page 5 USER MANUAL ⚫ Make sure to prepare necessary safety measures before using samples that are toxic, radioactive or contaminated with pathogenic micro-organisms at your own responsibility. ⚫ If the instrument, rotor and/or accessories that has been contaminated by solutions with toxic, radioactive or pathogenic materials, clean it according to the decontamination procedure that you are specified.
-
Page 6: Specifications
D3024: Single-phase, 220V-240V, 50Hz/60Hz, 5A. 110V-120V, 50Hz/60Hz, 5A Power requirements D3024R: Single-phase, 220V-240V, 50Hz/60Hz, 10A. 110V-120V, 50Hz/60Hz, 10A D3024:（L）280× （W）364× （H）266 Dimensions（mm） D3024R:（L）338× （W）580× （H）324 D3024: 12kg Weight D3024R: 30kg Additional features Speed/RCF switch、 Pulse operation、 Processing display、 Voice reminder 2. -
Page 7: Required Operational Condition
3. Required Operational Condition 3.1 Basic operational Conditions （1）Power: 110V-240V, 50Hz/60Hz, 3A. D3024: Single-phase, 220V-240V, 50Hz/60Hz, 5A; 110V-120V, 50Hz/60Hz, 5A D3024R: Single-phase, 220V-240V, 50Hz/60Hz, 10A; 110V-120V, 50Hz/60Hz, 10A （2）Ambient temperature: 2℃-40℃. （3）Relative humidity: ≤80%. （4）No vibration and airflow around. -
Page 8: Location
⚫ This centrifuge must be grounded properly. A minimum 10A outlet providing a sufficient ground is required, and this must meet with local safety requirements. 5. Structure D3024 Door lock hook Seal ring of door Cover Operation panel POWER switch... - Page 9 USER MANUAL View Door Air vents Outlet Figure 5.2 D3024 Rear view of centrifuge D3024R Door lock hook Seal ring of door Cover Operation panel Outlet POWER switch Figure 5.3 D3024R Front view of centrifuge...
-
Page 10: Operation Panel
USER MANUAL View Door Air vents Figure 5.4 D3024R Rear view of centrifuge 6. Operation panel Speed display area Temperature display area Time display area 15000 ℃ （1） （2） （5） （4） （3）... - Page 11 USER MANUAL Figure 6-1 Operation Panel...
- Page 12 ℃ Figure 6-2 the main interface (D3024) Main interface of D3024 model is as figure 6-2. The speed is set to be 15000rpm, temperature of centrifugal chamber is 25℃, and the running time is12 minutes. When speed symbol is rotating, indicating the centrifuge is running, the rotation is faster, the speed is higher.
-
Page 13: Rotor Preparation
USER MANUAL Main interface of D3024R model is as figure 6-3. The speed is set to be 15000rpm, temperature of centrifugal chamber is 4℃, and the running time is 12 minutes. When speed symbol is rotating, indicating the centrifuge is running, the rotation is faster, the speed is higher. When temperature symbol is blinking, indicating refrigeration is running, no blinking means refrigeration stop working. -
Page 14: Operation
USER MANUAL Otherwise, the rotor may be moved off while rotating and cause damage of the centrifuge and rotor. ⚫ Firmly tighten the rotor door with rotor. 8. Operation CAUTION： ⚫ Do not push or lean against the centrifuge while it is running. ⚫... - Page 15 USER MANUAL 15000 ℃ Figure Last running interface ⚫ Speed: 15000rpm. Running time: 12 minutes. ⚫ The door lock is released. 8.1.1 Load and replace the rotor Figure 8-2 Load the rotor CAUTION ⚫ Attach the rotor to the rotor shaft. Ensure the rotor is in position and connected with the shaft, tightening the locking nut to secure the rotor with shaft, to prevent the rotor damaging the centrifuge.
- Page 16 USER MANUAL 8.1.2 Standby Cooling ( D3024R ) When the centrifuge is powered on, the refrigeration system will cool down the chamber to the setting temperature. ⚫ The standby cooling will run automatically and control the chamber temperature once the lid is close. ⚫...
-
Page 17: Rcf Operation
When the rotor stops rotating, centrifuge will start beeping to alert the operation has finished. （2）Open the door ⚫ The door can be released automatically when the operation has stopped (D3024). ⚫ The centrifuge keeps the door close when operation has stopped ( D3024R ). -
Page 18: Pulse Operation
USER MANUAL CAUTION： ● Do not exceed the allowable maximum RCF value of the rotor and adapters. ⚫ and choose speed unit ×g, the speed symbol will flash into RCF value Press the select button input status. ⚫ If no button is pressed after the speed value has flashed for 5 seconds, the input mode will be shut down. -
Page 19: Consumables
USER MANUAL ⚫ Sterilize the centrifuge by wiping with a cloth moistened with 70% ethanol solution. （2） Rotor chamber CAUTION ⚫ Do not directly pour water, neutral detergent or disinfectant solution into the rotor chamber. Otherwise fluids may leak into the drive units and cause corrosion or deterioration to the bearings. ⚫... -
Page 20: Routine Inspection
USER MANUAL Seal ring 2 Seal ring 1 2 Figure 9-1 Seal rings of rotor 9.3.2 Replacement methods （1）Clean the seal ring slot with neutral detergent solution and make it dry. （2） Evenly coated with glue (501) in the seal ring slot and keep the seal ring into slot, press evenly to make it contact enough with the slot bottom and bond firmly. -
Page 21: How To Open The Door
USER MANUAL E-02 · The door opened in running. · Close door Door fault immediately. · Press the button · Close the door，and then while the door opening. start to operate. E-04 · The air inlets are blocked. · Clean air inlets. Temperature ·... -
Page 22: Replacement Of Fuses
USER MANUAL 10.3 Replacement of fuses ⚫ size: Ф5×20. There are two fuses of （1）There are two fuses of D3024, 250V, 5A time-delay type size: Ф5×20. D3024R, 250V, 10A time-delay type ⚫ （2） The fuse holder is located in the power inlet. Pull out the fuse holder from power inlet and replace the fuses if necessary. - Page 23 USER MANUAL enclosed into rotor to ensure the sample does not leak in centrifugal process. If rotor lid is not available, the rotor would be no bio-sealing function. The rotors can be used as follows: Maximum Maximun Rotor Maximum RCF centrifugal Tube/bottle Adapter...
-
Page 24: Tubes
USER MANUAL 11.2 Tubes 11.2.1 Cleaning and sterilizing tubes Condition Material Acidic（pH5 or lower） Acidic（higher than pH5 ） Alkaline（higher than pH9 ） Cleaning fluids Alkaline（pH9 or lower） Neutral（pH7） Warm water(up to 70℃) Ultrasonic cleaning Neutral detergent（pH7） ）30minutes 115℃（0.7kg/cm Autoclaving ）20 minutes 121℃（1.0kg/cm ）15 minutes 126℃（1.4kg/cm... -
Page 25: Calculate Relative Centrifuge Force(Rcf)
High Speed Refrigerated Micro-Centrifuge，with AS24-2 rotor 922215127777 D3024R kits, Euro plug, 220V/50Hz/60Hz High Speed Refrigerated Micro-Centrifuge，with AS24-2 rotor 922315127777 D3024R kits, UK plug, 220V/50Hz/60Hz Accessories Rotor kits with cover, fixing clips and O'ring, 15000rpm, 19400002 AS24-2 2ml*24, used with D3024 & D3024R... -
Page 26: Warranty
USER MANUAL Rotor kits with cover, fixing clips and O'ring, 15000rpm, AS36-05 19400003 0.5ml*36, used with D3024 & D3024R Rotor kits with cover, fixing clips and O'ring, 15000rpm, 19400004 AS4-PCR8 4-PCR8, used with D3024 & D3024R 0.2ml rotor adapter, used with A12-2 & AS24-2 rotors，... - Page 27 DLAB Scientific Inc. Add: 775 Rivera St, Riverside, CA 92501, USA Tel: +1- 747- 230-5179 Fax: +1-909-230-5275 E-mail: info@dlabsci.com web: www.dlabsci.com...
