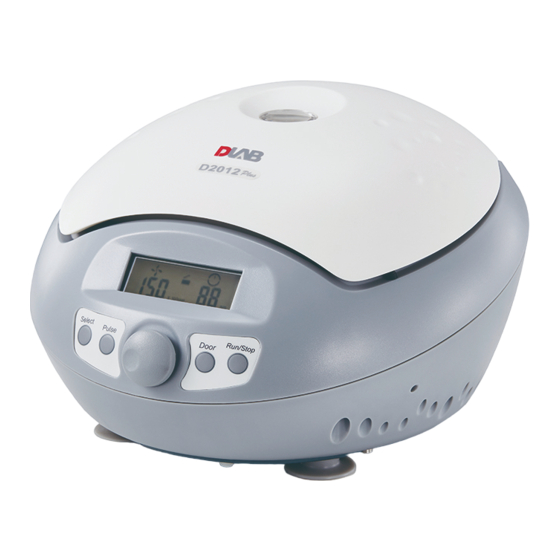

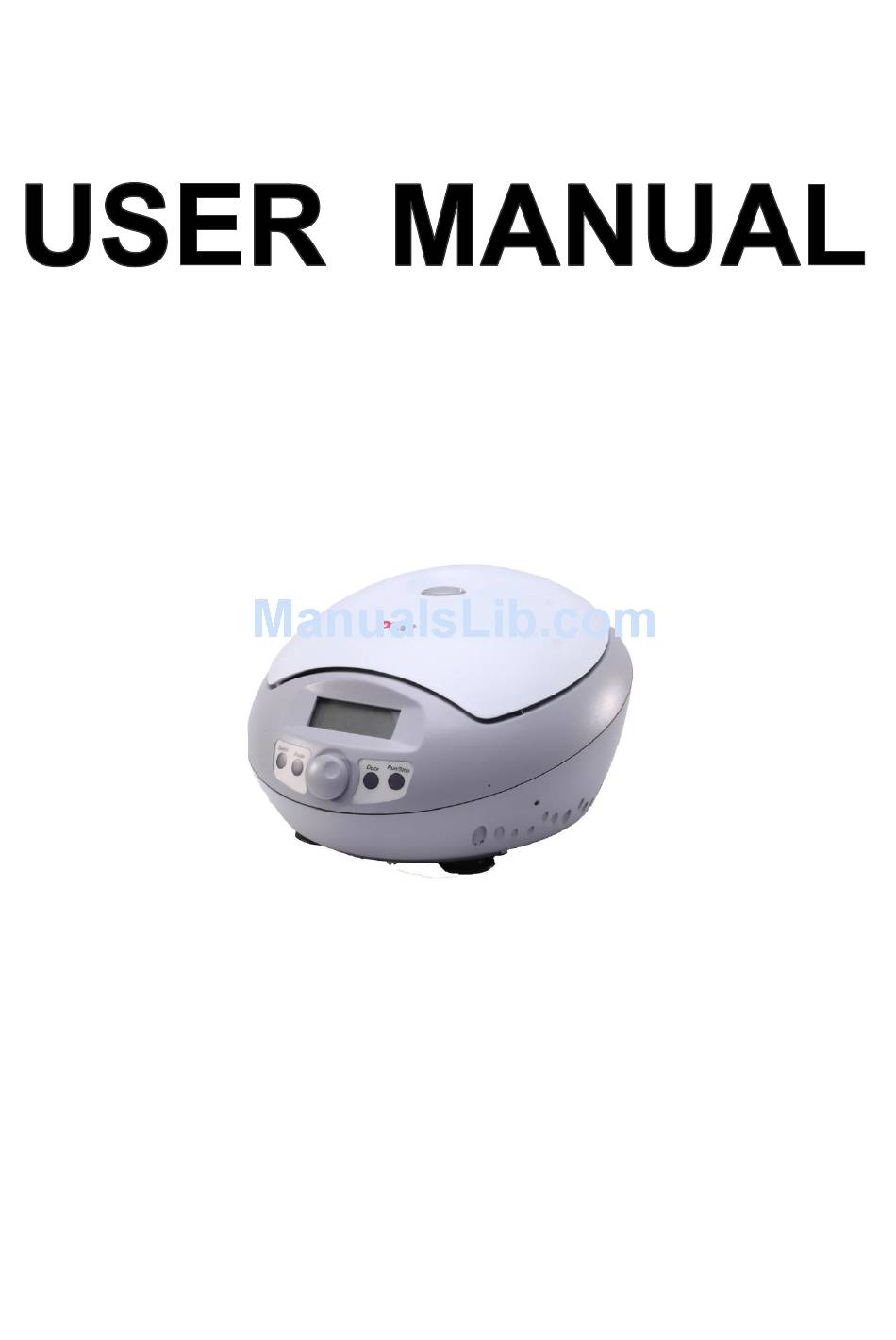

- Page 1 D2012 & D2012 plus High Speed Mini Centrifuge DLAB Laboratory Instruments Limited www.dlabsci.com...
-
Page 2: Table Of Contents
USER MANUAL Before using centrifuge, please carefully read this user manual for its efficient operation and safety. Contents Copyright: ................................ 1 Safety Reminder ............................... 2 1. Specifications ............................... 4 2. Declaration of Conformity ........................... 4 3. Required Operational Condition ........................5 4. -
Page 4: Copyright
High Speed Mini Micro-Centrifuge Copyright: No part of this manual may be reproduced or transmitted without prior written permission of DLAB We can not be responsible to inform at real-time if the outline and specifications of centrifuge is subject to change for improvement. -
Page 5: Safety Reminder
USER MANUAL Safety Reminder Common safety precautions Carefully read the following safety precautions for a thorough understanding. Follow the instructions and procedures described in this manual to operate this centrifuge safely. Carefully read all safety messages in this manual and the safety instructions on the instrument. ... - Page 6 High Speed Mini Micro-Centrifuge Do not place dangerous material within 30cm around the centrifuge. Make sure to prepare necessary safety measures before using samples that are toxic, radioactive or contaminated with pathogenic micro-organisms at your own responsibility. If the instrument, rotor and/or accessories that has been contaminated by solutions with toxic, radioactive or pathogenic materials, clean it according to the decontamination procedure that you are specified.
-
Page 7: Specifications
EMC-guidelines: 2004/108/EC Instrument guidelines: 2006/95/EC This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme à la norme NMB-001 du Canada. D2012 plus: Construction in accordance with the following safety standards: EN 61010-1 EN 61010-2-10 Construction in accordance with the following EMC standards:... -
Page 8: Required Operational Condition
High Speed Mini Micro-Centrifuge Associated EU guidelines: EMC-guidelines: 2004/108/EC Instrument guidelines: 2006/95/EC This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme à la norme NMB-001 du Canada. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -
Page 9: Location
USER MANUAL WARNING： Improper power supply may damage centrifuge. Make sure the power source conforms to the required power supply before connecting. 4.1 Location （1）Place the centrifuge on a firm, flat and level table, ensure the four feet of this centrifuge stand on the table firmly. - Page 10 High Speed Mini Micro-Centrifuge Door lock hook Rotor LCD Display Door release hole Operation panel foot Figure 5.1 Front view of centrifuge View Door Air vents Power inlet Power switch Figure 5.2 Rear view of centrifuge...
-
Page 11: Operation Panel
USER MANUAL 6. Operation panel Figure 6-1 Operation Panel Item Symbol Name Function Select button Press the button to choose the program which you want to modify. The speed can be accelerated and held at the speed when Pulse button pressing Pulse on. -
Page 12: Rotor Preparation
High Speed Mini Micro-Centrifuge 7. Rotor Preparation 7.1 Prepare the samples 7.2 Inject the samples into tubes. CAUTION： Do not overload samples into the centrifuge which will cause leaking. Do not exceed the actual capacity allowed in the user manual. 7.3 Keep the tubes balance ... -
Page 13: Operation
USER MANUAL 8. Operation CAUTION： Do not push or lean against the centrifuge while it is running. Do not run the centrifuge when fragments or sample solutions are left in the centrifuge chamber. Always keep the centrifugal chamber clean. ... - Page 14 High Speed Mini Micro-Centrifuge Figure 8-2 the rotor installation Load the rotor to the shaft to ensure rotor is in position until it connected well with the shaft. Rotate the rotor slightly by your fingers to check, if the rotor vibrates, if so attach the rotor again. ...
- Page 15 USER MANUAL to change settings from small → large → maximum → minimum. Rotate the program clockwise to change settings from large → small → minimum → maximum. button anti-clockwise （2）Set the time Press button , time value flashes in the time setting mode. ...
-
Page 16: Rcf Operation
High Speed Mini Micro-Centrifuge 8.2 RCF Operation （1）Turn on the power switch. （2）Set a RCF (Relative Centrifugal Force) value. and choose speed unit ×g, the speed symbol will flash into RCF value Press the select button input status. If no button is pressed after the speed value has flashed for 5 seconds, the input mode will be shut down. -
Page 17: Troubleshooting
USER MANUAL solution. Sterilize the centrifuge by wiping with a cloth moistened with 70% ethanol solution. （2） Rotor chamber CAUTION Do not directly pour water, neutral detergent or disinfectant solution into the rotor chamber. Otherwise fluids may leak into the drive units and cause corrosion or deterioration to the bearings. ... -
Page 18: How To Open The Door
High Speed Mini Micro-Centrifuge ·Rotor lid loosed ·Tighten the rotor lid firmly ·The door opened in running. ·Close the door immediately. E-02 Door fault · Close the door， and then start · The button is pressed to operate. while the door opening. ·The setting speed exceed the ·Modify the speed value. -
Page 19: Instructions Of Rotor And Tube
11.1.2 Available rotors and adapters Table 11.1 Rotors and adapters Allowable imbalance（*） Maximum Maximum Rotor Model Tubes Adapters Volume speed（rpm） RCF（×g） type code imbalance imbalance（**） 1.5/2.0ml 15000 15100 2.0g/tube 5mm/ tube tube D2012 A12-2 0.2ml PCR A02P2 15000 11700 tube... -
Page 20: Tubes
High Speed Mini Micro-Centrifuge 0.5ml micro A05P2 15000 12780 tube 1.5/2.0ml 15000 15100 2.0g/ tube 5mm/ tube tube D2012 0.2ml PCR A12-2P A05P2 15000 11700 plus tube 0.5ml micro A02P2 15000 12780 tube 11.1.3 Notice The centrifuge rotor can separate sample which density lower than 2.0g/ml. if the separated samples density is over 2.0g/ml, please calculate allowable speed depending on the following formula. - Page 21 USER MANUAL ）30minutes 115℃（0.7kg/cm Autoclaving ）20 minutes 121℃（1.0kg/cm ）15 minutes 126℃（1.4kg/cm Boiling 15 to 30 minutes Ultraviolet sterilization 200-300nm Gas sterilization Ethylene oxide Formaldehyde PA: Polyallomer；PC：Polycarbonate；PP：Polypropylene 11.2.2 Cleaning PC tubes PC materials are low in chemical resistance against alkaline solutions. Avoid using neutral detergents with pH higher than 9.
-
Page 22: Calculation Relative Centrifuge Force（Rcf
19400001 A12-2 D2012 Rotor kits with lid, fixing clips and O'ring, 15000rpm, 2ml*12, used with 19400009 A12-2P D2012 plus 19500001 A02P2 0.2ml rotor adapter, used with A12-2 & AS24-2 rotors，24pcs/pk 19500002 A05P2 0.5ml rotor adapter, used with A12-2 & AS24-2 rotors，24pcs/pk... -
Page 23: Warranty
USER MANUAL 14. Warranty 14.1 Warranty of the centrifuge This centrifuge is guaranteed for two years from the date of delivery provided that it has been operated and maintained properly. 14.2 Warranty of the rotor The rotor is guaranteed for 5 years from the date of delivery upon manufacture. Please pay attention, do not use the rotor once it has been corrosion or fatigue damage. - Page 25 DLAB Scientific Instrument Inc. 2311 E. Locust Court, Ontario, CA 91761 United States. Office: +1-747-230-5179 Fax: +1-909-230-5275 Sales contact: info@dlabsci.com Service contact: service@dlabsci.com www.dlabsci.com...
