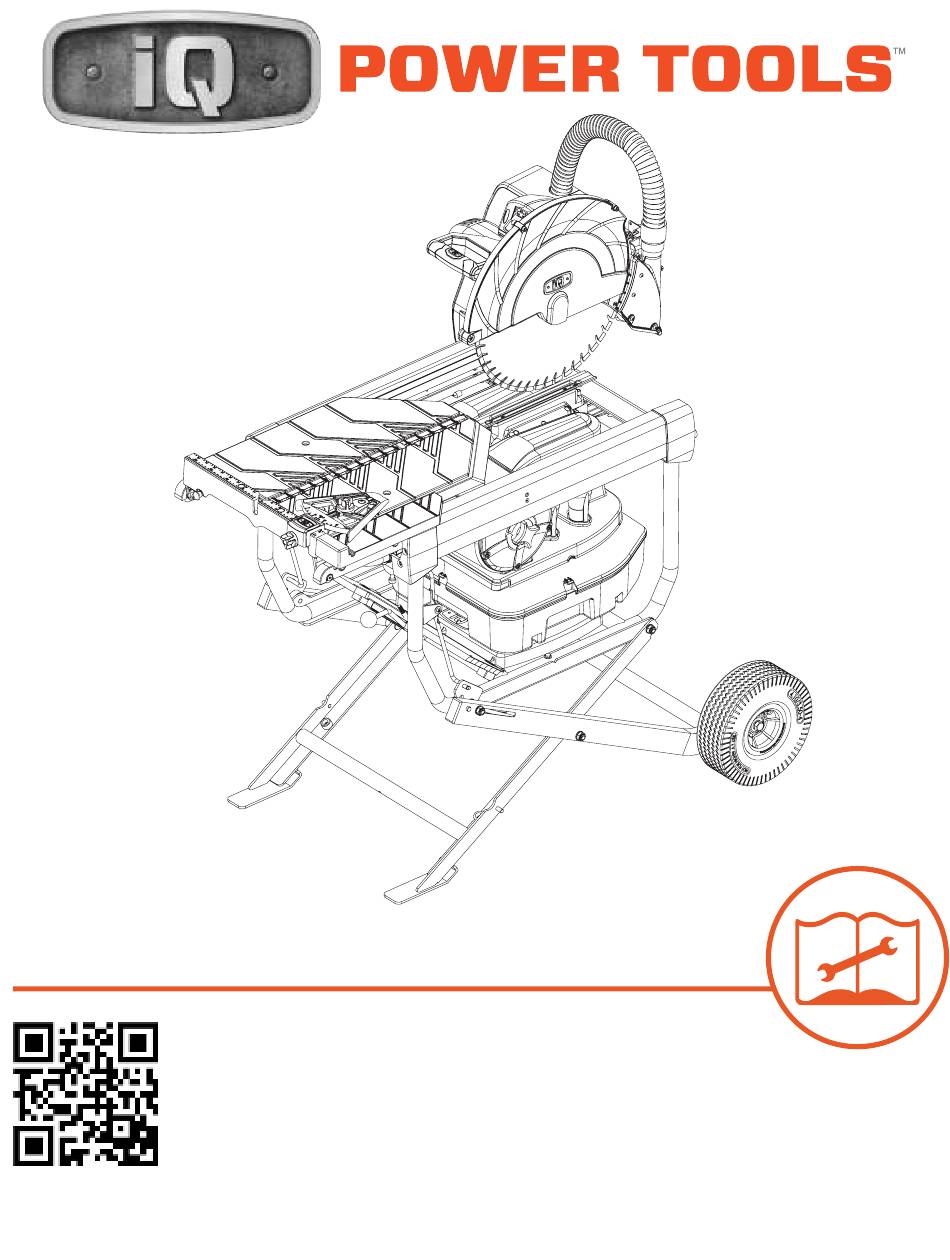

iQMS362
Operator's Manual
Use QR Code to download the iQMS362
Operator's Manual in your language.
Please read the operator's manual
carefully and make sure you understand
the instructions before using the machine.

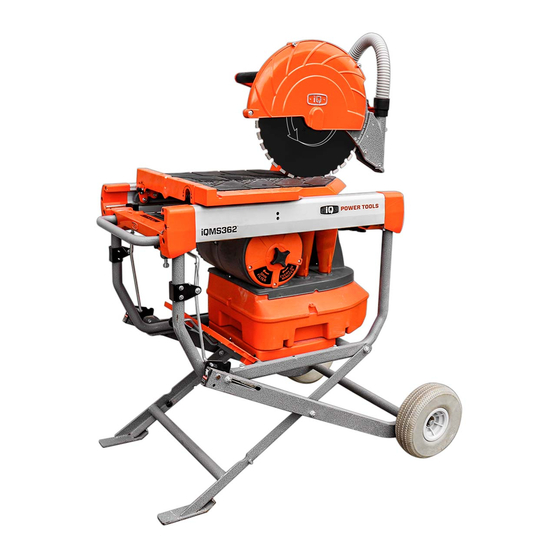

16.5" Masonry Saw
Utilisez le code QR pour télécharger le manuel
d'utilisation de l'iQMS362 dans votre langue.
Utilizzare il codice QR per scaricare il manuale
dell'operatore iQMS362 nella propria lingua
Gebruik de QR-code om de iQMS362
bedieningshandleiding in uw taal te downloaden
Brug QR-kode til at downloade
brugervejledningen til iQMS362 på dit sprog
Verwenden Sie den QR-Code, um das iQMS362-
Benutzerhandbuch in Ihrer Sprache herunterzuladen
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IQ Power Tools iQMS362
Summary of Contents for IQ Power Tools iQMS362
- Page 1 Utilisez le code QR pour télécharger le manuel d’utilisation de l’iQMS362 dans votre langue. Utilizzare il codice QR per scaricare il manuale Use QR Code to download the iQMS362 dell’operatore iQMS362 nella propria lingua Operator’s Manual in your language. Gebruik de QR-code om de iQMS362 Please read the operator’s manual...
- Page 2 M-iQMS362-001-0M0217...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Topic Section Key Symbols Explanation Of Warning Levels Symbols on the Machine Safety Rules Introduction Design And Features iQMS362 What Is What? Machine’s Safety Equipment Safety Personal Protective Equipment Personal Safety Machine Care General Safety Precautions Electrical Safety... -
Page 4: Key Symbols
Should not be disposed of with general fatal injury to the operator or others. household waste, but collected separately for reuse or recycling. Keep your hands and feet away from the blade. CSA approved. 248014 iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com... - Page 5 150 L.F . of cutting or at the Unused masonry saw may cause personal injury - Remove end of each day before transport. this masonry saw blade when using other accessories. Always use manufacturer’s approved cutting wheels. before 888-274-7744 iQMS362 www.iqpowertools.com Operator’s Manual...
-
Page 6: Safety Rules
11. ALWAYS USE SAFETY GLASSES. Also use face or dust mask if cutting operation is dusty. Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses. iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 7: Introduction
Power Tools’ products. Safe operation of Email: customer.service@iqpowertools.com this product requires the operator to read this manual carefully. Ask your dealer or iQ Power Tools should you It is our wish that you will be satisfied with your product need more information. -
Page 8: What Is What
10 - Filter Spin Knob 2 - Transport Handle Lock 7 - Blade Guard 11 - Filter Cover 3 - Cutting Guide 8 - Dust Guard 12 - X-Stand 4 - Rolling Table Lock Knob iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com... - Page 9 13 - Dust Tray 17 - Lock Down Knob 14 - Vacuum Motor 18 - Power Switch 15 - Wheels 19 - Extension Table 16 - Support Arm 20 - X-Stand Lock Release Trigger 21 - Transport Handle 888-274-7744 iQMS362 www.iqpowertools.com Operator’s Manual...
- Page 10 22 - Transport Handle 26 - Extension Table Lock Knob 23 - Blade Lock Button 27 - Table Remove Lever 24 - Handle 28 - Cyclones 25 - Power Switch 29 - Top Slot 30 - Blade/Assembly Wrench iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com...
-
Page 11: Machine's Safety Equipment
Blade Guard LOCKING KNOB, ROLLING TABLE The locking knob is used to lock the rolling table in place when in transit. Be sure to lock rolling table before transit to avoid injury. Dust Guard 888-274-7744 iQMS362 www.iqpowertools.com Operator’s Manual... -
Page 12: Safety
MATERIALS KNOWN TO THE STATE OF CALIFORNIA TO CASUE CANCER AND/OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WARNING! PROTECT YOURSELF AND OTHERS FROM OVEREXPOSURE. REFER TO YOUR LOCAL JURISDICTION OR GOVERNING AGENCY. E.G. OSHA, CSST. iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 13: Personal Safety
Place both hands on the work piece • Always perform daily maintenance before as far away from the cutting blade as possible. If plunge starting the machine. See instructions in the function is used, place one hand on the cutting handle. 888-274-7744 iQMS362 www.iqpowertools.com Operator’s Manual... -
Page 14: General Safety Precautions
See instructions under the heading outlet, have a proper outlet installed by a Maintenance. Always use genuine accessories. Contact qualified electrician. Make sure local your dealer for more information. regulations and ordinances are followed. iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com... - Page 15 RECOMMENDED CABLE DIMENSIONS Adapter 25FT 50FT 100FT 150FT The iQMS362™ is supplied with 15amp plug adapter. The machine will operate on a 15amp current but depending RECOMMENDED RECOMMENDED on power supply at the location operation may be limited VOLTS 120v...
-
Page 16: Assembling
ASSEMBLING TOOLS REQUIRED FOR ASSEMBLY (A) 19mm Wrench (C) Phillip Screwdriver (B) iQ Blade Wrench (Included) (D) 19mm Socket Ratchet iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 17: Mounting The X-Stand
ASSEMBLING Assembling your iQMS362™ Insert linkage rod into X-Stand latch/lock slot on each side. UNBOXING AND ASSEMBLING Open the top of the box. Remove top layer of foam with parts and set aside. Remove main frame assembly and place on a flat horizontal and stable surface (preferably a workbench) to prevent the equipment from tipping or sliding during assembly. -
Page 18: Attaching Dust Guard Vacuum Hose
ATTACH DUST GUARD VACUUM HOSE Snap the cable retainer closed securing the cable. Slip lower vacuum hose onto cyclone inlet. Plug the vacuum power cable into the vacuum power Slip upper vacuum hose onto dust guard inlet. supply receptacle. iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 19: Assembling The Table Extension
INSTALLING THE ROLLING TABLE Put the Remove Table Lock lever in the down position. This allows the rolling table to be installed or removed. 888-274-7744 iQMS362 www.iqpowertools.com Operator’s Manual... -
Page 20: Blades
STICKING TO THE BLADE. NEVER CUT PLASTIC MATERIALS WITH A DIAMOND BLADE! The iQMS362™ dry cutting masonry saw utilizes The iQMS362™ dry cutting masonry saw is supplied a specially designed diamond blade with a Q-Drive with specially designed 16.5” Dry Cutting Combination Arbor hole. - Page 21 Remove the blade shaft nut and outside flange washers. Use blade wrench. Loosen the blade guard screw 1 and 2. Note the Q-Drive shaped blade shaft. The IQMS362™ must be used with the specially designed 16.5” dry cutting blade with Q-Drive Arbor hole.
- Page 22 BLADES Insert blade into dust guard and line up Q arbor hole. Tighten blade screw. Press blade lock. Secure guard. iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com...
-
Page 23: Operating
To stop the saw motor press the POWER switch O the operator keep the blade as low as possible to direct or off symbol. dust into the louvers. WARNING! MAKE SURE CUTTING BLADE COMES TO A COMPLETE STOP BEFORE PERFORMING ANY MAINTENANCE OR TRANSPORTING. 888-274-7744 iQMS362 www.iqpowertools.com Operator’s Manual... - Page 24 TOP SLOT AND CAUSING DAMAGE TO THE MACHINE. use a high pressure washer to clean the saw. • Open the blade guard. Clean both the inside and outside, and close the blade guard. WARNING! MISHANDLING OF THIS PRODUCT COULD VOID WARRANTY. iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com...
-
Page 25: Vacuum And Filter Maintenance
VACUUM AND FILTER MAINTENANCE FILTER SYSTEM Slide dust tray out. Filter system of the IQMS362 is designed to function automatically with the masonry saw. The vacuum motor automatically starts with the saw motor start. The system is designed to operate for 150 linear feet of cutting before cleaning filter or emptying dust tray. -
Page 26: Changing The Filter
Slide new filter cleaning tab into filter cleaning tab bracket. Loosen screws and remove filter cover. Install new filter into filter housing. Rotate filter slightly as it is inserted over filter spindle. Install filter cover and Remove filter. screws. Install filter spin knob. 10.2 iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 27: Replacing The Carbon Brushes
Loosen carbon brush retainer cap with standard screwdriver. Install carbon brush making sure to align tabs into slots. Remove carbon brush retainer cap. Tighten carbon brush retainer cap to secure. Remove carbon brush. 888-274-7744 iQMS362 10.3 www.iqpowertools.com Operator’s Manual... -
Page 28: Changing The Louvers
45° and snap into place. the table louvers. With light pressure lift up plastic loop and push down to release. Repeat this process at each end of each louver. 10.4 iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 29: Adjustments
With Allen wrench, turn axle cam screw till there is a slight resistance when rotating upper roller by hand. While holding Allen wrench and axle cam, screw in position tighten axle nut to secure. Follow the same procedure for all six upper rollers. 888-274-7744 iQMS362 11.1 www.iqpowertools.com Operator’s Manual... - Page 30 (A) through the full motion of the rolling table front to back. When the guide rail is in correct position, tighten the six rail mounting screws (X). OUTSIDE VIEW INSIDE VIEW 11.2 iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com...
-
Page 31: X-Stand
THERE IS ALWAYS A RISK OF PINTCH INJURIES WARNING! THERE IS ALWAYS A RISK WHEN WORKING WITH OF CRUSH INJURIES WHEN PRODUCTS CONTAINING WORKING WITH PRODUCTS CONTAINING MOVING PARTS. MOVING PARTS. WEAR PROTECTIVE GLOVES TO AVOID BODY INJURIES. 888-274-7744 iQMS362 12.1 www.iqpowertools.com Operator’s Manual... -
Page 32: Transporting
• For transport and storage of Blades, see the section “Blades”. • Lift the machine at the short ends. WARNING! WARNING! BE SURE TO LOCK THE ROLLING TABLE BEFORE TRANSPORT TO AVOID EQUIPMENT DAMAGE OR PERSONAL INJURY. 13.1 iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 33: Storage
Storage TRANSPORTING To extend transport handle pull lock pin (A) and pull WARNING! handle out. THE IQMS362 IS A PRECISION CUTTING TOOL. PROPER CARE DURING TRANSPORT AND STORAGE IS IMPORTANT TO MAINTAIN FACTORY SETTINGS AND CUTTING PERFORMANCE. Recommended Storage Position: Machine can now be tipped forward onto the wheels for Do not transport or store in vertical position. -
Page 34: Troubleshooting
TROUBLESHOOTING GUIDE BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS. MANY COMMON PROBLEMS CAN BE SOLVED EASILY BY UTILIZING THE CHART BELOW. FOR MORE SERIOUS OR PERSISTENT PROBLEMS, CONTACT IQ POWER TOOLS AT 1-(888)274-7744. TROUBLE! SAW WILL NOT START WHAT’S WRONG? WHAT TO DO 1. -
Page 35: Technical Data
TECHNICAL DATA SAW MOTOR IQMS362, 120V POWER, HP / KW 1.75 / 1.3 VOLTAGE, V PHASES FREQUENCY, HZ BLADE SPEED, RPM 3700 VACUUM MOTOR VOLTAGE FREQUENCY, HZ POWER, HP / KW .50 / .37 CUTTING EQUIPMENT BLADE SIZE - MAX, INCH/MM 16.5 / 420... -
Page 36: Wiring Diagram
WIRING DIAGRAM 16.1 iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com... - Page 37 WARRANTY New iQMS362™ Dry Cut Tile Saw, sold by iQ Power Parts and labor needed to maintain products, Tools or an iQ authorized dealer is warranted to be and the replacement of components due to normal free from manufacturing defects in normal service wear and tear, are the purchaser’s responsibility...
- Page 38 NOTES iQMS362 888-274-7744 Operator’s Manual www.iqpowertools.com...
- Page 40 888-274-7744 | WWW.IQPOWERTOOLS.COM...
