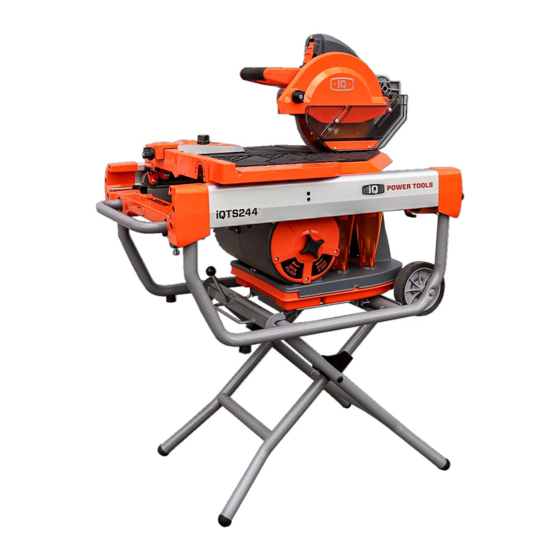

Summary of Contents for IQ Power Tools iQTS244
-
Page 1: Table Of Contents
Power Tools Routine Maintenance iQTS244 Table of Contents IQTS244 PERIODIC MAINTENANCE Cleaning Sliding Table Rollers and Frame Tracks Check and Adjustment of Sliding Table Upper and Lower Rollers Check and Adjust Sliding Table Travel Check and Adjustment of Pivot Arm Squareness... - Page 2 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
-
Page 3: Iqts244 Periodic Maintenance
1. Remove the sliding table from the track and lay it on the stand with the rollers facing up 2. Clean the rolling table wheels with Scotch Brite 3. Clean the table track with Scotch Brite 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual... - Page 4 4. Wipe the table track with a lightly damp cloth 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
-
Page 5: Check And Adjustment Of Sliding Table Upper And Lower Rollers
Check and Adjustment of Sliding Table Upper and Lower Rollers 1. Insert the sliding table back into the stand 2. Check the table for stability by depressing all four (4) corners 3. Push the sliding table to the forward mechanical stops 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual... - Page 6 5. Pull the sliding table back to the table stop 6. Depress the area still supported by the table track to check for wobble. If the table appears to be stable, No Adjustment is required 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 7 10. Loosen the Center lower guide roller slightly so that the eccentric may be adjusted and holds its position. 11. Adjust the eccentric to raise or lower the center lower guide roller as needed 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 8 (POINTY END) of the table is now on the left side 14. Place the long side of a square in the lower guide rollers NOTE: the lower guide rollers are above the upper rollers since the rolling table is upside down 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 9 17. Verify all three (3) lower guide rollers are on the same plane. Repeat previous step until satisfied 18. Slide the sliding table into the saw stand 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 10 Play should be very minimal 21. Pull the sliding table back to the table stop and check adjustment by depressing rear section of the table. Play should be very minimal 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 11 22. Remove the table and tighten all six (6) upper guide wheels, making sure the eccentric stays in the same position 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 12 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
-
Page 13: Check And Adjust Sliding Table Travel
Pivot Arm Squareness Check 2. Loosen all six retaining screws that secure the rail to the stand 3. Insert the short arm of a square into the gap between the stand and the sliding table 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual... - Page 14 5. Tighten the inner most retaining screws for the rail to the stand starting with the retaining screw just behind the vacuum motor 6. Then tighten the screw just in front of the vacuum motor 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 15 8. Then tighten the screw in front of the second crew tightened 9. Push the sliding table forward so the front lower guide wheel is on the edge of the rail guide 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 16 10. Tighten the retaining screw on the front edge 11. Pull the sliding table back so the rear lower guide wheel is on the edge of the rail guide 12. Tighten the retaining screw on the back edge 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 17 13. Re-Check the gap on the left side by rolling the table back and forth 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 18 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
-
Page 19: Check And Adjustment Of Pivot Arm Squareness
Check and Adjustment of Pivot Arm Squareness 1. Lock the Rolling Table 2. Remove the dust guard from the blade guard 3. Lower and lock the cutting arm in the down position 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual... - Page 20 5. Check the gap on the corner of the sliding table fence. The gap should be 1/64 inch or .016 inches or less 6. Flip the square so that it is on the 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 21 The gap should be 1/64 inches or .016 inches or less NOTE: If the blade in not within tolerance, Some iQTS244 are equipped with an adjustment screw (Serial Number starting with 18 and greater) 8. Remove the Support Arm Back Cover.
- Page 22 11. Monitor the deflection on the blade to ensure the correct direction. 12. Verify the square is making full contact with the blade edges and rolling table fence face 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 23 13. Check the gap at each corner of the sliding table fence. The gap should be 1/64 inch or .016 inches or less 14. Once the gap is within tolerance, tighten the rear pivot mount retaining screws 15. Replace support Arm back cover 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 24 16. Verify the blade has proper clearance on both sides of the channel 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
-
Page 25: Check And Adjustment Of Table Louver And Vacuum Suction Clearance
1/32 of an inch or less 3. If adjustments are required, use an open-end wrench to loosen the jamb nut while holding eh Allen head screw stationary at both front and rear locations 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual... - Page 26 6. Push and pull the sliding table back and forth to check for smoothness. Make necessary adjustments 7. Tighten final setting on both screws by holding the set jamb nut and tightening the set screw. 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 27 8. The rolling table should appear as though it is touching the vacuum suction 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 28 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
-
Page 29: Check For Vacuum Suction And Seal
1. Connect the vacuum power cord to an extension cord plugged into a wall outlet 2. Release the dust tub as if to empty it 3. Verify the dust tub is still attached to the base of the vacuum 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual... - Page 30 4. Lock the dust tub in place 5. Disconnect the vacuum from the extension cord connected to a wall outlet 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
-
Page 31: Check And Adjustment Of The Laser
Check and Adjustment of the Laser 1. Turn laser on 2. Verify the laser beam runs along the center of the louvers on the sliding table 3. If the laser is not straight, loosen the laser adjustment locking screw 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual... - Page 32 5. Tighten the laser adjustment locking screw 6. If the laser beam is does not fun along the center of the louvers, loosen the retaining screw securing the laser to the inner blade guard 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
- Page 33 7. Adjust the laser left to right as needed to align the laser beam 8. Once the laser beam is at the desired location, tighten the retaining screw 888-274-7744 iQTS244 www.iqpowertools.com Repair Manual...
