Related Manuals for IQ Power Tools iQ360XT
Summary of Contents for IQ Power Tools iQ360XT

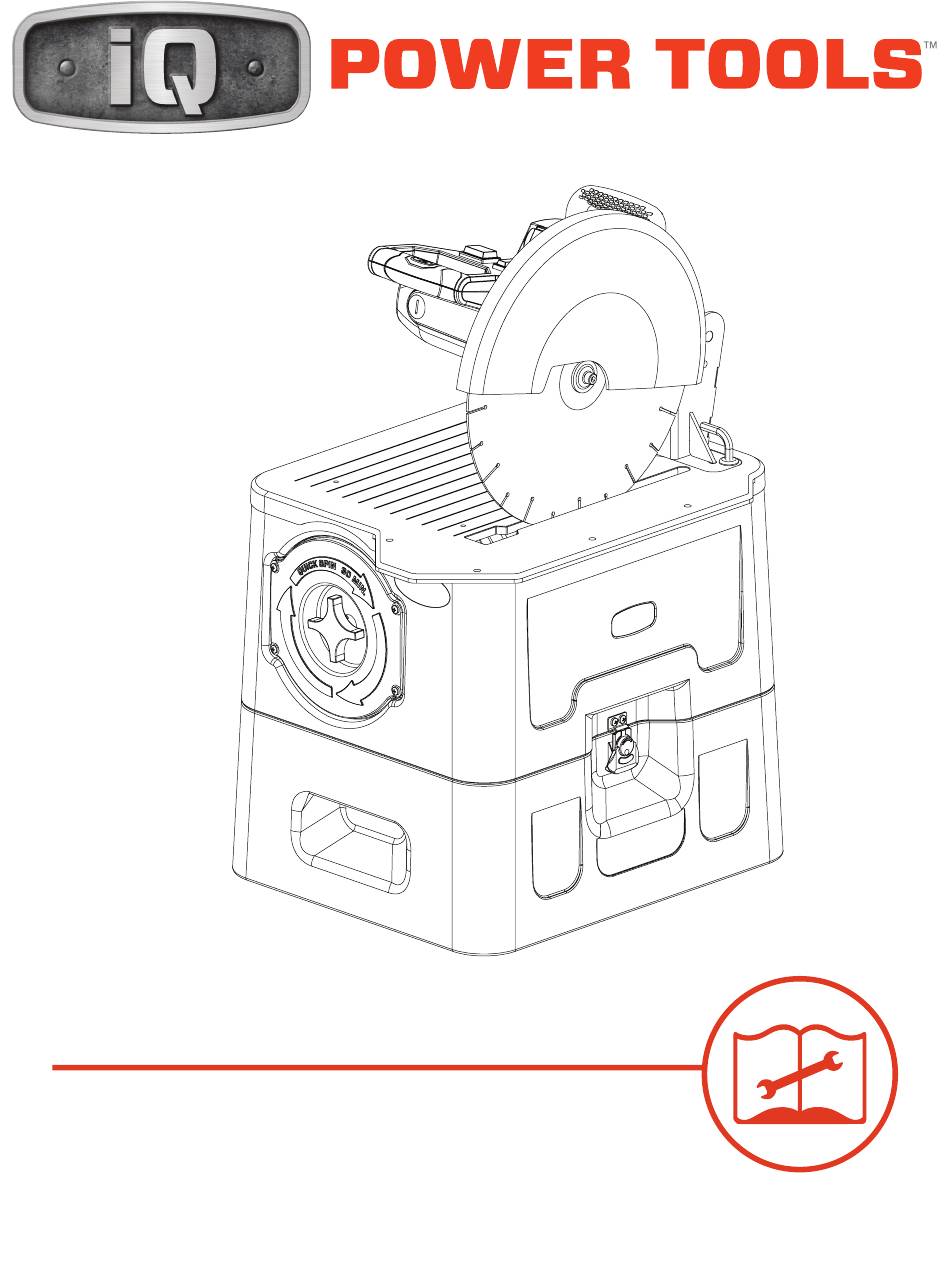

- Page 1 iQ360®XT US Operator’s Manual Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.
- Page 2 0360-89001-02...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Topic Section Introduction Design And Features iQ360XT General Safety Personal Protective Equipment General Safety Precautions Work Area Safety Machine Use And Care Electrical Requirements Symbols On The Machine Explanation Of Warning Levels Safety Messages Unpacking, Transport, & Assembling Setup, Adjustments, &... -
Page 4: Introduction
INTRODUCTION Dear Customer The Manufacturer’s Reservation We at IQ Power Tools™ want to congratulate you on Subsequent to publishing this manual, IQ Power Tools selecting the iQ360XT® Dust Control Chop Saw. We may issue additional information for safe operation of are certain that you will be pleased with your purchase. -
Page 5: General Safety
• Hair covering or devices to contain long hair qualified specialists. See instructions under the heading i.e.: Hair Ties For Guys Maintenance. Always use genuine accessories. Contact your dealer for more information. 888-274-7744 iQ360XT www.iqpowertools.com Operator’s Manual... -
Page 6: General Safety Precautions
If plunge function is used, place one hand on service agent or an experienced user. Do not attempt any the cutting handle. task or operation that makes you feel unsure whether or not it is safe. iQ360XT 888-274-7744 Operator’s Manual www.iqpowertools.com... - Page 7 DEPENDS ON PROPER VOLTAGE. EXTENSION CABLES THAT ARE TOO LONG AND/OR WHICH HAVE A GAGE THAT IS TOO SMALL, REDUCE POWER TO THE MOTOR UNDER LOAD, RESULTING IN REDUCED OUTPUT OR MALFUNCTIONS. 888-274-7744 iQ360XT www.iqpowertools.com Operator’s Manual...
-
Page 8: Symbols On The Machine
Do not force a tool or an attachment, to do a job that it COULD lead to DEATH or was not designed to do. SERIOUS INJURY. Not following instructions NEVER CUT MAGNESIUM WITH THIS TOOL CAN lead to injury. iQ360XT 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 9: Safety Messages
Check for broken parts and mountings and all other The iQ360XT® is very effective dust control saw but, conditions that may affect the operation if the power your risk from these exposures varies depending on tool. - Page 10 NOTE: Lock the Cutting Head in the DOWN position The iQ360XT® is designed to be carried by the handles at the front & back of the saw. Simply lock (1) the spring assisted Cutting Head in position (2), grasp the lower front and rear cross members (3,4).
-
Page 11: Setup, Adjustments & Operation
If an extension cord is used, first verify it meets the requirements of TABLE 1. DO NOT FORCE the blade to cut! It will do the job better and safer at the rate for which it was designed. 888-274-7744 iQ360XT www.iqpowertools.com Operator’s Manual... - Page 12 SETUP, ADJUSTMENTS & OPERATION CUTTING CAPACITY: REMOVAL AND INSTALLATION OF BLADE: The iQ360XT® provides a cutting capacity of pieces that 1. Push in blade lock button (L) and rotate wheel (J) by are 4.5” Height Maximum –12” Long Maximum. hand until blade lock button engages slot in inside flange (S) to lock blade.
-
Page 13: Maintenance
NOTE: Unit may be converted to a 3-wire twist lock cord set at an authorized service center. LUBRICATION: Closed –type, grease-sealed ball bearings are used throughout. These bearings have sufficient lubrication packed in them at the factory to last the life of the chop saw. 888-274-7744 iQ360XT www.iqpowertools.com Operator’s Manual... -
Page 14: Replacing The Carbon Brushes
Untighten carbon brush retainer cap with standard screwdriver. Install carbon brush making sure to align tabs into slots. Remove carbon brush retainer cap. Tighten carbon brush retainer cap to secure. Remove carbon brush. iQ360XT 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 15: Blades
TRANSPORT AND STORAGE • Remove the blade before transportation or storage of the machine. • Store the blade in a dry place. • Inspect new blades for transport or storage damage. 888-274-7744 iQ360XT www.iqpowertools.com Operator’s Manual... -
Page 16: Troubleshooting
TROUBLESHOOTING GUIDE BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS. MANY COMMON PROBLEMS CAN BE SOLVED EASILY BY UTILIZING THE CHART BELOW. FOR MORE SERIOUS OR PERSISTENT PROBLEMS, CONTACT IQ POWER TOOLS AT 1-(888)274-7744. TROUBLE! SAW WILL NOT START WHAT’S WRONG? WHAT TO DO 1. -
Page 17: Technical Data
TECHNICAL DATA SAW MOTOR IQ360XT, 115V POWER, HP / KW 1.75 / 1.4 VOLTAGE, V PHASES FREQUENCY, HZ 50 / 60 BLADE SPEED, RPM 3700 VACUUM MOTOR VOLTAGE FREQUENCY, HZ 50 / 60 POWER, HP / KW .80 / .60... - Page 18 The new iQ360XT® Dust Control Chop Saw sold Parts and labor needed to maintain products, by iQ Power Tools or an iQ authorized dealer is and the replacement of components due to normal warranted to be free from manufacturing defects wear and tear, are the purchaser’s responsibility...
- Page 19 NOTES 10.2 888-274-7744 iQ360XT www.iqpowertools.com Operator’s Manual...
- Page 20 888-274-7744 | WWW.IQPOWERTOOLS.COM...
