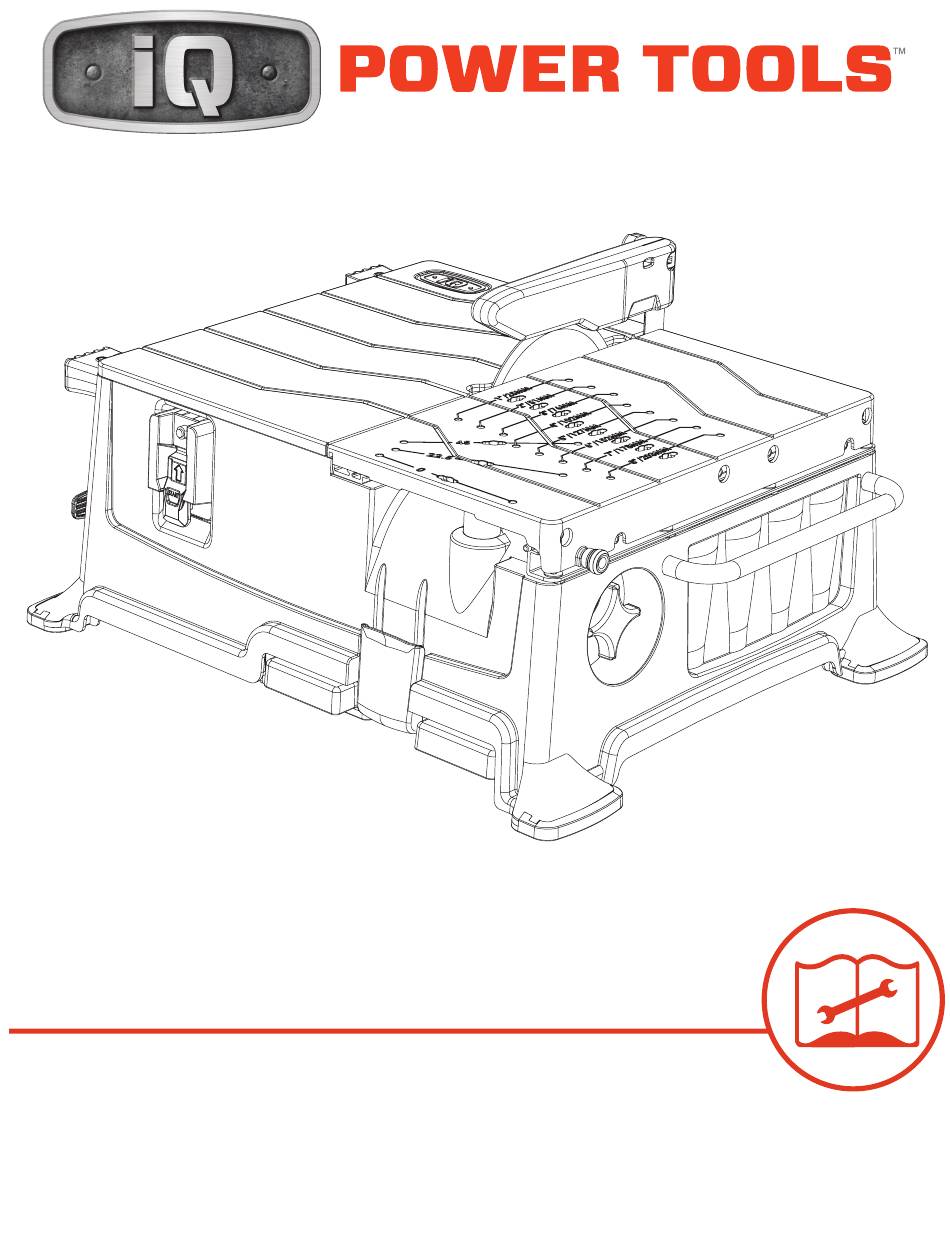

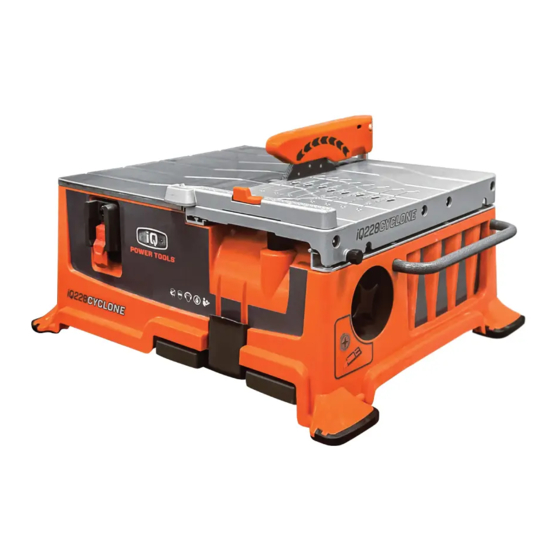

iQ228CYCLONE
7" Dry Cut Tabletop Tile Saw
Operator's Manual
Manuel de l'opérateur
Manual del operador
™
Please read the operator's manual carefully and make sure
you understand the instructions before using the machine.
Veuillez lire attentivement le manuel d'utilisation et
assurez-vous de bien comprendre les instructions avant
d'utiliser la machine.
Lea atentamente el manual del operador y asegúrese de
entender las instrucciones antes de utilizar la máquina.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IQ Power Tools iQ228CYCLONE
Summary of Contents for IQ Power Tools iQ228CYCLONE
- Page 1 ™ 7” Dry Cut Tabletop Tile Saw Operator’s Manual Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. Manuel de l’opérateur Veuillez lire attentivement le manuel d’utilisation et assurez-vous de bien comprendre les instructions avant d’utiliser la machine.
- Page 2 M-iQ228CYCLONE -CSA 092020...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Topic Section Key Symbols & Safety Rules Explanation Of Warning Levels Safety Rules Introduction Design And Features iQ228CYCLONE What Is What? Machine’s Safety Equipment Safety Personal Protective Equipment General Safety Precautions Electrical Safety Work Area Safety Machine Use And Care... -
Page 4: Key Symbols & Safety Rules
Turn off machine and unplug before y polvo de sílice, que el estado de California sabe que causan cáncer, defectos de nacimiento u otros daños irrecuperables. Para obtener más información, vaya a transportation. www. p65Warnings.ca.gov. iQ228CYCLONE 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 5: Safety Rules
Everyday eyeglasses only have impact resistant lenses, they 20. NEVER LEAVE TOOL RUNNING UNATTENDED are NOT safety glasses. TURN POWER OFF. Don’t leave tool until it comes to a complete stop. 888-274-7744 iQ228CYCLONE www.iqpowertools.com Operator’s Manual... -
Page 6: Introduction
INTRODUCTION Dear Customer The Manufacturer’s Reservation We at IQ Power Tools™ want to congratulate you on Subsequent to publishing this manual IQ Power Tools selecting the iQ228CYCLONE™ 7” Dry Cut Bench may issue additional information for safe operation of Top Tile Saw. We are certain that you will be pleased this product. -
Page 7: What Is What
11 - ON/OFF Switch 5 - Cyclones 12 - Cord Wrap 6 - Rolling Table Lock Pin 13 - AMP Overload Switch 7 - Filter Spin Knob 14 - Support Foot 15 - Cutting Wheel 888-274-7744 iQ228CYCLONE www.iqpowertools.com Operator’s Manual... - Page 8 1 - iQ Micro Fence 1.1 - Dial Knob 1.2 - Micro Fence Lever 1.3 - Micro Fence Lock Pin 2 - iQ Standard Fence 2.1 - Standard Fence Lever 2.2 - Standard Fence Lock Pin iQ228CYCLONE 888-274-7744 Operator’s Manual www.iqpowertools.com...
-
Page 9: Machine's Safety Equipment
The locking pin is used to lock the rolling table in neutral blade or cutting fragments from being thrown towards position. Be sure to lock rolling table before transit to the user. It also aids in capturing dust. avoid injury. 888-274-7744 iQ228CYCLONE www.iqpowertools.com Operator’s Manual... -
Page 10: Safety
• Protective gloves. qualified specialists. See instructions under the heading • Hair covering or devices to contain long hair, Maintenance. Always use genuine accessories. Contact i.e.: Hair Ties For Guys your dealer for more information. iQ228CYCLONE 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 11: Electrical Safety
• Prevent unintentional starting of the motor. Ensure the power switch is in the OFF- position before connecting the machine to a power source. 888-274-7744 iQ228CYCLONE www.iqpowertools.com Operator’s Manual... -
Page 12: Work Area Safety
Also learn to recognize the safety decals. • Keep handles dry, clean and free from oil and grease. • Do not overreach. Keep proper footing and balance at all times. • Never stand on the machine. iQ228CYCLONE 888-274-7744 Operator’s Manual www.iqpowertools.com... -
Page 13: Cutting Wheels
Q-Drive Arbor hole can be purchased from your local iQ choosing the right product. Power Tools dealer or directly from iQ Power Tools by calling 888-274-7744 or through our website at VIBRATIONS www.iqpowertools.com... -
Page 14: Assembling
Open the top of the box. Remove top layer of foam. blade sits on the Q drive properly. The iQ228CYCLONE Lift the iQ228CYCLONE saw out of the box and place must be used with the specially designed 7” dry cutting on a flat horizontal and stable surface (preferably a blade with Q-Drive Arbor hole. -
Page 15: Installing The Rolling Table
Riving Knife are aligned. Pull the lock pin and pull the rolling table back until the Then tighten the screws at the foot of the Riving Knife . lock pin engages with the lock hole. 888-274-7744 iQ228CYCLONE www.iqpowertools.com Operator’s Manual... -
Page 16: Operating
OPERATING Before starting The Tru-Cut™ System’s two fences, a standard fence and the iQ Micro Fence, come attached to your iQ228CYCLONE saw. WARNING! PLEASE READ THE OPERATOR’S MANUAL CAREFULLY AND MAKE SURE YOU UNDERSTAND THE INSTRUCTIONS BEFORE USING THE MACHINE Wear personal protective equipment. -
Page 17: Specialty Cuts
• Turn power switch to ON position. to be cut on material. • Hold the material firmly against the rolling table • Place the material on the table, firmly against fence and feed the material into the blade. 888-274-7744 iQ228CYCLONE www.iqpowertools.com Operator’s Manual... -
Page 18: Transport And Storage
Dust Collection System Maintenance FILTER SYSTEM WARNING! PLEASE READ THE OPERATOR’S Filter system of the iQ228CYCLONE™ is designed to MANUAL CAREFULLY AND MAKE function automatically with the tile saw. The system is SURE YOU UNDERSTAND THE INSTRUCTIONS BEFORE USING THE MACHINE designed to operate for the full work day or 200 lineal feet of cutting before cleaning filter or emptying dust tray. -
Page 19: Vacuum And Filter Maintenance
Take the new filter from the filter replacement package. Rotate the filter slightly so it can slide into the filter housing. Then align the screw on the top of the filter with the opening on the housing. 888-274-7744 iQ228CYCLONE www.iqpowertools.com Operator’s Manual... - Page 20 The carbon brushes must be removed and checked regularly. Monthly if the machine is used daily. These instructions apply to the saw motor and the vacuum motor. The two carbon brushes are located on the two opposite sides of the motor. iQ228CYCLONE 888-274-7744 Operator’s Manual www.iqpowertools.com...
-
Page 21: Troubleshooting
TROUBLESHOOTING GUIDE BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS MANY COMMON PROBLEMS CAN BE SOLVED EASILY BY UTILIZING THE CHART BELOW. FOR MORE SERIOUS OR PERSISTENT PROBLEMS, CONTACT IQ POWER TOOLS AT 1-(888)274-7744. TROUBLE! SAW WILL NOT START WHAT’S WRONG? WHAT TO DO 1. -
Page 22: Technical Data
TECHNICAL DATA iQ228CYCLONE™, 120V POWER, KW 1800 WATT VOLTAGE, V/AMP 120/15 PHASES FREQUENCY, HZ BLADE SPEED, RPM 6000 CUTTING EQUIPMENT CUTTING WHEEL SIZE - MAX, INCH/MM 7/180 SAW DEPTH - MAX, INCH/MM 1” CUTTING LENGTH - MAX, INCH/MM 18” ARBOR CONFIGURATION... - Page 23 New iQ228CYCLONE™ 7” Dry Cut Tabletop Tile Parts and labor needed to maintain products, Saw, sold by iQ Power Tools or an iQ authorized and the replacement of components due to normal dealer is warranted to be free from manufacturing wear and tear, are the purchaser’s responsibility...
- Page 24 888-274-7744 | WWW.IQPOWERTOOLS.COM...
