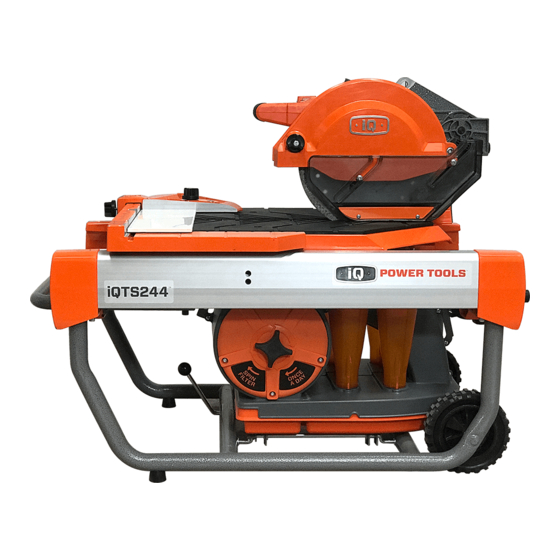

254mm tile saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

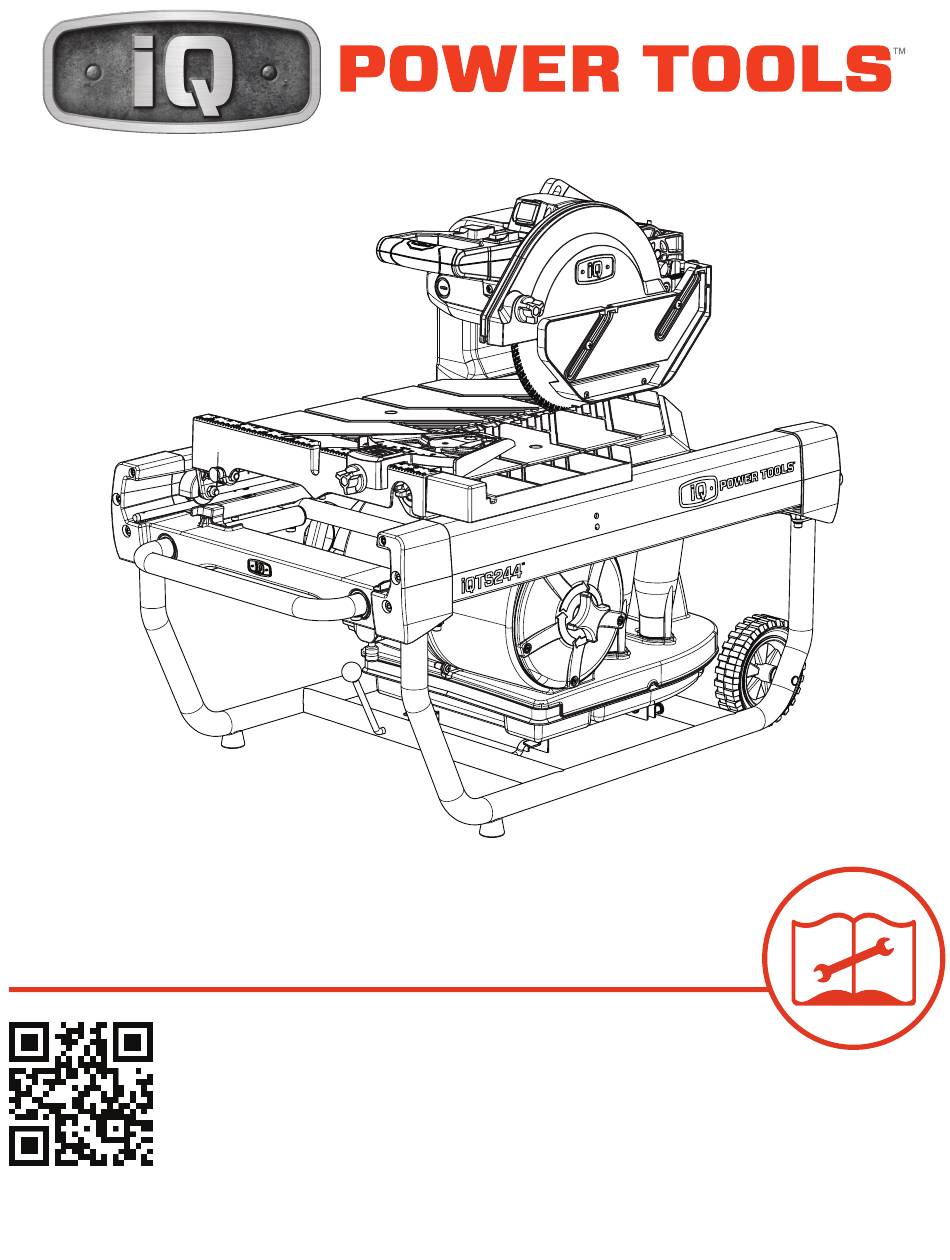

iQTS244-230V CE 254mm Tile Saw
Operator's Manual
Use QR Code to download the iQTS244
Operator's Manual in your language.
Please read the operator's manual
carefully and make sure you understand
the instructions before using the machine.
Utilisez le code QR pour télécharger le manuel
d'utilisation de l'iQTS244 dans votre langue.
Utilizzare il codice QR per scaricare il manuale
dell'operatore iQTS244 nella propria lingua
Gebruik de QR-code om de iQTS244
bedieningshandleiding in uw taal te downloaden
Brug QR-kode til at downloade
brugervejledningen til iQTS244 på dit sprog
Verwenden Sie den QR-Code, um das iQTS244-
Benutzerhandbuch in Ihrer Sprache herunterzuladen

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iQTS244-230V CE and is the answer not in the manual?

Questions and answers

Related Manuals for IQ Power Tools iQTS244-230V CE

Summary of Contents for IQ Power Tools iQTS244-230V CE

  • Page 1 CE 254mm Tile Saw Operator’s Manual Utilisez le code QR pour télécharger le manuel d’utilisation de l’iQTS244 dans votre langue. Utilizzare il codice QR per scaricare il manuale Use QR Code to download the iQTS244 dell’operatore iQTS244 nella propria lingua Operator’s Manual in your language.
  • Page 2 DECLARATION We declare in sole responsibility that the equipment ,Tile Saw (iQ TS244-CE) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC EMC Directive: 2014/30/EU Year of affixing CE marking: 2018 Signature: Name, Surname: Paul Guth Position/ Title: VP Product Development Date :10/01/2018 iQTS244...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Topic Section Key Symbols & Safety Rules Explanation Of Warning Levels Safety Rules Introduction Design And Features iQTS244 What Is What? Machine’s Safety Equipment Blades Blades For Different Materials Assembling Power Cable Selection And Assembly Mounting The Support Arm Connecting The Vacuum Motor Power Assembling The Table Extension Installing The Rolling Table...

  • Page 4: Key Symbols & Safety Rules

    KEY SYMBOLS & SAFETY RULES Explanation of Warning Levels Please read the operator’s The warnings are graded in three levels. manual carefully and make sure you understand the instructions before using the machine or performing any maintenance. Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.
  • Page 5 KEY SYMBOLS & SAFETY RULES Other symbols/decals on the Additional Safety Warnings machine refer to special certification Do not expose to rain. requirements for certain markets. Never cut without using the blade guard. Risk of injury due to accidental starting. Do not use in an area where children may be present.

  • Page 6: Safety Rules

    SAFETY RULES Safety Rules C) Do not expose power tool to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Warning: Read all safety warnings, instructions, illustrations and specification provided with this D) Do not abuse the cord. Never use the cord power tool.
  • Page 7 SAFETY RULES D) Remove any adjusting key or wrench before D) Store idle power tools out of the reach of children turning the power tool on. A wrench or a key left and do not allow persons unfamiliar with the power attached to a rotating part of the power tool may tool or these instructions to operate the power tool.

  • Page 8: Introduction

    INTRODUCTION Dear Customer The Manufacturer’s Reservation We at IQ Power Tools™ want to congratulate you on Subsequent to publishing this manual IQ Power Tools selecting the iQTS244™ Dust Control Tile Saw. We may issue additional information for safe operation of are certain that you will be pleased with your purchase.

  • Page 9: What Is What

    WHAT IS WHAT? Front 1 - Dust Tray Lift Lever 13 - Laser Switch 2 - Transport Handle Lock 14 - Blade Guard 3 - Transport Handle 15 - Dust Guard Retainer Knob 4 - Table Remove Lever 16 - Dust Guard 5 - Extension Table Lock Knob 17 - Extension Table 6 - Rolling Table Lock Knob...
  • Page 10 WHAT IS WHAT? Side Back and Side 23 - Vacuum Motor 31 - Power Cord 24 - Vacuum Motor Power Supply 32 - Power Cord Storage 25 - Vacuum Motor Power Cord 33 - 8mm Allen Wrench 26 - Support Arm 34 - Blade Wrench 27 - Lock Down Knob Back...

  • Page 11: Machine's Safety Equipment

    MACHINE’S SAFETY EQUIPMENT General SAW POWER SWITCH The power switch - / O should be used to start and stop This section describes the machine’s safety equipment, the machine. its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly. CHECKING THE SAW POWER SWITCH WARNING! NEVER USE A MACHINE THAT HAS...

  • Page 12: Blades

    Arbor hole can be purchased from your local Blade selection should be made according to the iQ Power Tools dealer or directly from iQ Power Tools material being cut ask your local dealer for help in by calling 888-274-7744 or through our website at choosing the right product.

  • Page 13: Assembling

    ASSEMBLING UN-BOXING AND ASSEMBLING Install power cable into support arm. Open the top of the box. Remove top layer of foam with parts and set aside. Remove main frame assembly and place on a flat horizontal and stable surface (preferably a workbench) to prevent the equipment from tipping or sliding during assembly.

  • Page 14: Mounting The Support Arm

    ASSEMBLING Install cable grip. MOUNTING THE SUPPORT ARM Remove the support arm/saw motor head from box and packaging. Install the support arm onto the left rear support arm mounting surface by lining up the pins. Install back cover plate. Install the (4) Allen screws. Tighten all 4 screws finger tight. Securely tighten the (4) Allen screws with supplied Allen wrench.

  • Page 15: Connecting The Vacuum Motor Power

    ASSEMBLING CONNECTING THE VACUUM MOTOR POWER ASSEMBLING THE TABLE EXTENSION The vacuum power supply cable from the support Remove the table extension from packaging. Insert the arm needs to be routed through the cable retainer. extension shafts into the right side of rolling table. Snap the cable retainer closed securing the cable.
  • Page 16 ASSEMBLING INSTALLING THE ROLLING TABLE WARNING! IF THE REMOVE TABLE LOCK Put the remove table lock lever in the down position. LEVER IS LEFT IN THE DOWN POSITION INADVERTENTLY THIS COULD CAUSE DAMAGE This allows the rolling table to be installed or removed. AND/OR INJURY Put the remove table lock lever in the up position.

  • Page 17: Blade Installation

    BLADE INSTALLATION INSTALLING THE BLADE Remove the blade shaft nut and outside flange washer. While pushing down on the cutting head handle loosen the depth adjustment knob and pull out on the lock down knob. Allow the cutting head to move to the full up position Note the Q-Drive shaped blade shaft.

  • Page 18: Dust Guard Installation

    DUST GUARD INSTALLATION Remove blade from packaging, remove bushing if INSTALLING THE DUST GUARD installed into Q-Drive Arbor hole. Install the blade lining Note: Blade should be installed before installing up the Q-Drive Arbor hole with the Q-Drive blade shaft. dust guard.

  • Page 19: Safety

    SAFETY General PERSONAL PROTECTIVE EQUIPMENT You must use approved personal protective equipment Do not use the machine unless you are able to call whenever you use the machine. Personal protective for help in the event of an accident. Always have a equipment cannot eliminate the risk of injury but it will first aid kit nearby.

  • Page 20: Electrical Safety

    SAFETY ALWAYS THINK ABOUT YOUR WORK ENVIRONMENT Do not modify the plug. If it will not fit the outlet have a AND USE COMMON SENSE. proper outlet installed by a qualified electrician. Make It is not possible to cover every conceivable situation sure local regulations and ordinances are followed.

  • Page 21: Work Area Safety

    SAFETY WORK AREA SAFETY MACHINE USE AND CARE • Keep work area clean and well lit. Cluttered or • This machine is designed and intended for dark areas invite accidents. cutting tile and stone. All other use is improper. • People and animals can distract you causing •...

  • Page 22: Starting And Stopping

    STARTING AND STOPPING Before starting Transport and storage TRANSPORT INSTRUCTIONS WARNING! PLEASE READ THE OPERATOR’S MANUAL CAREFULLY AND MAKE Make sure the table lock is secure before transporting saw. Failure to lock SURE YOU UNDERSTAND THE INSTRUCTIONS BEFORE table may cause the table to slide off the saw and cause serious injury. USING THE MACHINE 1.

  • Page 23: Operating

    RESULT IN THE ROLLING TABLE JAMMING AGAINST THE TOP SLOT AND CAUSING DAMAGE TO THE MACHINE. *Accessories can be purchased from your local iQ Power Tools dealer. Call 888-274-7744 or visit www.iqpowertools.com to find a dealer near you. 888-274-7744 iQTS244 www.iqpowertools.com...

  • Page 24: Vacuum And Filter Maintence

    VACUUM AND FILTER MAINTENANCE Rotate dust tray release lever to the left. FILTER SYSTEM Filter system of the IQTS244 is designed to function automatically with the tile saw. The vacuum motor automatically starts with the saw motor start. The system is designed to operate for the full work day or 152 meters of cutting before cleaning filter or emptying dust tray.

  • Page 25: Changing The Filter

    VACUUM AND FILTER MAINTENANCE WARNING! WARNING! MAKE SURE CUTTING BLADE WHILE DOING MAINTENANCE ON THIS COMES TO A COMPLETE STOP MACHINE THERE IS A POTENTIAL BEFORE PERFORMING ANY MAINTENANCE OR TRANSPORTING. EXPOSURE TO DUST WHICH MAY CONTAIN HAZARDOUS MATERIAL. PROTECT YOURSELF BY WEARING AN APPROPRIATE BREATHING MASK.

  • Page 26: Replacing The Carbon Brushes

    INSPECTING AND REPLACING THE CARBON BRUSHES Inspect carbon brush and replaced it necessary WARNING! MAKE SURE CUTTING BLADE COMES TO A COMPLETE STOP BEFORE PERFORMING ANY MAINTENANCE OR TRANSPORTING. The carbon brushes must be removed and checked regularly. Weekly if the machine is used daily. These instructions apply to the saw motor and the vacuum motor.

  • Page 27: Changing The Louvers

    CHANGING THE LOUVERS Periodically the plastic louvers will need to be changed. The plastic louvers are made up of three sections. The two front pieces are the same while the rear piece is different. DIFFERENT SAME REMOVING THE LOUVERS REPLACING THE LOUVERS To change the louvers, remove the table and set it on Start with the back plastic louver.

  • Page 28: Adjustments

    ADJUSTMENTS ADJUSTING THE TOP SLOT ADJUSTING THE ROLLING TABLE UPPER ROLLER Note: The top slot adjustments are set at the factory so adjustment will only need to be performed after extended use or after parts replacement. NOTICE! PROPER GAP BETWEEN THE TOP SLOT IN ROLLING TABLE LOUVERS IS CRITICAL TO MAINTAIN VACUUM AND GOOD DUST COLLECTION.
  • Page 29 ADJUSTMENTS VERSION 1 - WITH ADJUSTER CAM Lay a 90° Square flat on the rolling table surface Position the guide rail adjuster cam screws (Y) until with one side against the cutting fence (A). the blade is squared to the cutting fence (A) through the full motion of the rolling table front to back.
  • Page 30 INSTALLING THE X-STAND (optional accessory) Accessories can be purchased from your local Lower the transport handle by pulling transport iQ Power Tools dealer. Call 888-274-7744 or visit handle lock pin (A) then pushing down on transport our website at iqpowertools.com.

  • Page 31: X-Stand

    X-STAND REMOVING THE X-STAND Removing the optional X-Stand. With your right hand on transport handle (C) and left hand on cutting head handle (B) rotate the machine back. Note: Before lowering allow approximately 1.5m to behind the machine to rotate the machine down to the floor.
  • Page 32 X-STAND Raise the transport handle by pulling transport handle When X-Stand lock pin is released rotate up (A) then lift lock pin (A) then pulling up on transport handle (B) with left-hand (B) unhooking X-Stand from machine. With slight pressure against transport handle (A) with Machine can now be tipped forward onto the wheels tip of left foot pushed down on X-Stand lock pin knob for easy transport.

  • Page 33: Troubleshooting

    TROUBLESHOOTING GUIDE BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS MANY COMMON PROBLEMS CAN BE SOLVED EASILY BY UTILIZING THE CHART BELOW. FOR MORE SERIOUS OR PERSISTENT PROBLEMS, CONTACT IQ POWER TOOLS AT 1-(888)274-7744. TROUBLE! SAW WILL NOT START WHAT’S WRONG? WHAT TO DO 1.

  • Page 34: Technical Data

    TECHNICAL DATA SAW MOTOR IQTS244 POWER, WATTS 1640 VOLTAGE, V PHASES FREQUENCY, HZ 50/60 BLADE SPEED, RPM 4000 VACUUM MOTOR POWER, WATTS FREQUENCY, HZ 50/60 VOLTAGE dm^3/5 CUTTING EQUIPMENT BLADE SIZE - MAX, MM CUTTING DEPTH - MAX, MM CUTTING DEPTH AT 45° - MAX, MM CUTTING LENGTH - MAX, MM ARBOR CONFIGURATION Q-DRIVE...

  • Page 35: Wiring Diagram

    WIRING DIAGRAM 15.1 888-274-7744 iQTS244 www.iqpowertools.com Operator’s Manual...
  • Page 36 This Warranty shall not apply to any parts that have iQ Power Tools will pay for parts and labor in been subjected to misuse or improper service, connection with Warranty repairs conducted by damaged in transit or handling, altered or repaired iQ Power Tools or its authorized repair center.
  • Page 37 Operator’s Manual Utilisez le code QR pour télécharger le manuel d’utilisation de l’iQTS244 dans votre langue. Use QR Code to download the iQTS244 Utilizzare il codice QR per scaricare il manuale dell’operatore iQTS244 nella propria lingua. Operator’s Manual in your language. Please read the operator’s manual Gebruik de QR-code om de iQTS244 carefully and make sure you understand...
