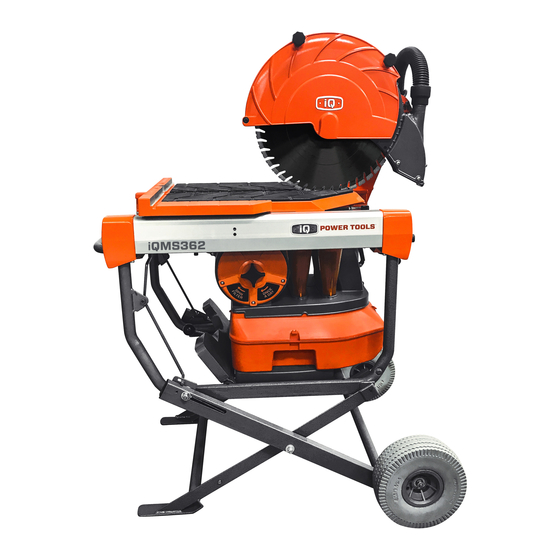

IQ Power Tools iQMS362-CE Operator's Manual

420mm masonry saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

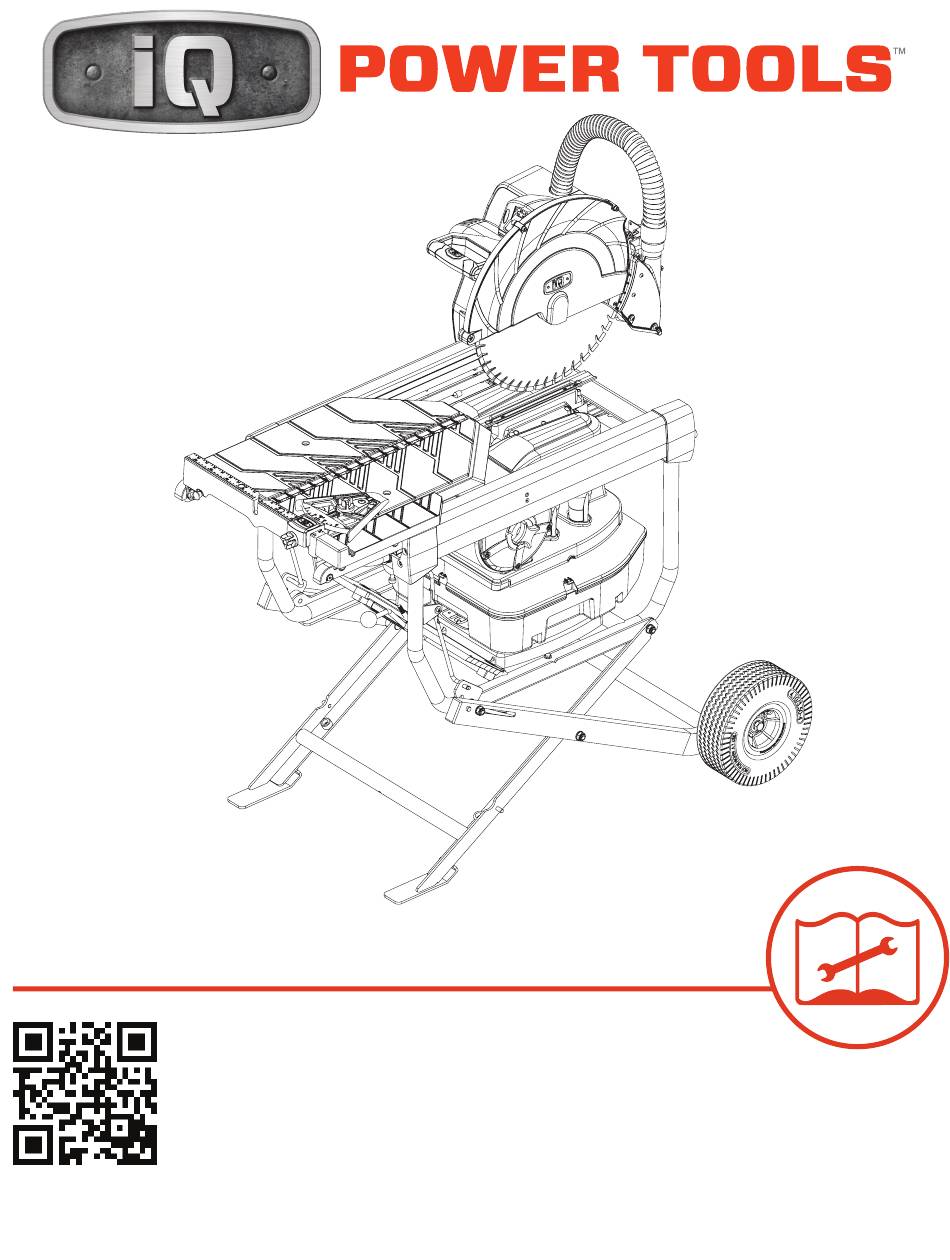

iQMS362-CE 420mm Masonry Saw
Operator's Manual
Use QR Code to download the iQMS362
Operator's Manual in your language.
Please read the operator's manual
carefully and make sure you understand
the instructions before using the machine.
Utilisez le code QR pour télécharger le manuel
d'utilisation de l'iQMS362 dans votre langue.
Utilizzare il codice QR per scaricare il manuale
dell'operatore iQMS362 nella propria lingua
Gebruik de QR-code om de iQMS362
bedieningshandleiding in uw taal te downloaden
Brug QR-kode til at downloade
brugervejledningen til iQMS362 på dit sprog
Verwenden Sie den QR-Code, um das iQMS362-
Benutzerhandbuch in Ihrer Sprache herunterzuladen

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iQMS362-CE and is the answer not in the manual?

Questions and answers

Related Manuals for IQ Power Tools iQMS362-CE

Summary of Contents for IQ Power Tools iQMS362-CE

  • Page 1 420mm Masonry Saw Operator’s Manual Utilisez le code QR pour télécharger le manuel d’utilisation de l’iQMS362 dans votre langue. Utilizzare il codice QR per scaricare il manuale Use QR Code to download the iQMS362 dell’operatore iQMS362 nella propria lingua Operator’s Manual in your language.
  • Page 2 DECLARATION We declare in sole responsibility that the Masonry Saw (iQ MS362-CE) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC and conforms to the following EN standard, EMC Directive: 2014 /30 / EU EN 12418:2000+A1:2009 EN ISO 12100:2010 Year of affixing CE marking: 2018 Signature:...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Topic Section Key Symbols Explanation Of Warning Levels Symbols on the Machine Safety Rules Introduction What Is What? Machine’s Safety Equipment Blades Assembling Tools Required Power Cable Assembly Power Cable Connection Mounting The X-Stand Installing The Wheels Mounting The Support Arm Attaching Dust Guard Vacuum Hose Connecting The Vacuum Motor Power...

  • Page 4: Key Symbols

    KEY SYMBOLS & SAFETY RULES Explanation of Warning Levels Please read the operator’s The warnings are graded in three levels. manual carefully and make sure you understand the instructions before using the machine or performing any maintenance. Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.
  • Page 5 KEY SYMBOLS & SAFETY RULES Other symbols/decals on the Additional Safety Warnings machine refer to special certification Do not expose to rain. requirements for certain markets. Never cut without using the blade guard. Risk of injury due to accidental every 30 minutes starting.

  • Page 6: Safety Rules

    SAFETY RULES Safety Rules D) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges Warning: Read all safety warnings, instructions, or moving parts. Damages or entangled cords illustrations and specification provided with this increase the risk of electric shock.
  • Page 7 SAFETY RULES E) Do not overreach. Keep proper footing and D) Store idle power tools out of the reach of children balance at all times. This enables better control of and do not allow persons unfamiliar with the power the power tool in unexpected situations. tool or these instructions to operate the power tool.

  • Page 8: Introduction

    Power Tools’ products. Safe operation of Email: customer.service@iqpowertools.com this product requires the operator to read this manual carefully. Ask your dealer or iQ Power Tools should you It is our wish that you will be satisfied with your product need more information.

  • Page 9: What Is What

    WHAT IS WHAT? Front-side 5 - Rolling Table 9 - Blade 1 - Dust Tray Lift Lever 6 - Handle 10 - Filter Spin Knob 2 - Transport Handle Lock 7 - Blade Guard 11 - Filter Cover 3 - Cutting Guide 8 - Dust Guard 12 - X-Stand 4 - Rolling Table Lock Knob...
  • Page 10 WHAT IS WHAT? Backside 13 - Dust Tray 18 - Power Switch 14 - Vacuum Motor 19 - Extension Table 15 - Wheels 20 - X-Stand Lock Release Trigger 16 - Support Arm 21 - Transport Handle 17 - Lock Down Knob 22.
  • Page 11 WHAT IS WHAT? Front Back 23 - Transport Handle 27 - Extension Table Lock Knob 24 - Blade Lock Button 28 - Table Lock Lever 25 - Handle 29 - Cyclones 26 - Power Switch 30 - Top Slot 31 - Blade/Assembly Wrench 888-274-7744 iQMS362 CE www.iqpowertools.com...

  • Page 12: Machine's Safety Equipment

    MACHINE’S SAFETY EQUIPMENT General MACHINE POWER SWITCH To start the machine press the green button (A) on the This section describes the machine’s safety equipment, switch. NOTE: Machine is protected by the GFI switch its purpose, and how checks and maintenance should be reset button (D).

  • Page 13: Blades

    Q-Drive Arbor hole can be purchased from your Machines are designed for use with rotating diamond local iQ Power Tools dealer or directly from iQ Power cutting-off wheel with a continuous rim and/or Tools by calling 888-274-7744, or through our segmented rim.

  • Page 14: Assembling

    ASSEMBLING TOOLS REQUIRED FOR ASSEMBLY (A) 19mm Wrench (C) Phillip Screwdriver (B) iQ Blade Wrench (Included) (D) 19mm Socket Ratchet iQMS362 CE 888-274-7744 Operator’s Manual www.iqpowertools.com...

  • Page 15: Power Cable Connection

    ASSEMBLING Assembling your iQMS362™ POWER CABLE CONNECTION Connect your chosen power cable (A) to the universal adapter (B). POWER CABLE SELECTION AND ASSEMBLY This power tool is supplied with 3 different power cables to select from. Choose the power cable that meet your requirement.

  • Page 16: Mounting The X-Stand

    ASSEMBLING MOUNTING THE X-STAND Insert linkage rod into X-Stand latch/lock slot Remove screw from frame (A) on each side. on each side. INSTALLING THE WHEELS Position frame tube to align with V-Notch. Install (4) Insert 1/2 inch bolt into wheel, then insert into wheel mounting screws, (2) on each side.

  • Page 17: Mounting The Support Arm

    ASSEMBLING MOUNTING THE SUPPORT ARM ATTACH DUST GUARD VACUUM HOSE Remove the support arm/saw motor head from box Slip lower vacuum hose onto cyclone inlet. and packaging. Install the support arm onto the left rear support arm mounting surface by lining up the pins. Slip upper vacuum hose onto dust guard inlet.

  • Page 18: Connecting The Vacuum Motor Power

    ASSEMBLING MOUNT THE ON/OFF SWITCH BOX CONNECTING THE VACUUM MOTOR POWER Mount the On/Off box in the area in front of the vacuum The vacuum power supply cable from the support below the iQMS362 label. arm needs to be routed through the cable retainer. Secure the On/Off box by installing the front retaining Snap the cable retainer closed securing the cable.

  • Page 19: Assembling The Table Extension

    ASSEMBLING INSTALL TRANSPORT HANDLE ASSEMBLING THE TABLE EXTENSION Insert transport handle with holes down into a front Remove the table extension from packaging. Insert the cross frame as shown. extension shafts into the right side of rolling table. With a Phillips screwdriver, install screws in each end of extension shaft to secure.
  • Page 20 ASSEMBLING WARNING! IF THE REMOVE TABLE LOCK LEVER IS LEFT IN THE DOWN POSITION INADVERTENTLY THIS COULD CAUSE DAMAGE AND/OR INJURY Holding the table in front of you, on the left side of the table line is the 1st notch wheel roller with the guide rail. Push the table along the guide rail until the 2nd and 3rd notch wheel rollers are on the guide rail.

  • Page 21: Blade Installation

    BLADE INSTALLATION INSTALLING THE BLADE Open outside blade guard by tilting, exposing blade shaft While pushing down on the cutting head handle, pull out nut and flange washer. on the lock down knob. Allow the cutting head to move to the full up position.
  • Page 22 BLADE INSTALLATION Insert blade into dust guard and line up Q arbor hole. Tighten blade screw. Secure guard to avoid interlock switch from being Press blade lock. false triggered and shut down the machine. iQMS362 CE 888-274-7744 Operator’s Manual www.iqpowertools.com...

  • Page 23: Safety

    SAFETY General PERSONAL PROTECTIVE EQUIPMENT You must use approved personal protective equipment Do not use the machine unless you are able to call whenever you use the machine. Personal protective for help in the event of an accident. Always have a equipment cannot eliminate the risk of injury but it will first aid kit nearby.

  • Page 24: Electrical Safety

    SAFETY ALWAYS THINK ABOUT YOUR WORK ENVIRONMENT Do not modify the plug. If it will not fit the outlet have a AND USE COMMON SENSE. proper outlet installed by a qualified electrician. Make It is not possible to cover every conceivable situation sure local regulations and ordinances are followed.

  • Page 25: Personal Safety

    SAFETY WORK AREA SAFETY MACHINE USE AND CARE • Keep work area clean and well lit. Cluttered or • This machine is designed and intended for dark areas invite accidents. cutting concrete and stone. All other • People and animals can distract you causing use is improper.

  • Page 26: Operating

    OPERATING Before starting TYPICAL CUTTING OPERATION The cutting head should be left in the lock down position for typical cutting. WARNING! PLEASE READ THE OPERATOR’S MANUAL CAREFULLY AND MAKE WARNING! OPERATING THE MACHINE SURE YOU UNDERSTAND THE INSTRUCTIONS BEFORE IN SITUATIONS WHERE DUST USING THE MACHINE COLLECTION IS LIMITED FOR PROLONGED PERIODS CAN CREATE DUSTY AND POTENTIALLY HAZARDOUS WORK...

  • Page 27: Vacuum And Filter Maintenance

    VACUUM AND FILTER MAINTENANCE CLEANING THE FILTER AND EMPTYING DUST TRAY DAILY MAINTENANCE Spin filter three times every 30 minutes of cutting or • Check that the machine’s safety equipment is at the end of each day. Spin filter before emptying dust undamaged.

  • Page 28: Changing The Filter

    VACUUM AND FILTER MAINTENANCE WARNING! WARNING! MAKE SURE CUTTING BLADE WHILE DOING MAINTENANCE ON THIS COMES TO A COMPLETE STOP MACHINE THERE IS A POTENTIAL BEFORE PERFORMING ANY MAINTENANCE OR TRANSPORTING. EXPOSURE TO DUST WHICH MAY CONTAIN HAZARDOUS MATERIAL. PROTECT YOURSELF BY WEARING AN APPROPRIATE BREATHING MASK.

  • Page 29: Replacing The Carbon Brushes

    INSPECTING AND REPLACING THE CARBON BRUSHES Inspect carbon brush and replaced it necessary. WARNING! MAKE SURE CUTTING BLADE COMES TO A COMPLETE STOP BEFORE PERFORMING ANY MAINTENANCE OR TRANSPORTING. REPLACING CARBON BRUSHES The carbon brushes must be removed and checked regularly.

  • Page 30: Changing The Louvers

    CHANGING THE LOUVERS Periodically the plastic louvers will need to be changed. The plastic louvers are made up of three sections. The two front pieces are the same while the rear piece is different. DIFFERENT SAME REMOVING THE LOUVERS REPLACING THE LOUVERS To change the louvers, remove the table and set it on Start with the back plastic louver.

  • Page 31: Adjustments

    ADJUSTMENTS ADJUSTING THE TOP SLOT ADJUSTING THE ROLLING TABLE UPPER ROLLER Note: The top slot adjustments are set at the factory so adjustment will only need to be performed after extended use or after parts replacement. NOTICE! PROPER GAP BETWEEN THE TOP SLOT IN ROLLING TABLE LOUVERS IS CRITICAL TO MAINTAIN VACUUM AND GOOD DUST COLLECTION.
  • Page 32 ADJUSTMENTS VERSION 1 - WITH ADJUSTER CAM Lay a 90° Square flat on the rolling table surface Position the guide rail adjuster cam screws (Y) until with one side against the cutting fence (A). the blade is squared to the cutting fence (A) through the full motion of the rolling table front to back.

  • Page 33: X-Stand

    X-STAND TO RAISE X-STAND TO LOWER X-STAND To release X-Stand, slide handle right and pull in. To release X-Stand, slide handle right and pull in. To raise X-Stand, step down on lever (A), press X-Stand To lower X-Stand, press X-Stand release trigger and release trigger and lift.

  • Page 34: Transporting

    TRANSPORTING Transportation CAUTION! THE LOCK CATCH MUST CLICK IN PLACE WHEN IN THE LOCKED UP POSITION & LOCKED DOWN POSITION. TRANSPORT INSTRUCTIONS Make sure the table lock is secure before transporting saw. Failure to lock table may cause the table to slide off the saw and cause serious injury. 1.

  • Page 35: Storage

    TRANSPORTING Storage TRANSPORTING To extend transport handle pull lock pin (A) and pull WARNING! handle out. THE IQMS362 IS A PRECISION CUTTING TOOL. PROPER CARE DURING TRANSPORT AND STORAGE IS IMPORTANT TO MAINTAIN FACTORY SETTINGS AND CUTTING PERFORMANCE. Recommended Storage Position: Machine can now be tipped forward onto the wheels for Do not transport or store in vertical position.

  • Page 36: Troubleshooting

    TROUBLESHOOTING GUIDE BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS. MANY COMMON PROBLEMS CAN BE SOLVED EASILY BY UTILIZING THE CHART BELOW. FOR MORE SERIOUS OR PERSISTENT PROBLEMS, CONTACT IQ POWER TOOLS AT 1-(888)274-7744. TROUBLE! SAW WILL NOT START WHAT’S WRONG? WHAT TO DO 1.

  • Page 37: Technical Data

    TECHNICAL DATA SAW MOTOR IQMS362 POWER, W 1800 VOLTAGE, V 230V PHASES FREQUENCY, HZ 50 / 60 BLADE SPEED, RPM 3700 VACUUM MOTOR POWER, W FREQUENCY, HZ 50 / 60 VOLTAGE 230V dm^3/s CUTTING EQUIPMENT BLADE SIZE - MAX, MM SAW DEPTH - MAX, MM CUTTING LENGTH - MAX, MM ARBOR CONFIGURATION...

  • Page 38: Wiring Diagram

    WIRING DIAGRAM 17.1 iQMS362 CE 888-274-7744 Operator’s Manual www.iqpowertools.com...
  • Page 39 WARRANTY New iQMS362™ Dry Cut Masonry Saw, sold Parts and labor needed to maintain products, by iQ Power Tools or an iQ authorized dealer is and the replacement of components due to normal warranted to be free from manufacturing defects wear and tear, are the purchaser’s responsibility...
  • Page 40 888-274-7744 | WWW.IQPOWERTOOLS.COM...
